Versatile DMX Winch for lifting either a single piece of heavy electrical equipment or a stage prop from three lifting points for maximum stability.
All versions have zero fleet angle, can lift up to 50 kg and can be customized to fit your project.
| Fleet angle: | None |
| Lifting capacity: | 50 kg (110.2 lb) |
| Lifting height (Wire version): | 9,7 m (31.8 ft) |
| Lifting height (Power version): | 4 m (13.1 ft) |
| Lifting speed: | 1-45 cm/s (0.4-17.7 in/s) |
Description
The most versatile Winch among all Wahlberg Winches with its many variations.
Simply choose the version that fits your specific needs for your next project.
The heavy duty Winch 50 Pilewind comes in four versions:

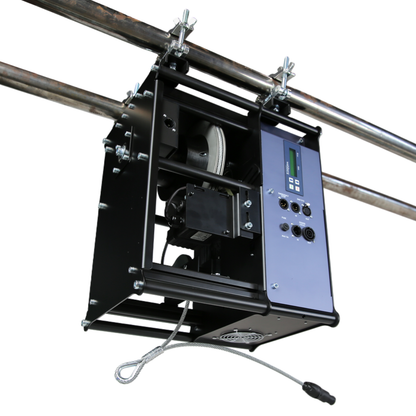

- 4M Power Lifting Wire (2300W/10A w. 3 conductors)

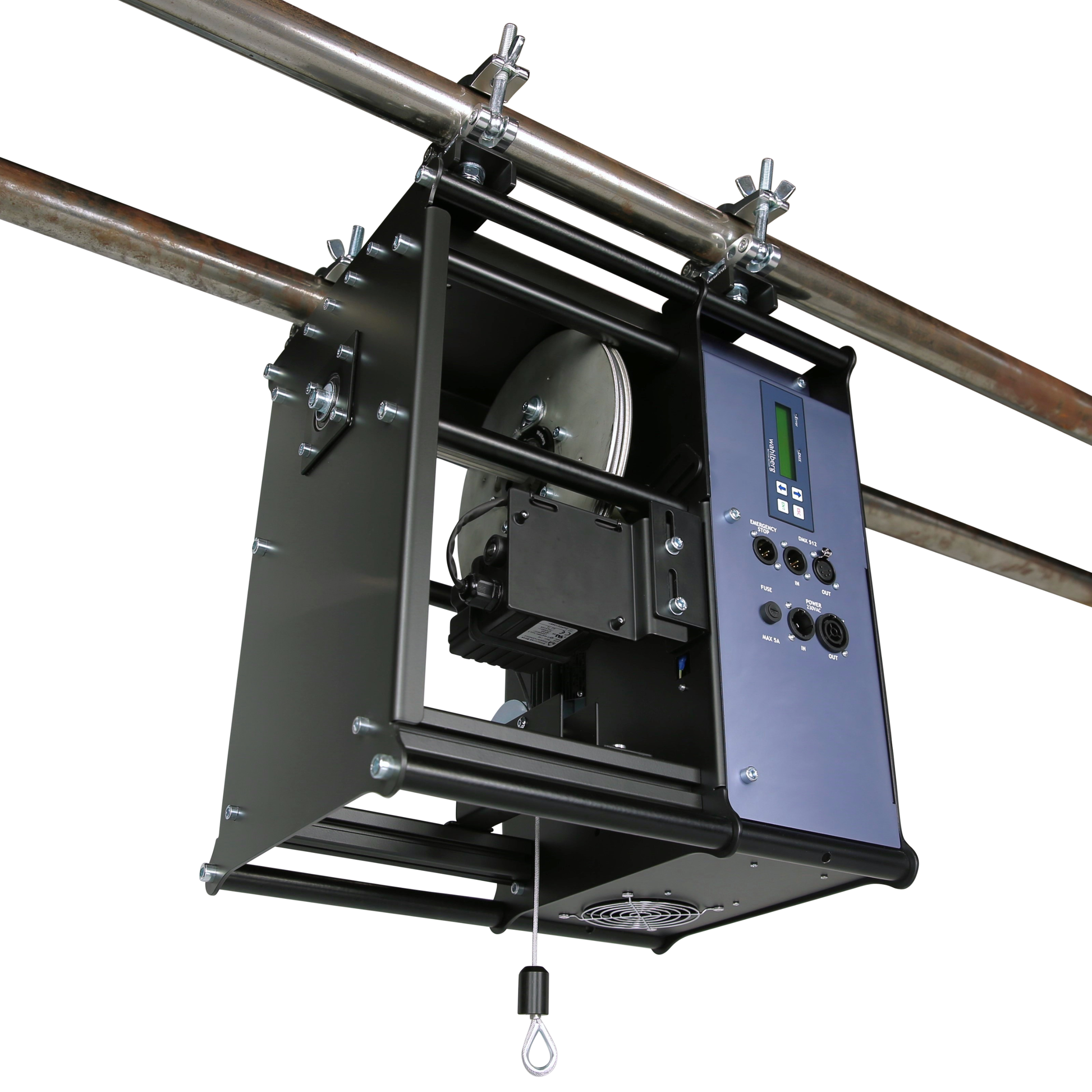

- 10M Lifting Wire

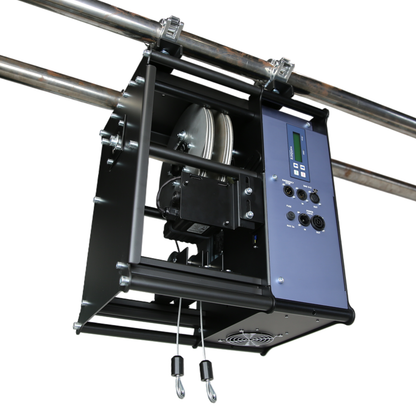

- 2X10M Lifting Wire

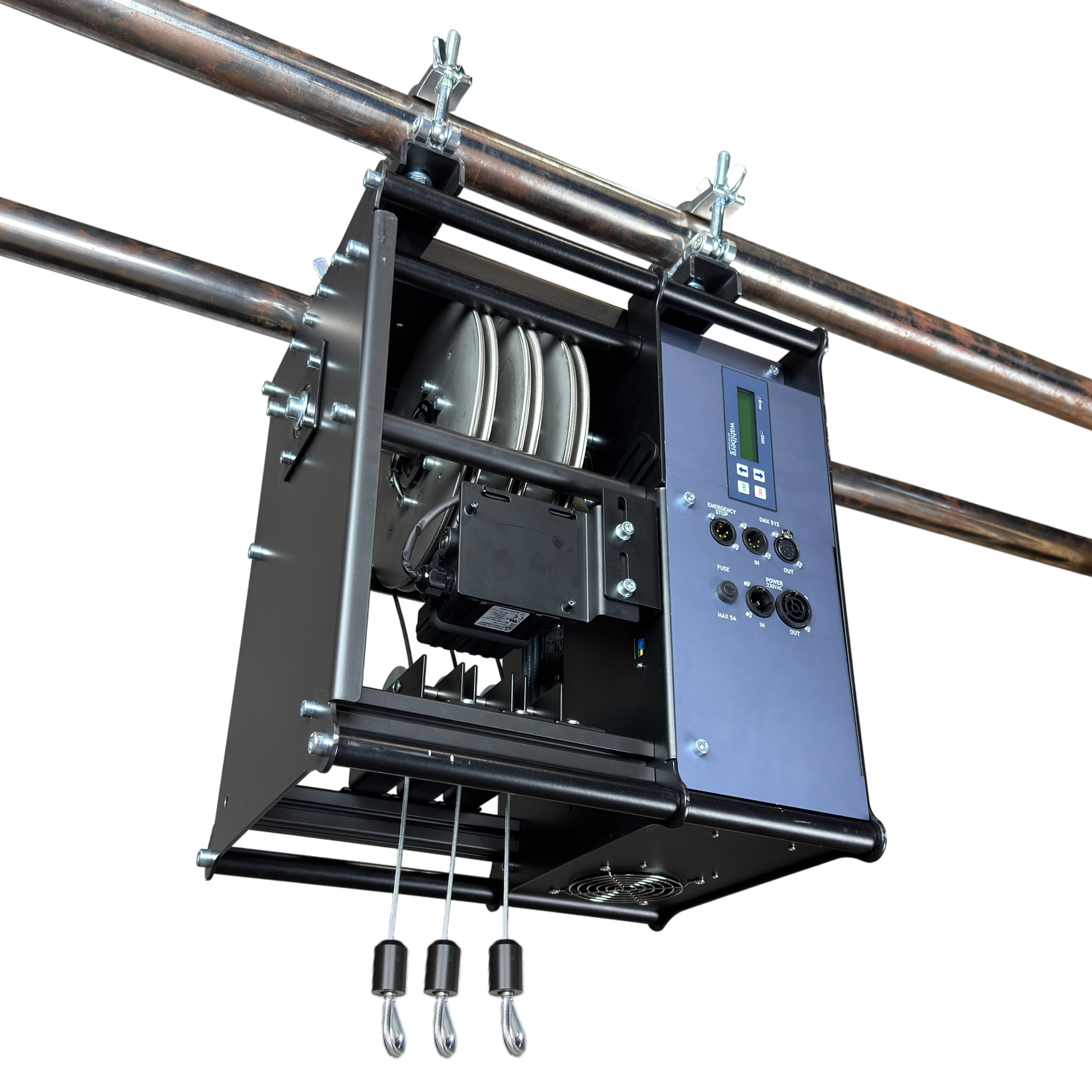

- 3X10M Lifting Wire
All versions have zero fleet angle, which makes them optimal for projects where the lifting wire must always stay in the exact same place.
The Winch 50 Pilewind is fully controllable directly from the lighting desk, allowing motion to be precisely synchronized with the show and lighting design. Advanced 16-bit DMX positioning ensures exceptional accuracy, stopping within just 1 mm.
Speed, upper limits, and lower limits can all be adjusted via DMX, making it easy to tailor the Winch’s range of motion to your specific stage requirements. Positions and limits are quick to set, and complex motion cues can be programmed, recalled, and automated directly from the lighting desk.
Multiple Winches can be linked together in a chain, enabling advanced and creative movement of several objects simultaneously; all seamlessly integrated into your existing stage setup.
All versions of the Winch 50 Pilewind can by default be mounted upright directly onto standard truss with the included slim couplers. They can also be mounted sideways with the Winch 50 Pilewind Mounting Bracket and combined with Pulley Wheels, to hide the Winch backstage.
Customize the Lifting Wires to fit your Stage Design.
The length of all the wires can easily be customized, if you need different travel distances between the objects being lifted and the Winch through Pulley Wheels as seen in the illustration below.
The travel distance on the wire versions is 10m per wire (4m for Power version) from the top limit to the bottom limit. If you need additional wire to create the setup below, please measure the H1 and the V1 and add them together. Do the same with H2+V2 and H3+V3, if you need a triple wire setup. Make sure the angle from the Winch to the Pulley Wheel is not greater than 3 degrees. Then simply contact us at sales@wahlberg.dk and we will make a custom Winch 50 Pilewind for your exact needs.
Power Lifting Wire setup for lifting heavy electrical equipment.
The Power Lifting Wire version is perfect as a Chandelier Winch or for hoisting other heavy electrical stage props such as light fixtures or turning mirror balls, creating a vertical floating effect. The travel distance from top limit to the bottom limit is 4m on the power version. If you need extra Power Lifting Wire to create the setup below, then please measure the V Length and contact us at sales@wahlberg.dk and we will make it happen.
The content of the Winch 50 Pilewind package
1 x Winch 50 Pilewind
4 x Manfrotto Slim coupler
1 x PowerCON NAC3FX-W female plug for power cable
1 x User manual
1 x Cheat sheet
Spare parts
We offer spare parts for all our products. You can usually find the item numbers of the needed part in the Exploded View in the Downloads section of a product. If you can't find what you need then don't hesitate to reach out to sales@wahlberg.dk with a photo of the broken part.

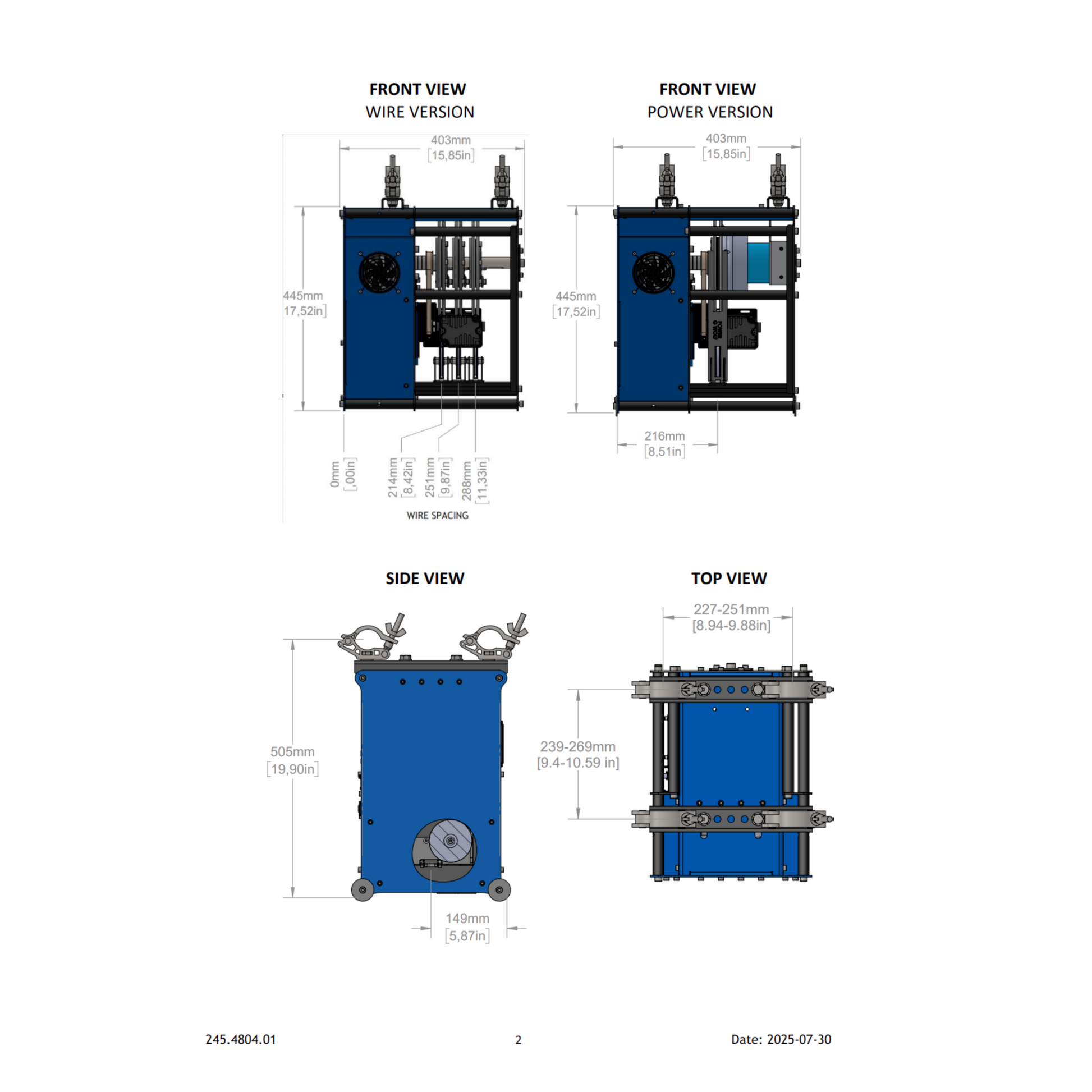

Specifications
| Item number | 245.4 |
|---|---|
| Dimensions | 397 x 298 x 445 mm (15.6 x 11.7 x 17.5 in) without brackets etc. |
| Power supply | 208-240 VAC 50/60Hz |
| Power consumption | 825 W (4,0-3,5A) |
| Power in/out | Neutrik powerCON TRUE1 NAC3PX-TOP (M/F) |
| DMX control signal | DMX 512 / 6 channels used |
| DMX in/out | 5 pole XLR (M/F) |
| Through connections (Power version only): | |
| Input | Neutrik powerCON TRUE1 (M) & EtherCON |
| Output | Neutrik powerCON TRUE1 (F) & EtherCON |
| Power | 16A/240VAC or DC 3x1.5mm2 (AWG16) |
| Lifting capacity | 50 kg (110.2 lb) |
| Lifting height: | |
| Wire version | 9,7 m (31.8 ft) |
| Power version | 4 m (13.1 ft) |
| Lifting speed | Variable 1-45 cm/s (0.4-17.7 in/s) |
| Duty cycle | 30% when running more than 10 min. |
| Fleet angle | None |
| Noise emission | ≈50 dB @1m (3.3 ft) |
| Ambient temperature | 5-40°C |
| Weight: | |
| Wire verison | 40 kg (88,2 lb) |
| Power version | 38 kg (83,8 lb) |
| Mounting clamp | 4x Slim eye coupler 42-52mm (2 in) |
| Motor | 230VAC, 0.55 kW |
| Lifting wire specifications: | |
| Power Lifting wire | 6,5 mm (1/4 in) 8x17 galv. steel wire (EN 12385-4) 3 x 2300W/10A power conductors |
| Minimum breaking load | 2.230 kg (21869 N / 4,916 lb), SF > 10 |
| Lifting wire | 3 mm (1/8 in) 19x7 galv. steel wire (EN 12385-4) |
| Minimum breaking load | 588 kg (5766 N / 1,296 lb), SF > 10 |
