Pulley Wheel
Pulley Wheel
Regular price
€100,00
Regular price
Sale price
€100,00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
The Pulley Wheel can be used to redirect the pulling angle of all our winches except Winch 50 Double Cable + Power and Cat5.
| Maximum Load: | 100 KG (220 Ib) |
| Maximum cable diameter: | Ø 5 mm (13/64 in) |

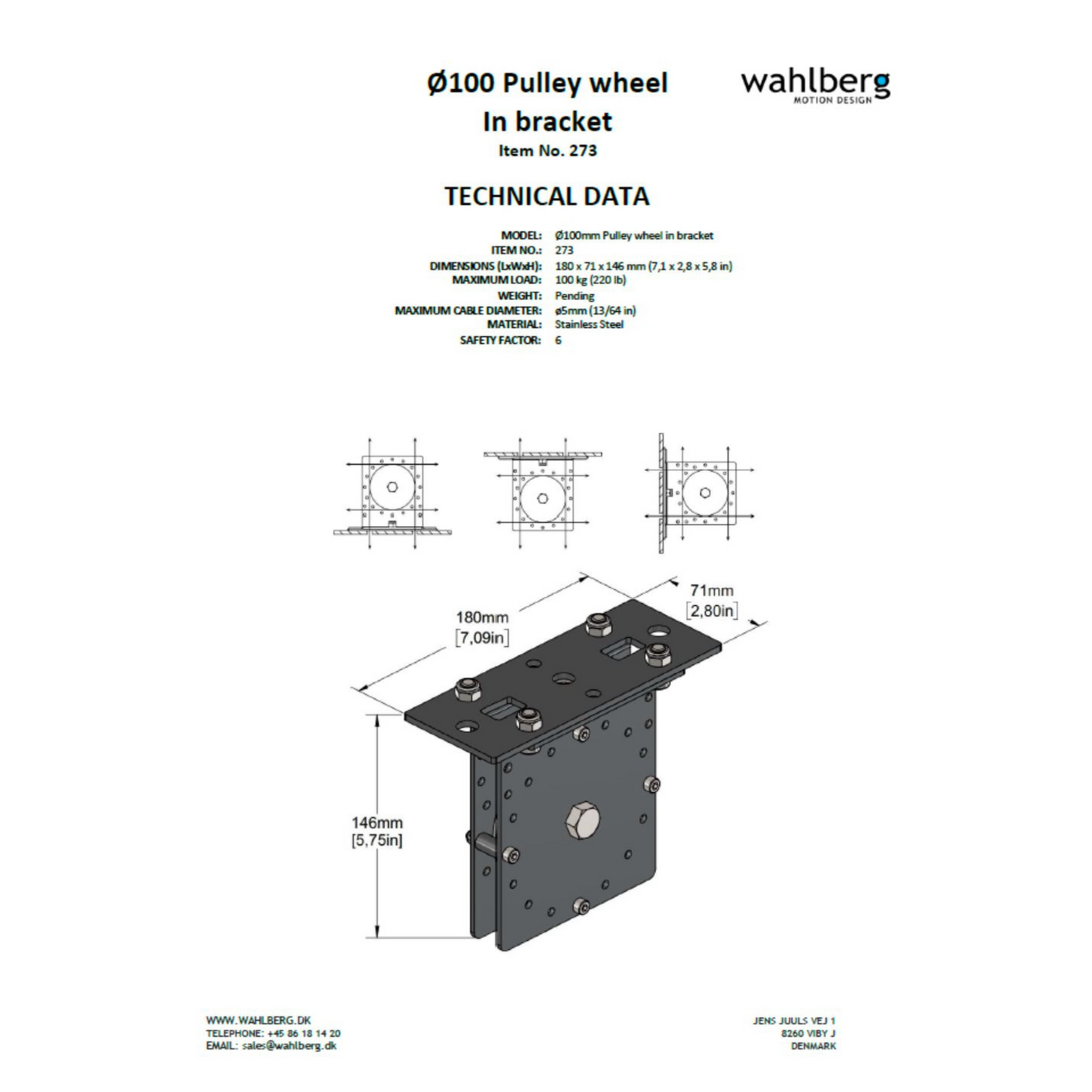

Specifications
| Item No | .273 |
|---|---|
| Model | Ø100 mm Pulley Wheel in Bracket |

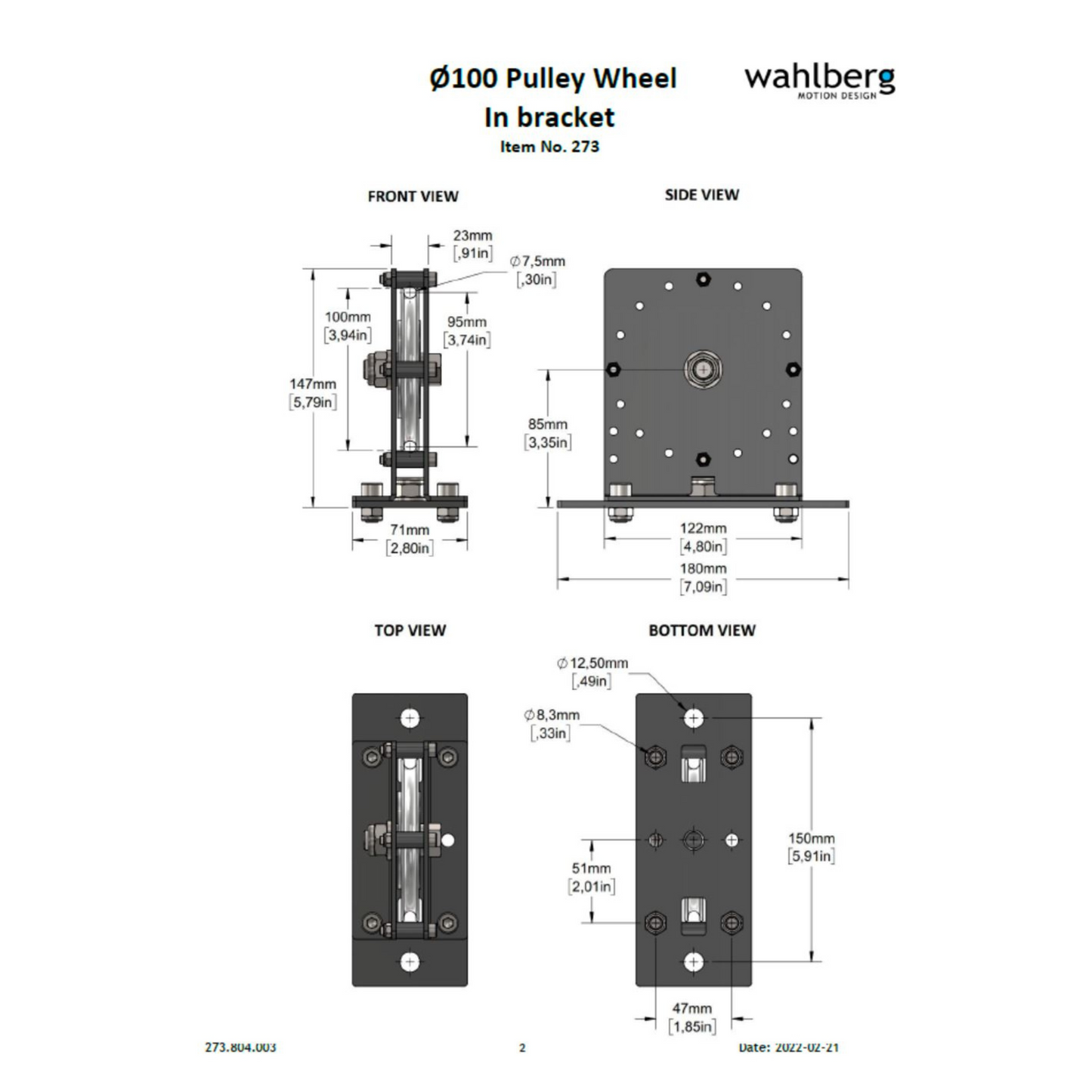

| Dimensions ( L x W x H ) | 180 x 71 x 146 mm ( 7,1 x 2,8 x 5,8 in ) |
| Maximum Load | 100 KG ( 220 Ib ) |
| Weight | 2 kg ( 4,40 Ib ) |
| Maximum cable diameter | Ø 5 mm ( 13/64 in ) |
| Material | Stainless steel |
| Safety factor | 6 |
