Winch 25 Double
Winch 25 Double
Couldn't load pickup availability
Designed for extra stability with two wires for lifting equipment up to 25 kg.
| Lifting capacity: | 25 kg (55.1 lb) |
| Lifting height: | 10,5 m (34.4 ft) |
| Lifting speed: | 3-60 cm/s (1.2-23.6 in/s) |
| Power output: | 5A/42,4VAC or 60VDC |

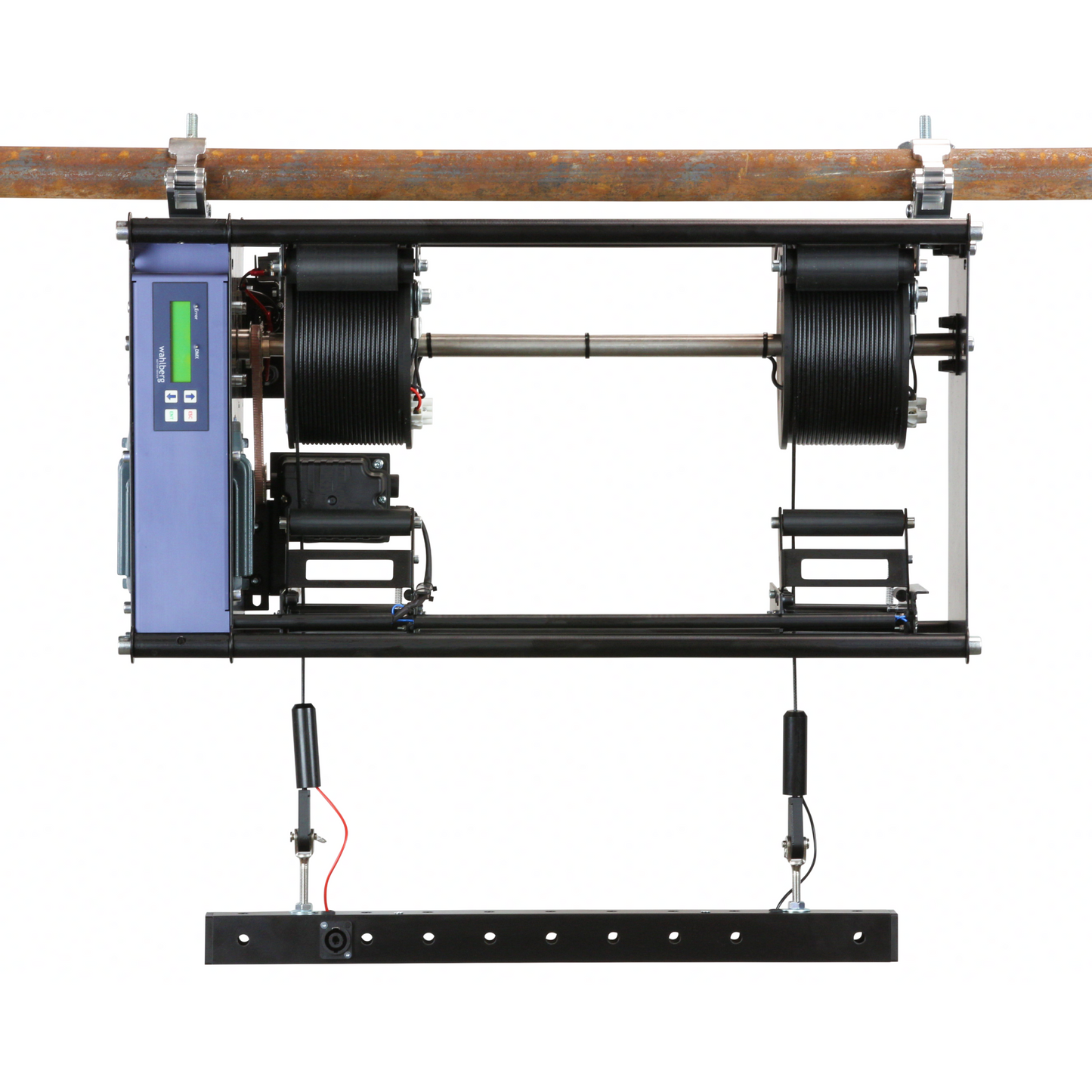

The Winch 25 Double makes parallel lifting easy. The two drums on the same axle ensure that both wires operate at the exact same speed, providing synchronized lifting.
This system also allows for powering equipment via the separately powered lifting wires, delivering 42,4 V at 5 amps to the suspended unit. It's ideal for lifting heavier electrical stage equipment up to 25 kg, such as lamps, lasers, and chandeliers.
Description

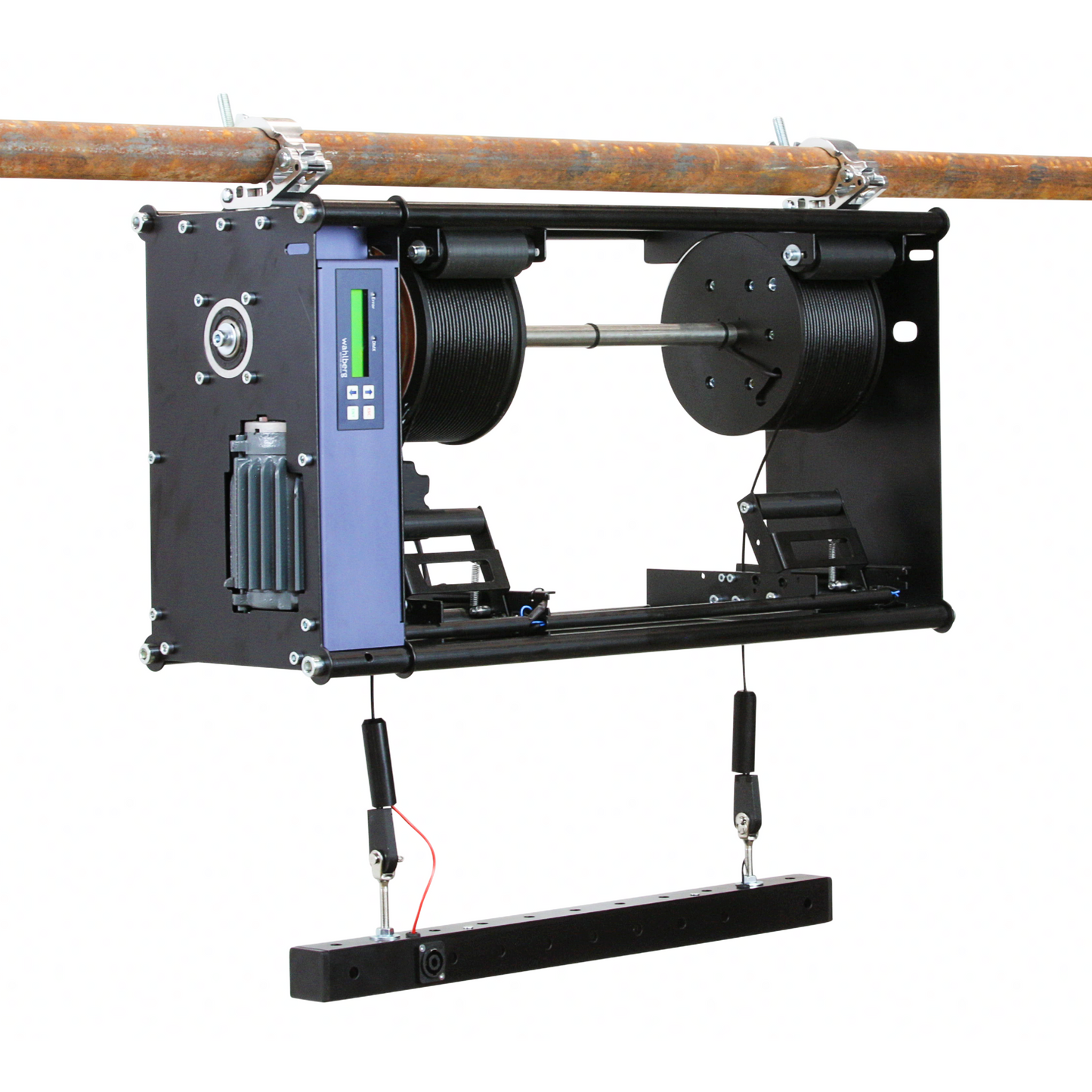

The Winch 25 Double is perfect for creating dynamic effects with your scenic elements. The dual wires provide stability, preventing the equipment from spinning while being lifted.
This winch allows your equipment to appear and disappear seamlessly in and out of the stage area, with all movements automated via DMX control from the lighting desk, eliminating the need for manual handling.
Winch 25 Double - Dual Wire Winch for Enhanced Stability
The Winch 25 Double offers versatile solutions for both lighting and stage design, thanks to its flexible installation and mounting options. This winch allows you to expand your stage design with DMX-automated vertical movements of stage props.
The Winch 25 Double features two active lift lines that ensure equipment remains stable and in a fixed position, eliminating any potential for rotation or sway during motion. This dual-wire design provides an added advantage: the spacing between the drums can be adjusted. This feature is particularly useful when dealing with wide equipment, as the increased space between the wires helps maintain stability during lifting.
Similar to other Wahlberg DMX Winches, the Winch 25 Double is compact enough to fit seamlessly into a grid. It can be easily attached to small trusses or mounted at ceiling points without compromising lifting capacity. This winch is particularly suitable for heavier fabric rigging or for lifting scenic elements like chandeliers, mirrors, and window units.
With DMX control and a built-in positioning system, you have complete control over the winch's positions and speed from the lighting desk. This allows for precise adjustments to the movements, ensuring that the effects align perfectly with your stage design. Additionally, you can set the top and bottom limits, allowing you to customize the operating range to fit your specific scene and show requirements.
The content of the Winch 25 Double package
1 x Winch 25 Double
2 x Manfrotto Slim coupler
1 x PowerCON NAC3FX-W female plug for power cable
1 x User manual
1 x Cheat sheet
Spare parts
Extra Winch 25 Double Wire Set available for purchase here.
We offer spare parts for all our products. You can usually find the item numbers of the needed part in the Exploded View in the Downloads section of a product. If you can't find what you need then don't hesitate to reach out to sales@wahlberg.dk with a photo of the broken part.

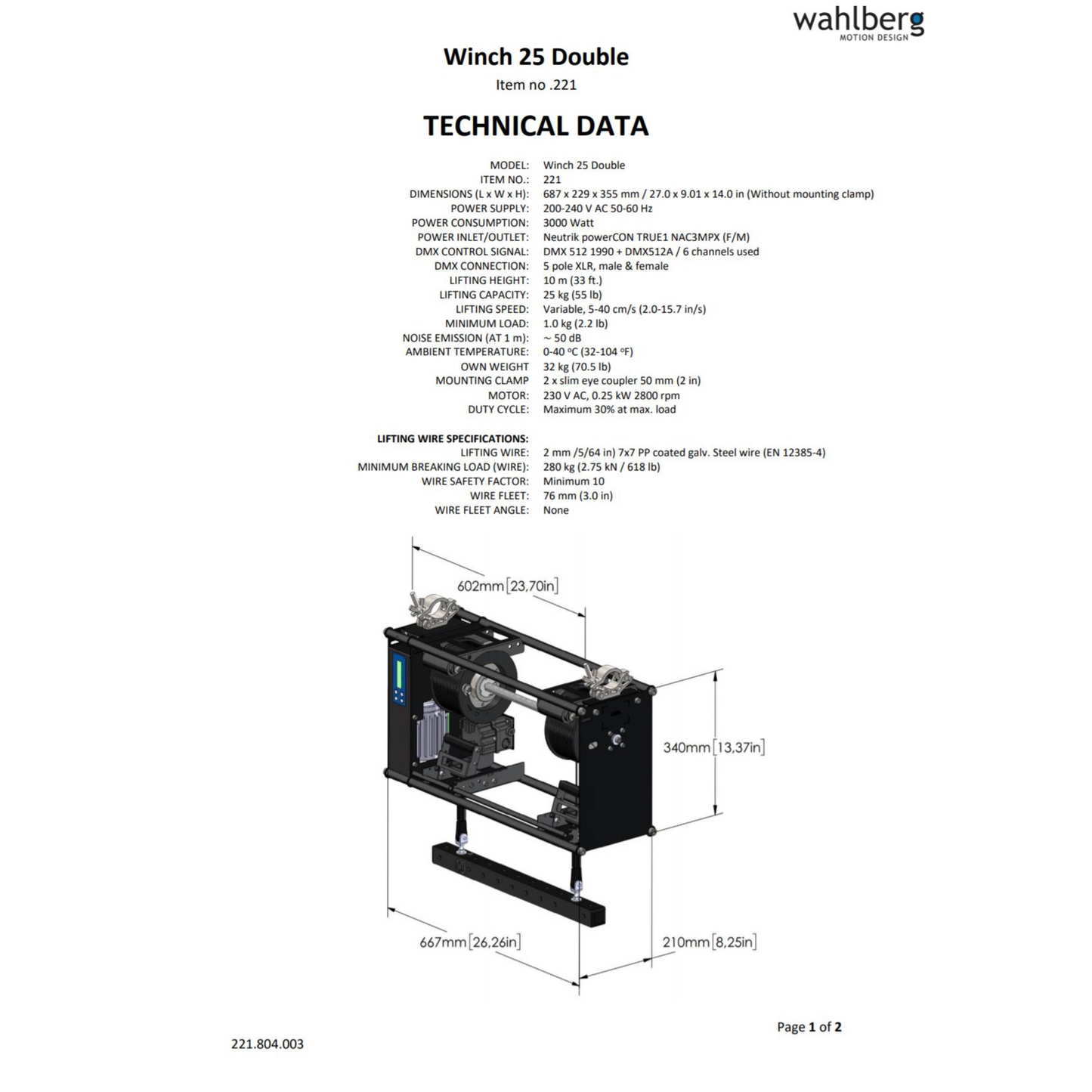

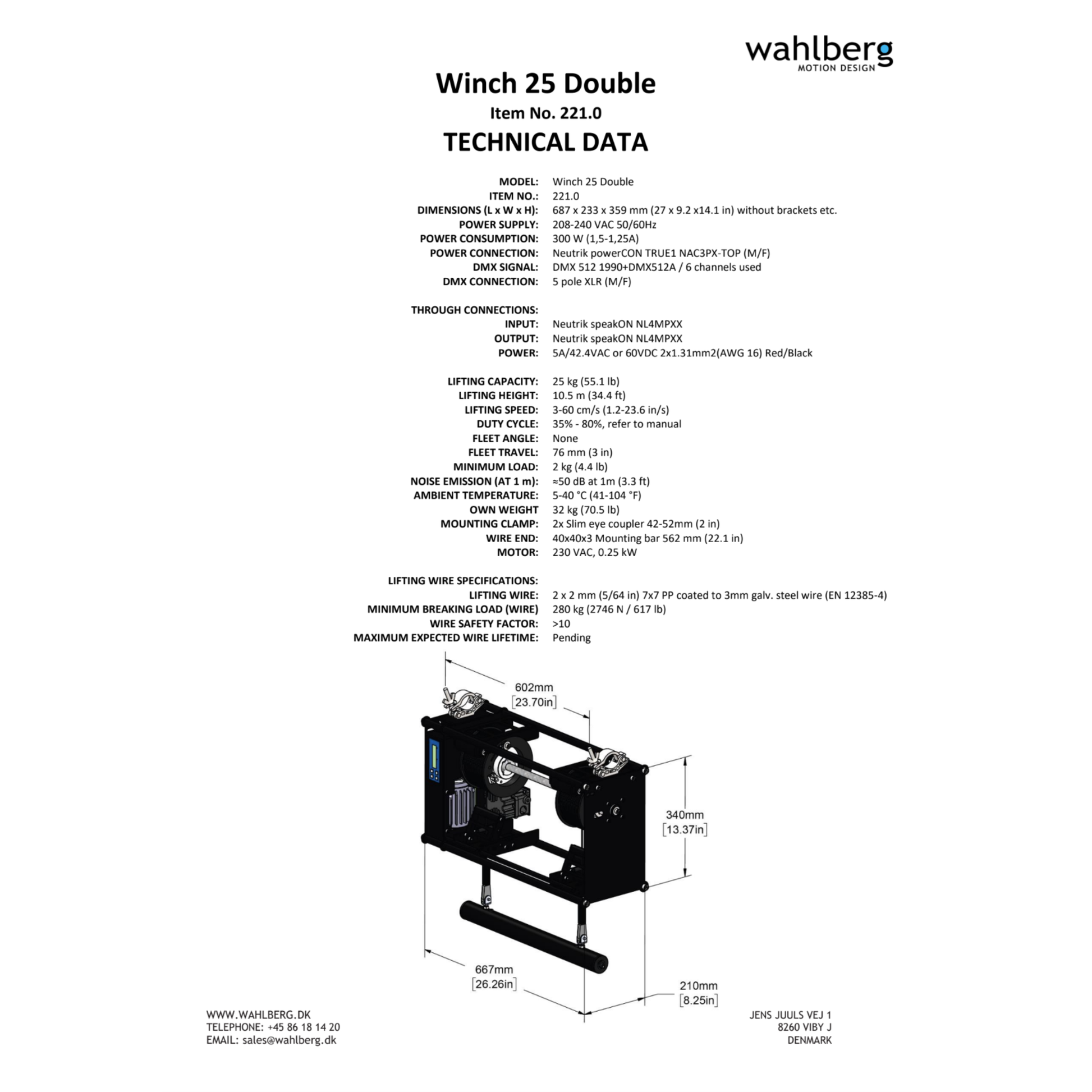

Specifications
| Item number | .221 |
|---|---|

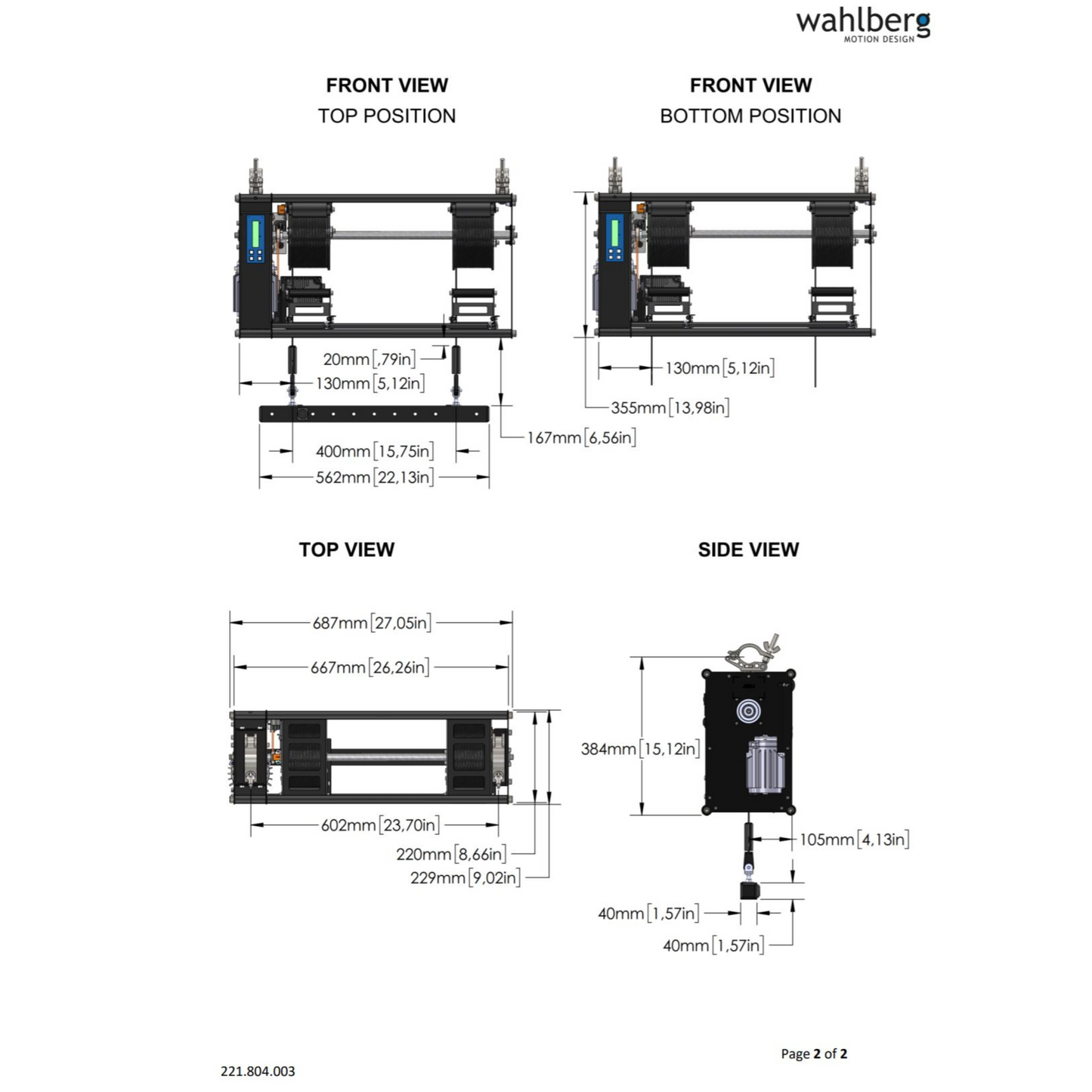

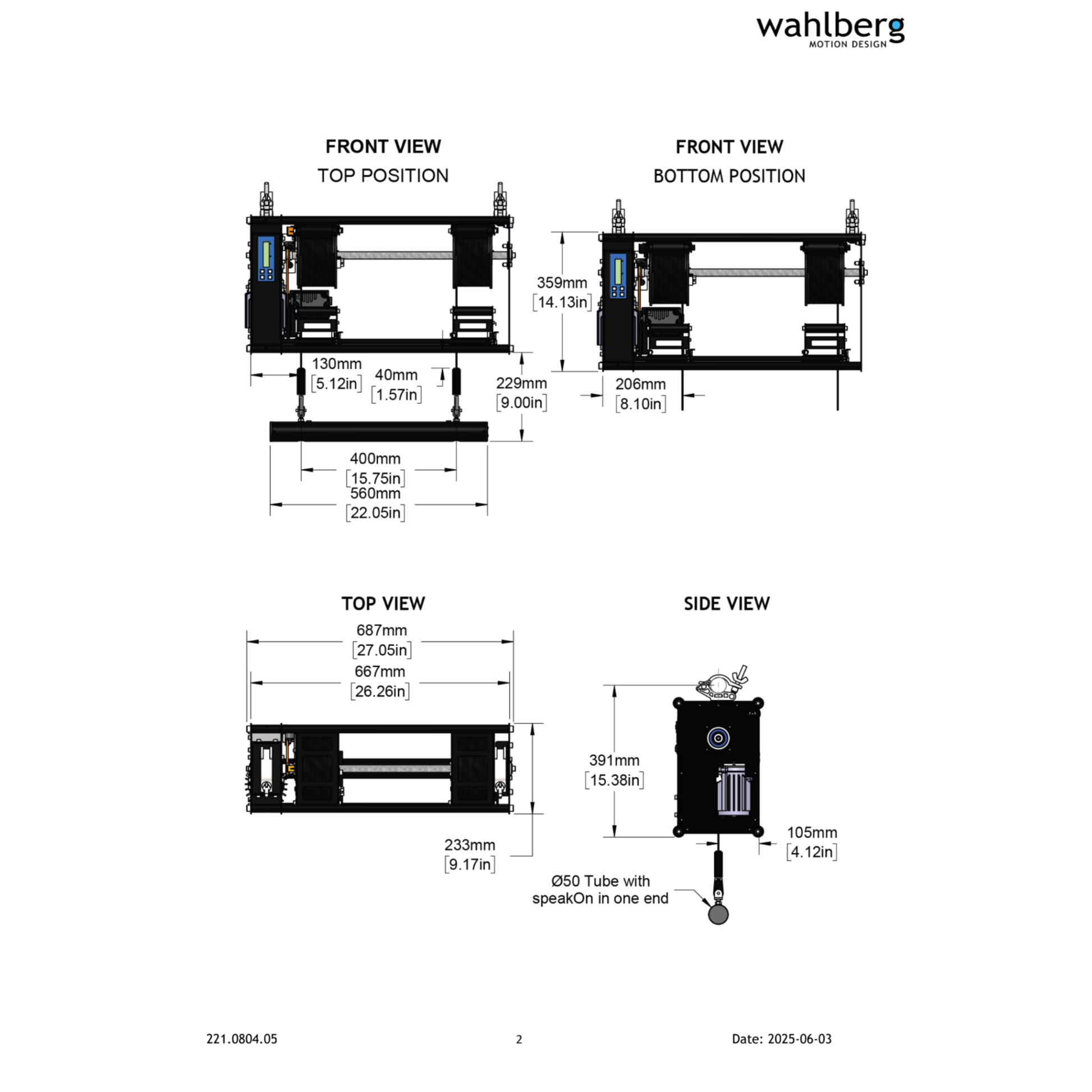

| Dimensions (L x W x H) | 687 x 233 x 359 mm (27 x 9.2 x14.1 in) without brackets etc. |
| Power supply | 208-240 VAC 50/60Hz |
| Power consumption | 300 W (1,5-1,25A) |
| Power connection | Neutrik powerCON TRUE1 NAC3PX-TOP (M/F) |
| DMX signal | DMX 512 1990+DMX512A / 6 channels used |
| DMX connection | 5 pole XLR (M/F) |

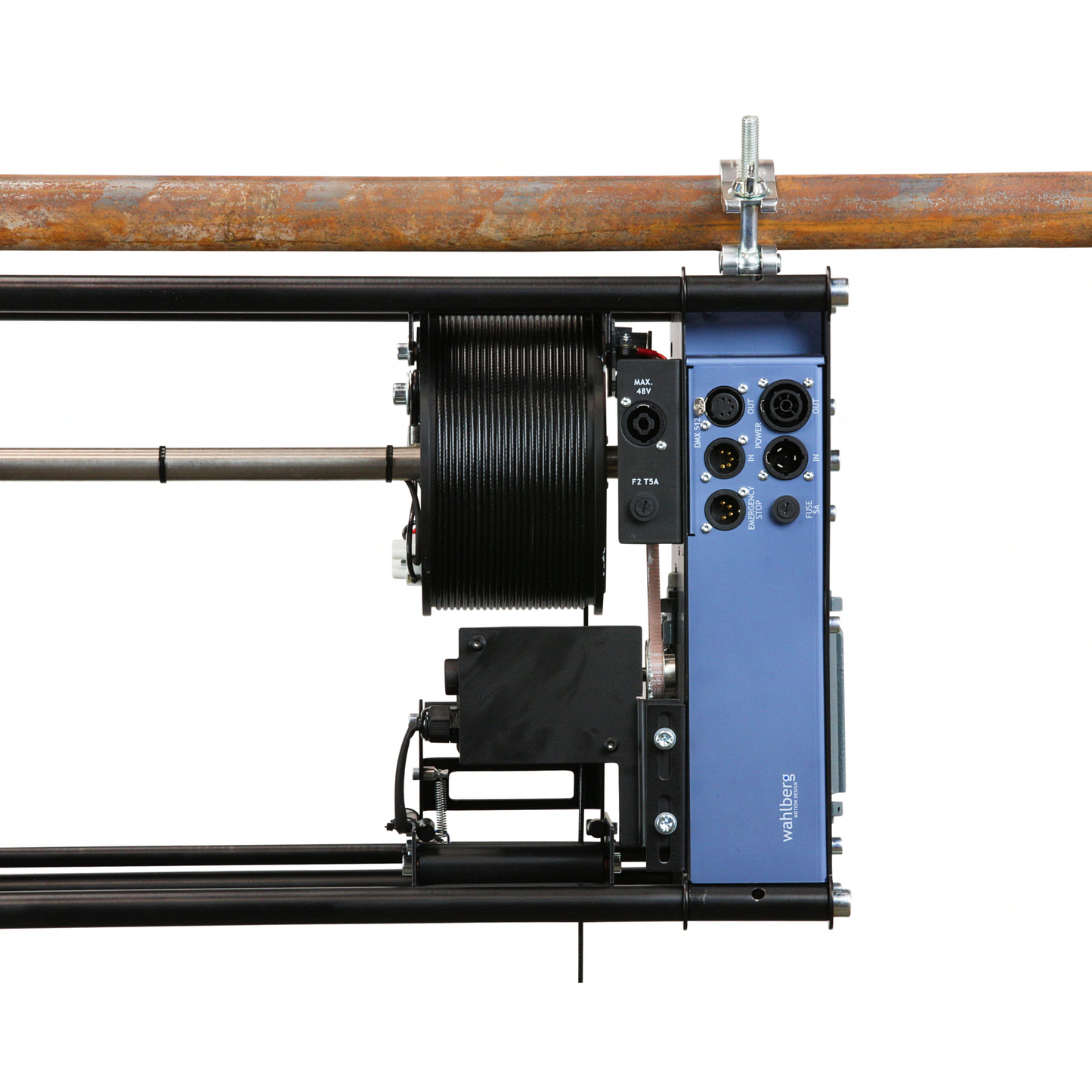

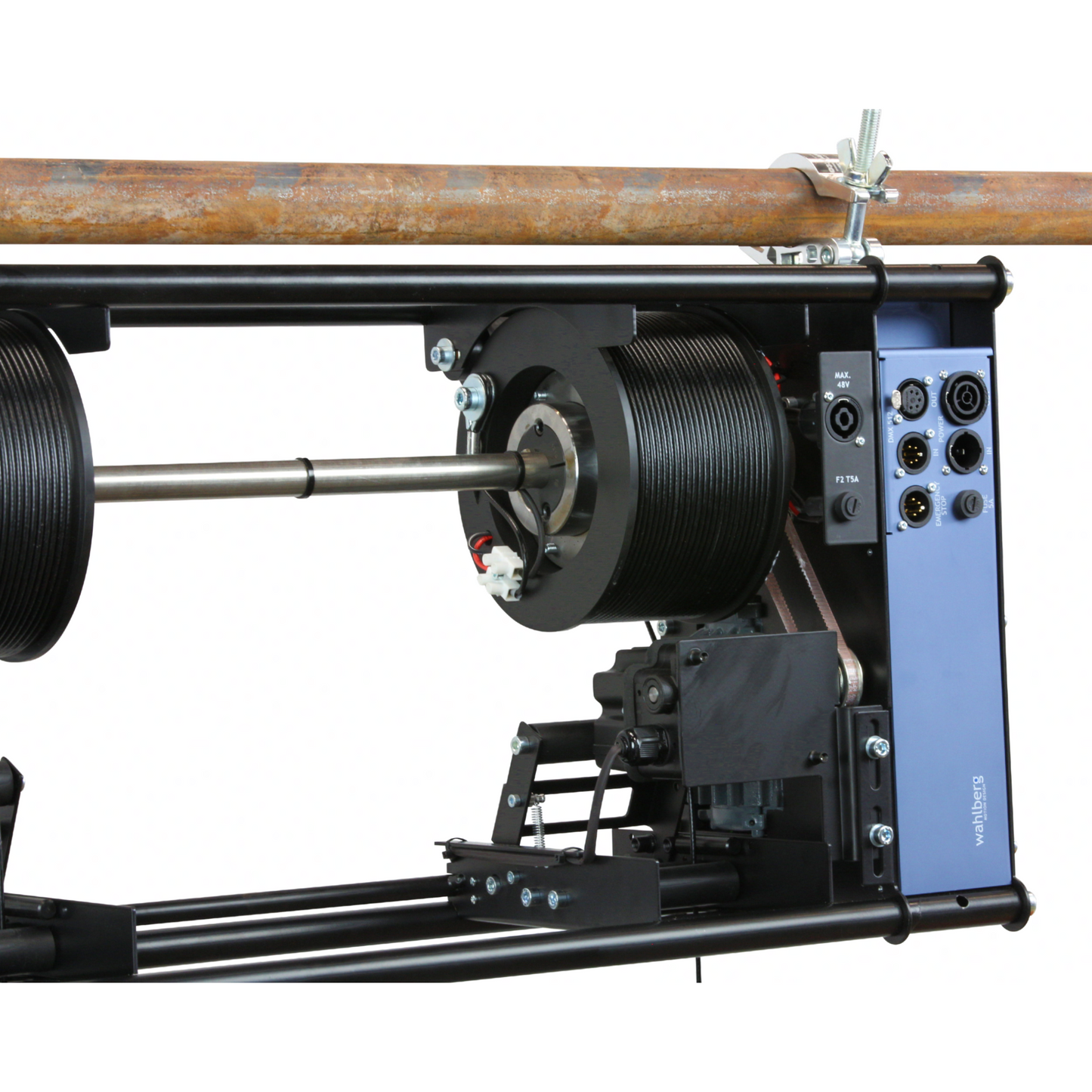

| Through connections: | |
| Input | Neutrik speakON NL4MPXX |
| Output | Neutrik speakON NL4MPXX |
| Power | 5A/42.4VAC or 60VDC 2x1.31mm2(AWG 16) Red/Black |
| Lifting capacity | 25 kg (55.1 lb) |
| Lifting height | 10,5 m (34.4 ft) |
| Lifting speed | 3-60 cm/s (1.2-23.6 in/s) |
| Duty cycle | 35% - 80%, refer to manual |
| Fleet angle | None |
| Fleet travel | 76 mm (3 in) |
| Minimum load | 2 kg (4.4 lb) |
| Noise emission (At 1 m) | ≈50 dB at 1m (3.3 ft) |
| Ambient temperature | 5-40 °C (41-104 °F) |
| Weight | 32 kg (70.5 lb) |
| Shipping weight | 35 kg (77.2 lb) |
| Mounting clamp | 2x Slim eye coupler 42-52mm (2 in) |
| Wire end | 40x40x3 Mounting bar 562 mm (22.1 in) |
| Motor | 230 VAC, 0.25 kW |
| Lifting wire specifications: | |
| Lifting wire | 2 x 2 mm (5/64 in) 7x7 PP coated to 3mm galv. steel wire (EN 12385-4) |
| Minimum breaking load (Wire) | 280 kg (2746 N / 617 lb) |
| Wire safety factor | >10 |
| Maximum expected wire lifetime | Pending |
