RC Platform 2x1m Offroad Ø200mm Wheels

RC Platform 2x1m Offroad Ø200mm Wheels

€4.900,00
€4.900,00
Sale Sold out
Shipping calculated at checkout.

Rent this product

Remote-controlled Platform for moving larger scenography, props or musicians around on uneven surfaces. The handheld transmitter enables 360 degrees movement, using only one finger on the very user-friendly remote.

Maximum load: 400 kg (881.8 lb)
Variable speed (No load): 1,45 m/s – 5,2 km/h (4.74 ft/s – 3.23mph)
Transmitter range: 250 m (820 ft)


This product is not DMX controlled – control is only done with the included handheld remote controller.

Description

The RC Platform 2x1m Offroad Ø200mm Wheels is a very smooth and intuitive way of moving large props up to 400 kg freely around the stage and on uneven surfaces.

Create moving effects with set pieces, props or classics such as the flying carpet from Alladin, or the boat from Moana.

The RC platform is very adaptable and only your imagination is the limit.

Easy to Control

The RC Platform 2x1m Offroad makes it easy to move props in and out of the stage area with the very user-friendly wireless remote/RC Transmitter.

Control the platform with only one hand and a single finger on the right gimbal (joystick).

You can adjust the speed and acceleration/deacceleration ramp in the settings of the wireless remote to achieve the movements you need for your project.

Improved Battery, Charger and Motor Unit

The new larger RC Platform series is equipped with improved Motor Consoles and lager Batteries, providing higher motor torque and longer battery life. The new larger RC Platforms are more consistent and powerful than our smaller RC Platforms.

You can fully charge the Battery in 3 hours with the included 2x10A Battery Charger, which is compatible with a standard 230 / 120 volt power source.

Customize to Fit Your Needs

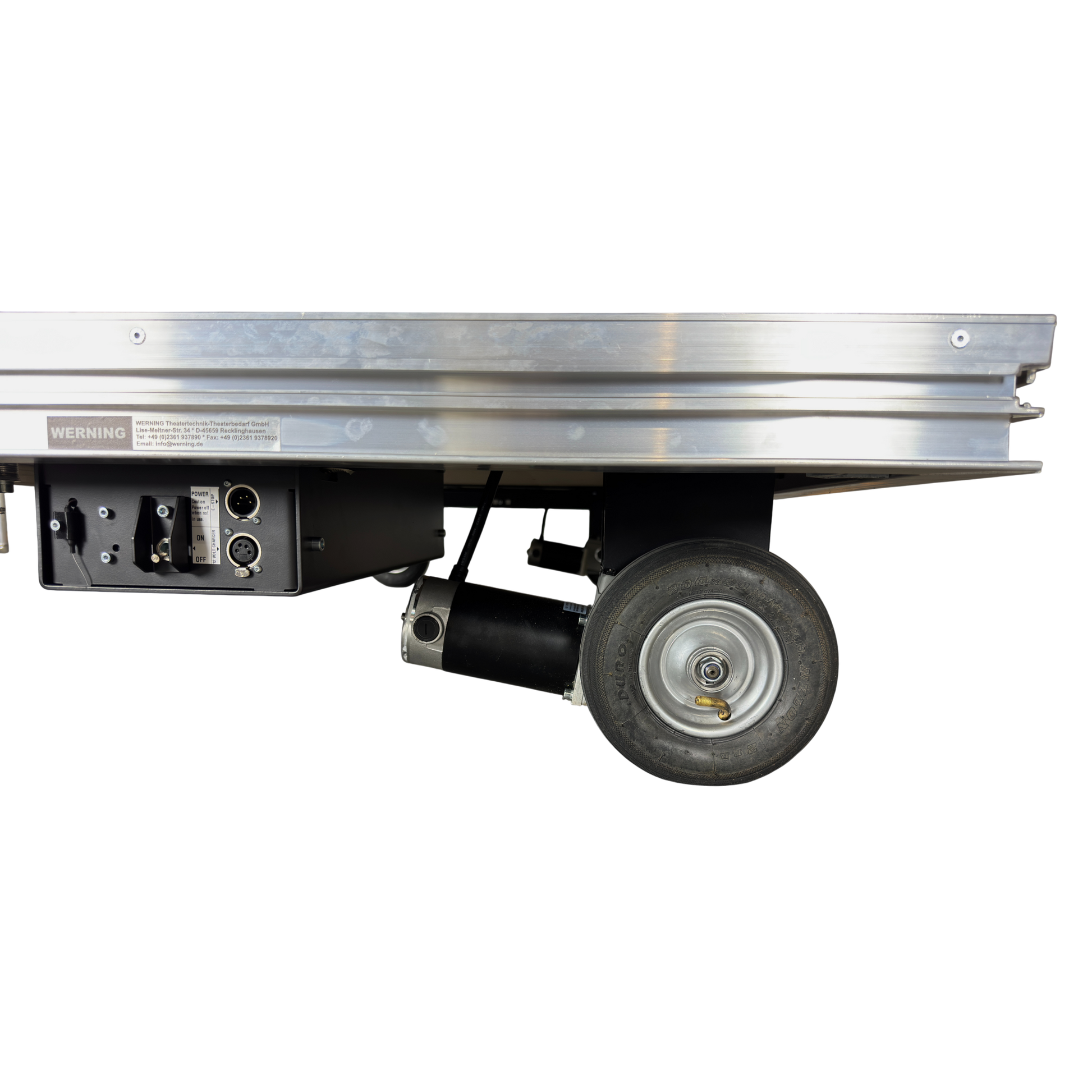

This version comes with air filled Ø200mm wheels that run on more uneven surfaces as well, while still being relatively low profile.

The RC Platform 2x1m has a typical wooden stage deck finish by default, but it can also be ordered with a custom finish upon request.

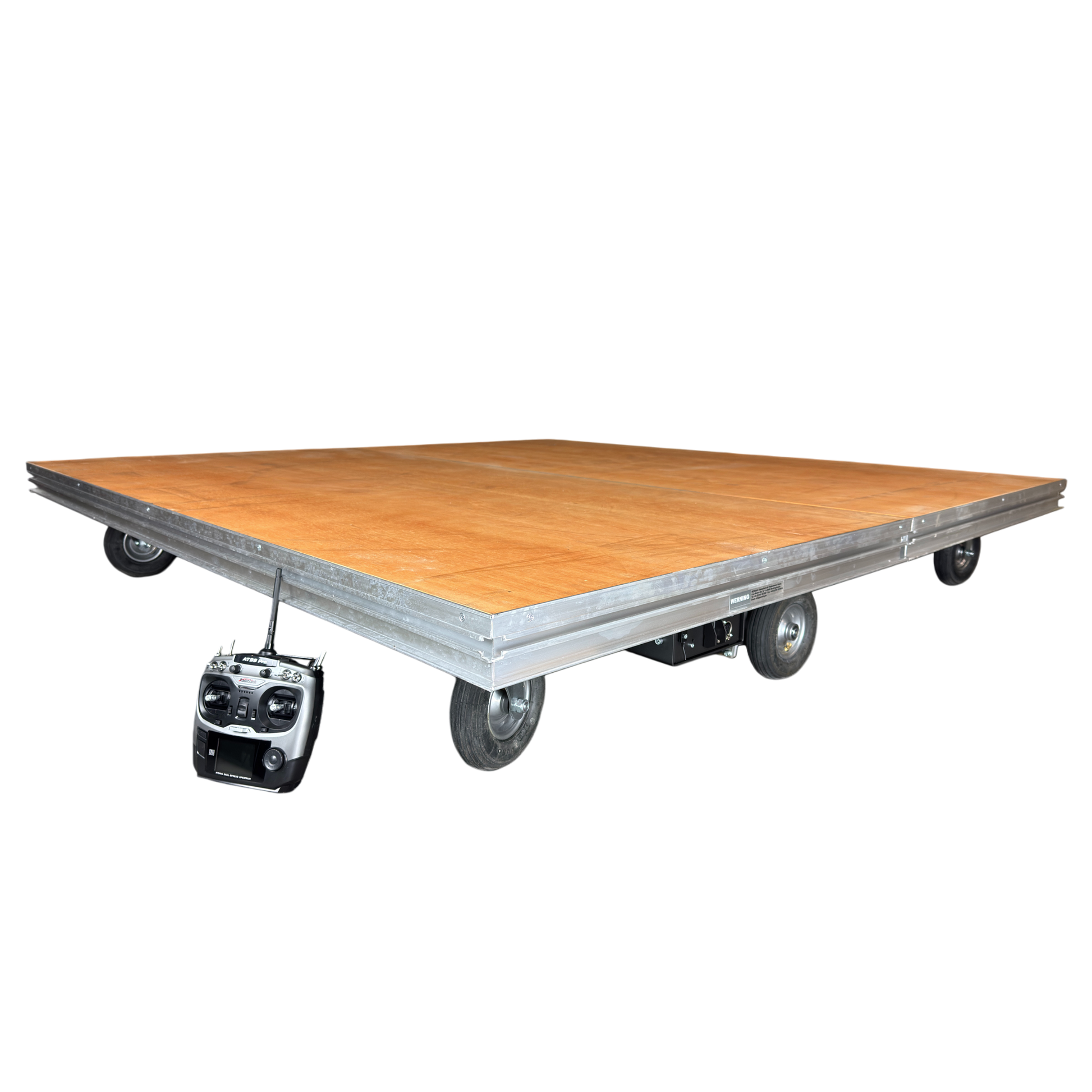

You can also double the platform’s size to 2x2m by adding the RC Platform Extension 2x1m Offroad Ø200mm Wheels.

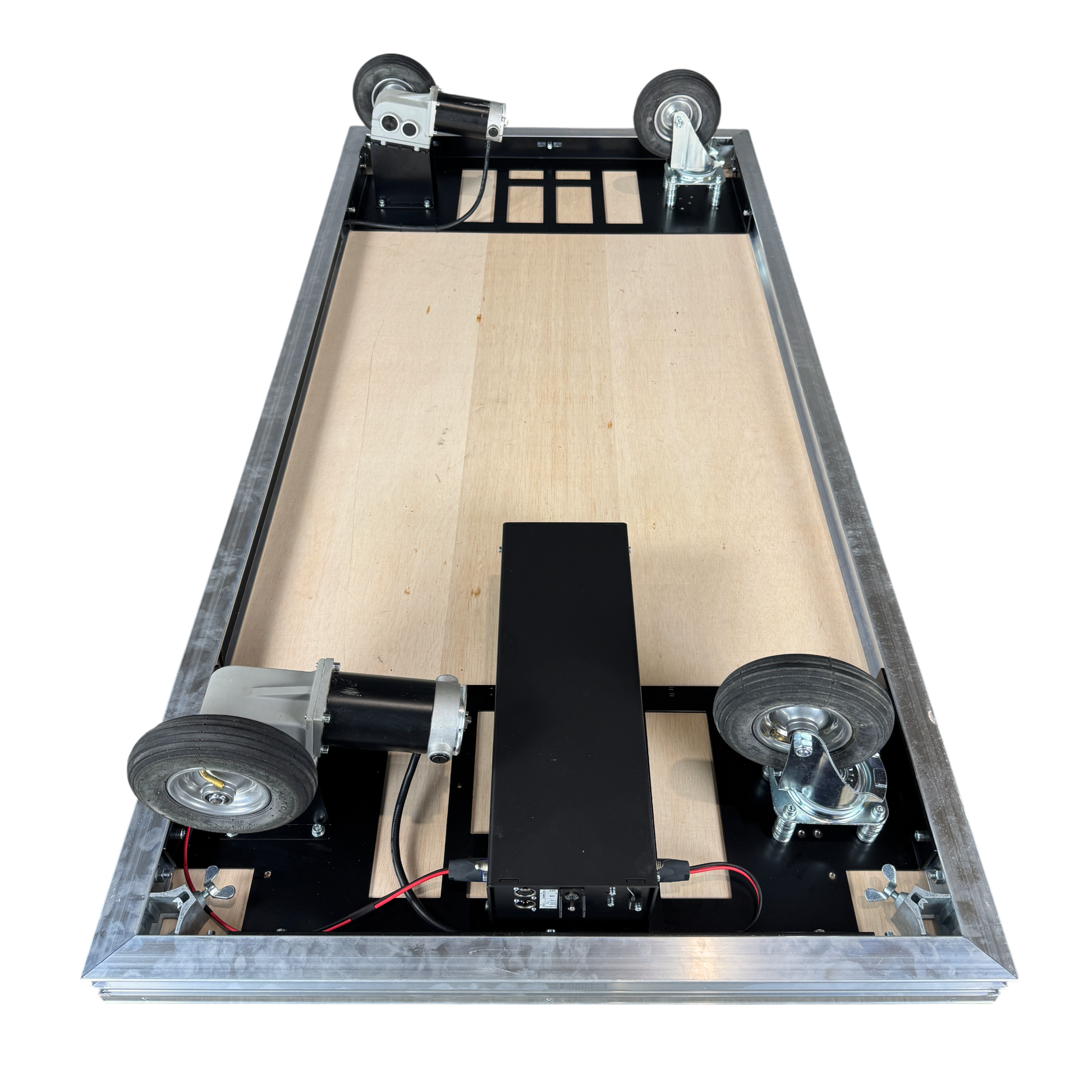

The Motor Console can easily be moved onto a custom-made platform with 4 screws and a little creativity. So, it is possible to make any element move with this system. See a short video of how it was done with a mechanical horse here.

If you need the RC Platform to have even better off-road capabilities, please check out the Offroad version with Ø260mm wheels.

The version with the slick Ø125mm wheels, only runs on relatively smooth surfaces such as stage decks, concrete or Marley floor. The small wheels are easy to hide in order achieve a floating effect on stage.

The content of the RC Platform 2x1m Offroad Ø200mm Wheels package

1 x RC Platform 2x1m Offroad Ø200mm Wheels

1 x Battery Charger 2x10A

1 x Radiolink AT9S Pro Remote

8 x AA Battery for Remote

1 x User Manual

Spare parts

We offer spare parts for all our products. You can usually find the item numbers of the needed part in the Exploded View in the Downloads section of a product. If you can't find what you need then don't hesitate to reach out to sales@wahlberg.dk with a photo of the broken part.

Specifications

Item number 322.2001
Dimensions 2000 X 1000 X 322 mm (78.74 X 39.39 X 12,68 in)
Load capacity 600 kg (1323 lb)
Weight 104 kg (229.3 lb)


Motor 24VDC, 340W
Motor RPM 138 RPM
Platform speed (No load) 1.45 m/s – 5.2 km/h (4.74 ft/s – 3.23mph)


Power supply Internal Battery 2x12VDC 624Wh
Battery capacity 2x 12VDC 26Ah
Battery runtime 2 hr w. max load capacity
Charger 120-240V, RC Battery Charger 2x10A (320.420), 3 hr charge time
Duty cycle 50 % when running more than 60 min.
Transmitter range 250 m (820 ft)
Transmitter Digital RC 2,4Ghz (656.033)


Wheel type (Driving) Ø200mm Air Tyres
Wheel type (Passive) Ø200mm Air Tyres

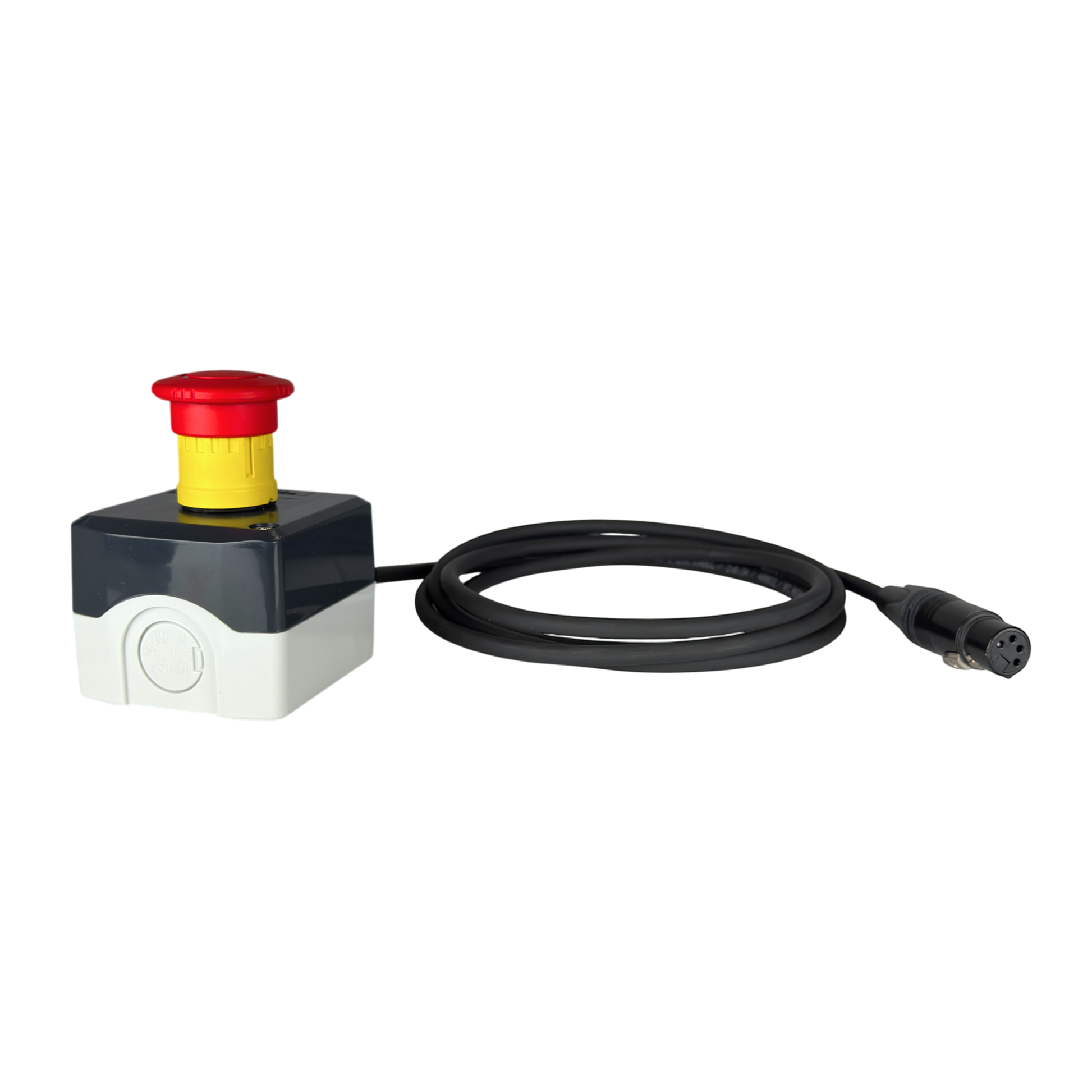

E-stop E-stop utton box, 2m electrical cord
