340W Motor Console 260mm Wheel

340W Motor Console 260mm Wheel

Regular price €1.000,00
Regular price Sale price €1.000,00
Sale Sold out
Shipping calculated at checkout.
Version

Rent this product

Powerful 340W Motor Console with a 260mm offroad wheel for the 2x1m RC Platform.

This product is part of our wide selection of RC Platform 2x1m Components, which offers you what you need to potentially build your own. You can also swap broken parts, make special customizations or collect spare parts.

Load capacity:
300 kg (661 lb)
Rotational Speed (No load): 138 RPM
Translative Speed (No load): 1,8 m/s – 6,8 km/h (6.16 ft/s – 4.2 mph)


Description

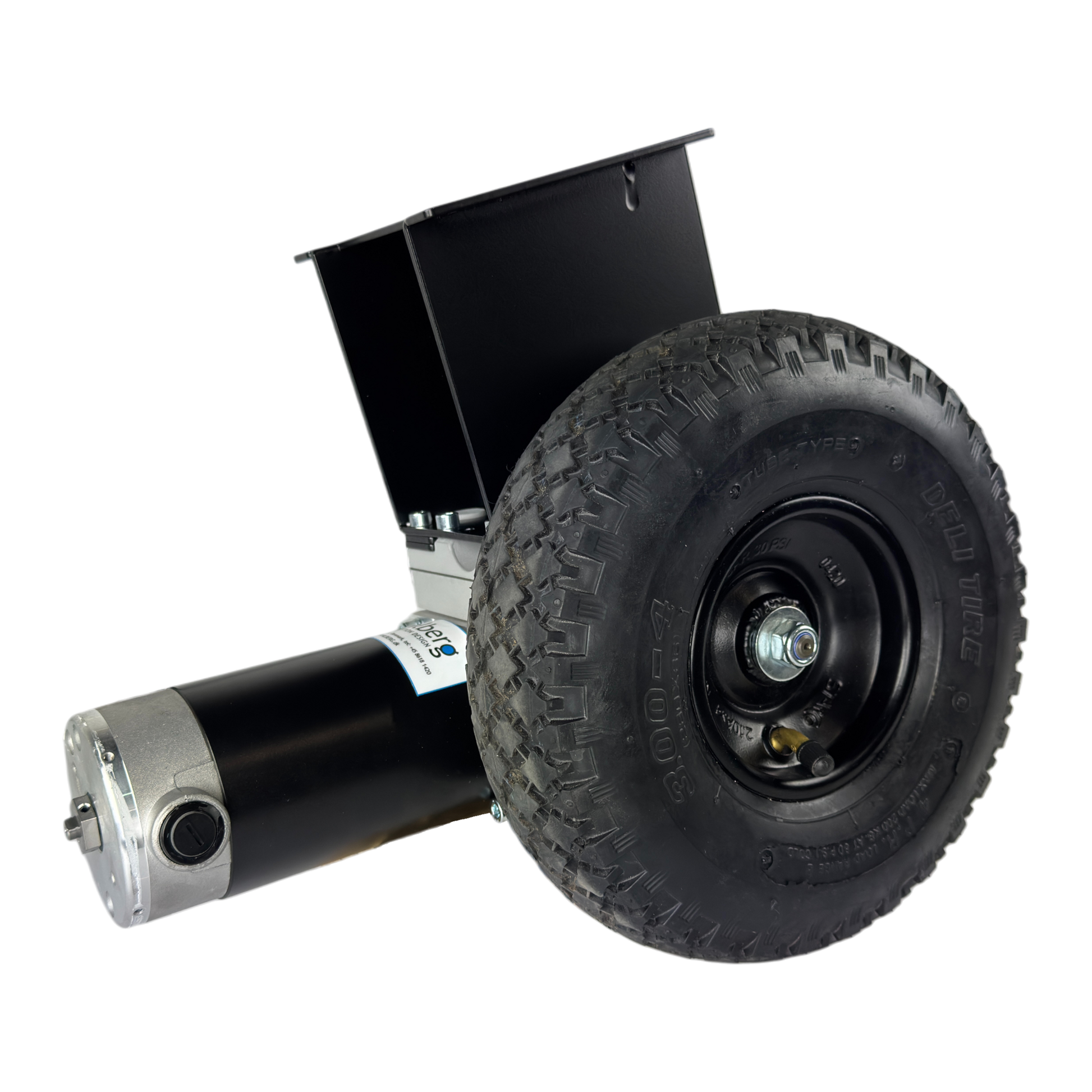

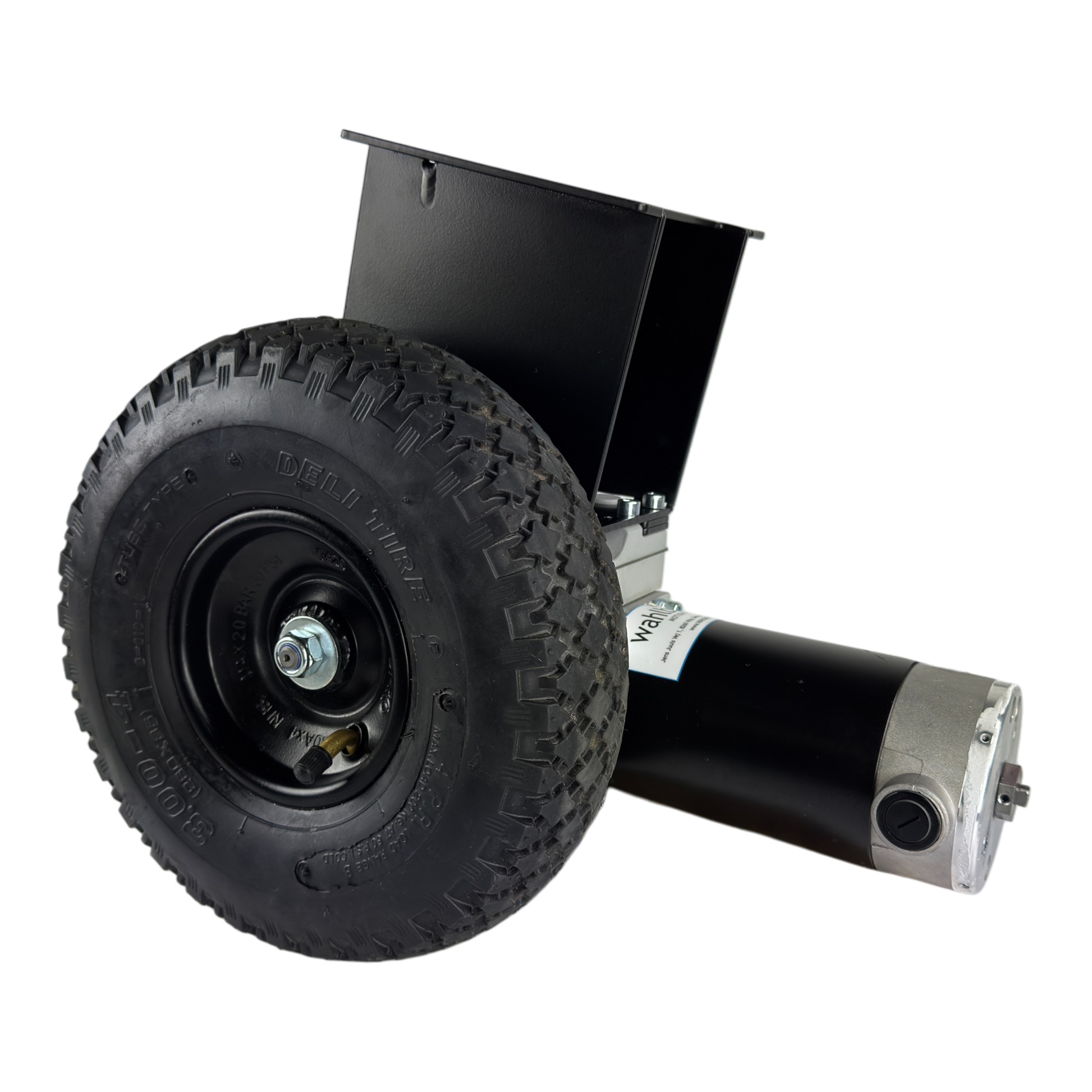

340W Motor Console with a 260mm inflatable rubber wheel for driving the 2x1m RC Platform on offroad surfaces like tall grass.

The 340W Motor Consoles have a clutch lever on the back for disengaging the gears, making it possible to effortlessly push the unit.

The unit is easy to mount under a wide variety of objects to make them driveable and remote controlled, when paired with our RC Control Box 2x26Ah and Castor Wheel 260mm.

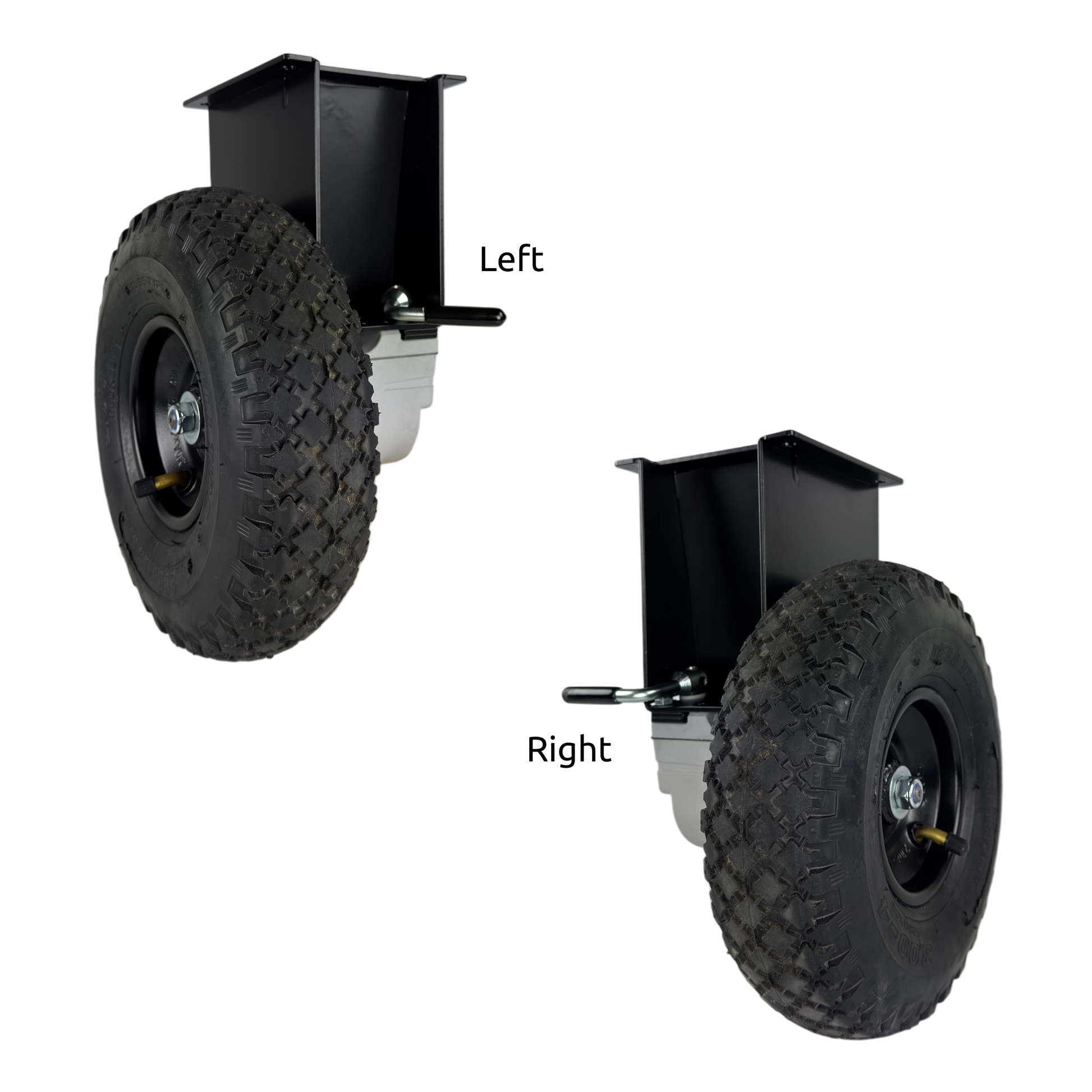

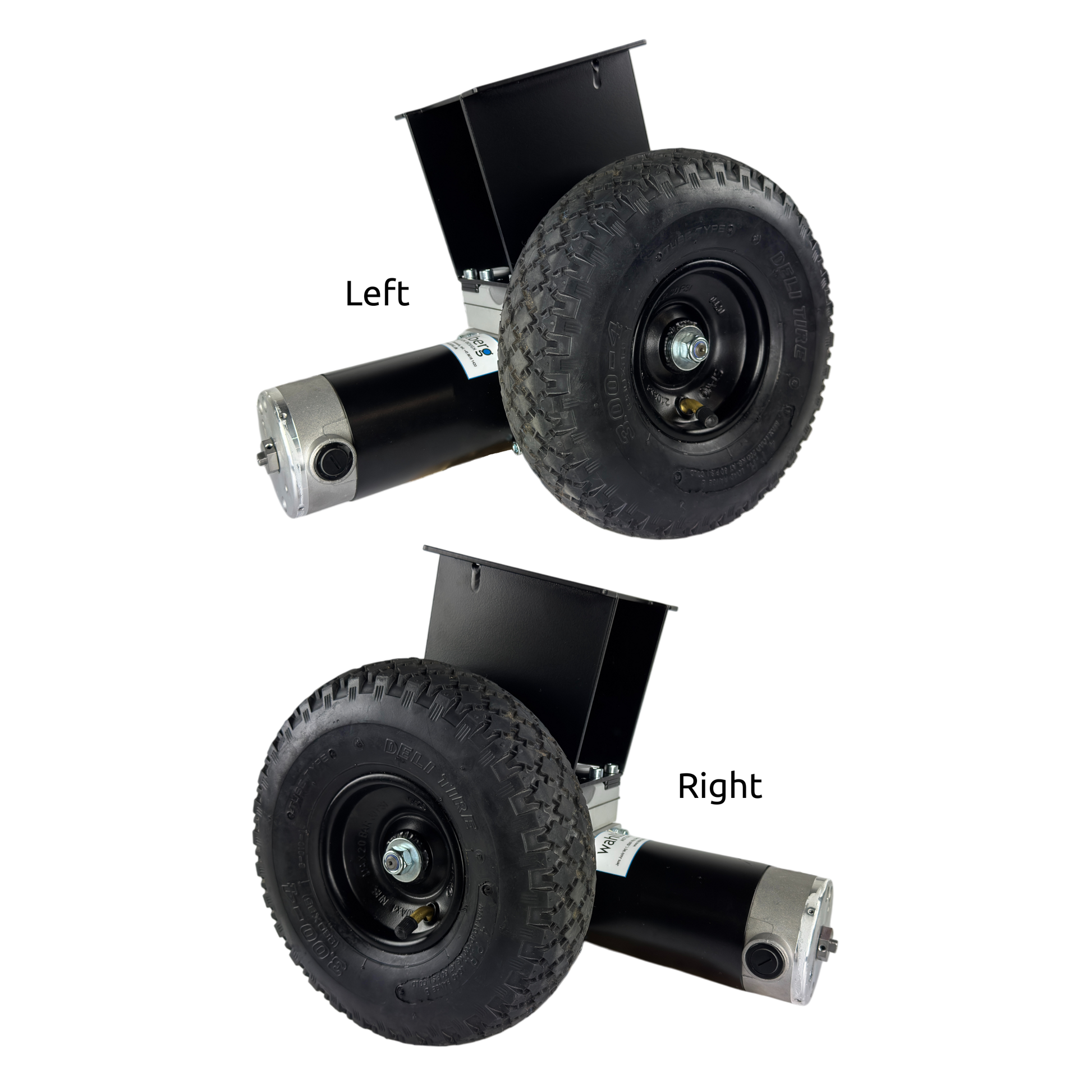

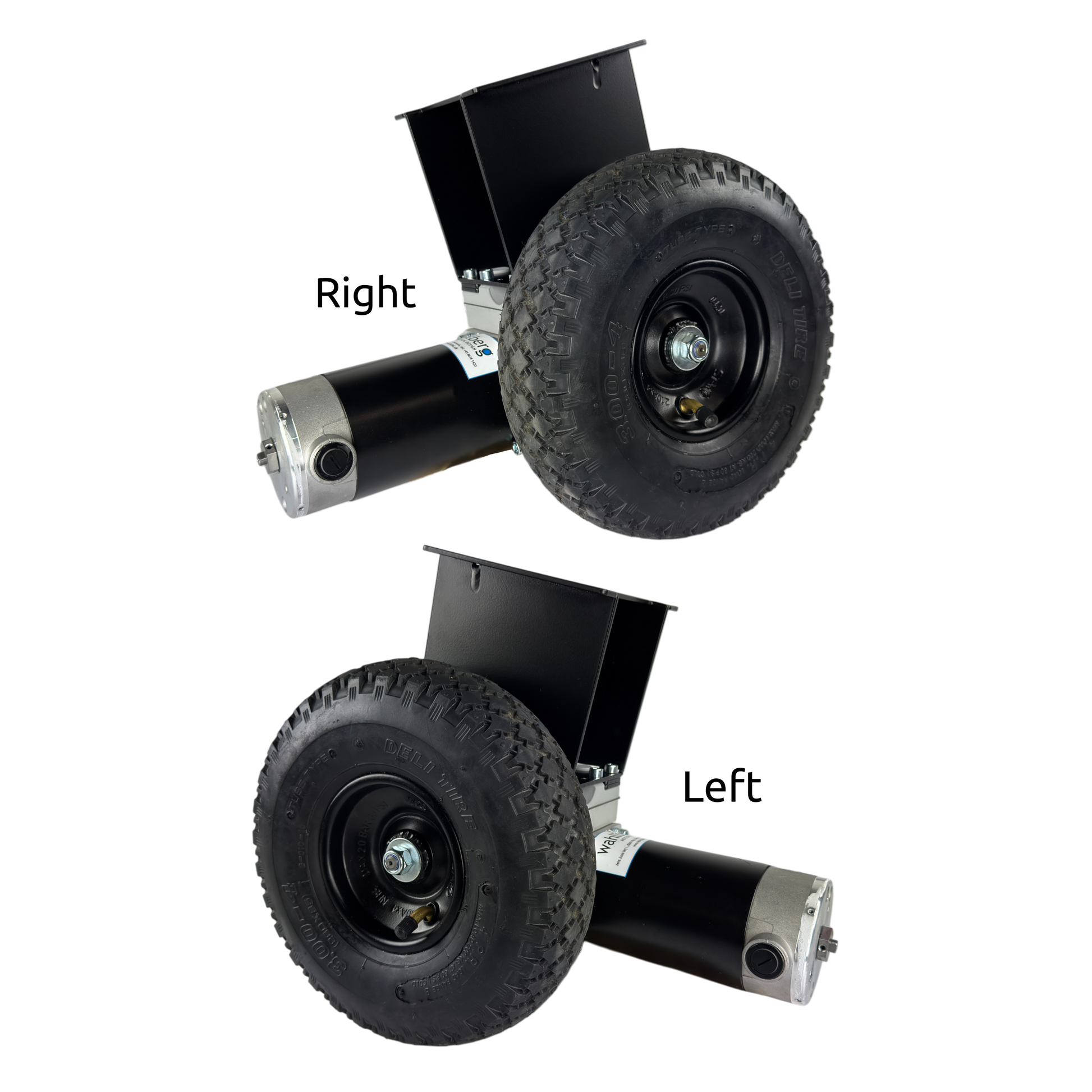

Both a Left- and a Right Motor Console is needed to enable directional control of an object.

The content of the 340W Motor Console 260mm Wheel package

1 x Left or Right 340W Motor Console 260mm Wheel

Spare parts

We offer spare parts for all our products. You can usually find the item numbers of the needed part in the Exploded View in the Downloads section of a product. If you can't find what you need then don't hesitate to reach out to sales@wahlberg.dk with a photo of the broken part.

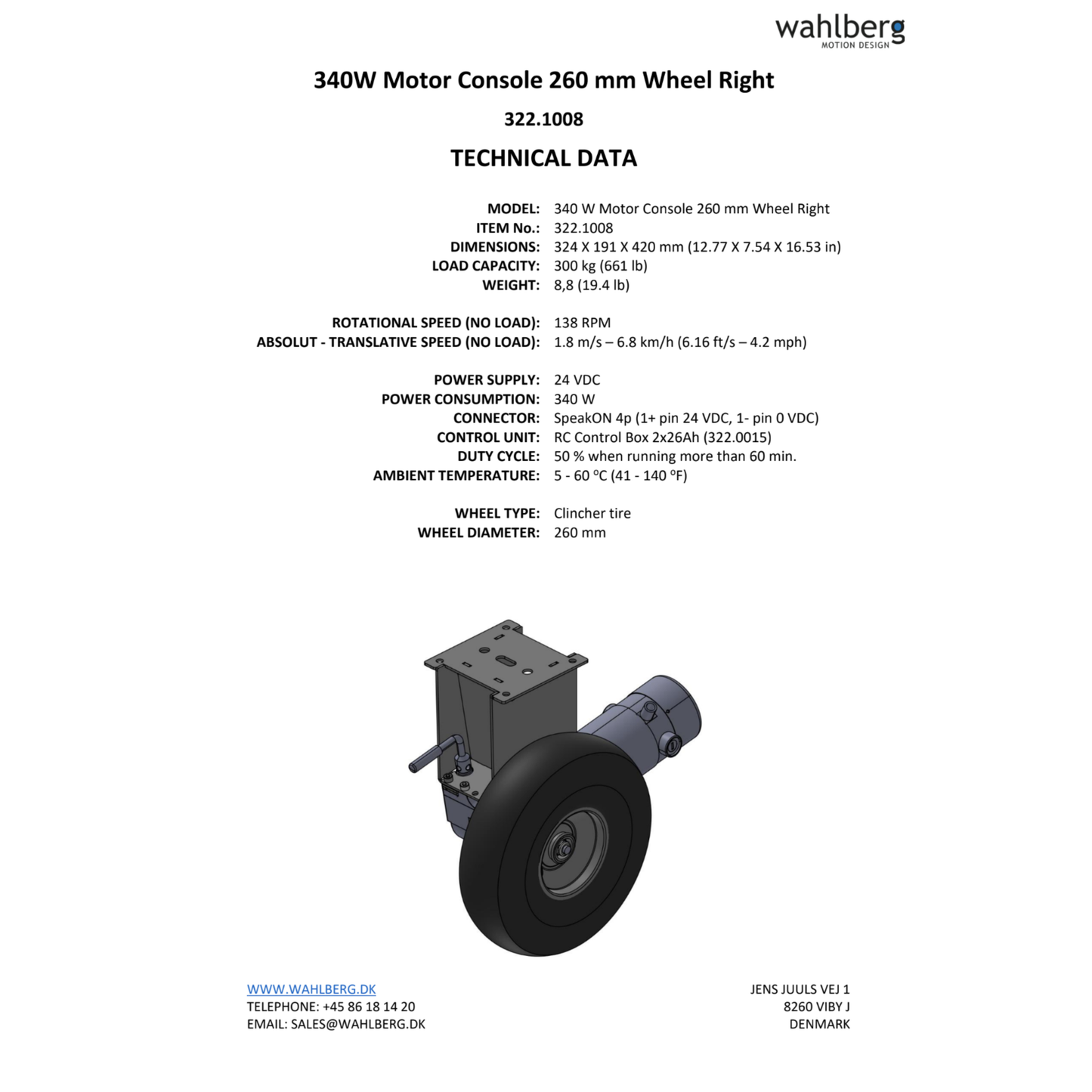

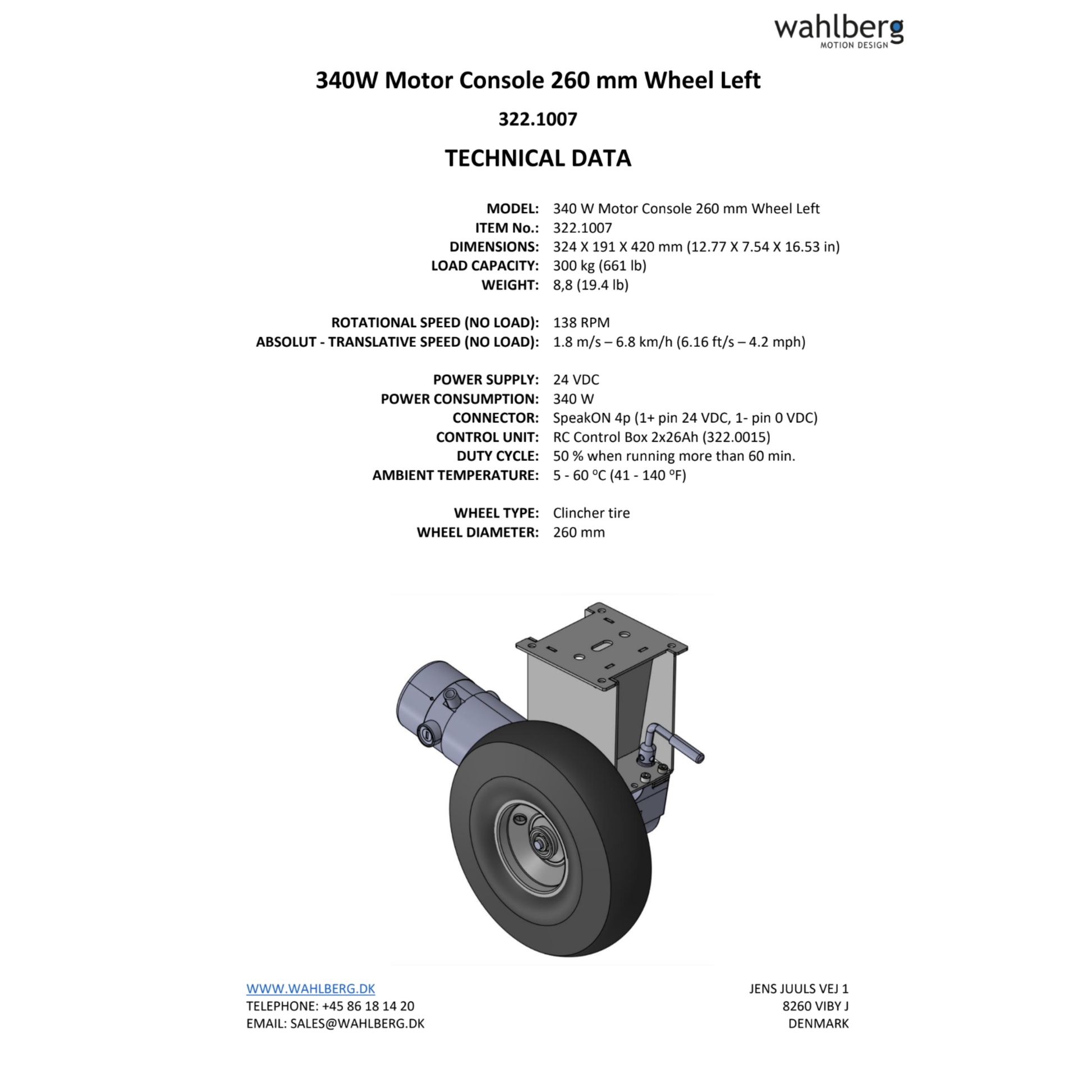

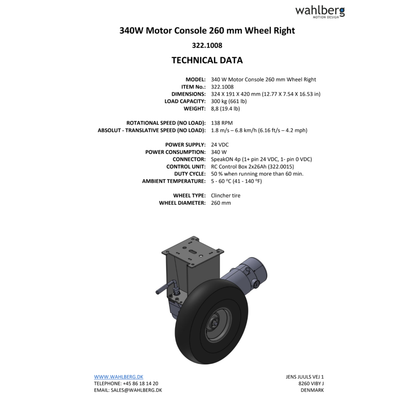

Specifications

Item Number:
Left 322.1007
Right 322.1008

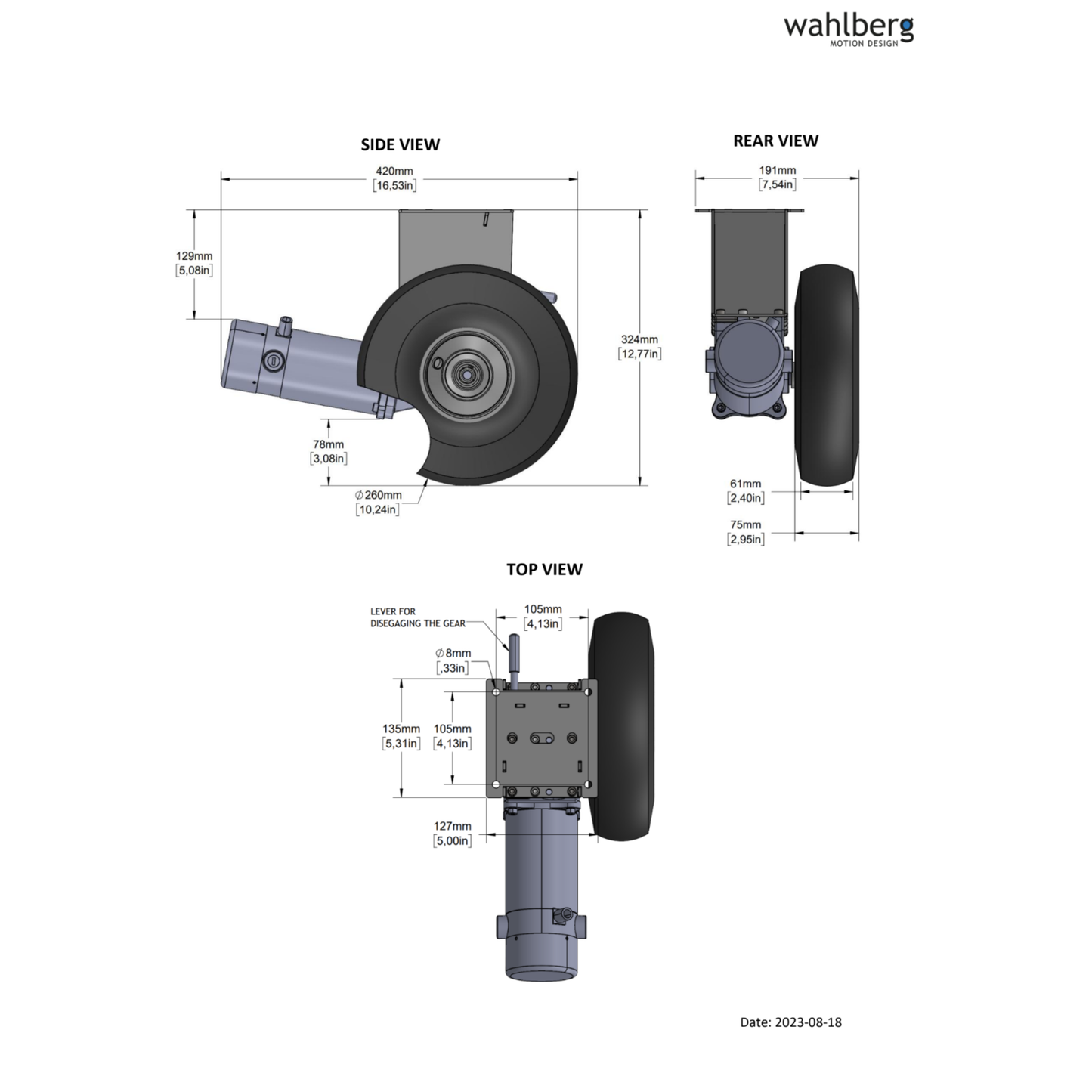

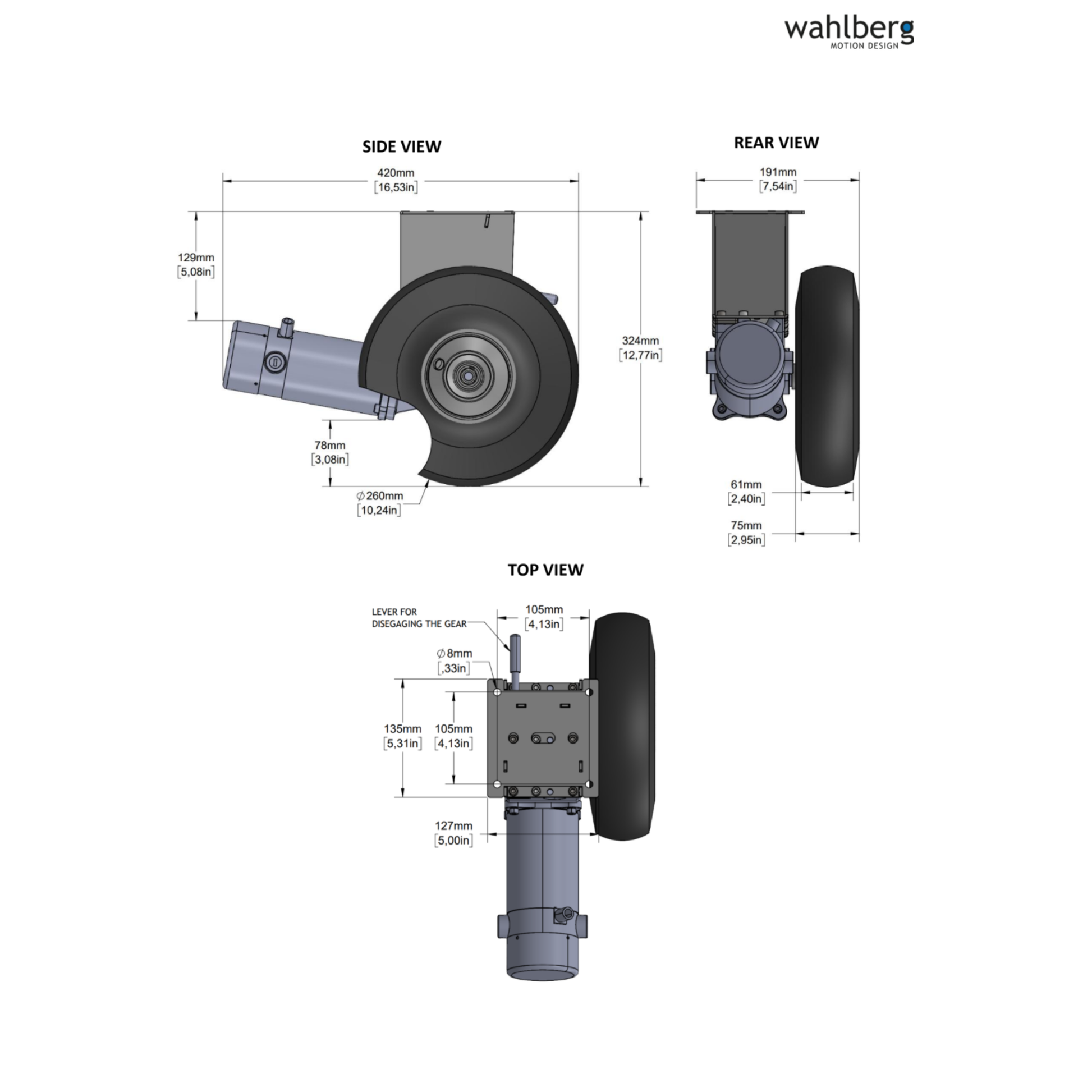

Dimensions: 324 x 191 x 420 mm (12.77 x 7.54 x 16.53 in)
Load Capacity: 300 kg (661 lb)
Weight: 8,8 (19.4 lb)
Rotational Speed (No load): 138 RPM
Absolut - Translative Speed (No load): 1,8 m/s – 6,8 km/h (6.16 ft/s – 4.2 mph)
Power Supply: 24 VDC
Power Consumption: 340 W
Connector: SpeakON 4p (1+ pin 24 VDC, 1- pin 0 VDC)
Control Unit: RC Control Box 2x26Ah (322.0015)
Duty Cycle: 50 % when running more than 60 min.
Ambient Temperature: 5 - 60 C (41 - 140 F)

Wheel Material: Clincher tire
Wheel Diameter: 260 mm
