RC Control Box 2x26Ah
RC Control Box 2x26Ah
Regular price
€2.150,00
Regular price
Sale price
€2.150,00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Powerful control box with large battery for the 2x1m RC Platforms.
| Battery capacity: | 2x12V 26Ah |
| Charger: | 120-240V, RC Battery Charger 2x10A |
|
Transmitter range: |
250m (820 ft) |
Description
Very powerful control box with built in RC Receiver and included RC Transmitter, which can be used for all the 2x1m RC Platforms.
Intuitive on/off switch located on the front makes it easy to turn on/off even when out of sight.
SpeakON 4p plug on each side of the unit, which enables connections to the 340W Motor Consoles.
This unit is a bigger version of the RC Control Box 2x12Ah used for the 70x70cm RC Platforms.
The content of the RC Control Box 2x26Ah package
1 x RC Control Box 2x26Ah
1 x RC Transmitter
1 x RC Receiver
Specifications
| Item Number: | 322.0015 |

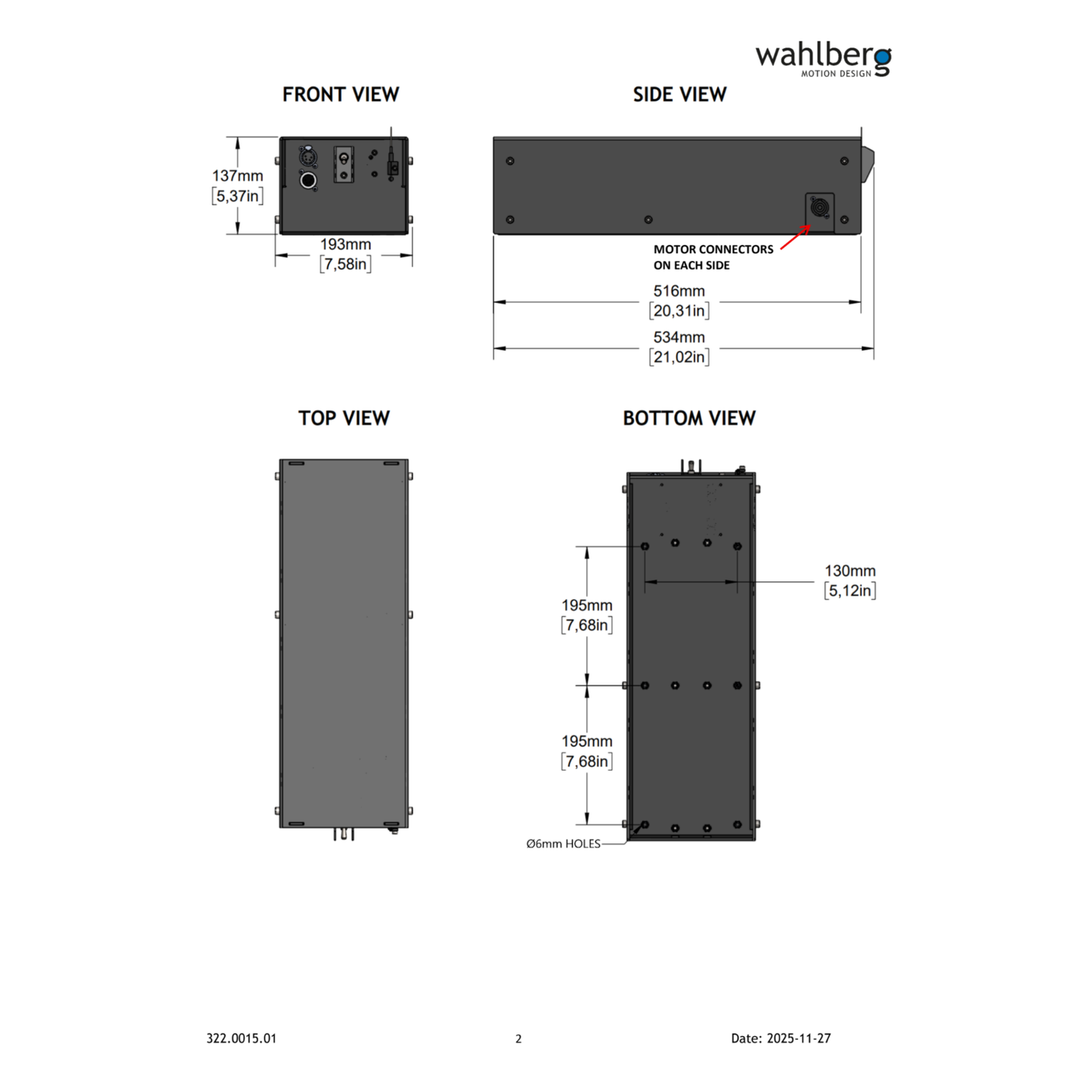

| Dimensions: | 516 x 181 x 136 mm (20.3 x 7.1 x 5.1 in) |
| Battery Capacity: | 2 x 12V 26Ah |
| Charger: | Battery Charger 2x10A (320.420) |
| Chargin Time: | 3 hours |
| Motor Connections: | SpeakON 4p (1+ pin 24 VDC, 1- pin 0 VDC) |
| E-Stop: | E-stop button box (322.404) bought separately |
| Transmitter Range: | 250 m (820 ft) |
| Remote Control: | Digital RC 2,4 Ghz (656.033) |
| Duty Cycle: | 50% when running more than 60 min |
| Weight: | 20 kg (44.1 lb) |
| Ambient Temperature: | 5-40 C (41-104 F) |
Downloads
