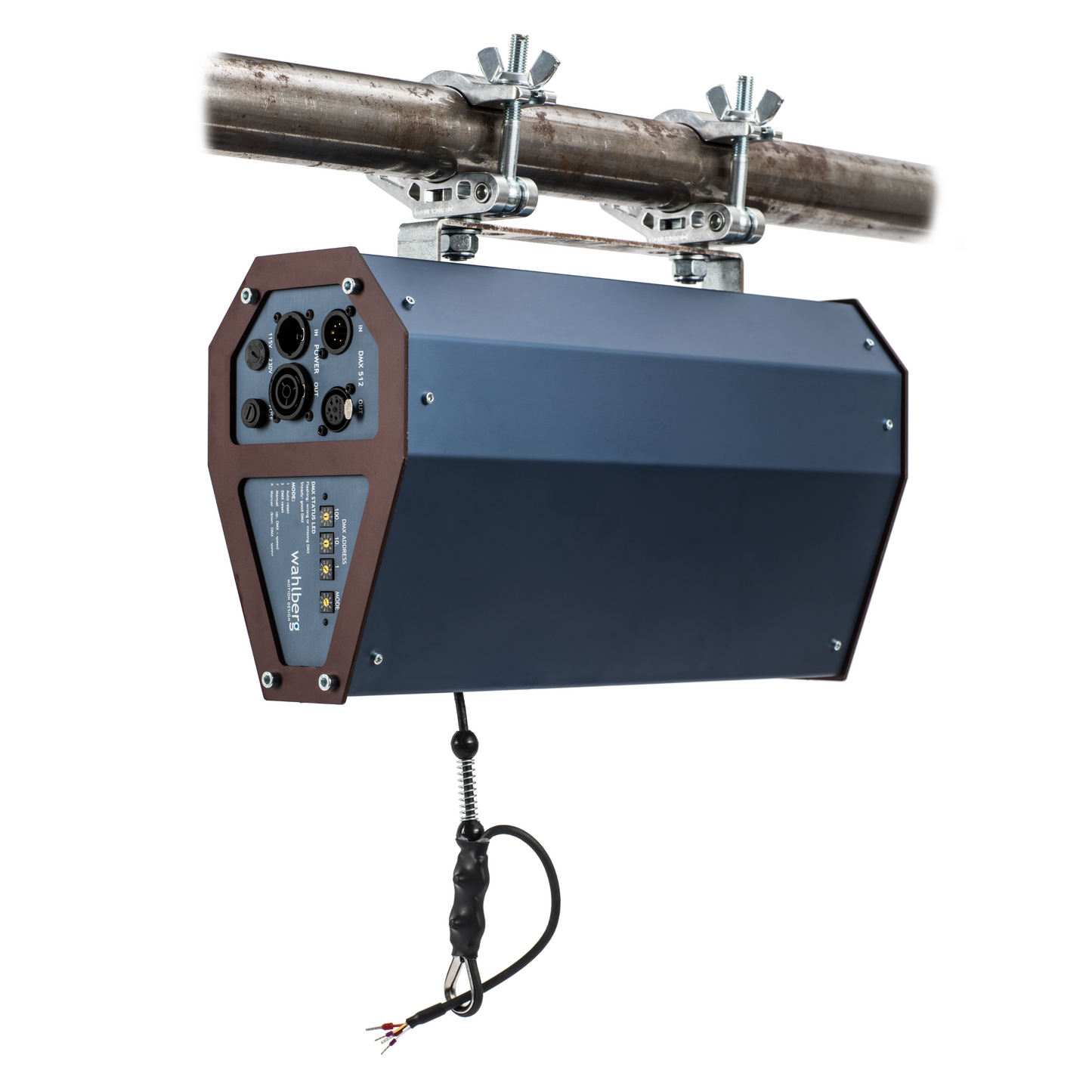

DMX winch with power and DMX control through the lifting cable.
| Lifting capacity: | 10 kg (22 lb) |
| Lifting height: | 9,8 m (32.2 ft) |
| Lifting speed: | 5-30 cm/s (2-11.8 in/s) |
| Conductors in the lifting cable: | 2 for power and 2 for data |

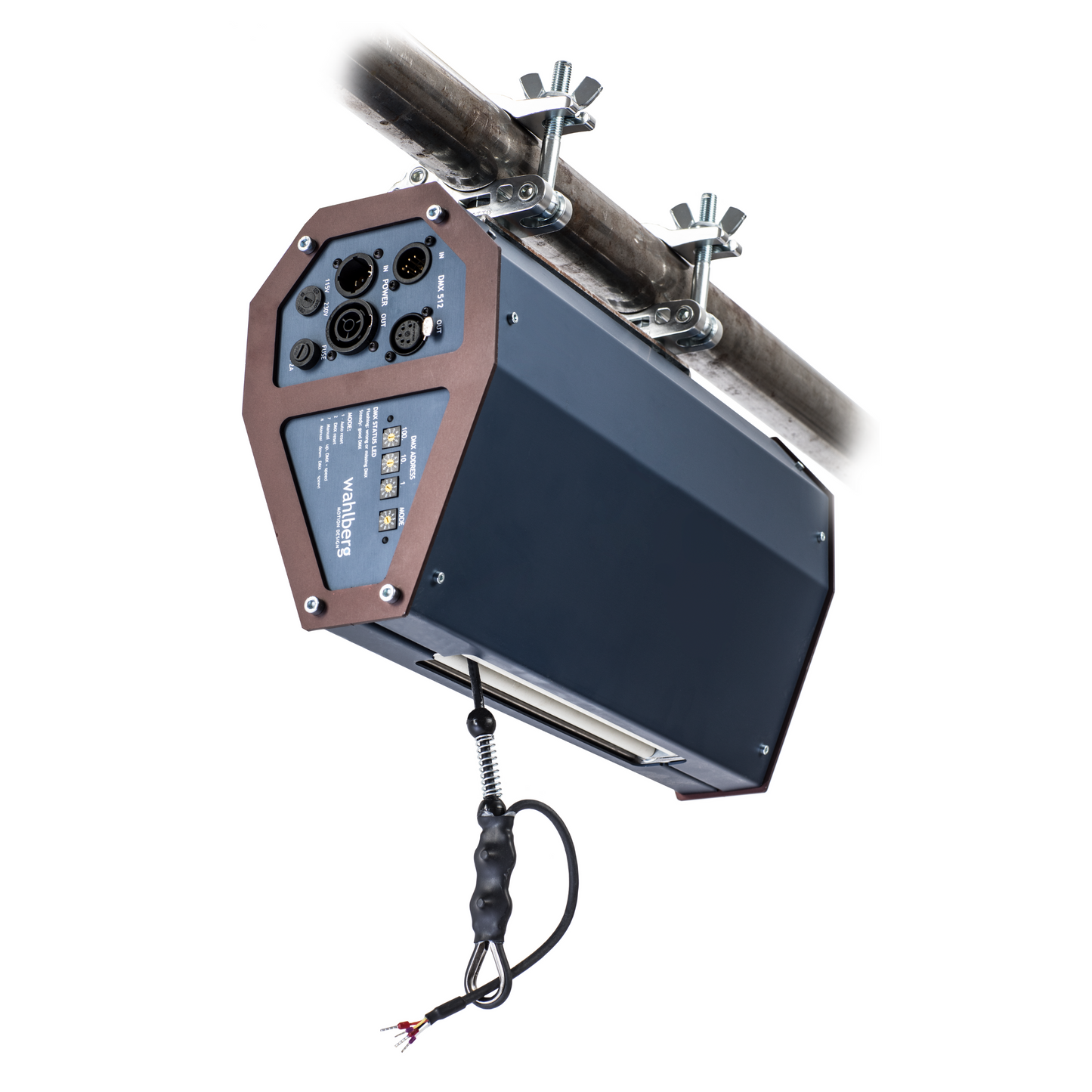

The Winch 10 Cable is an efficient and effective solution for lifting lamps or other electrical stage items weighing up to 10 kg. The lifting cable includes four conductors, providing a data signal and up to 1150 Watts of power. This design allows you to control elements via DMX while lifting, thanks to the integrated data cable.
The cable is wound onto a grooved drum, enabling precise DMX control with 16-bit position accuracy down to the millimeter. This setup makes it easy to power electrical equipment without needing an additional power wire, perfect for creating stunning DMX lighting effects.
Description
The Winch 10 Cable offers a flexible and effective solution for enhancing your stage lighting design, particularly suited for lifting electrical equipment such as lamps and light bulbs. It is ideal for creating moving effects with electrical elements, providing seamless power and control.
Winch 10 Cable - An Exceptional Tool for DMX Lighting Effects
The Winch 10 Cable has been successfully used in the past to create large and stunning kinetic installations. By combining multiple winches, you can achieve a massive light effect that is perfect for big venues.
All movements and positions can be controlled via DMX, making the Winch 10 Cable an incredibly versatile tool. You can manage the movements directly from the lighting desk, allowing you to craft the show exactly as you envision it.
Theatrical Lighting Effects

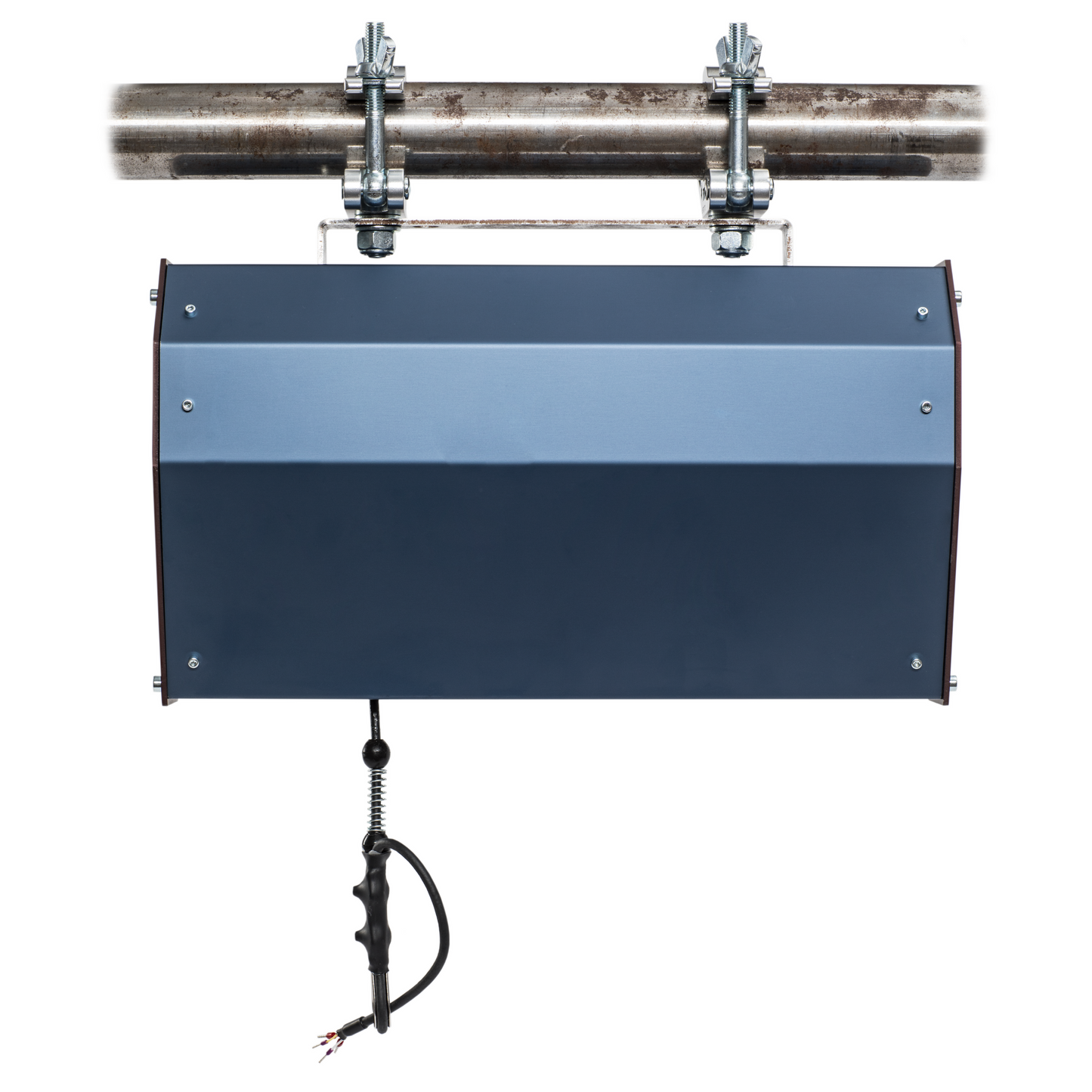

The Winch 10 Cable features a special Kevlar-reinforced power cable used for lifting objects. A slip ring transfers power to the cable, ensuring reliable operation. With a lifting height of 9,8 meters, the system allows for precise positioning, adapting to any environment. This high precision, down to the millimeter, enables detailed planning of effects, making it an excellent choice for theaters and venues of all sizes.
For more options, explore our other DMX Winches.
The content of the Winch 10 Cable package
1 x Winch 10 Cable
2 x Manfrotto Slim coupler
2 x Mounting bolt, nut, and washers (M12) for slim coupler mounting
1 x Neutrik PowerCon NAC3FX-W female plug for power cable
1 x Neutrik SpeakON 4 NL4FC plug for lifting cable attachment
1 x 8 mm snap hook
1 x User manual
1 x Cheat sheet
Spare parts

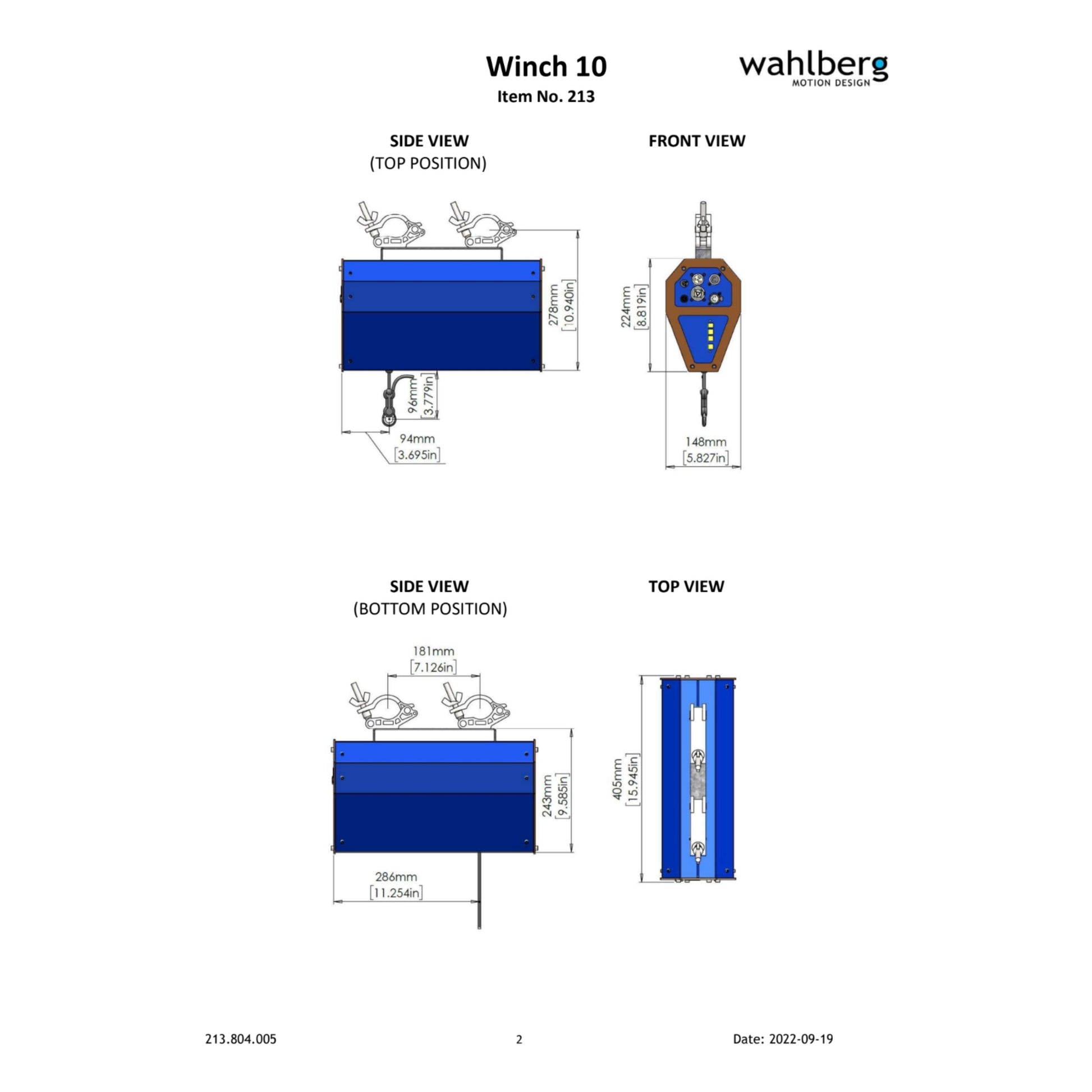

At Wahlberg, we prioritize customer satisfaction. We understand the frustration of having a product that isn't working as it should and don't believe in discarding a perfectly good product just because one part isn't functioning properly. That’s why we offer spare parts for all our products. So, whether you choose to send in your Wahlberg product for professional servicing or prefer DIY repairs, we're here to help. Just download our Exploded View drawings for guidance, and you'll have your product fixed in no time!
Contact us at sales@wahlberg.dk if you can’t find the needed spare part on our website.

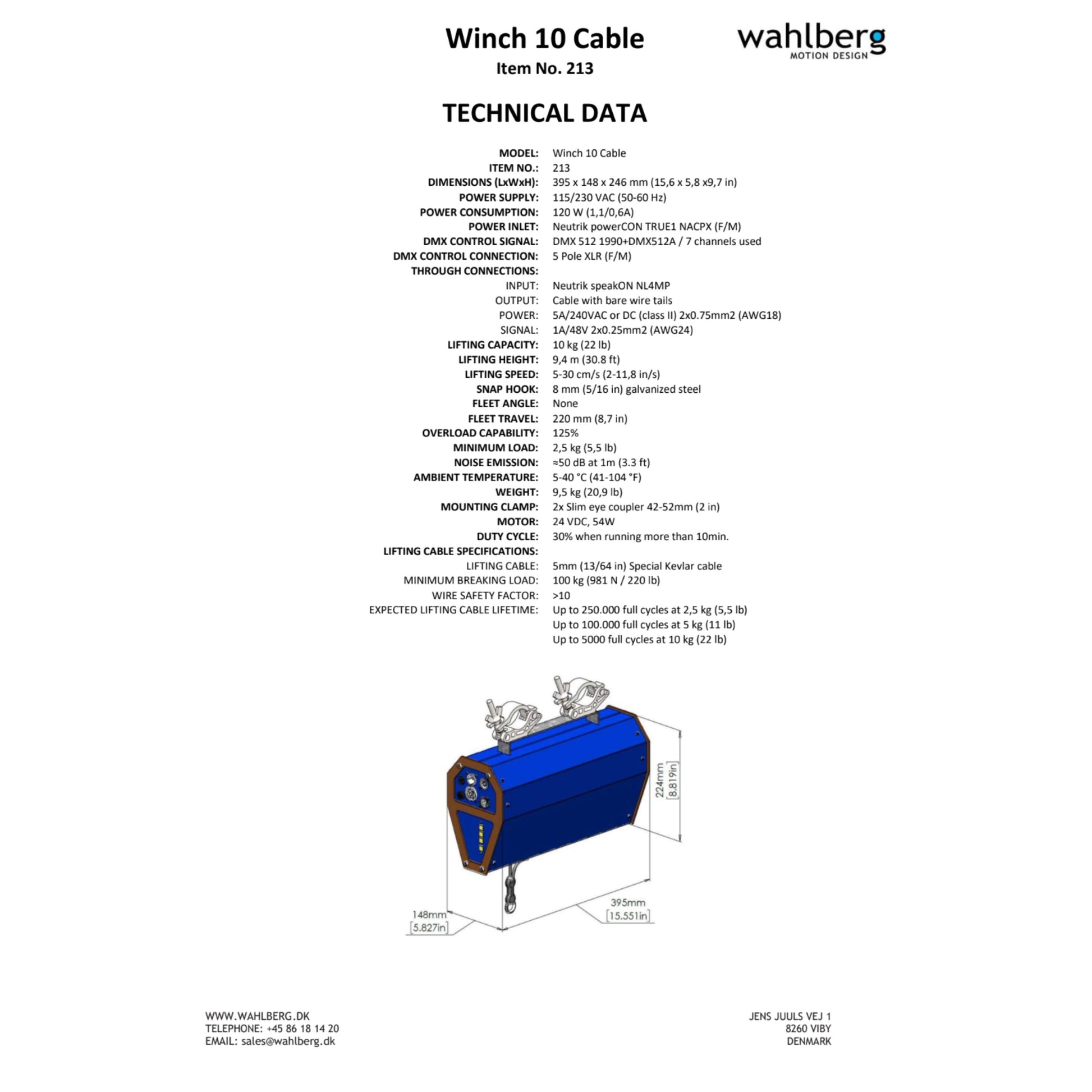

Specifications

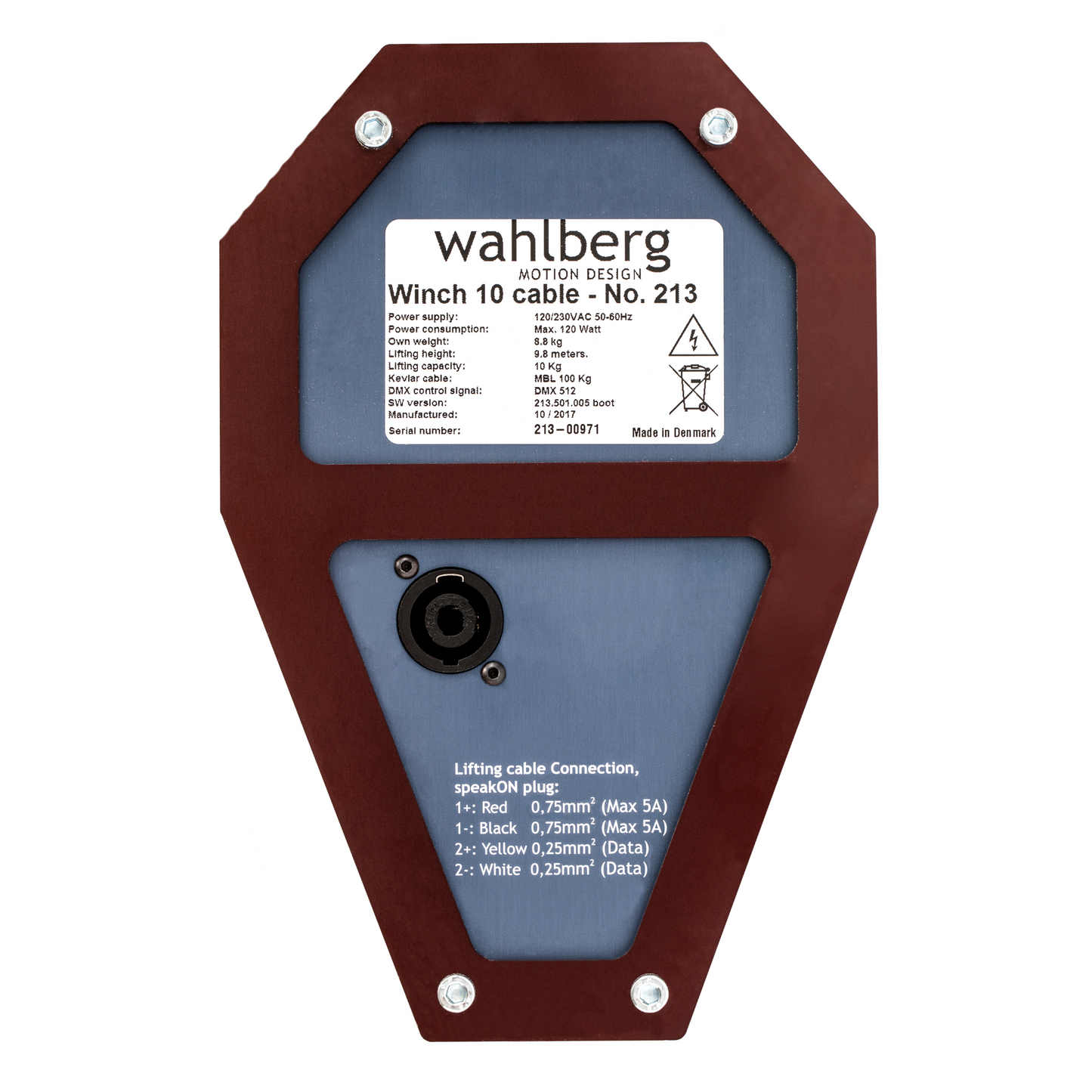

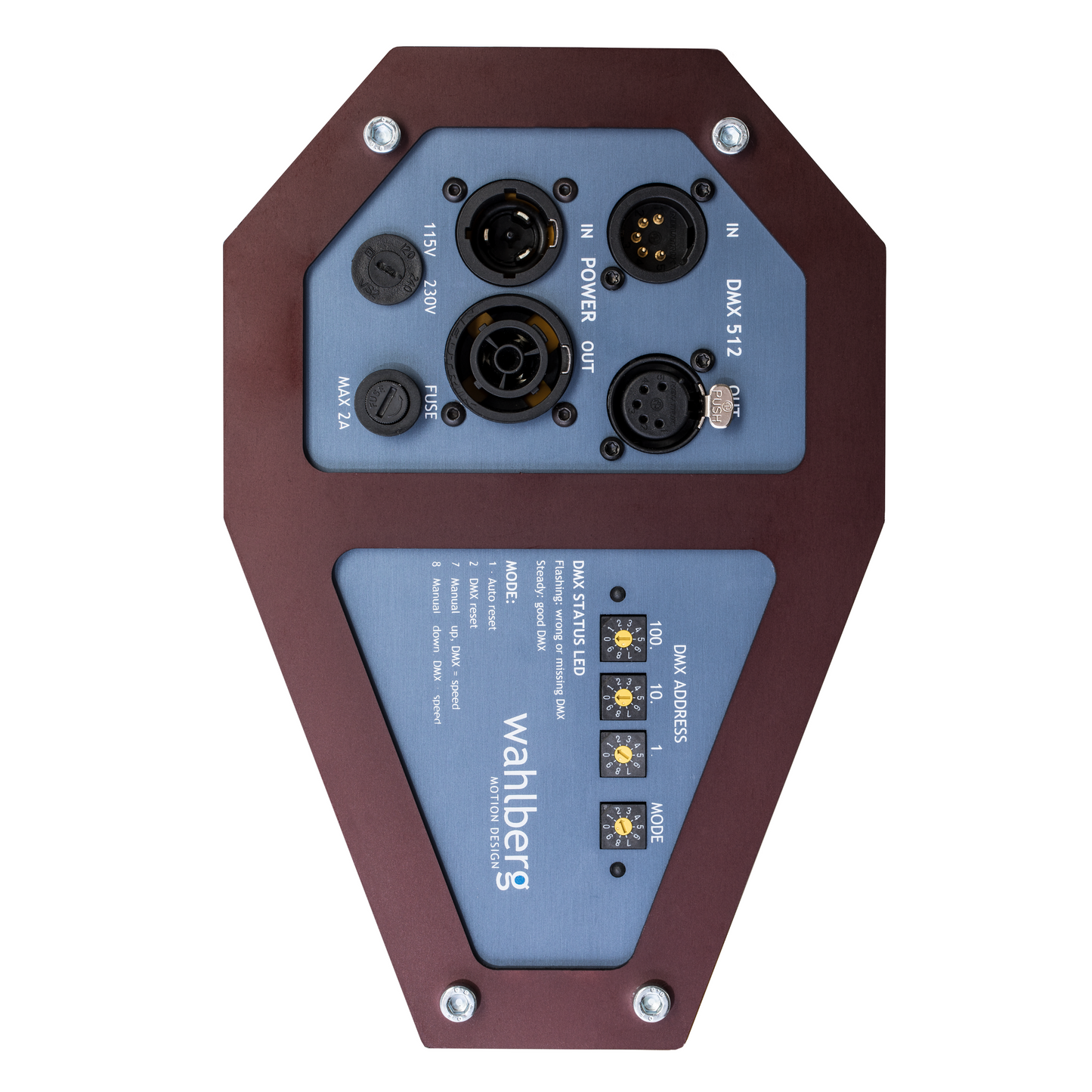

| Item number | .213 |
|---|---|
| Lifting capacity | 10 kg (22 lb) |
| Lifting height | 9,8 m (32.2 ft) |
| Lifting speed | 5-30 cm/s (2-11.8 in/s) |
| Through Connection - Input | Neutrik speakON NL4MP |
| Through Connection - Output | Cable with bare wire tails |
| Through Connection - Power | 5A/240VAC or DC (class II) 2x0.75mm2 (AWG18) Red/Black |
| Through Connection - Signal | 1A/48V 2x0.25mm2 (AWG24) White/Yellow |
| Voltage | 115/230 VAC |
| Frequency | 50-60 Hz |
| Power consumption | 120 W (1,1/0,6 A) |
| Power inlet | Neutrik powerCON TRUE1 NACPX (F/M) |
| DMX control signal | DMX 512 1990+DMX512A |
| DMX channels | 7 |
| DMX control connection | 5 Pole XLR (F/M) |
| Snap hook | 8 mm (5/16 in) galvanized steel |
| Fleet angle | None |
| Fleet travel | 220 mm (8.7 in) |
| Overload capability | 125 % |
| Minimum load | 2,5 kg (5.51 lb) |
| Noise emission | ≈50 dB at 1 m (3.3 ft) |
| Ambient temperature | 5-40 °C (41-104 °F) |
| Mounting clamp | 2 x Slim eye coupler 42-52 mm (2 in) |
| Motor | 24 VDC, 54 W |
| Duty cycle | 30 % when running more than 10 min. |
| Lifting cable | 5 mm (13/64 in) special kevlar cable |
| Conductors in the lifting cable | 2 for power and 2 for data |
| Minimum breaking load | 100 kg (981 N / 220 lb) |
| Wire safety factor | >10 |
| Expected lifting cable lifetime - 2,5 kg (5.5 lb) load | Up to 250000 full cycles |
| Expected lifting cable lifetime - 5 kg (11 lb) load | Up to 100000 full cycles |
| Expected lifting cable lifetime - 10 kg (22 lb) load | Up to 5000 full cycles |
| Shipping weight | 10 kg (22.05 lb) |
| Weight | 9,5 kg (20.9 lb) |
| Dimensions | 395 x 148 x 246 mm (15.6 x 5.8 x 9.7 in) |
