Track Runner for Joker95
Track Runner for Joker95
Couldn't load pickup availability

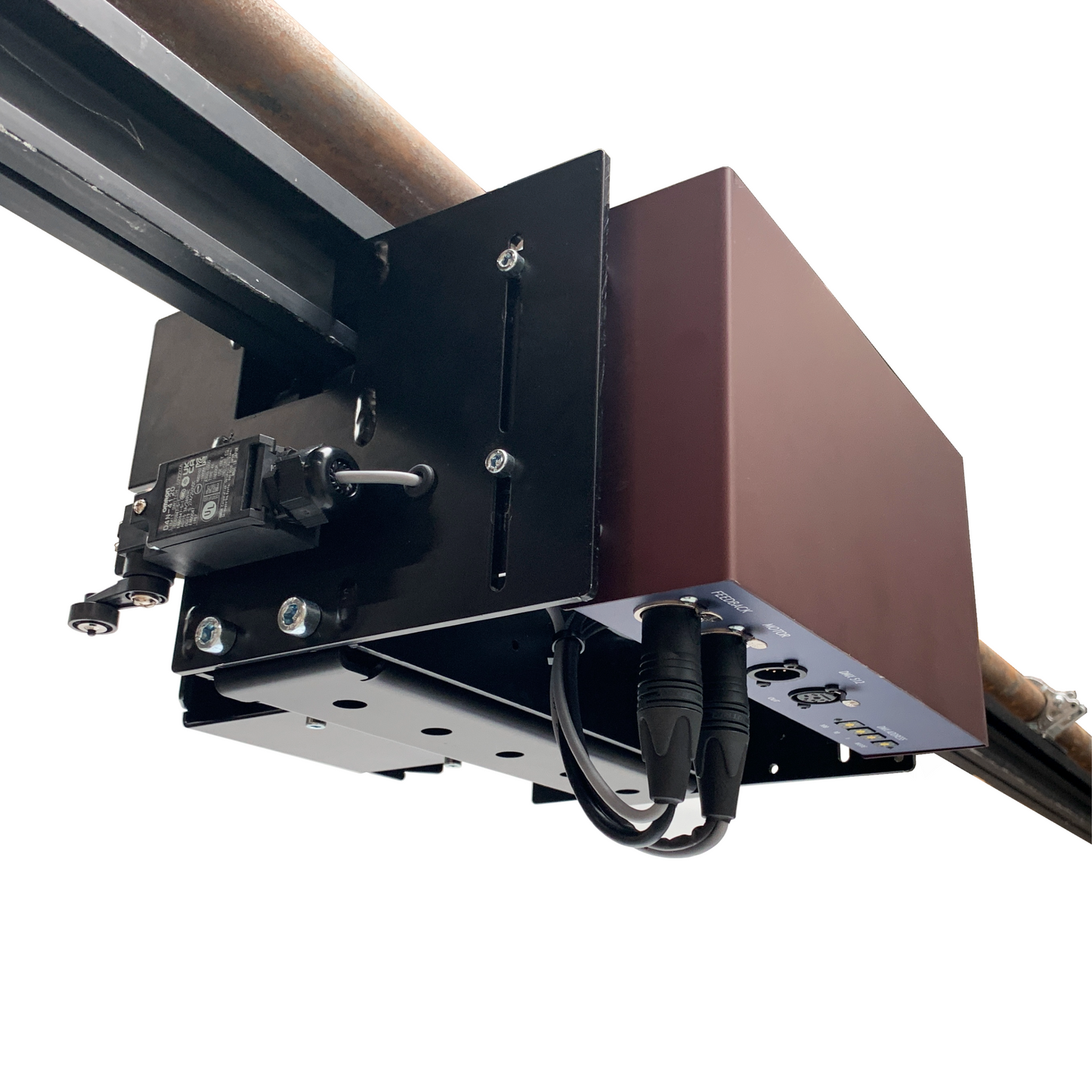

Create automated horizontal movements with extremely high precision with our Track Runner for Joker95 with Friction wheel.
Very precise and easy to control via DMX.
Mount load directly onto the unit and enjoy smooth and precise moving effects for any stage props in your stage design.
| Load capacity: | 50 KG ( 110 Ib ) |
| Pull capacity: | 500 KG ( 1102 IB ) |
| Fast version - Speed: | 7.3-42 cm/s ( 2,9-16,5 in/s ) |
| Slow version - Speed: | 4-23 cm/s ( 1,3-9,1 in/s ) |
Description
The Track Runner seamlessly moves your stage elements horizontally from point to point. There is no manual handling because all movements are created via DMX directly from the lighting desk.
Track Runner for Joker95 with Friction Wheel – A World of Opportunities
The ways of which you can apply the Track Runner with Friction wheell in your stage and lighting design are endless. The load capacity makes it possible to lift even the biggest and heaviest stage items up to 50 kg. By using Passive Runners, you can reach even higher capacity up to 500 kg.
It is possible to use this for Joker95 track profiles. It is a perfect solution if you are looking for moving your stage equipment between exact positions.
Mount e.g. a Roll Down to make a moving projection screen or you can mount one of our DMX Winches to combine vertical and horizontal movements of your objects.
Try our Track Runner today and explore the many opportunities you have to create beautiful moving effects for your stage equipment. It is a great way to create brand new dimensions for your lighting design thanks to the possibility to run with powered track.
The content of the Track Runner for Joker95 package
1 x Track Runner for Joker95 with Friction Wheel
1 x PowerCON TRUE1 plug
2 x Limit Switch profiles
2 x M6 x 60
1 x User manual
1 x Cheat sheet
Spare parts
At Wahlberg, we prioritize customer satisfaction. We understand the frustration of having a product that isn't working as it should and don't believe in discarding a perfectly good product just because one part isn't functioning properly. That’s why we offer spare parts for all our products. So, whether you choose to send in your Wahlberg product for professional servicing or prefer DIY repairs, we're here to help. Just download our Exploded View drawings for guidance, and you'll have your product fixed in no time!
Contact us at sales@wahlberg.dk if you can’t find the needed spare part on our website.

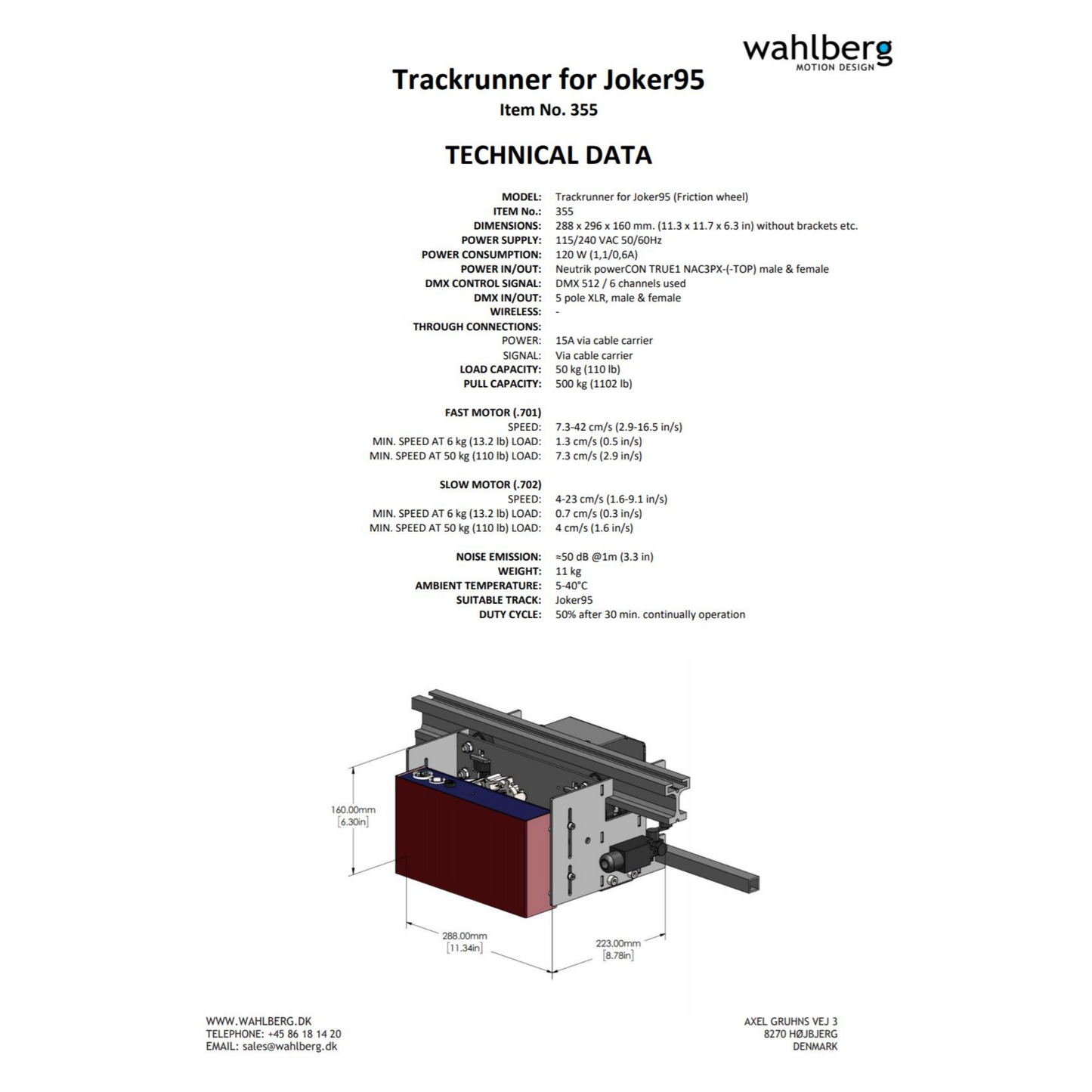

Specifications
| item no | .355 |
|---|---|
| Load capacity | 50 KG ( 110 Ib ) |
| Pull capacity | 500 KG ( 1102 IB ) |
| Fast version - Speed | 7.3-42 cm/s ( 2,9-16,5 in/s ) |
| Fast version - Min. speed low load (6 kg / 13.2 lb) | 1,3 cm/s ( 0,5 in/s ) |
| Fast version - Min. speed high load (50 kg / 110.2 lb) | 7,3 cm/s ( 2,9 in/s ) |
| Slow version - Speed | 4-23 cm/s ( 1,3-9,1 in/s ) |
| Slow version - Min. speed low load (6 kg / 13.2 lb) | 0,7 cm/s ( 0,3 in/s ) |
| Slow version - Min. speed high load (50 kg / 110.2 lb) | 4 cm/s ( 1,6 in/s ) |
| Voltage | 115/230 VAC |
| Frequency | 50-60 Hz |
| Power consumption | 120 W (1,1/0,6A) |
| Power in/out | Neutrik powerCON TRUE1 NAC3PX-(-top ) male & female |
| DMX control signal | DMX 512 |
| DMX channels | 6 |
| DMX control connection | 5 Pole XLR, male & Female |
| Through connection - Power | 15A via cable carrier |
| Through connection - Signal | Via cable Carrier |
| Noise emission | ≈50 dB at 1 m (3.3 in) |
| Ambient temperature | 5-40 °C (41-104 °F) |
| Duty cycle | 50 % when running more than 30 min. |
| Shipping weight | 11 kg (24.2 lb) |
| Dimensions | 288 x 296 160 mm ( 11,3 x 11,7 x 6,3 in ) without brackets ect. |
| Suitable track | Joker95 |
