Rotracktor
Rotracktor
Couldn't load pickup availability
Perfect for both rotation and horizontal movement of LED-screens and other large equipment that require power.
| Rotation speed: | 0,15-0,8 rpm |
| Horizontal speed: | 5-30 cm/s (2-11.8 in/s) |
| Working load limit: | 500 kg (1102.31 lb) |
Description
The Rotracktor is a great solution for large objects that need to be moved linearly across the stage and simultaneously be rotated at various angles. You can show all different angles and sides of your stage objects. It is possible to mount up to 500 kilos, perfect for e.g. LED screens that need to be positioned at different angles during the show.

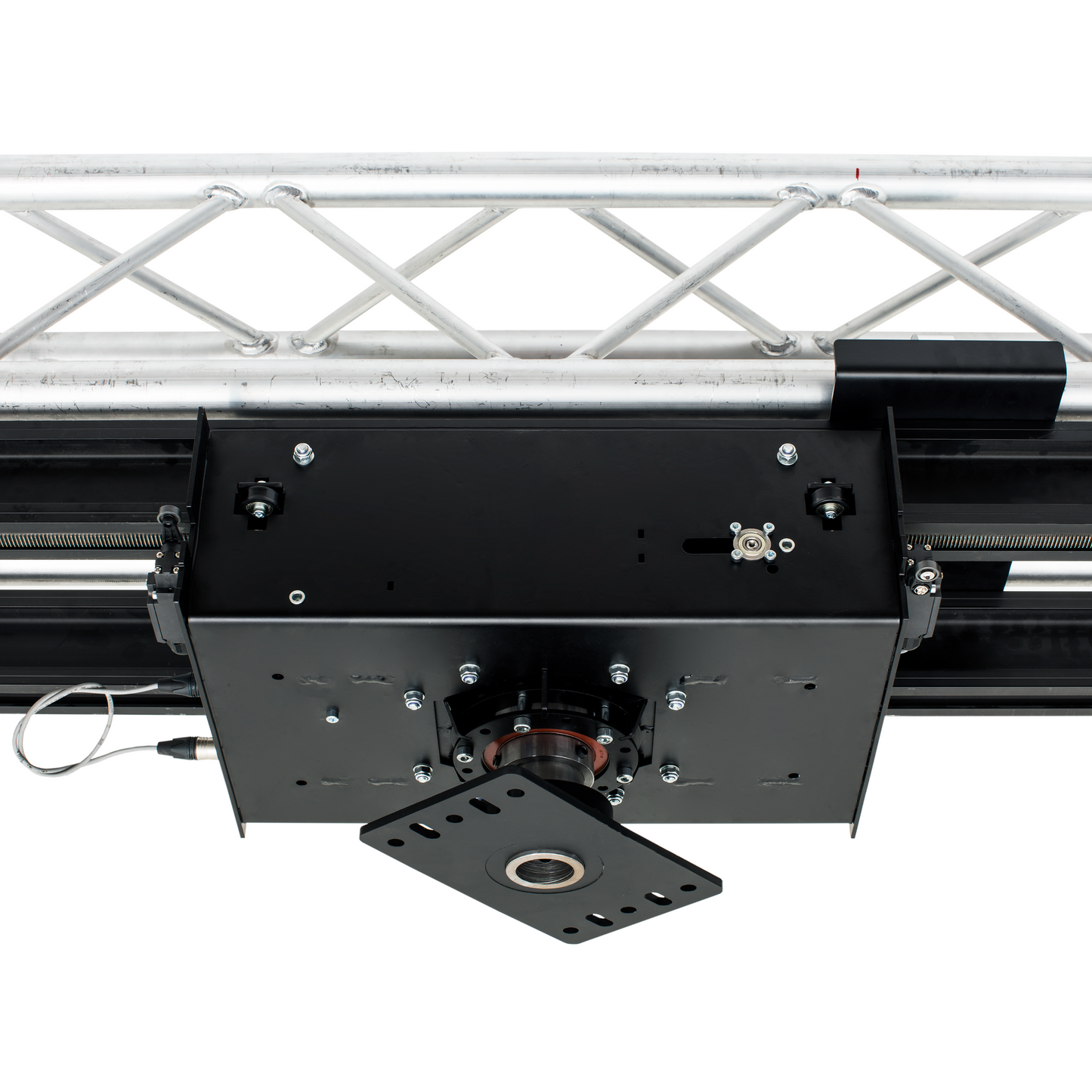

It runs on a double track, which offers great stability for any object that needs to be moved. Make your stage objects appear or move around the stage and show various angles with the rotating feature.
You can furthermore rotate the objects 355 degrees. So whether you need a scenic element to turn, an LED screen to fit the perfect angle or if you want your lamps to move, the Rotracktor is the perfect solution for your next production.
It is easy to mount electrical equipment. The 355° spinning makes sure that the power wire from the Rotracktor to the mounted object does not get entangled.
The Rotracktor is DMX controlled and can be controlled from any lighting desk using 12 channels.
Many possibilities with the Rotracktor
By including a Rotracktor in your stage design you get even more possibilities to reach brand new opportunities and make beautiful effects for your show. It creates linear and rotating effects however by combining it with other Wahlberg products you can make even more effects.
Use for instance our Winch 25 Double to also make your stage props move up and down while also enjoying the linear and rotating features of the Rotracktor.
Make sure to explore all your opportunities. Contact us here if you need advice or want feedback on your thoughts regarding a new project with our products.
The content of the Rotracktor package
1 x Rotracktor
2 x Limit Switch profiles
1 x User manual
1 x Cheat sheet
Spare parts
At Wahlberg, we prioritize customer satisfaction. We understand the frustration of having a product that isn't working as it should and don't believe in discarding a perfectly good product just because one part isn't functioning properly. That’s why we offer spare parts for all our products. So, whether you choose to send in your Wahlberg product for professional servicing or prefer DIY repairs, we're here to help. Just download our Exploded View drawings for guidance, and you'll have your product fixed in no time!
Contact us at sales@wahlberg.dk if you can’t find the needed spare part on our website.

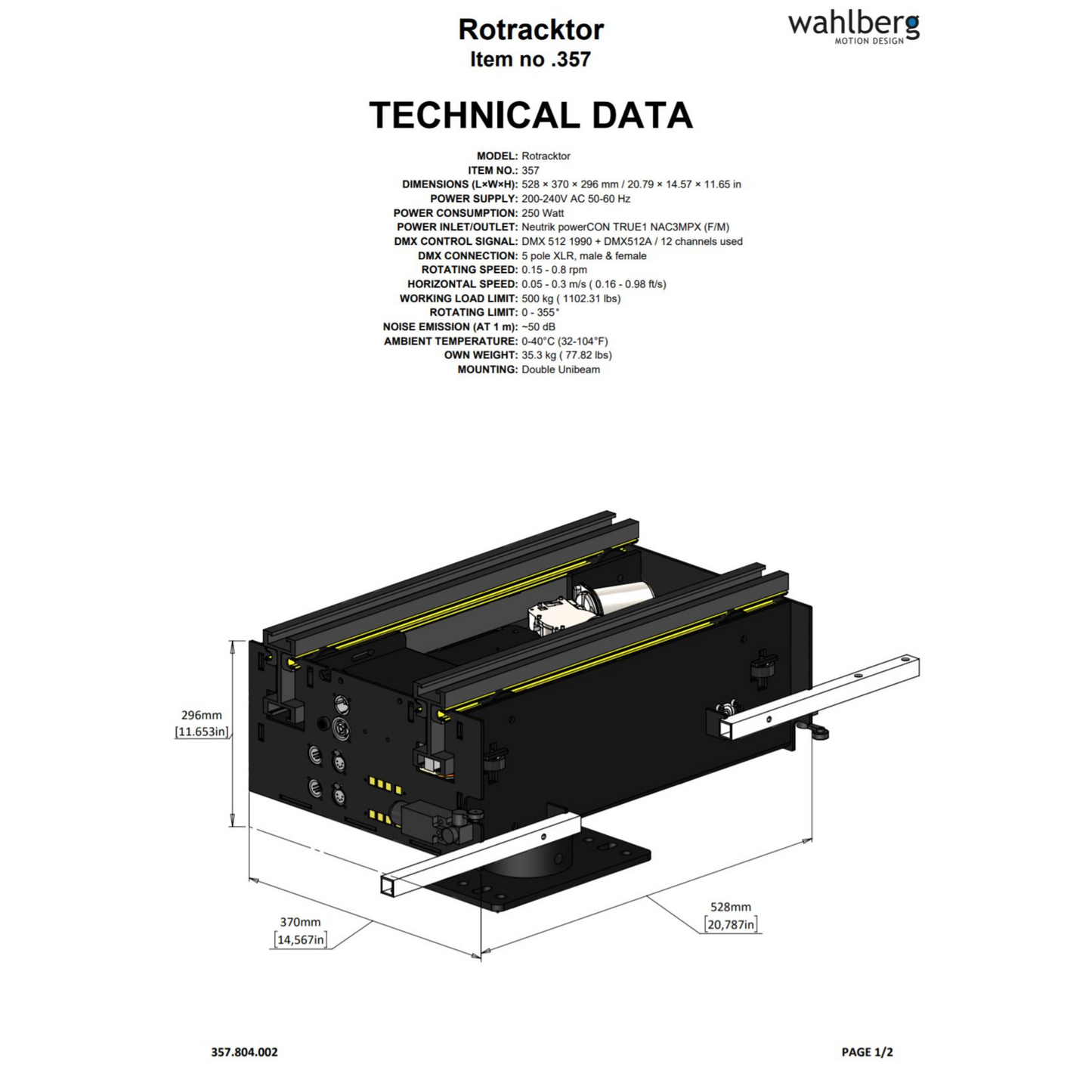

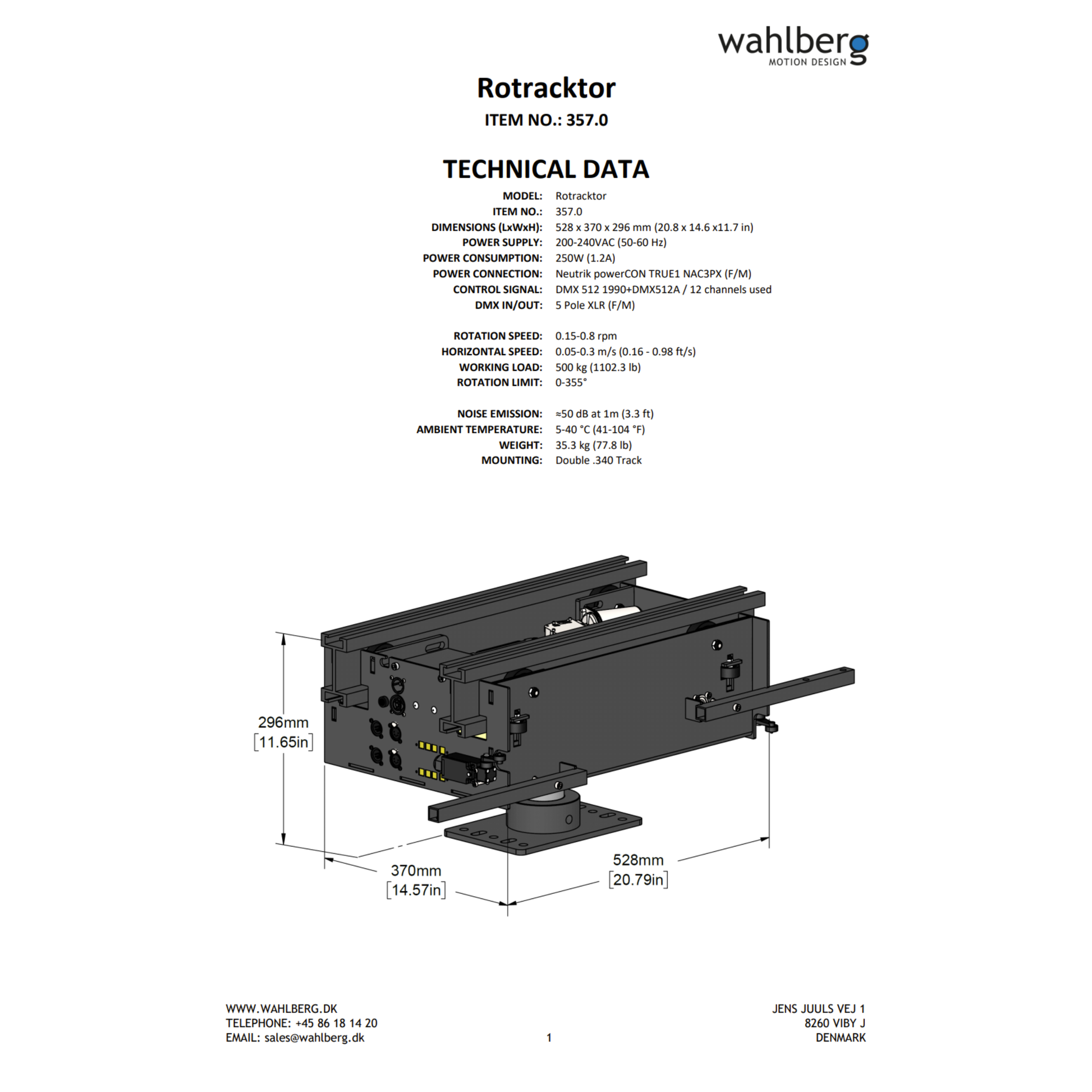

Specifications
| Item number | .357 |
|---|---|
| Power supply | 200-240V AC 50-60 Hz |
| Power consumption | 250 W |
| Power inlet/outlet | Neutrik powerCON TRUE1 NAC3MPX (F/M) |
| DMX Control signal | DMX 512 1990 + DMX512A |
| DMX channels | 6 |
| DMX Connection | 5 pole XLR, male & female |
| Rotation speed | 0,15-0,8 rpm |
| Horizontal speed | 5-30 cm/s (2-11.8 in/s) |
| Working load limit | 500 kg (1102.31 lb) |
| Rotation limit | 0-355° |
| Noise emission (AT 1 m) | ~50 dB |
| Ambient temperature | 0-40°C (32-104°F) |
| Shipping weight | 38 kg (83.6 lb) |
| Weight | 35,3 kg (77.8 lb) |

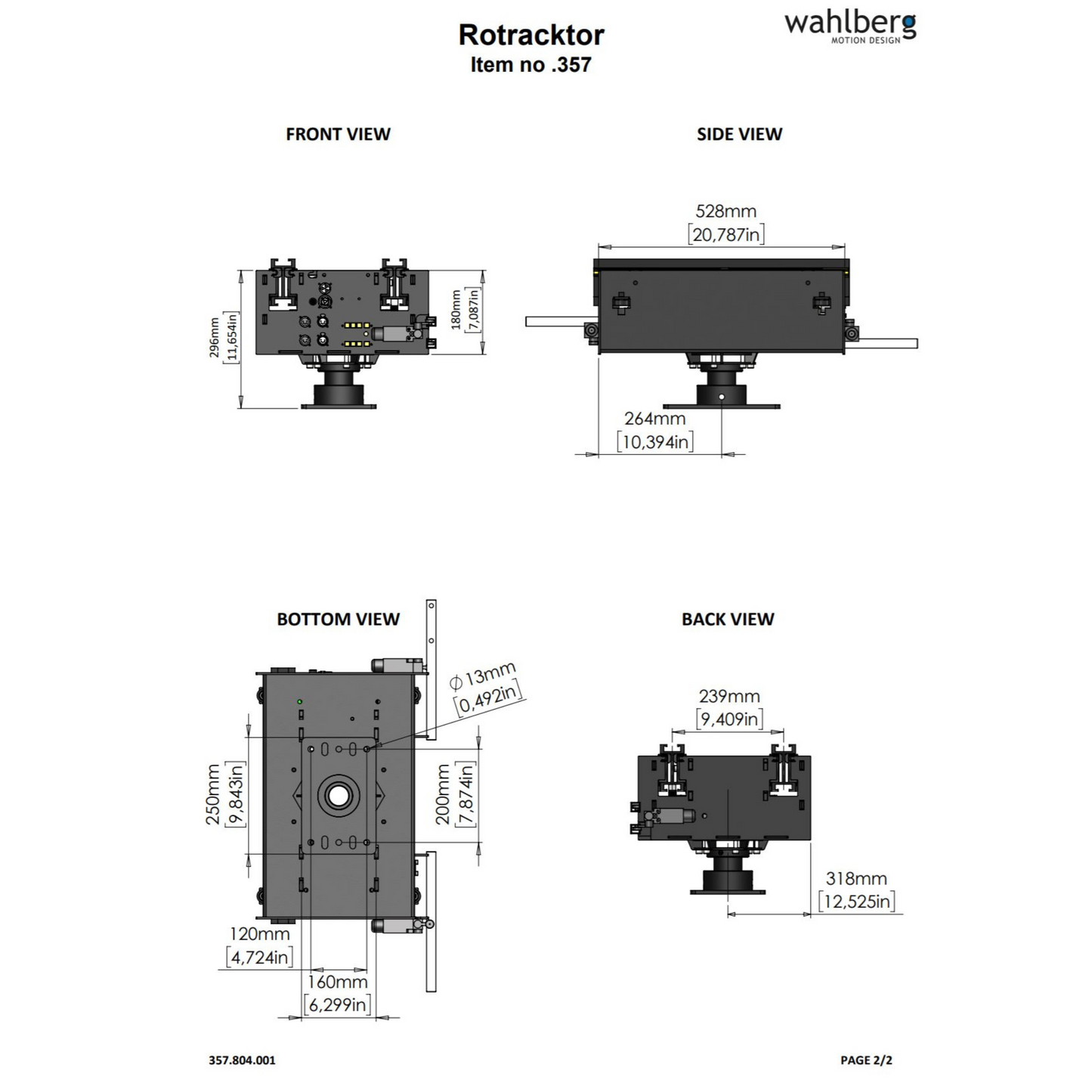

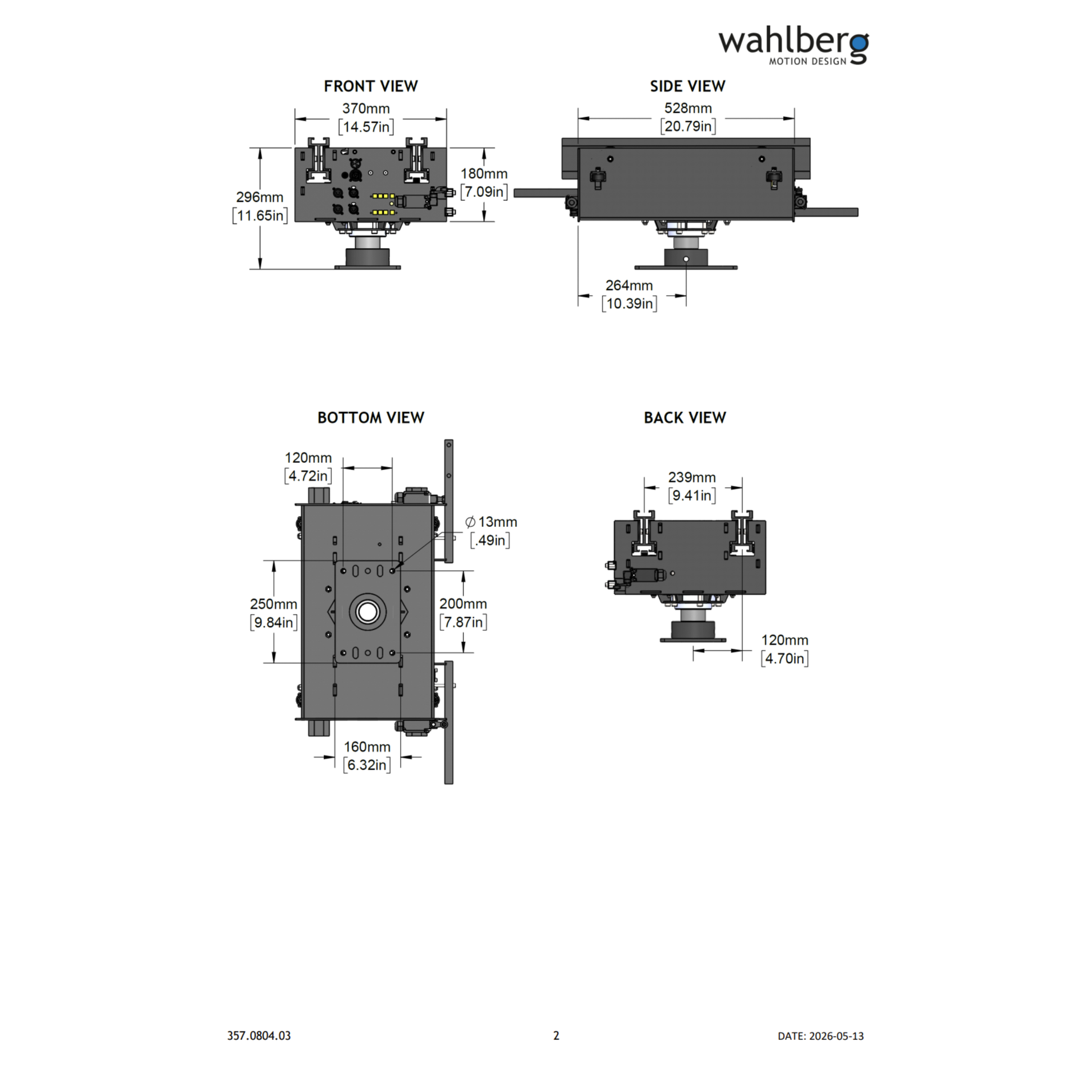

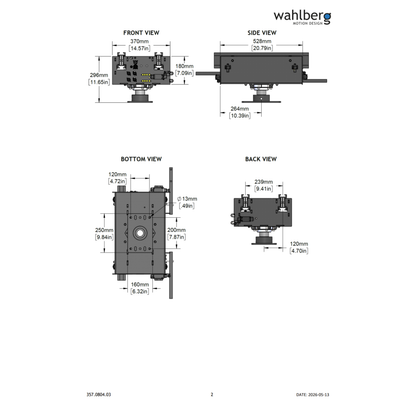

| Dimensions | 528 × 370 × 296 mm (20.8 × 14.6 × 11.7 in) |
