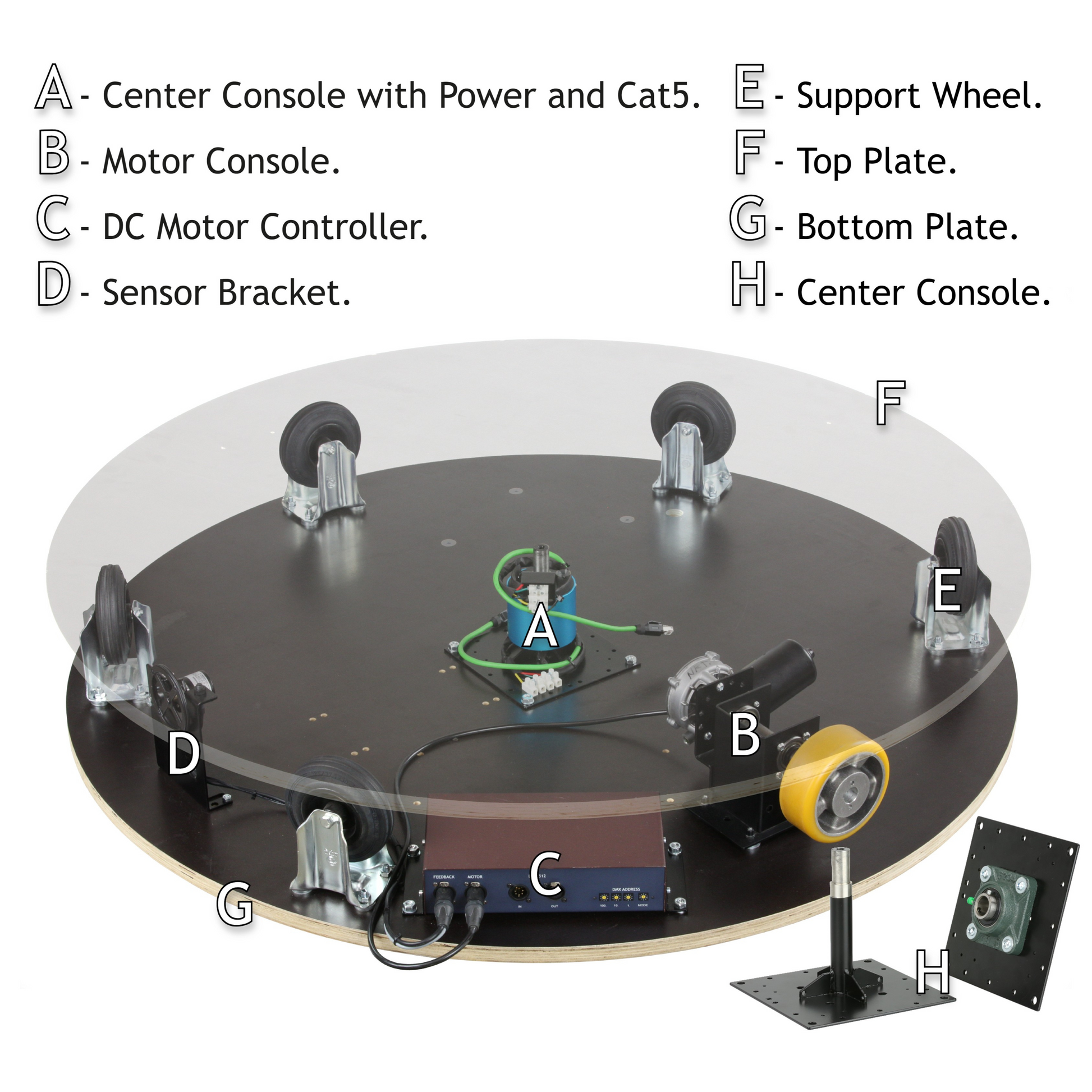

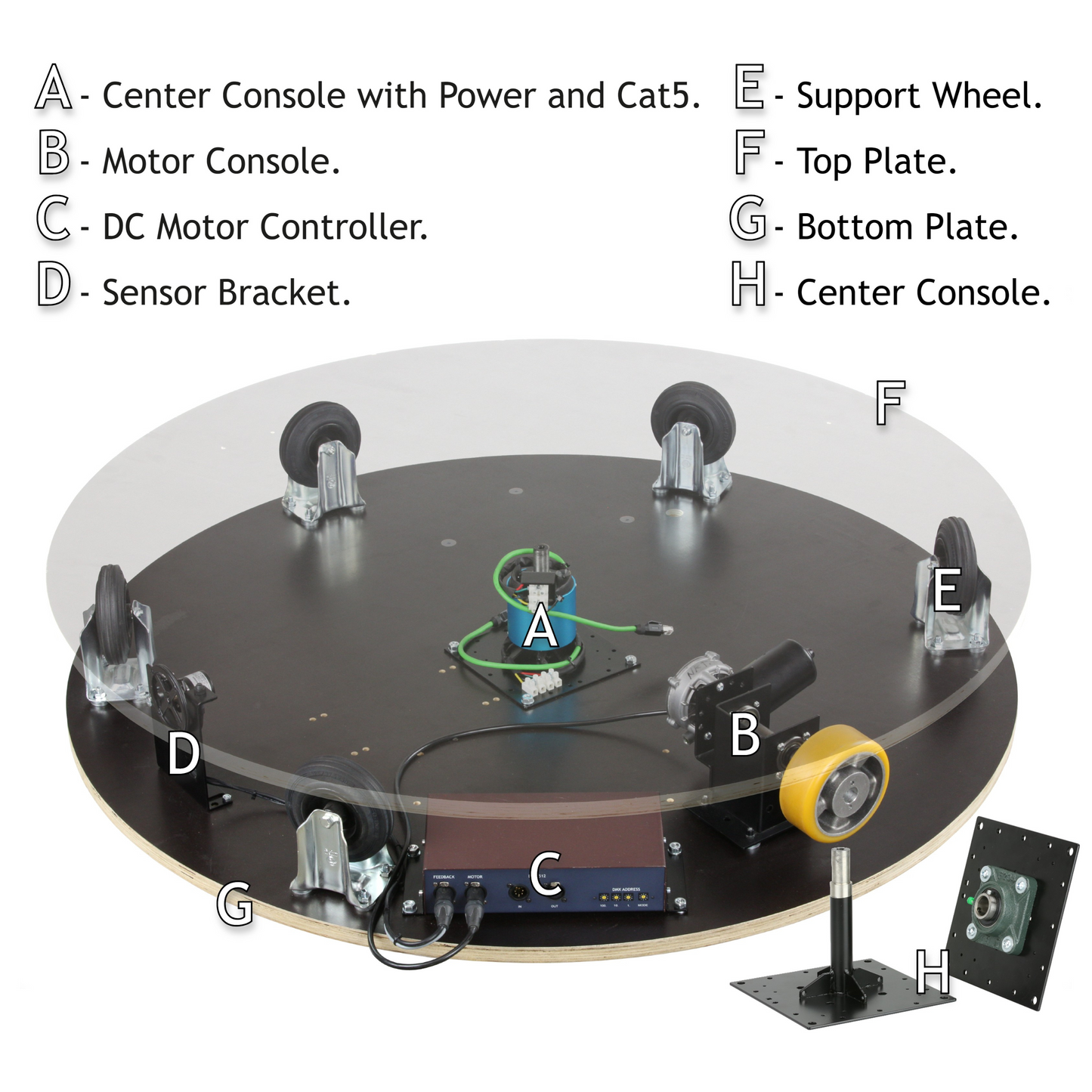

Revolving Stage Components

Item number: 321.2011

The Center Console connects the top and bottom plates, preventing sideways movement. For easy access and assembly of the Revolving Stage, the center console splits in two parts, that are mounted on the top and bottom plate.

The top and bottom plates are then easily connected by fitting the axis into the bearing on the top part and tightening the pinion screw. The Center Console can be fastened with either screws or bolts using the predrilled pattern of mounting holes.
