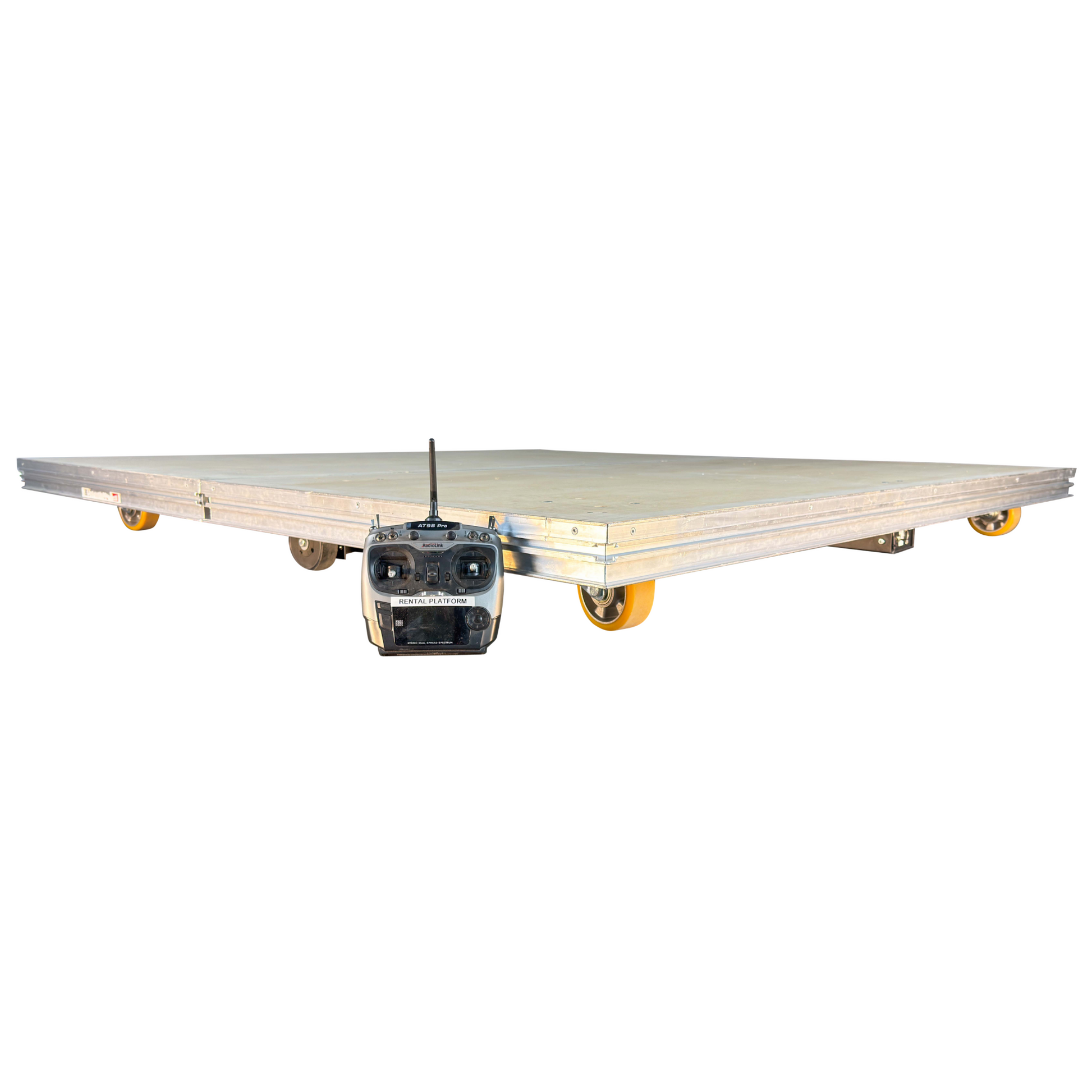

Remote Controlled Stage Platform
Remote Controlled Stage Platform
Couldn't load pickup availability
Move heavy stage objects with ease.
| Battery operation time: | 1,5 hour drive, 10 hour standby |
| Standard wheel platform - Moving speed (No load): | 1,2 m/s or 4,5 km/t (4.1 ft/s or 2.8 mph) |
| Standard wheel platform - Maximum load: | 300 kg (661.4 lb) |
| Motor speed: | 190 RPM / NO LOAD |
The very user-friendly remote makes it easier than ever to control the heavy-duty Remote Controlled Stage Platform. This means you get 360 degrees movement control while only using the tip of one finger.
This product is not DMX compatible and must be controlled with the included remote controller.
Description
The standard version comes with the slick 125mm wheels, that run well on all relatively smooth surfaces such as stage decks, concrete or Marley floor. The small wheels are easy to hide in order achieve a floating effect on stage.
If you should have the need for off-road capabilities, we can fit the platform with our Off-road wheels.
The stage platform is by default 2m x 2m and with a typical stage deck finish. It is, however, possible to order a custom version of the size and finish you need for your next project. You can also customize the platforms size by adding or removing stage modules and extra wheels as you see fit.
Moving Stage Platform with Many Possibilities
The Remote-Controlled Stage Platform makes it easy to move stage props in and out of the stage area. It is also well suited to create a moving effect with probs such as the flying carpet from Alladin, or the boat from Moana. These are merely examples of the things you can do with this platform. Your imagination is usually the limit.

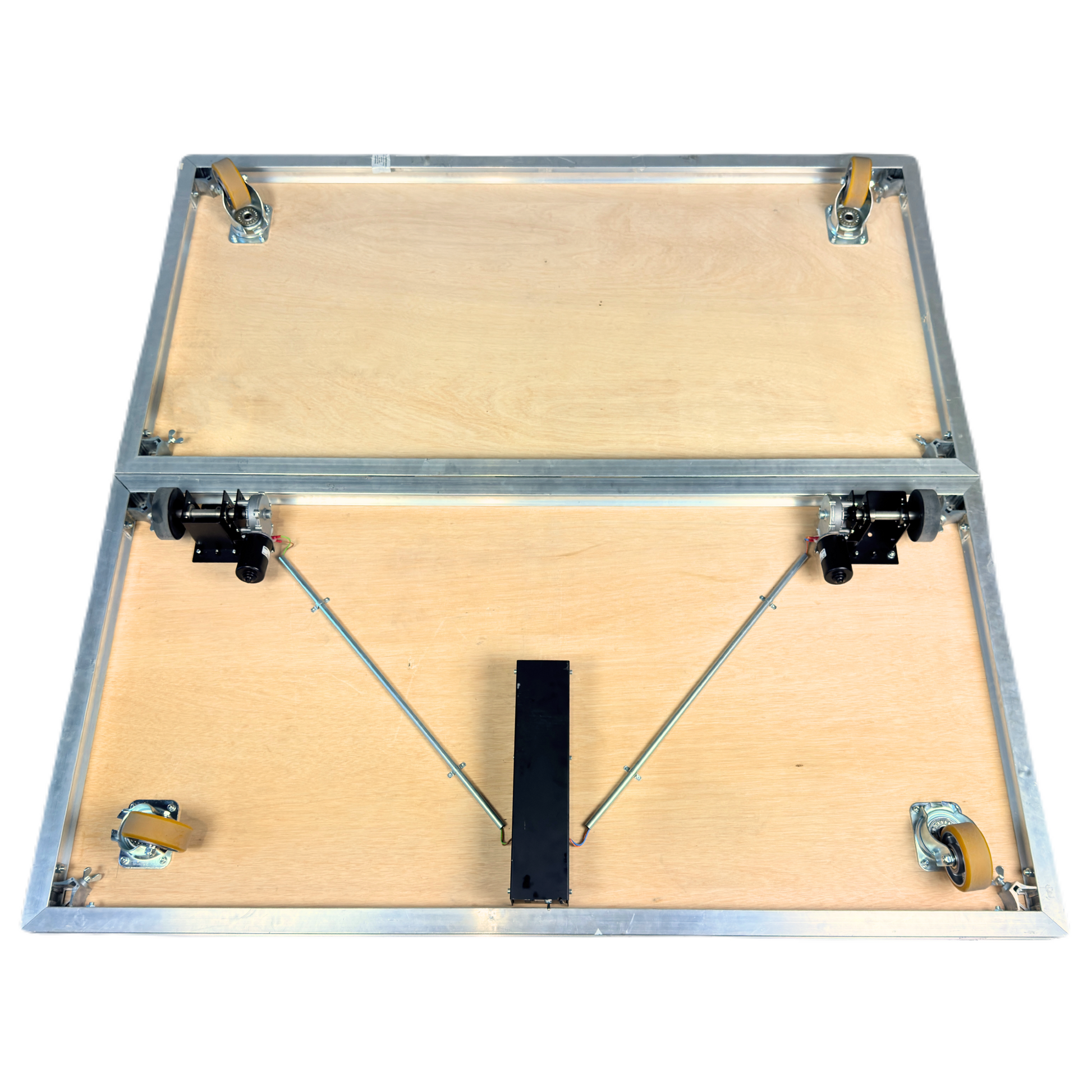

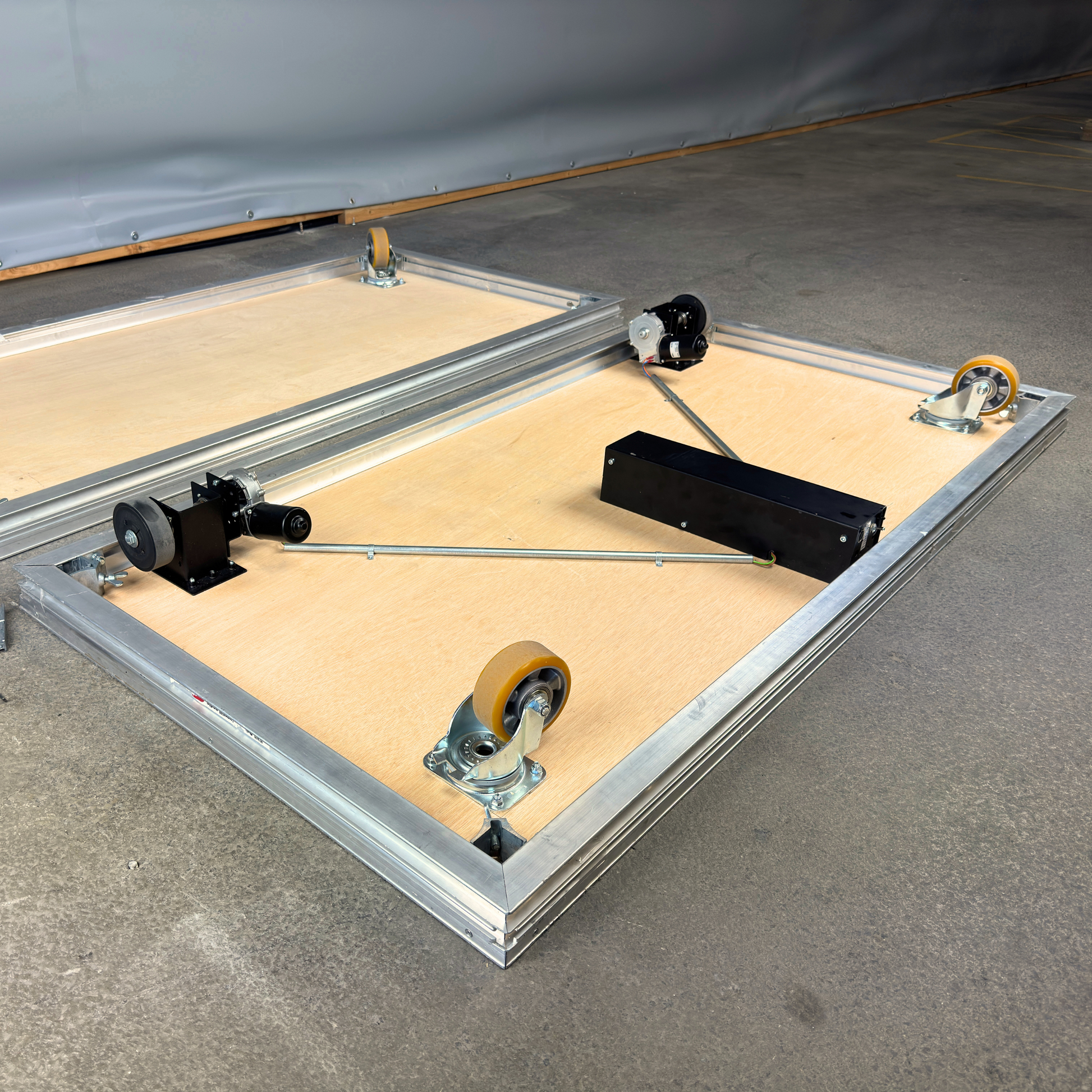

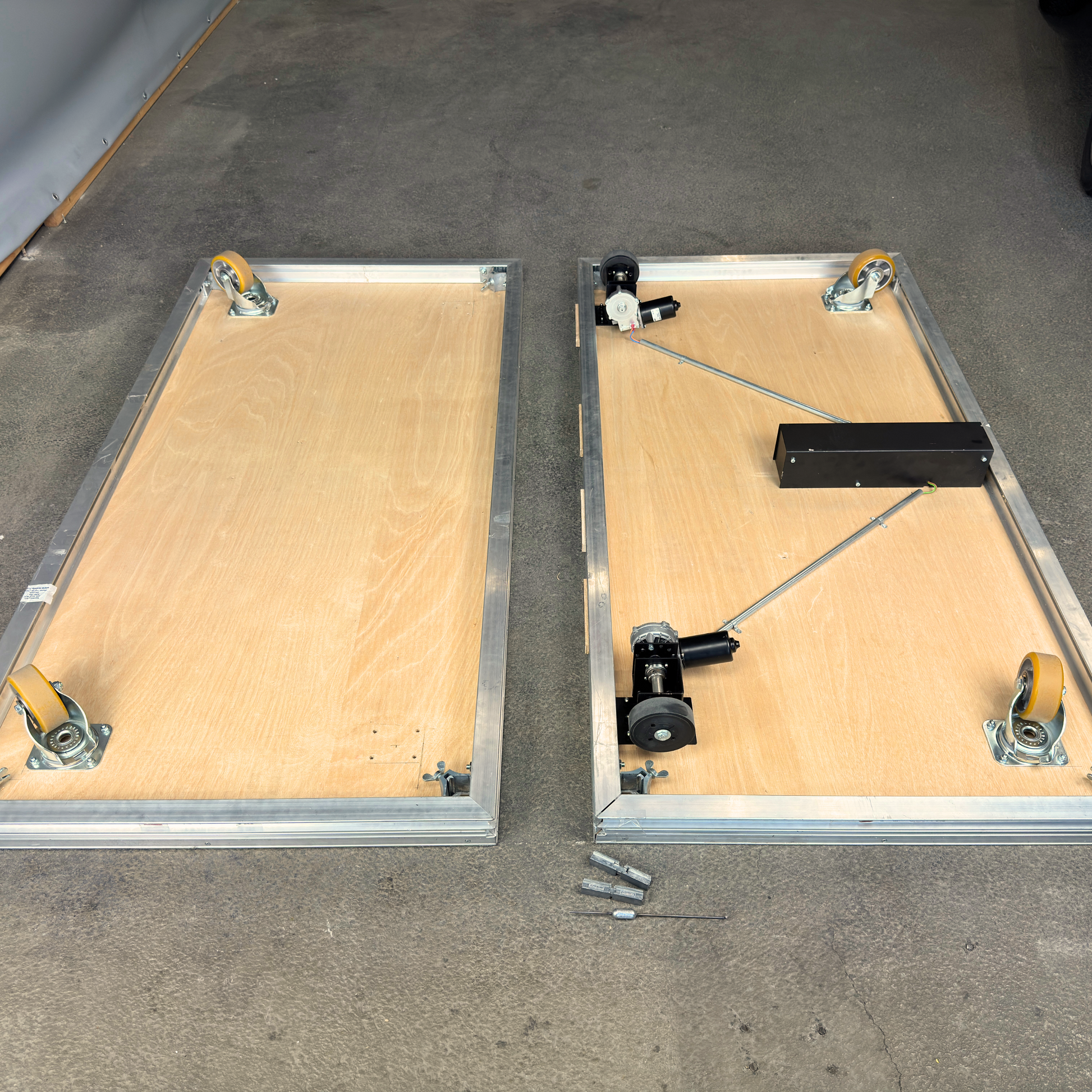

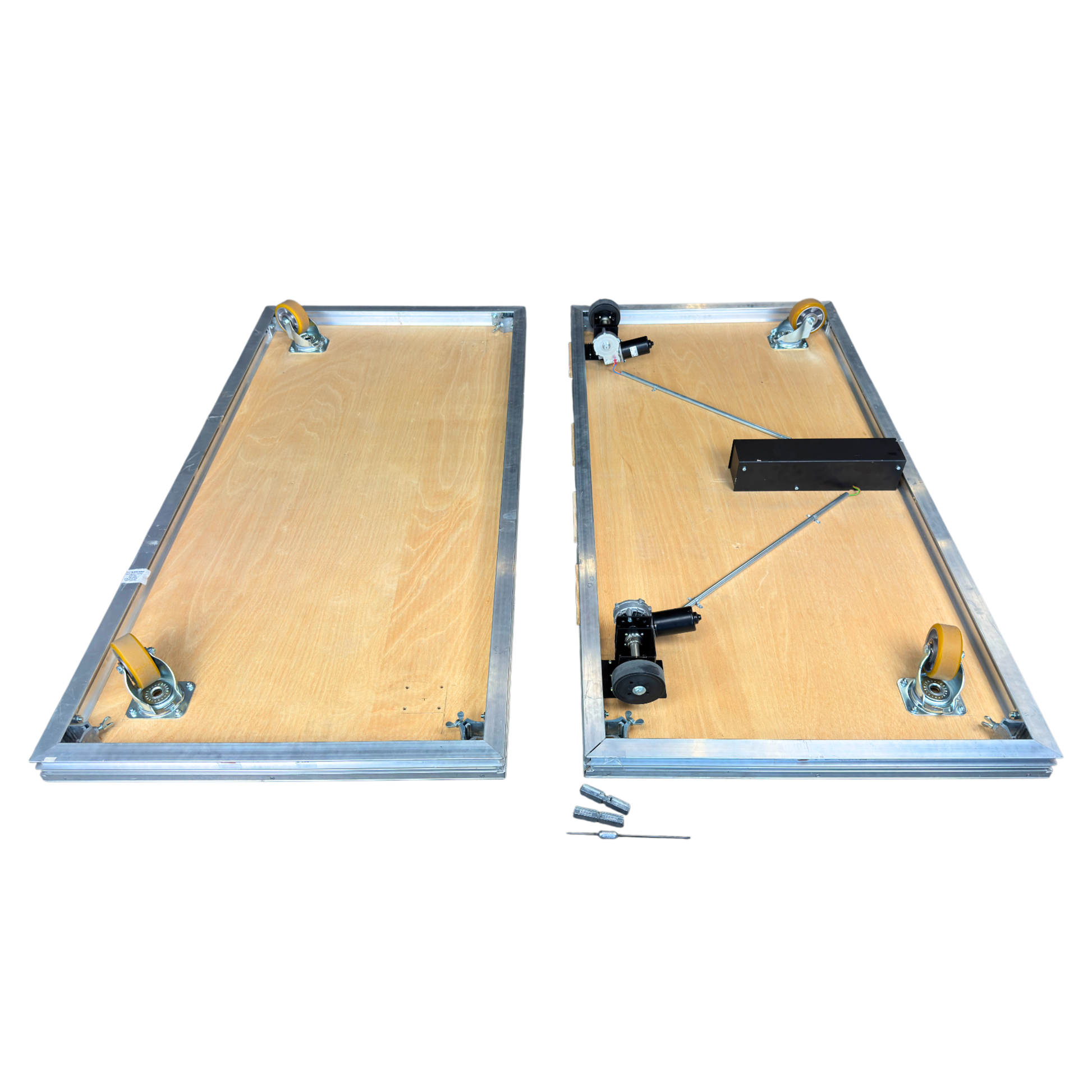

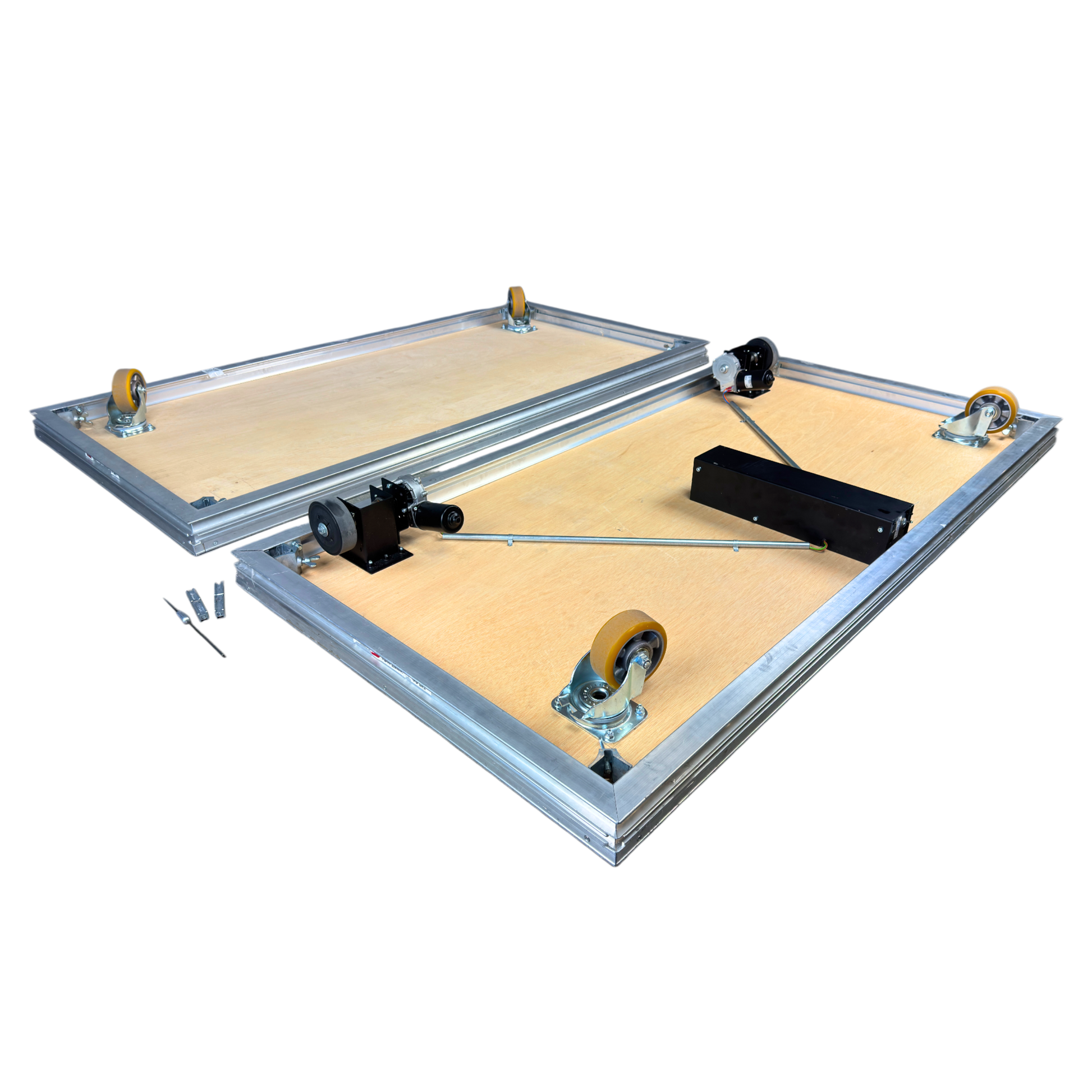

The Motor Console can easily be moved onto a custom-made platform with 4 screws and a little creativity. So, it is possible to make any element move with this system. See a small video of how it is done here.
Easy to control
With the wireless controller it is easy to control the platform by only one hand with the right gimbal (joystick) at the wireless controller. You can adjust the speed and acceleration/deacceleration ramp in the settings of the wireless remote control to achieve the movements you like.
Battery charger for the Remote Controlled Stage Platform
With the battery charger you can charge the Remote Controlled Stage Platform in 1,5 hour.
Recovery mode: Press and hold the MODE button, and you will see a recovery LED lighting up. Recovery will take some hours, and hopefully bring the batteries back to life.
Charging: You may need to press the MODE button to start charging. You will see the 25%, 50%, 75% and 100% LEDs blinking.
The content of the Remote Controlled Stage Platform package
1 x Platform with motor units and battery pack incl. receiver unit
1 x Charger for platform ( standard version )
1 x Remote controller hitec flash 8
1 x Li-Fe battery for remote 6.4V 1400mAh
1 x Charger for Remote
1 x User Manual
Spare parts
At Wahlberg, we prioritize customer satisfaction. We understand the frustration of having a product that isn't working as it should and don't believe in discarding a perfectly good product just because one part isn't functioning properly. That’s why we offer spare parts for all our products. So, whether you choose to send in your Wahlberg product for professional servicing or prefer DIY repairs, we're here to help. Just download our Exploded View drawings for guidance, and you'll have your product fixed in no time!
Contact us at sales@wahlberg.dk if you can’t find the needed spare part on our website.
Specifications
| Item number | .320.5 |
|---|---|
| Power supply | Internal battery pack, 2 x 12 volt, 12 amp |
| Platform battery | 2 x 12 V 12 AH |
| Battery operation time | 1,5 hour drive, 10 hour standby |
| Charger for platform | 100-240 V AC 50-60 Hz 50VA, EU |
| Charging time for platfom | 1.5 hour |
| Charger for remote | 100-240 V AC 50-60 Hz Flash 8 only |
| Standard wheel platform - Height | 160 mm (6.3 in) |
| Standard wheel platform - Moving speed (No load) | 1,2 m/s or 4,5 km/t (4.1 ft/s or 2.8 mph) |
| Standard wheel platform - Maximum load | 300 kg (661.4 lb) |
| Standard wheel platform - Wheels | 125 mm (4.9 in) |
| Transmitter | Digital RC, 2.4 GHz band |
| Range | 1000 m (3000 ft) |
| Ambient temperature | 5-40°C (41-104°F) |
| Duty cycle | 50 % when running more than 60 min. |
| Motor speed | 190 RPM / NO LOAD. |
| Shipping weight | Coming soon |
| Weight | Coming soon |
| Dimensions (L x W) | 2000 × 2000 mm (78.74 x 78.74 in) |
