RC Platform Expansion Plate 2x1m
RC Platform Expansion Plate 2x1m
Couldn't load pickup availability

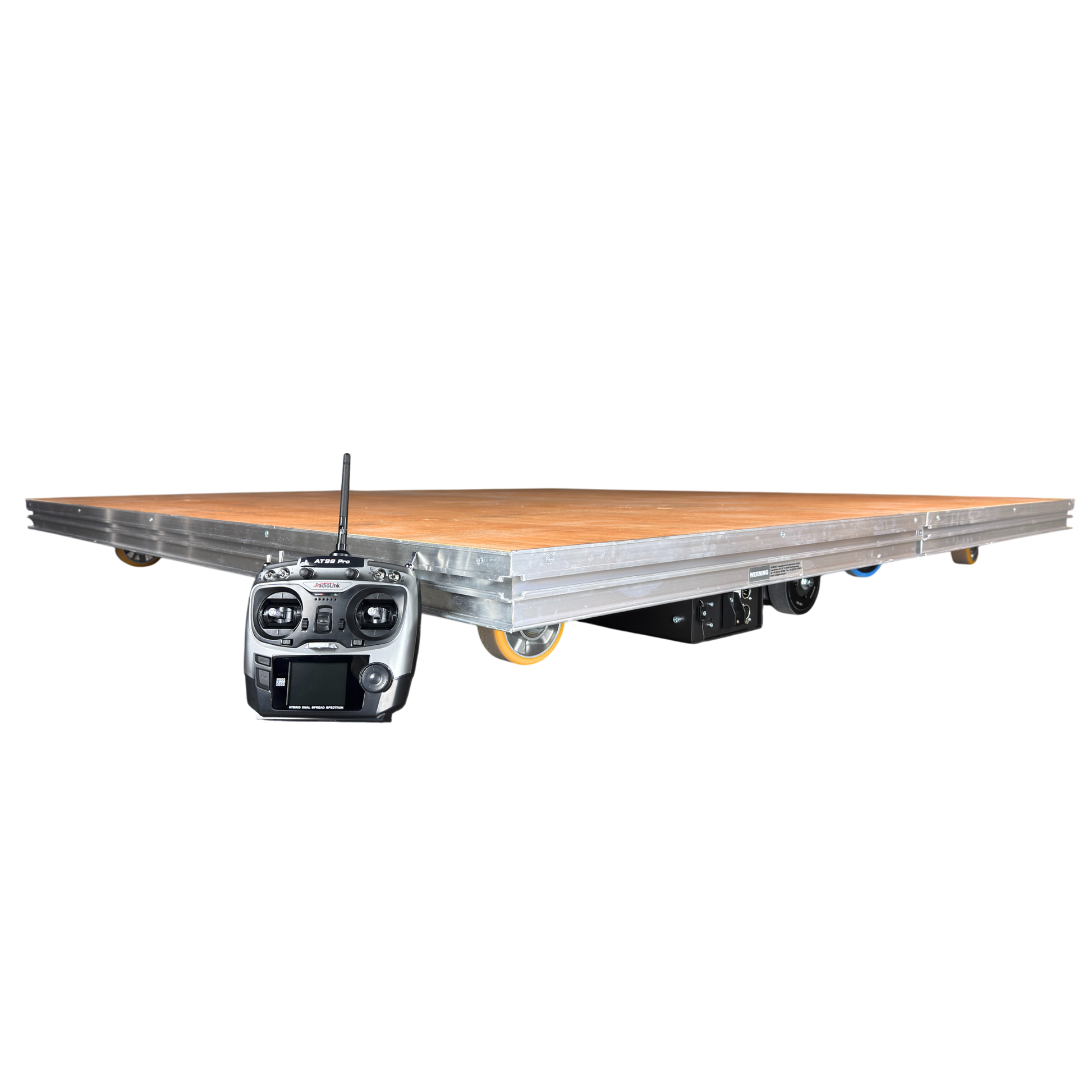

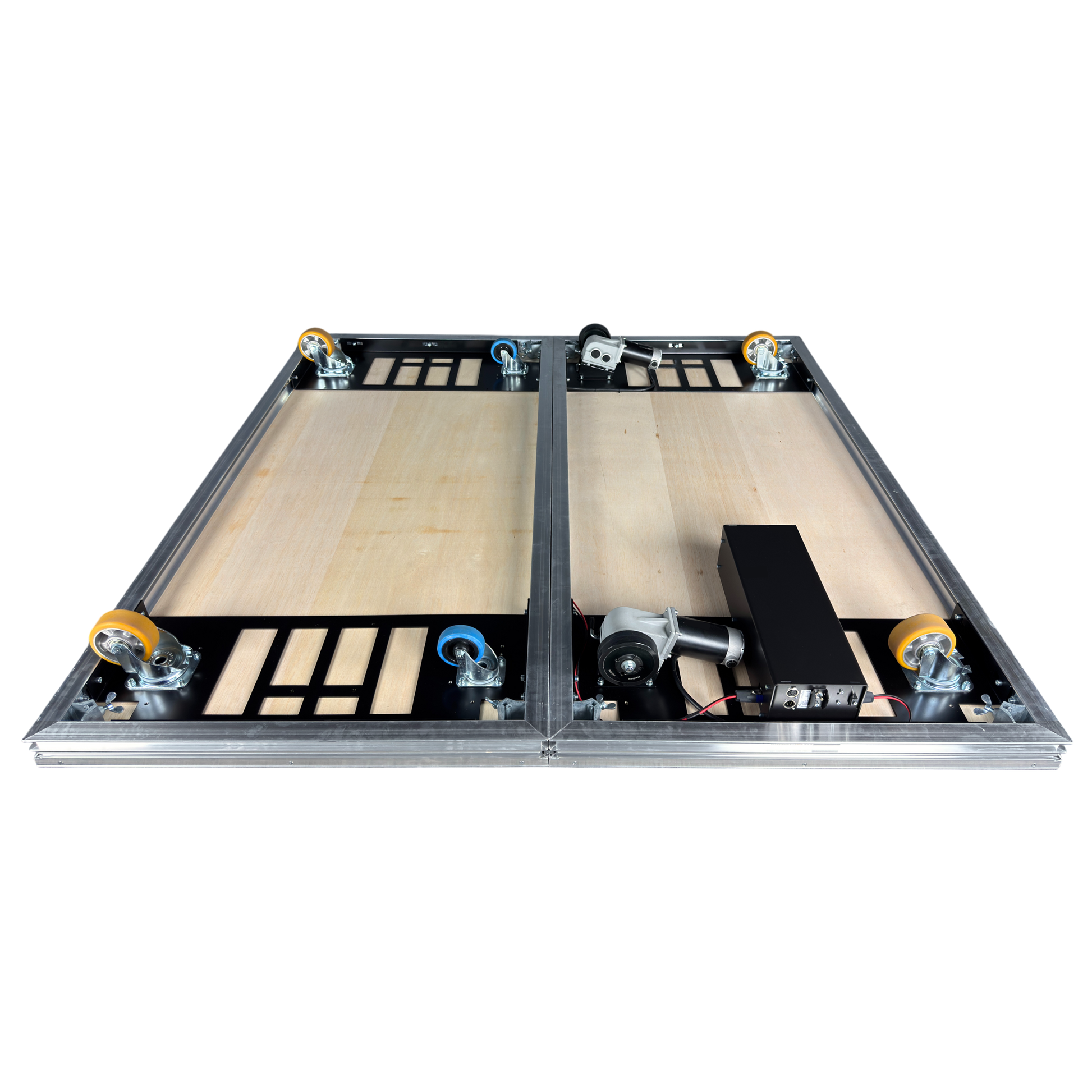

Double the size of the RC Platform to 2x2m and gain a combined max load of 600-1.000kg.
Expansion Plate compatible with the following:
- RC Platform 2x1m Onroad Ø125mm Wheels

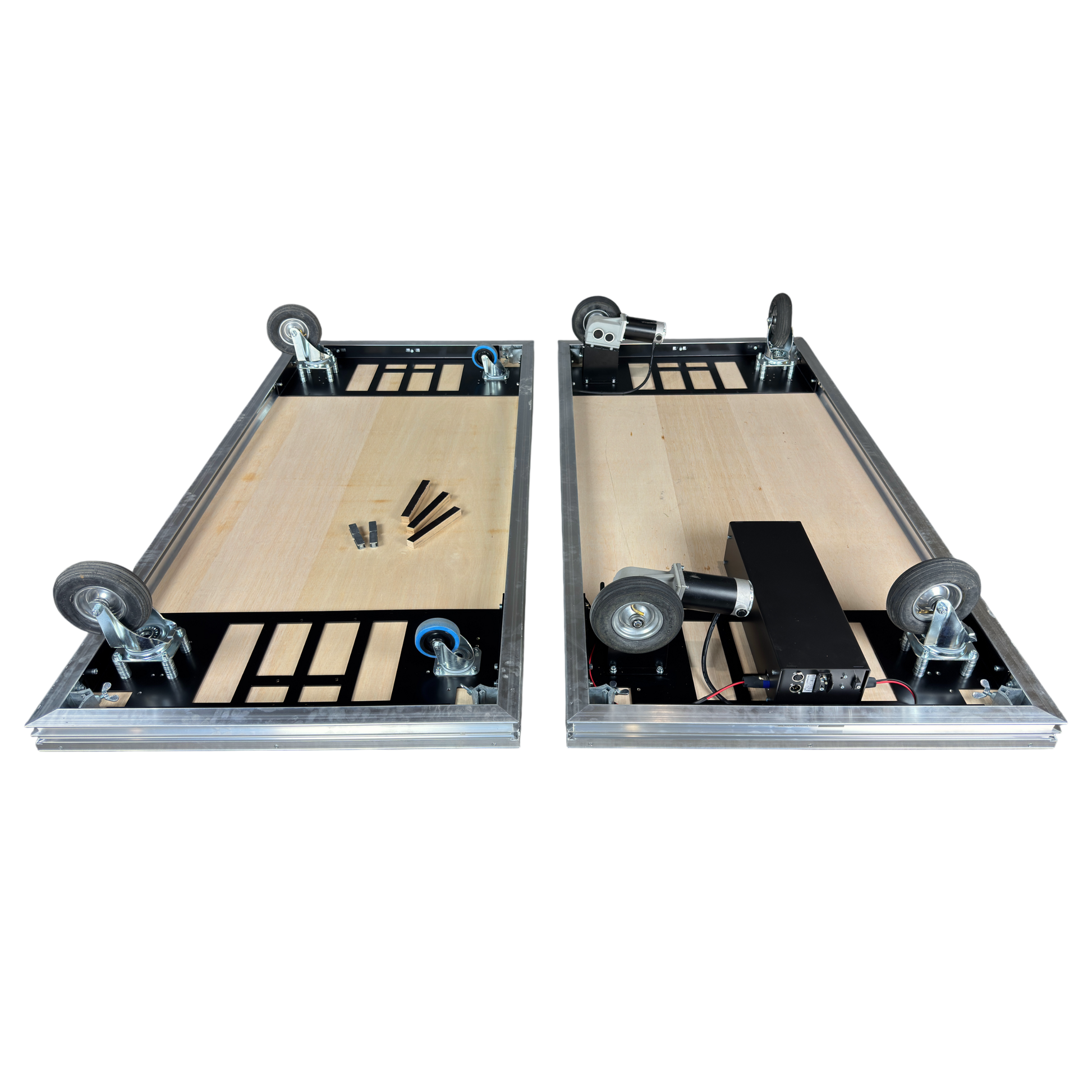

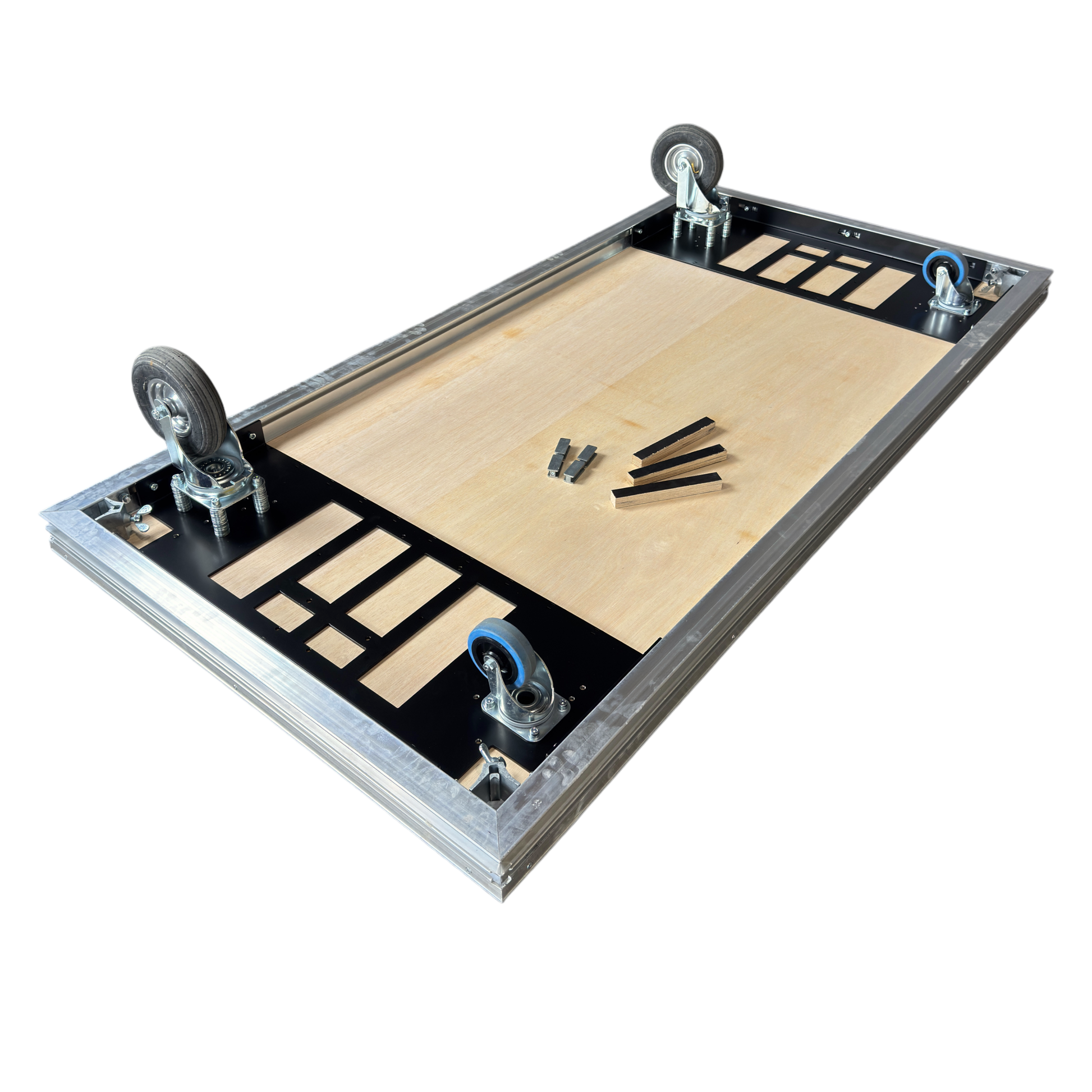

- RC Platform 2x1m Offroad Ø200mm Wheels

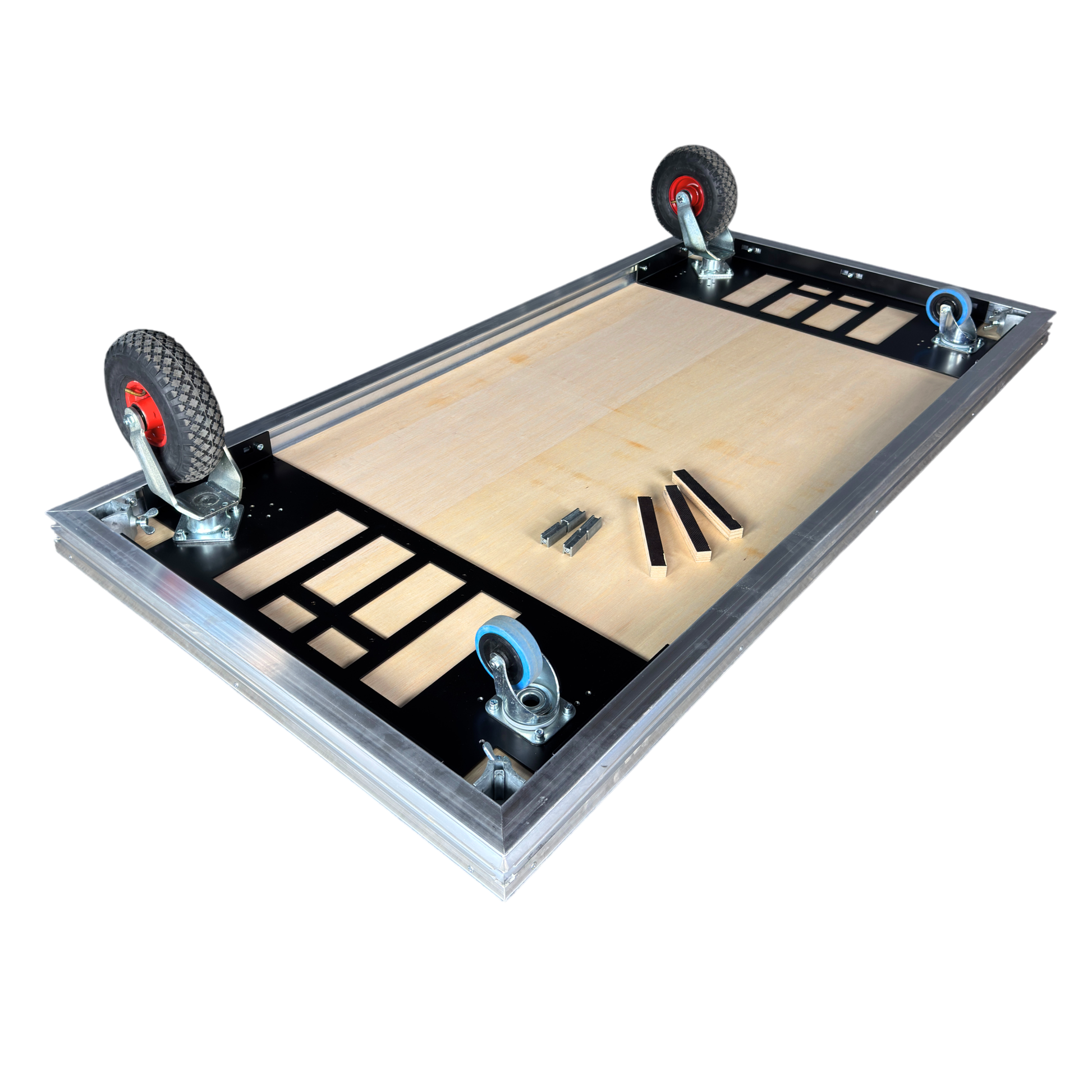

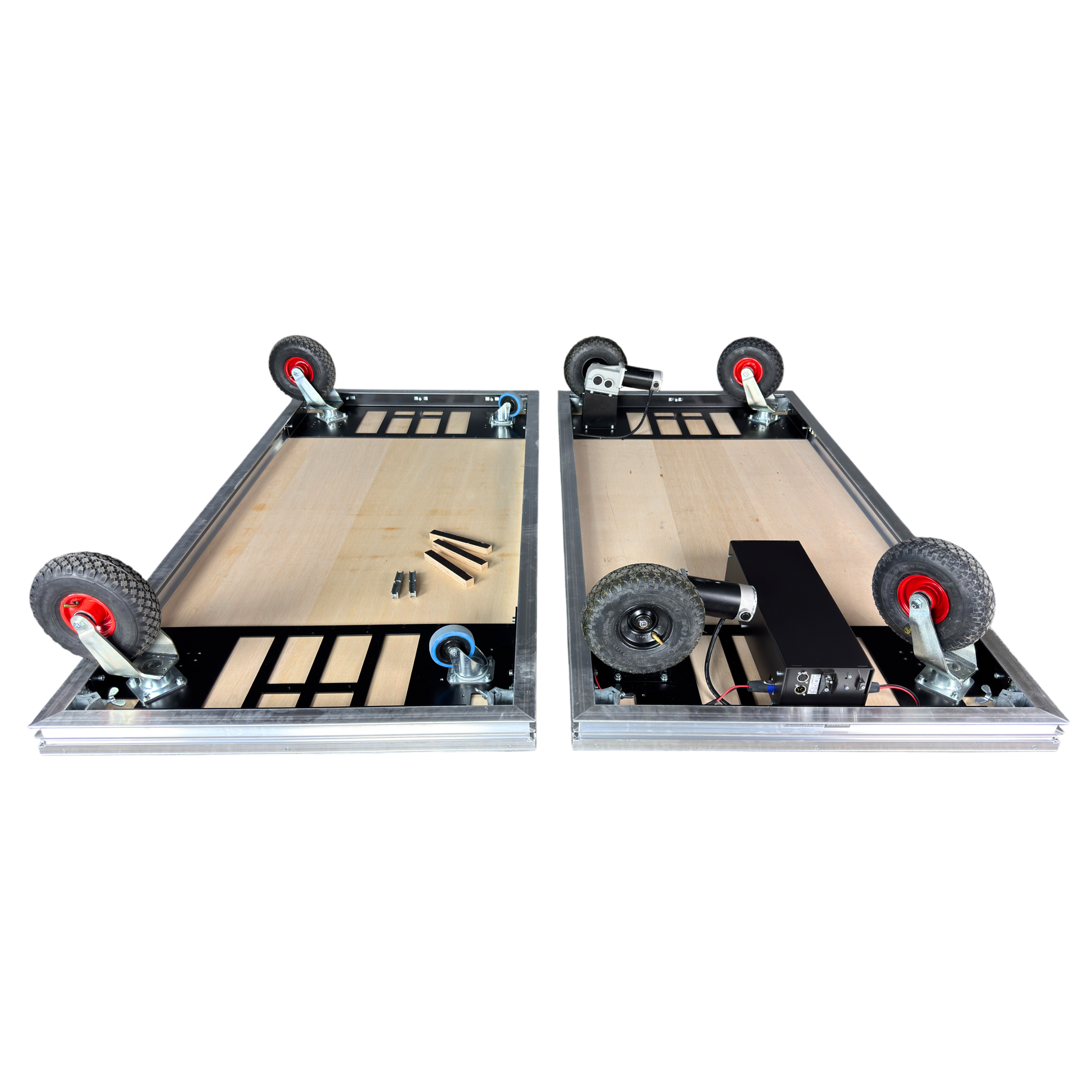

- RC Platform 2x1m Offroad Ø260mm Wheels
| Ø125mm wheel type (Max load) | Hard Rubber (400 kg/881.8 lb) |
| Ø200mm wheel type (Max load) | Air Tyres (300 kg/661.4 lb) |
| Ø260mm wheel type (Max load) | Offroad Air Tyres (300 kg/661.4 lb) |
The RC Platforms are not DMX controlled and must be controlled with the included RC Transmitter.
Description

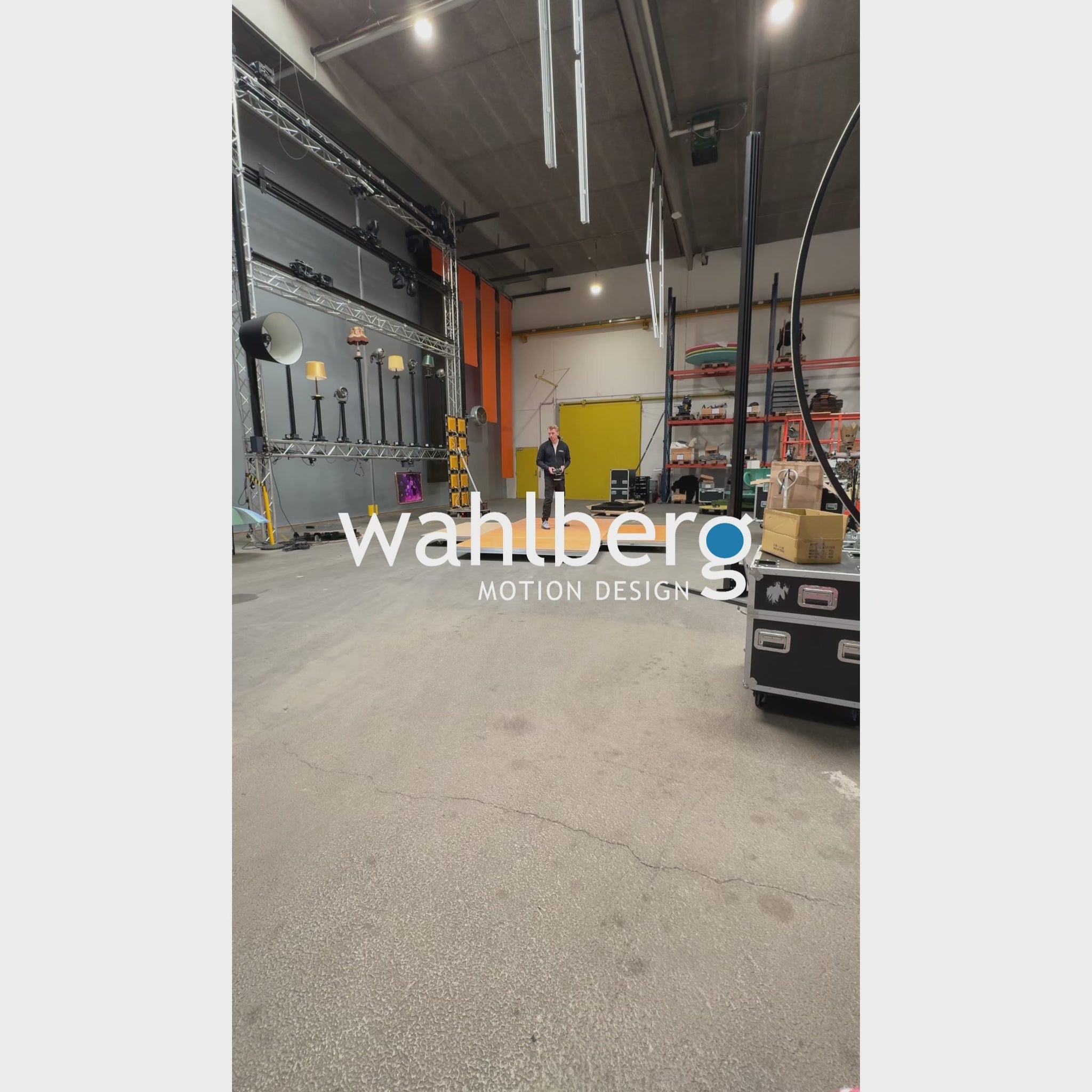

The RC Platform 2x1m is the most smooth and intuitive way of moving large props up to 600 kg freely around the stage. By adding this Expansion Plate, you can move even heavier and bigger props with a combined max load of up to 1.000kg and a size of 2x2m. The max load depends on the wheel type.

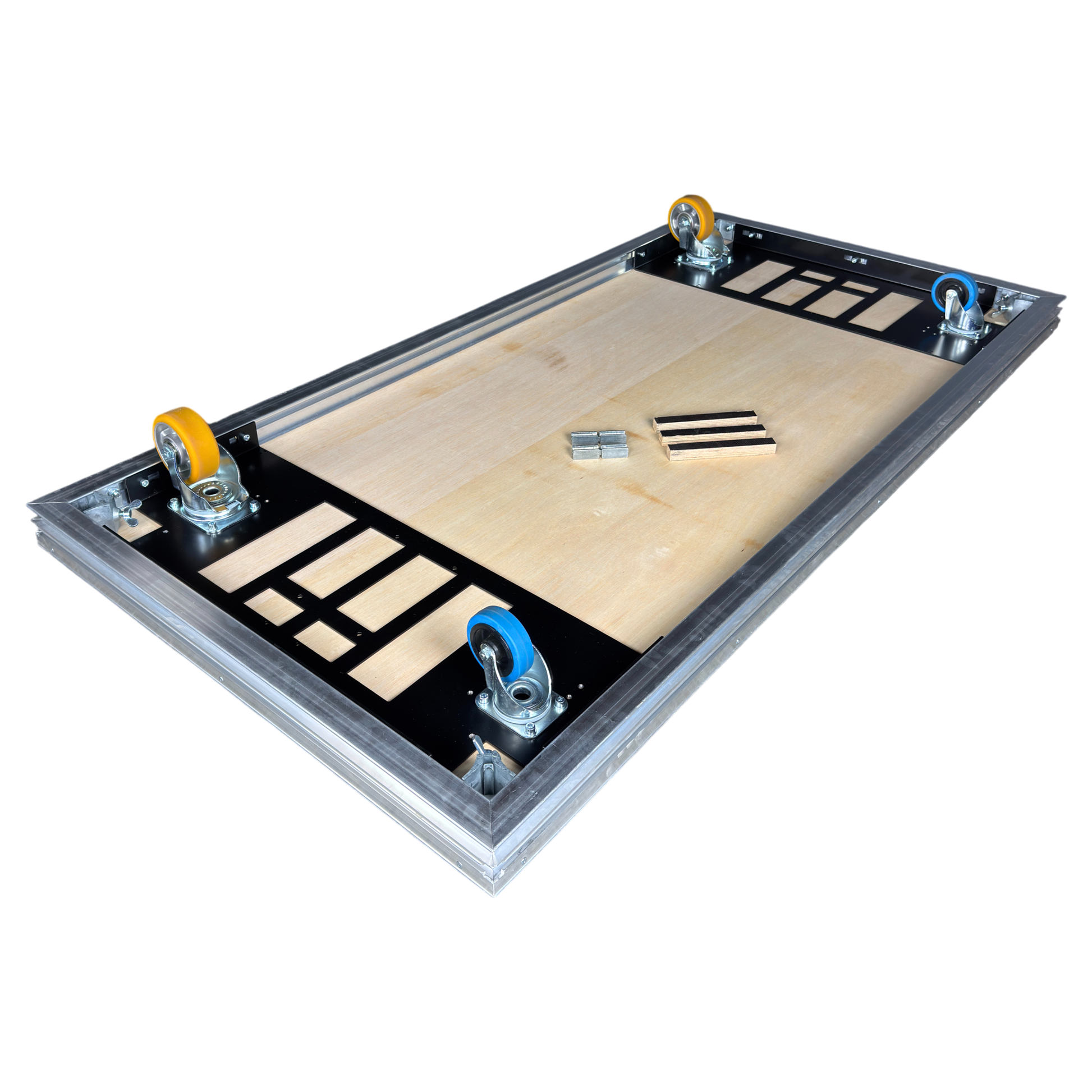

The blue wheels are Transport Support Wheels, which makes it easy to move the Expansion Plate when it is not attached to the RC Platform.

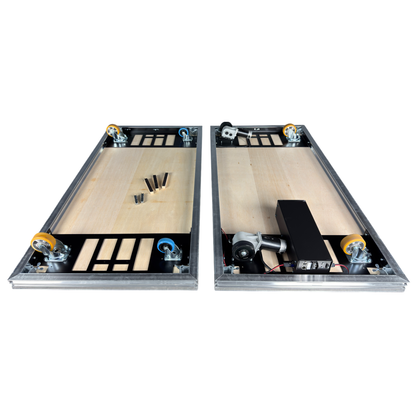

The RC Platform Expansion Plate is very easy to attach using the 2 included RC Connection Brackets. Slide them in between the stage decks and fasten with the included tool. This ensures that the extension is securely mounted even while driving the RC Platform.
The RC Platforms can create moving effects with set pieces, props or classics such as the flying carpet from Alladin, or the boat from Moana.
The RC platforms are very adaptable and only your imagination is the limit.
Customize to Fit Your Needs
The slick 125mm wheels run well on all relatively smooth surfaces such as stage decks, concrete or Marley floor. The small wheels are easy to hide in order achieve a floating effect on stage.
The RC Platform Extpansion Plate 2x1m has a typical wooden stage deck finish by default, but it can also be ordered with a custom finish upon request.
If you need the RC Platform to run on a more uneven surface or have off-road capabilities, please check out the Offroad versions with Ø200mm and Ø260mm air tyres.
The content of the RC Platform Expansion Plate 2x1m package
1 x RC Platform Expansion Plate 2x1m with the selected wheel type
2 x RC Connection Bracket
1 x User Manual
Spare parts
We offer spare parts for all our products. You can usually find the item numbers of the needed part in the Exploded View in the Downloads section of a product. If you can't find what you need then don't hesitate to reach out to sales@wahlberg.dk with a photo of the broken part.
Specifications
| Item number | 322.401-3 |
|---|---|
| Dimensions | 2000 X 1000 X 187-351 mm (78.74 X 39.39 X 7.36-13.82 in) |
| Weight | 62,9 kg (138.7 lb) |
| Compatible RC Platforms: | |
| 322.0001 | RC Platform 2x1m Onroad Ø125mm Wheels |
| 322.401 | Expansion Plate Ø125mm Castor wheels, Hard rubber |
| Load capacity | 400 kg (881.8 lb) |
| Platform height | 187mm (7,36 in) |
| 322.1001 | RC Platform 2x1m Offroad Ø260mm Wheels |
| 322.402 | Expansion Plate Ø260mm Castor wheels, Air tyres |
| Load capacity | 300 kg (661.4 lb) |
| Platform height | 351mm (13,8 in) |
| 322.2001 | RC Platform 2x1m Offroad Ø200mm Wheels |
| 322.403 | Expansion Plate Ø200mm Castor wheels, Air tyres |
| Load capacity | 300 kg (661.4 lb) |
| Platform height | 322mm (12,68 in) |
Downloads
- Datasheet_RC Platform Expansion Plate 2x1m_322.401-3 (PDF)
- Datasheet_RC Platform 2x1m Ø125mm Wheels_322.0001 (PDF)
- Datasheet_RC Platform 2x1m Ø200mm Wheels_322.2001 (PDF)
- Datasheet_RC Platform 2x1m Ø260mm Wheels_322.1001 (PDF)
- Manual_Remote Controlled Platform Series_.320 (PDF)
- STEP_Remote Controlled Platform_.320.703 (3D)
