Motor Console 200mm Wheel
Motor Console 200mm Wheel
Couldn't load pickup availability
Easy to mount under a wide variety of objects to make them driveable when paired with our RC Control Box 2x12Ah and Castor Wheel 200mm.

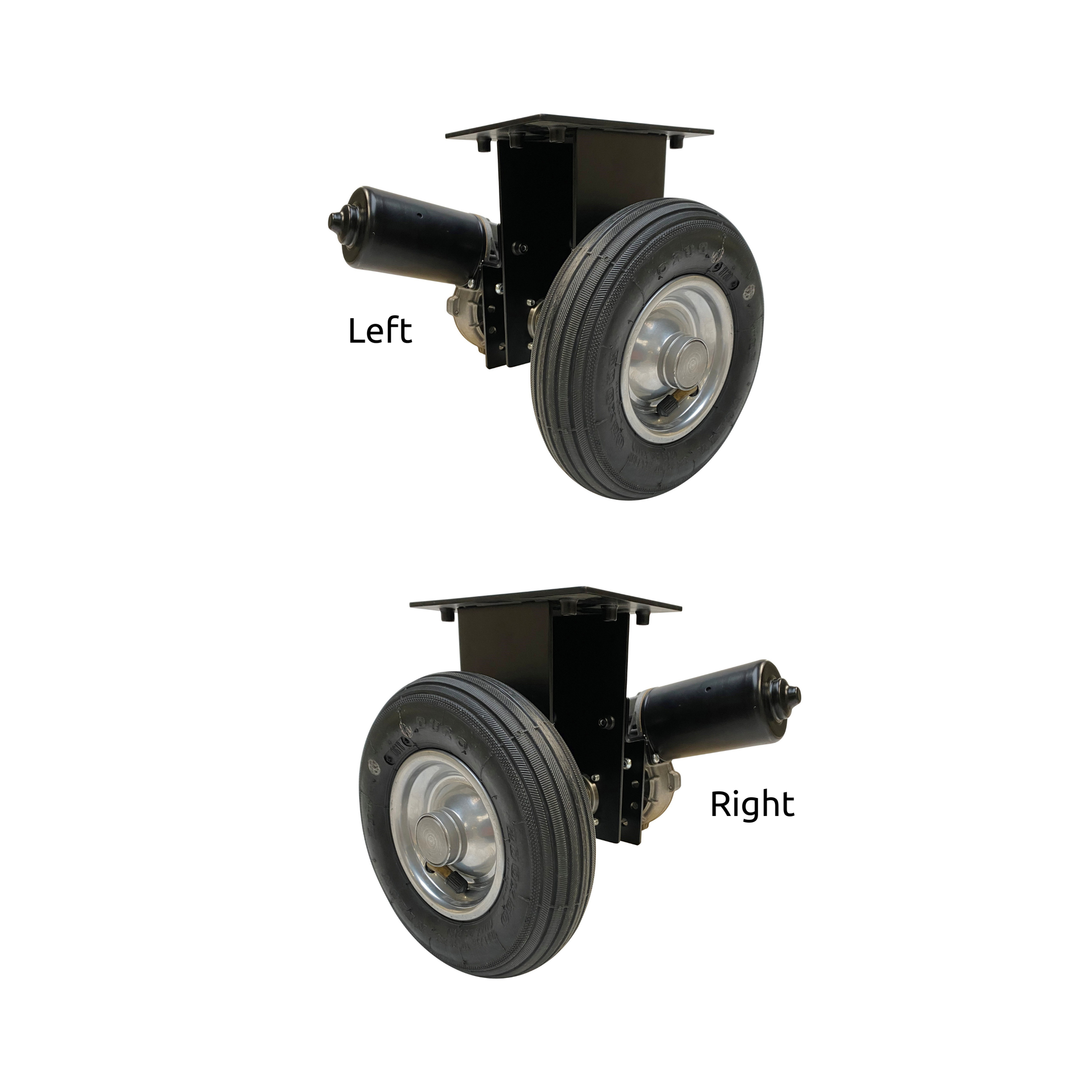

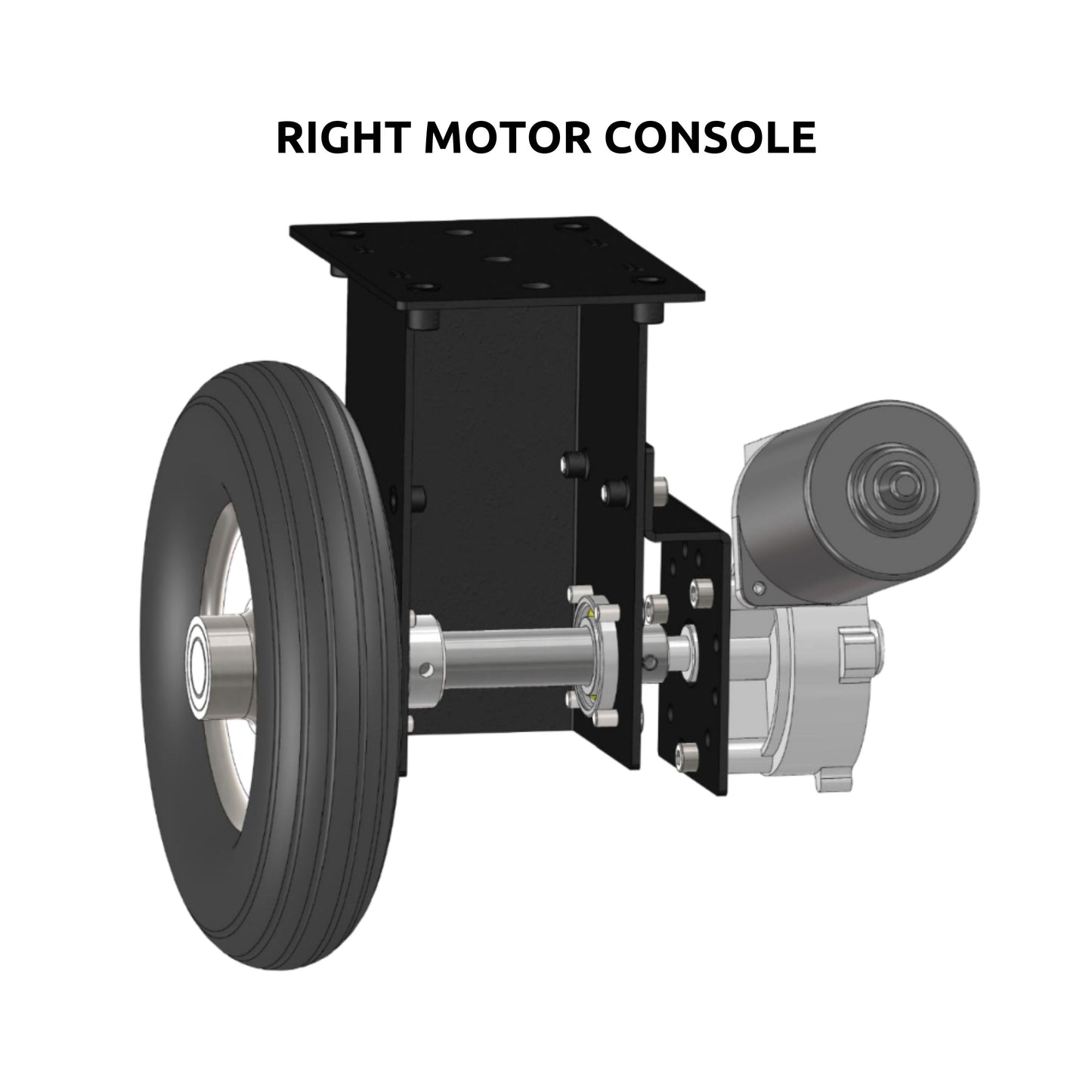

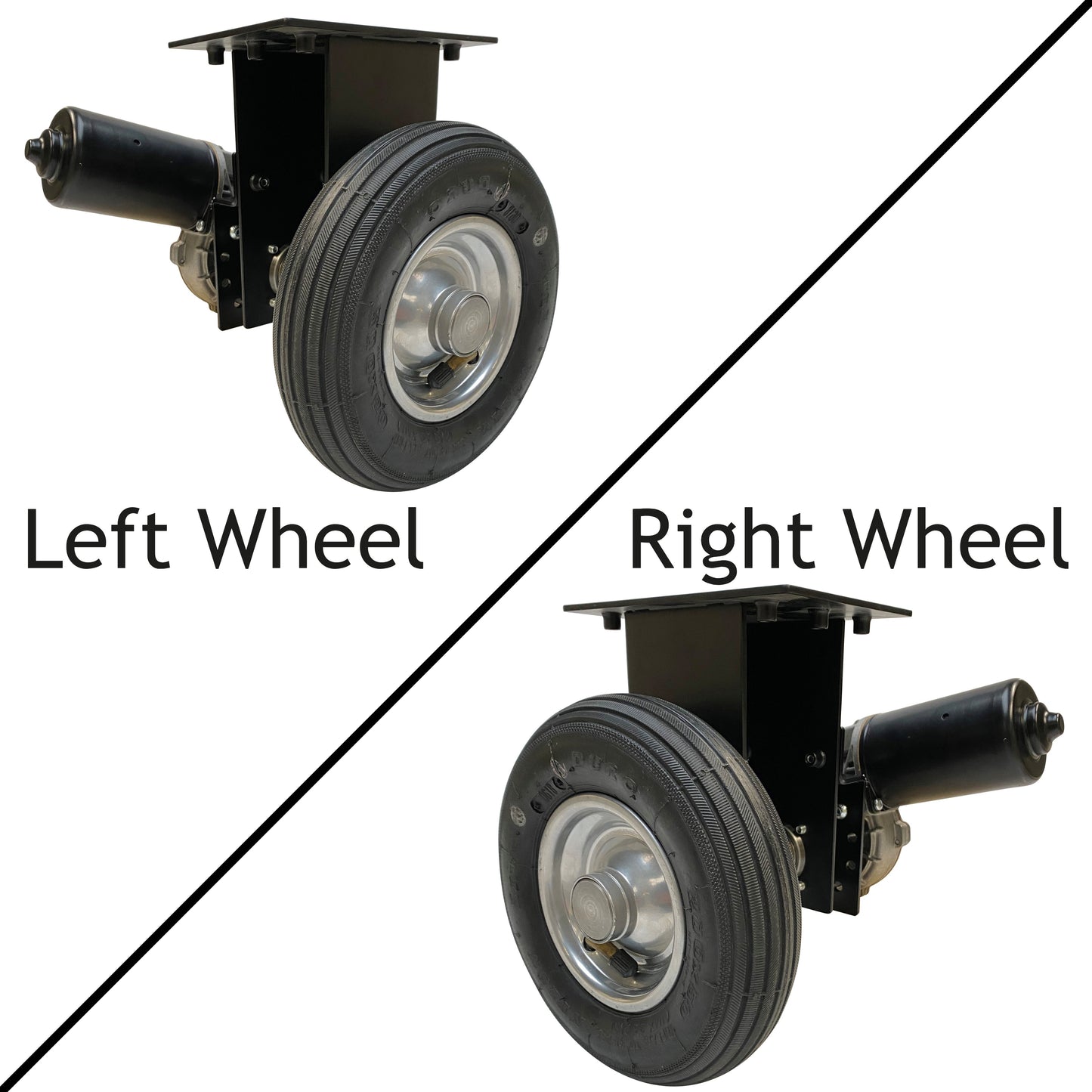

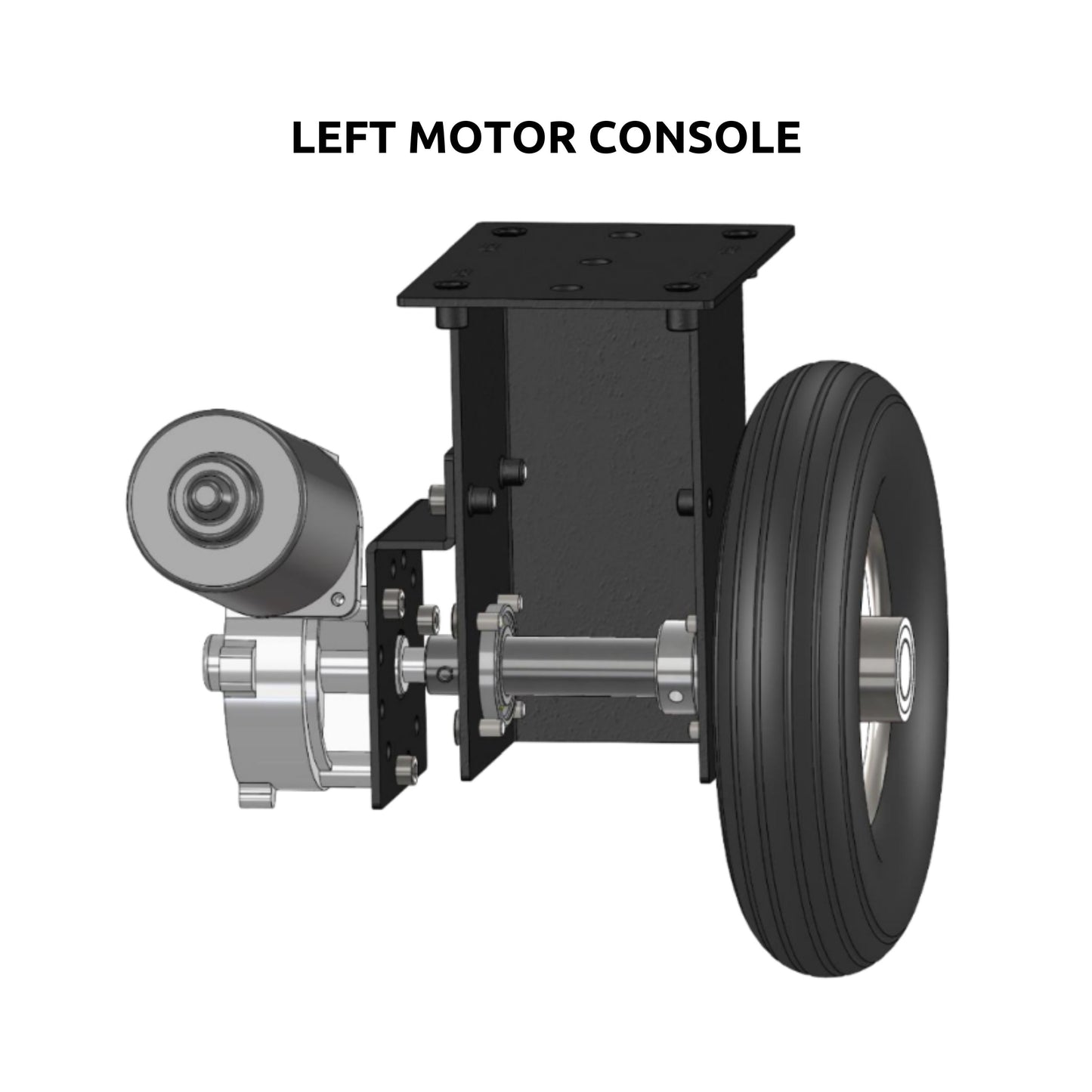

Can be ordered as two options: Left- or Right Motor Console. This version has a bigger and inflatable wheel perfect for offroad driving.
| Load Capacity: | 50 kg (165 lb) |
| Rotation Speed (no load): | 195 RPM |
| Absolut/Translative Speed (no load): | 2,0 m/s or 7,2 Km/h (6.5 ft/s or 4.4 mph) |
Description
This product is part of our wide selection of components for the Remote Controlled Platform (Standard Wheels) and Off-road Version, which offers you what you need to potentially build your own. You can also swap broken parts, make special customizations or collect some spare parts.
The content of the Motor Console 200mm Wheel package
1 x Left/Right Motor Console 200mm Wheel
Spare parts
We offer spare parts for all our products. You can usually find the item numbers of the needed part in the Exploded View in the Downloads section of a product. If you can't find what you need then don't hesitate to reach out to sales@wahlberg.dk with a photo of the broken part.
Specifications
| Item number: | Left: 320.2013 - Right: 320.2012 |

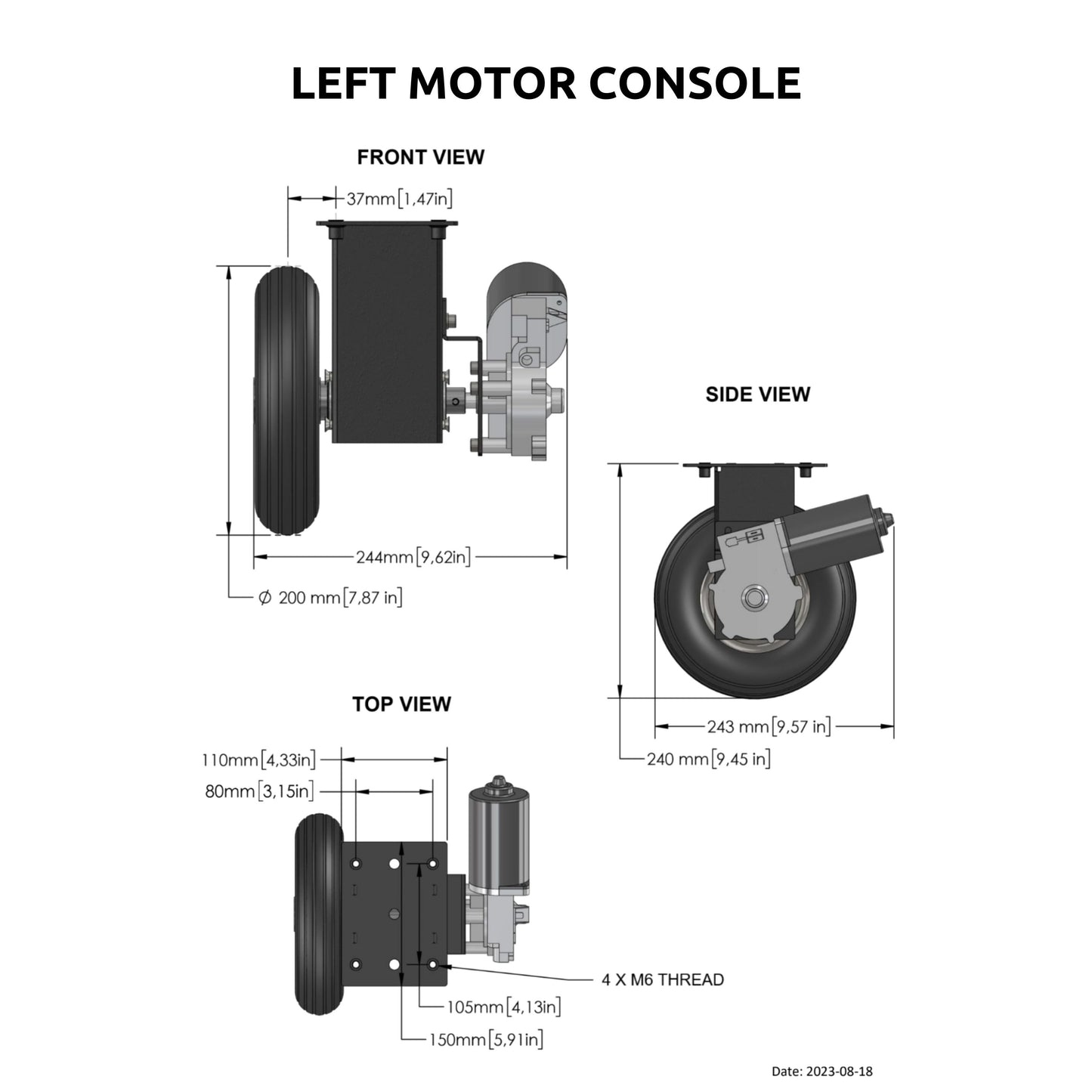

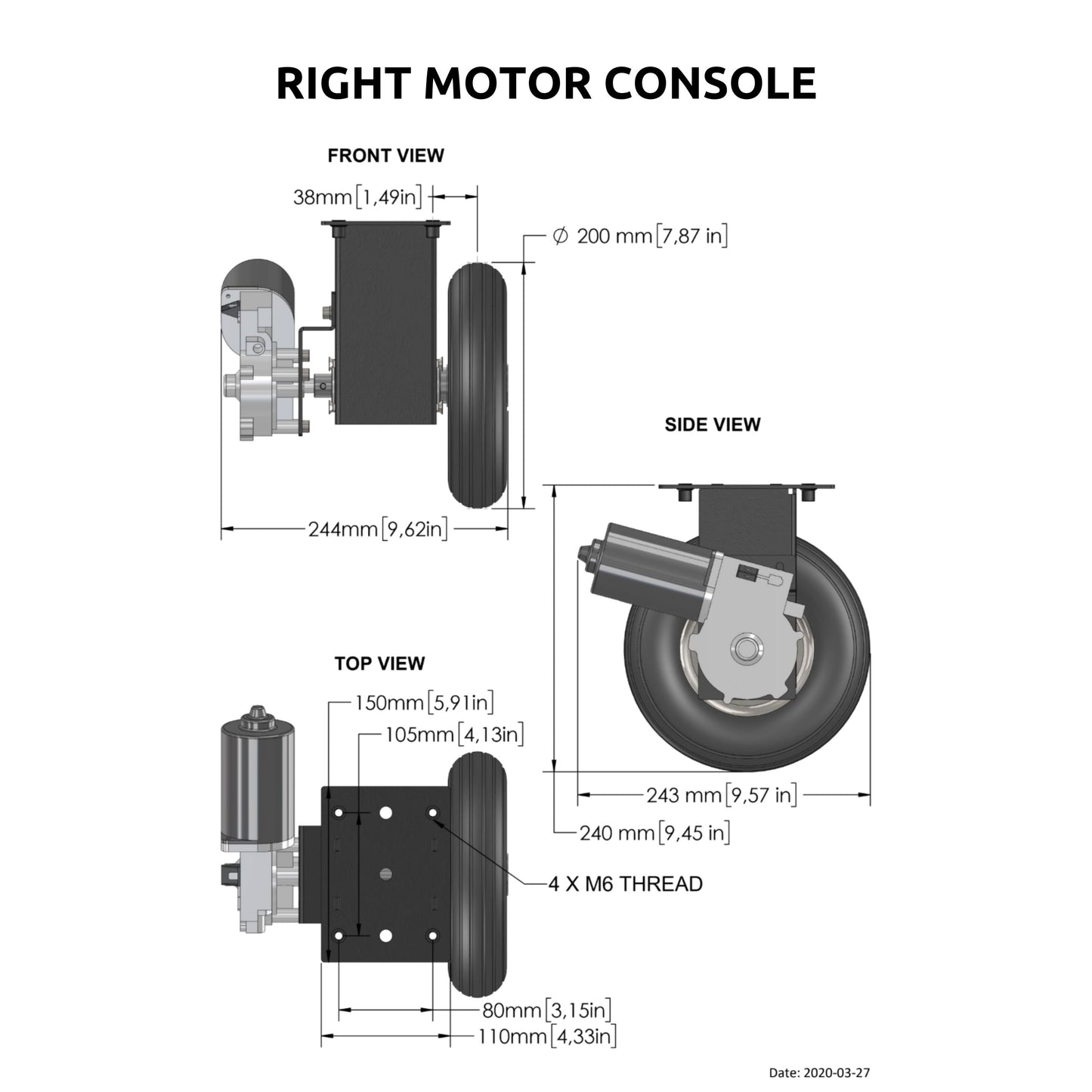

| Dimensions: | 244 x 244 x 240 mm (9.61 x 9.61 x 9.45 in) |
| Load Capacity: | 50 kg (110 lb) |
| Weight: | 4,9 kg (10.8 lb) |
| Rotation Speed (no load): | 195 RPM |
| Absolut/Translative Speed (no load): | 2,0 m/s or 7,2 Km/h (6.5 ft/s or 4.4 mph) |
| Power Suppy: | 24 V |
| Power Consumption: | 166,4 W |
| Ambient Temperature: | 5-50 C (41-122 F) |
| Wheel Material: | Inflatable Black Rubber |
| Wheel Diameter: | 200 mm |
