Motor Console 125mm Wheel
Motor Console 125mm Wheel
Couldn't load pickup availability
Easy to mount under a wide variety of objects to make them driveable when paired with our RC Motor Controller with Battery and Turning Wheel 125mm.

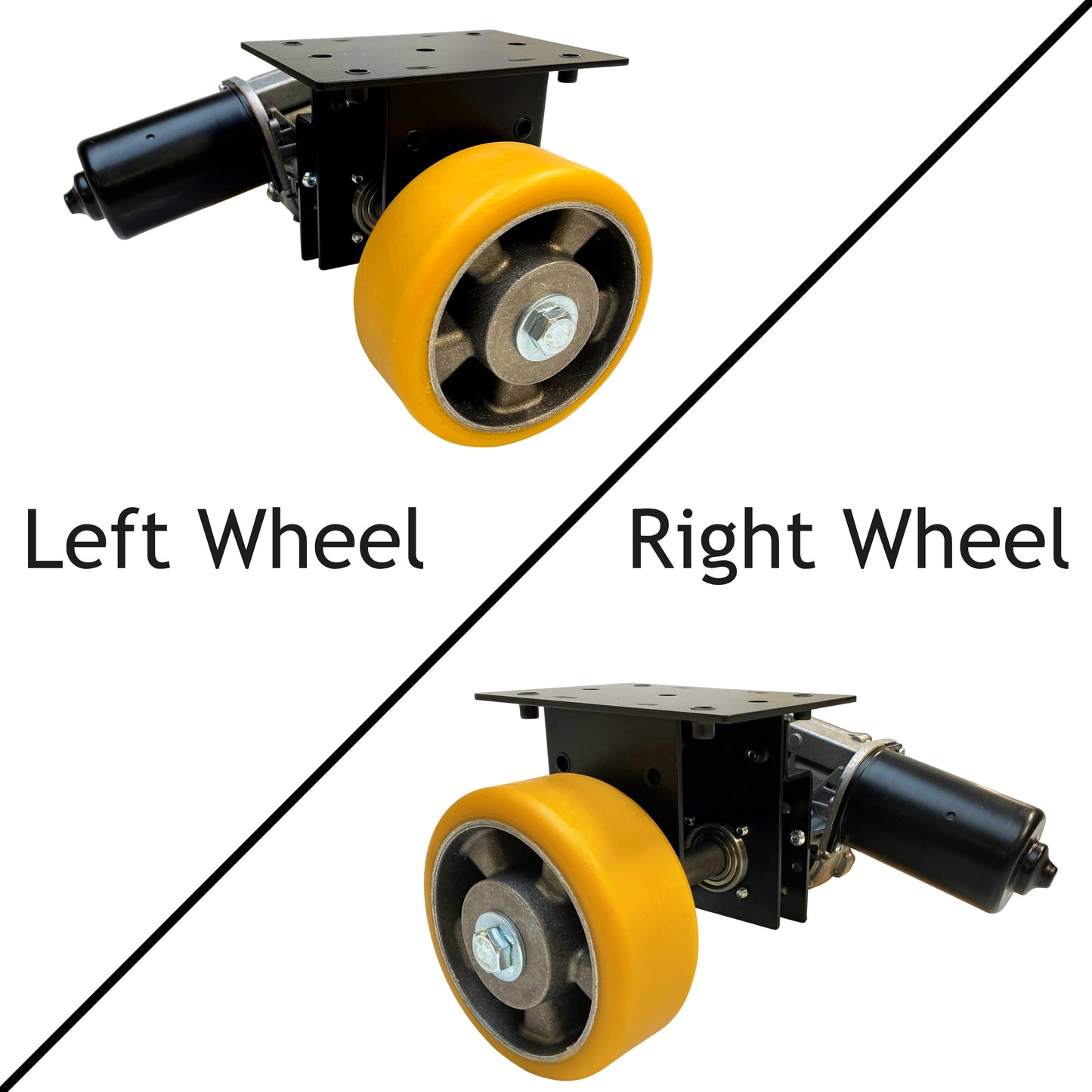

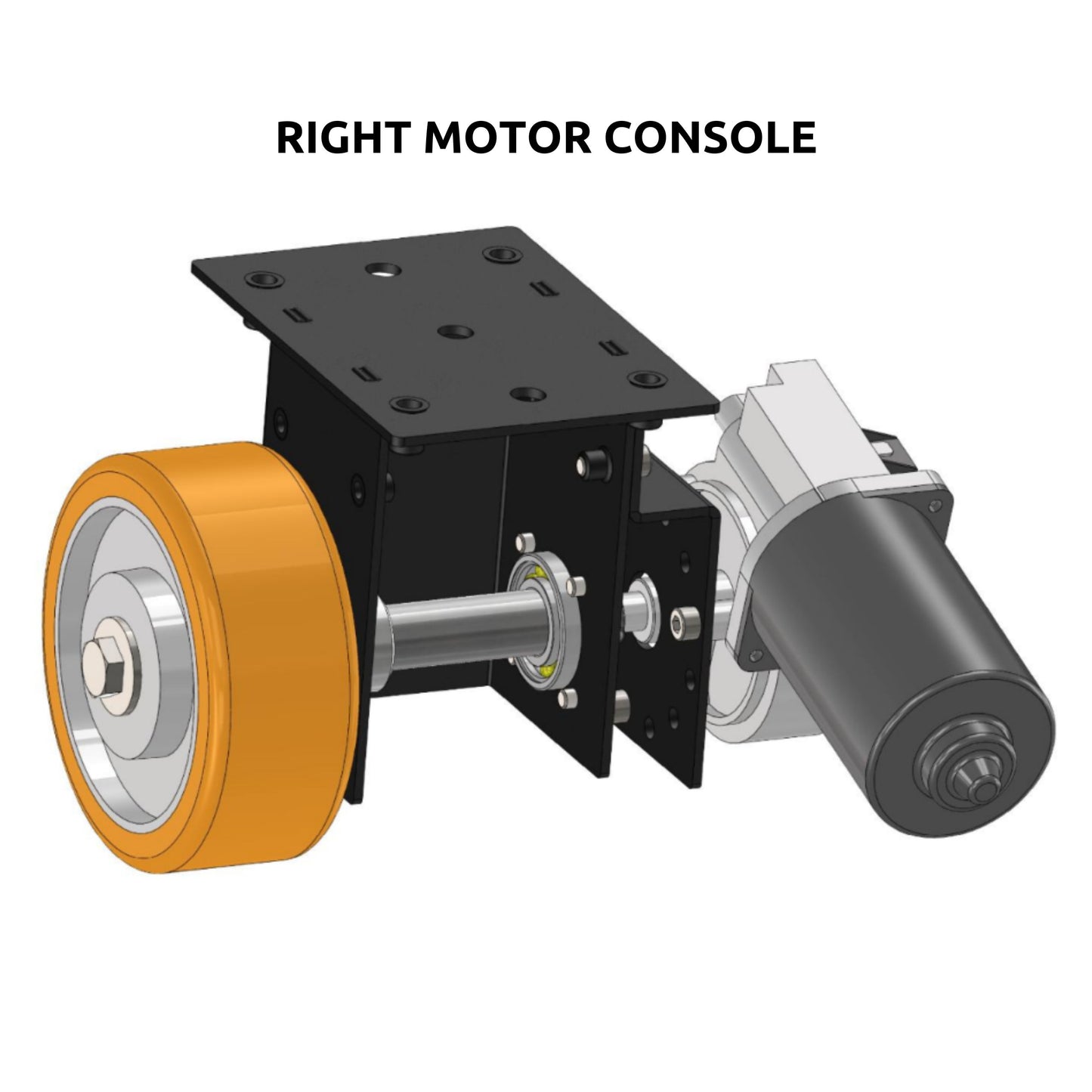

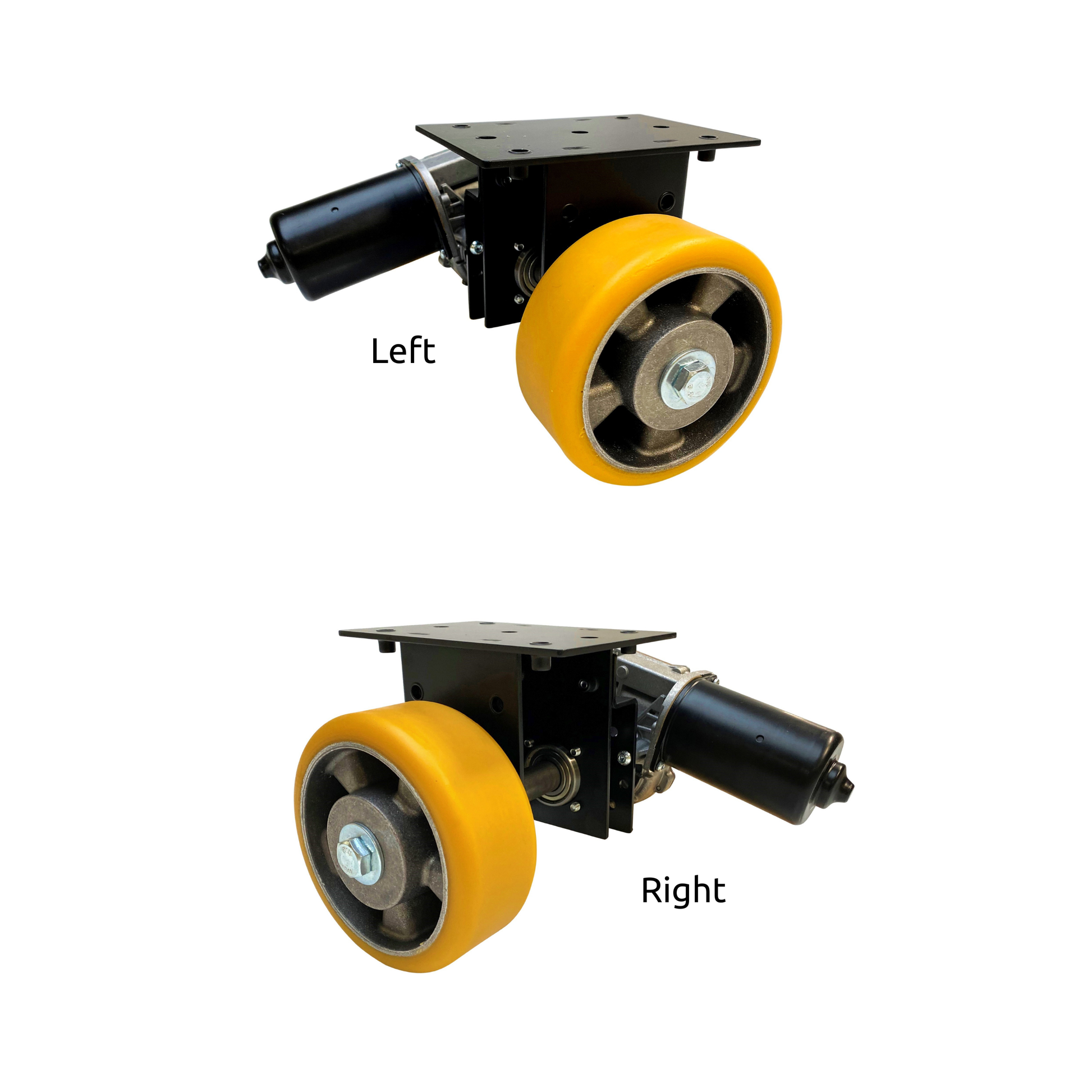

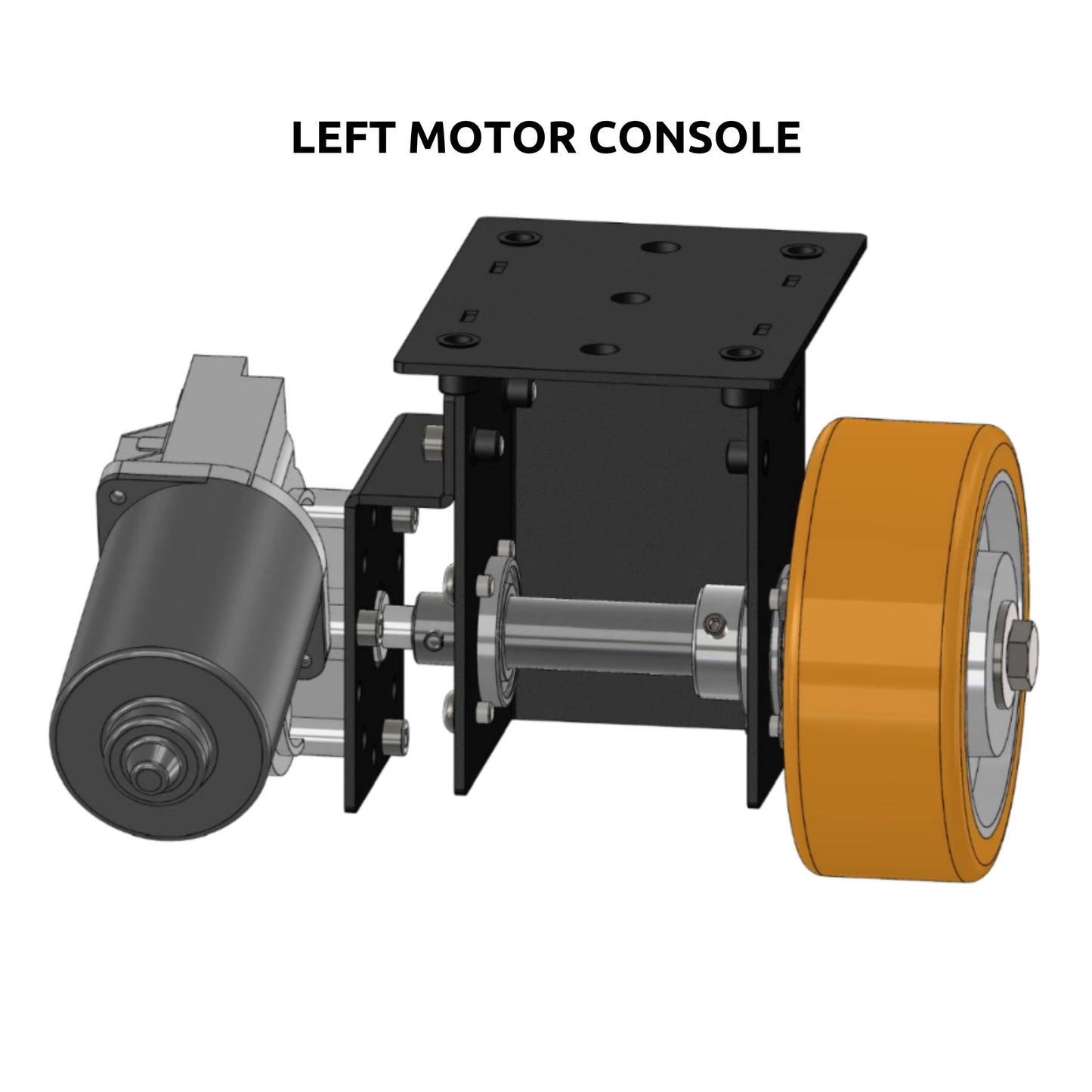

Can be ordered as two options: Left- or Right Motor Console
| Load Capacity: | 75 KG (165 lb) |
| Rotation Speed (no load): | 195 RPM |
| Absolut/Translative Speed (no load): | 1,2 m/s or 4.5 km/h (4,1 ft/s or 2,8 mph) |
Description
This product is part of our wide selection of components for the Remote Controlled Platform (Standard Wheels) and Off-road Version, which offers you what you need to potentially build your own. You can also swap broken parts, make special customizations or collect some spare parts.
The content of the Motor Console 125mm Wheel package
1 x Left or Right Motor Console 125mm Wheel
Spare parts
At Wahlberg, we prioritize customer satisfaction. We understand the frustration of having a product that isn't working as it should and don't believe in discarding a perfectly good product just because one part isn't functioning properly. That’s why we offer spare parts for all our products. So, whether you choose to send in your Wahlberg product for professional servicing or prefer DIY repairs, we're here to help. Just download our Exploded View drawings for guidance, and you'll have your product fixed in no time!
Contact us at sales@wahlberg.dk if you can’t find the needed spare part on our website.
Specifications
| Item number: | Left: 320.1013 - Right: 320.1012 |

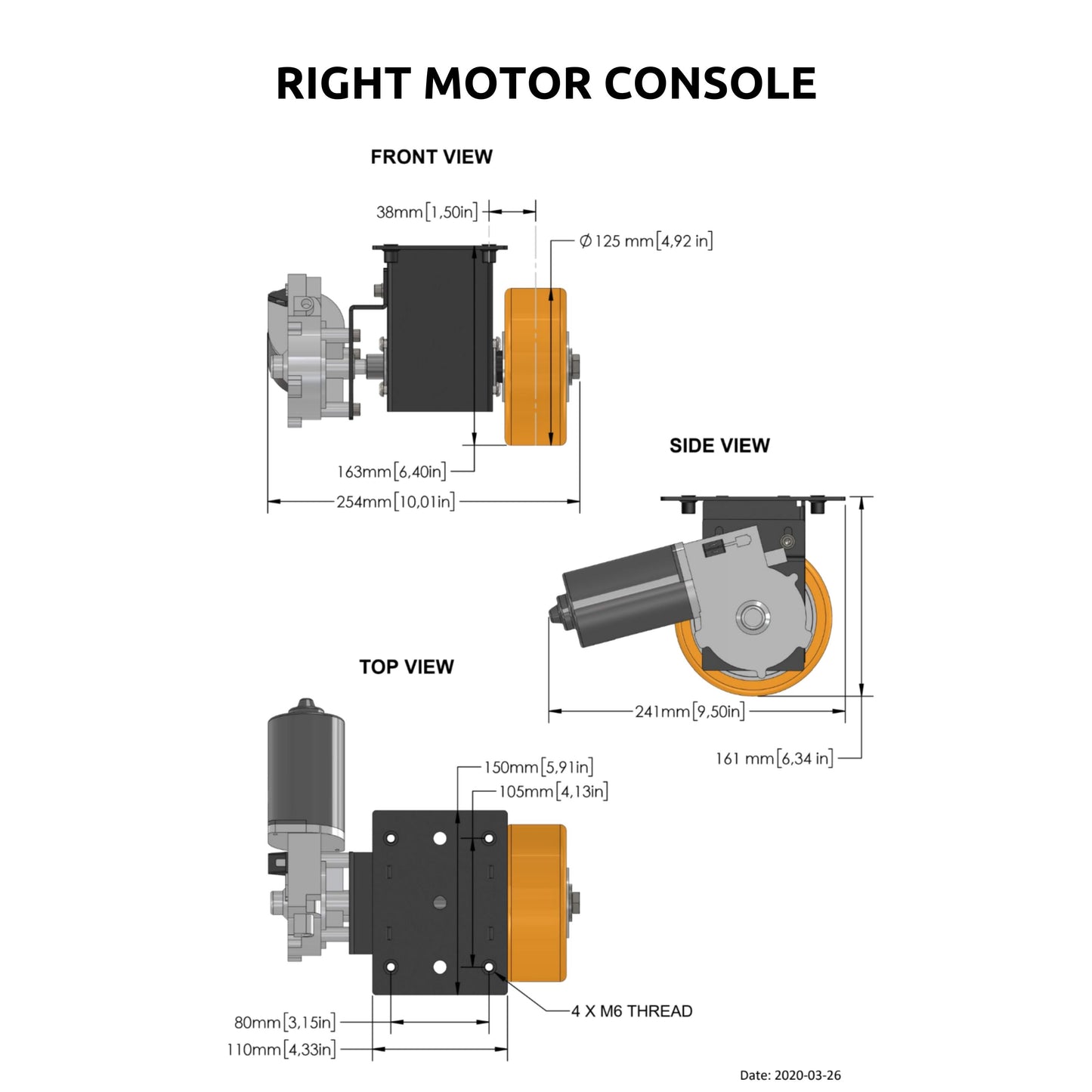

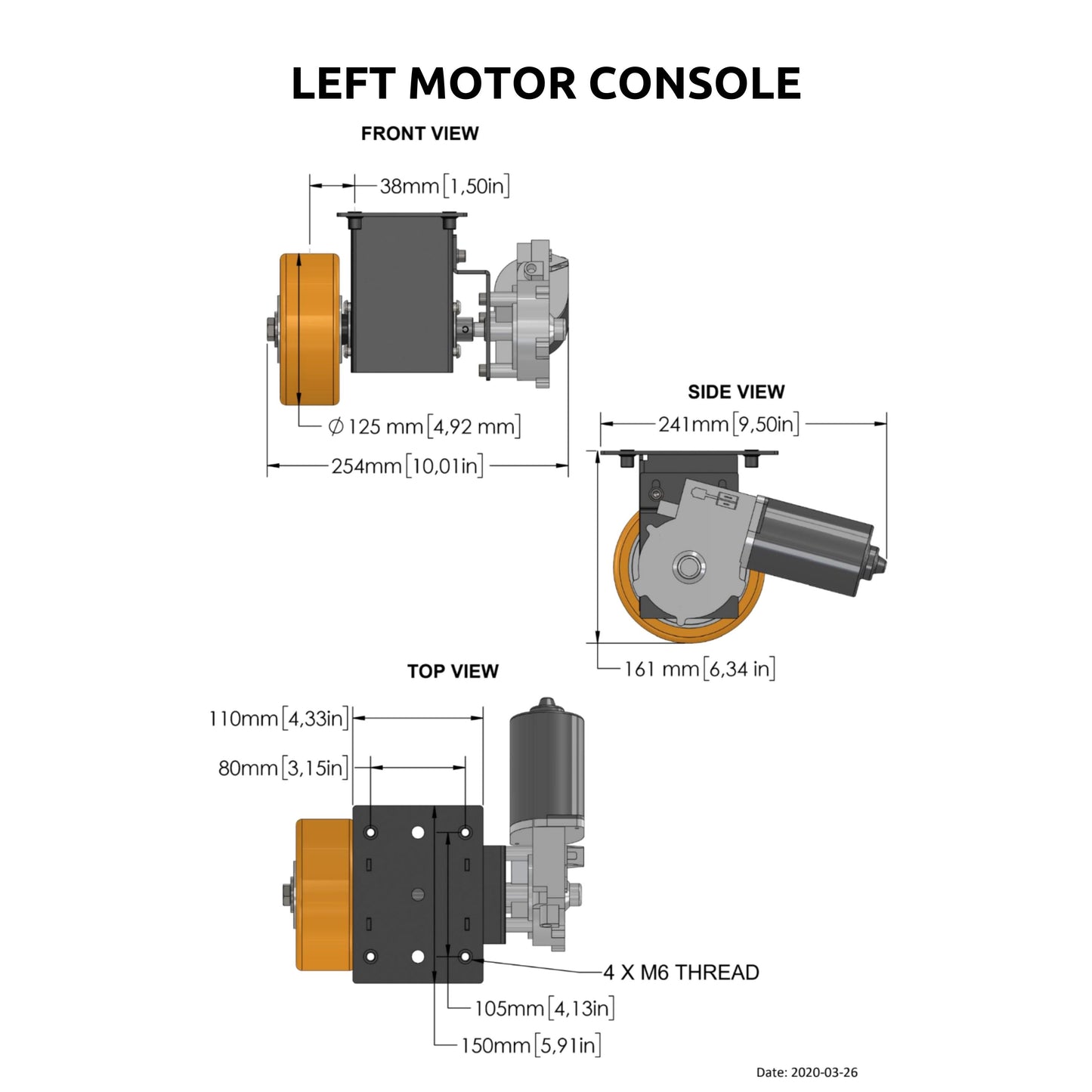

| Dimensions: | 254 x 241 x 161 mm ( 10,01 x 9,50 x 6,34 in ) |
| Load Capacity: | 75 KG ( 165 lb ) |
| Weight: | 4,5 KG ( 9,9 lb ) |
| Rotation Speed ( no load ): | 195 RPM |
| Absolut/Translative Speed ( no load ): | 1,2 m/s or 4.5 km/h ( 4,1 ft/s or 2,8 mph ) |
| Power Suppy: | 24 V |
| Power Consumption: | 166,4 W |
| Ambient Temperature: | 5-60 C ( 41 - 140 F ) |
| Wheel Material: | Polyurethane ( Hardness: A 92 Shore ) |
| Wheel Diameter: | 125 mm |
Downloads
