Curtain Sniffer
Curtain Sniffer
Perfect for creating impactful, high-speed stage reveals using a kabuki-dropped curtain that is then instantly sucked into the system.
| Max fabric weight | 15 kg (33.1 lb) |
| Max fabric size | 100 m2 (1076 ft2) |
| Max speed | 12 m/s (39.4 ft/s) |
| Safety control | Three-Point Deadman Switch |
Description
The Curtain Sniffer can pull in up to 100 m² of fabric weighing up to 15 kg in about 1.5 seconds—creating a truly memorable stage effect for the audience.

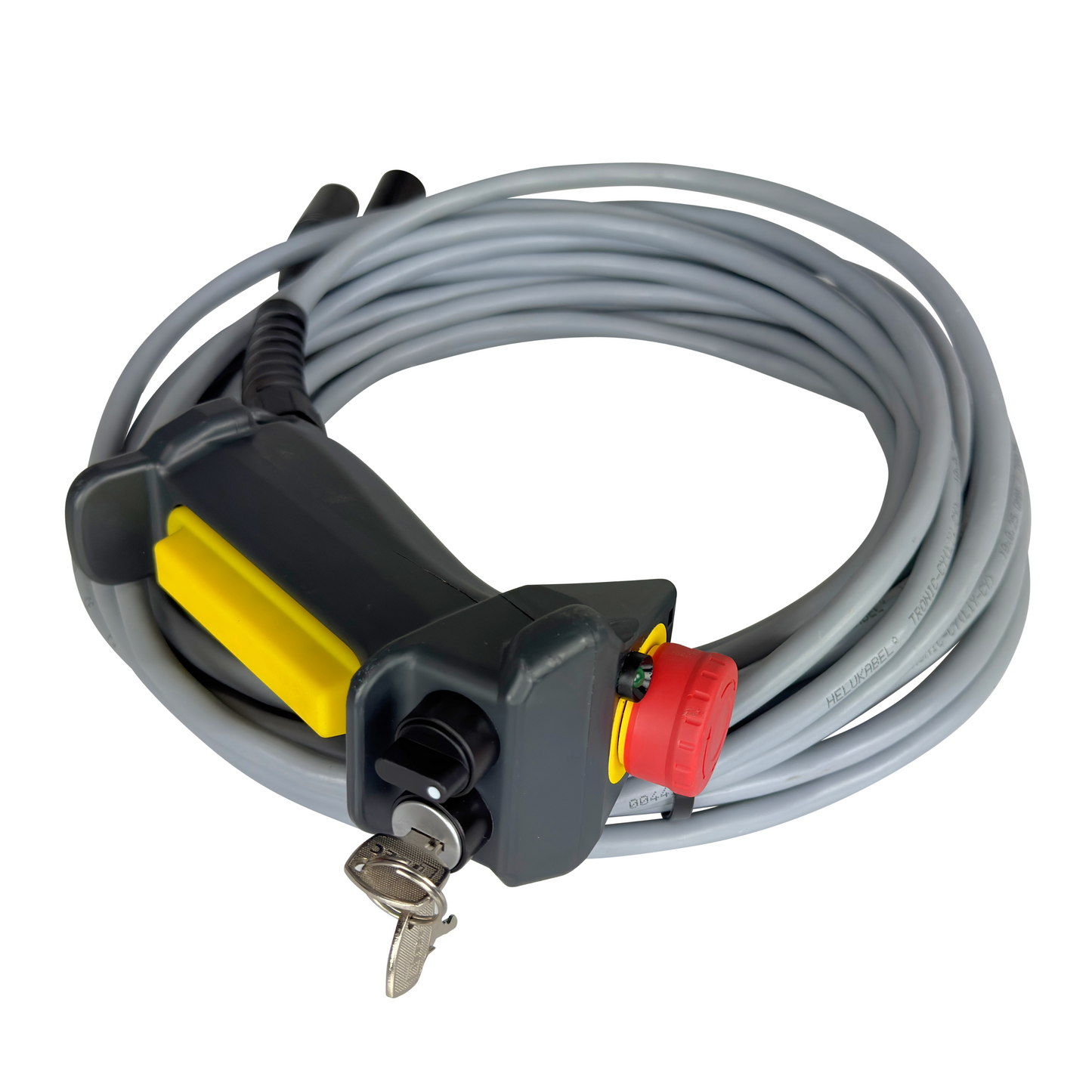

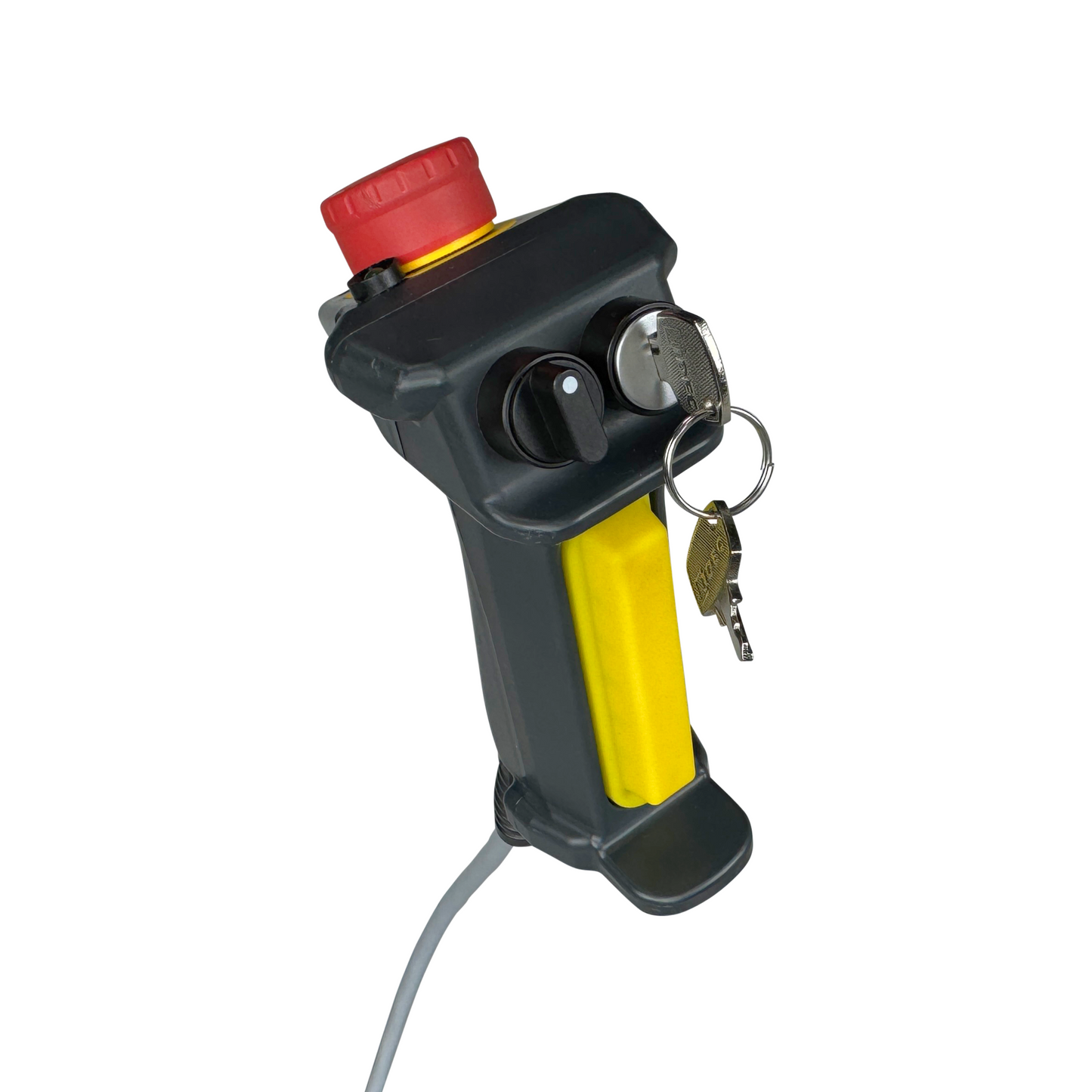

Operation is made safe with the hold-to-run Three-Point Deadman Switch, which must be engaged correctly before the system can pull in fabric at speeds of up to 12 m/s. The Deadman Switch comes with a 10m long cable, so you can operate it from a safe distance.
The Curtain Sniffer comes with six slim eye couplers (50 mm / 2 in), making it easy to mount the unit onto standard truss in your existing stage setup. It can also be ordered with a Flightcase on wheels to easily transport the unit between locations.
It can be operated using a hand controller and a lighting desk for DMX signal, as shown in the illustration below.
The content of the Curtain Sniffer package
1 x Curtain Sniffer
1 x 15m Kevlar Rope (3mm)
1 x 5p CEE 16A - 3P+N+PE Power Plug
Spare parts
We offer spare parts for all our products. You can usually find the item numbers of the needed part in the Exploded View in the Downloads section of a product. If you can't find what you need then don't hesitate to reach out to sales@wahlberg.dk with a photo of the broken part.
Specifications
| Item number | 293.0 |

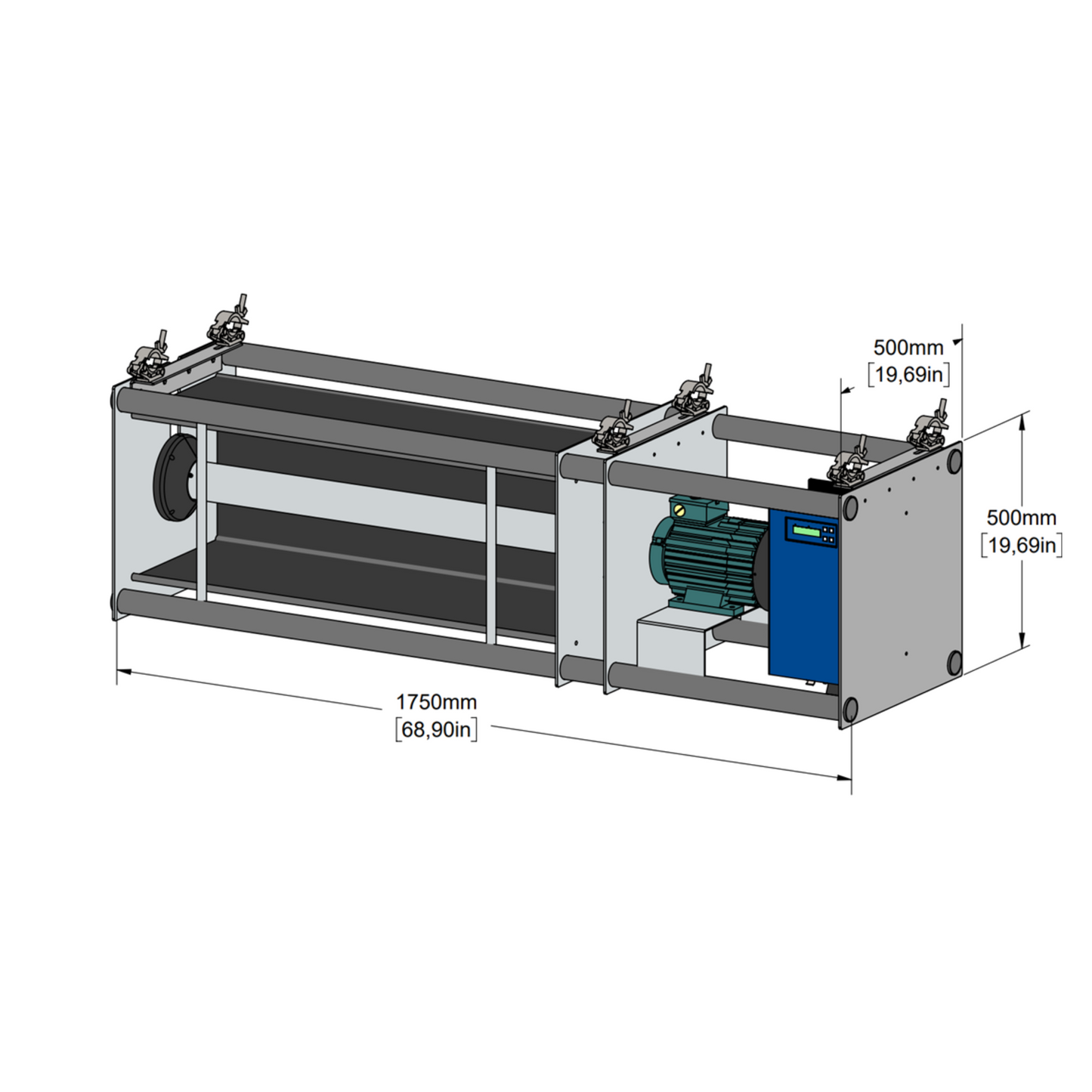

| Dimensions (LxWxH) | 1750 x 500 x 500 mm (68.9 x 19.7 x 19.7 in) |
| Power supply | 3x230 VAC 50 Hz |
| Power consumption | 4500 W (6,5A) |
| Power connection | 5p CEE 16A - 3P+N+PE |
| Motor | 230/400VAC, 1,5Kw 1400 RPM |
| Control mode | Manual / DMX with position control |
| DMX signal | DMX 512 1990+DMX512A |
| DMX connection | 5 Pole XLR (F/M) |
| Safety control | Hold to run Three Point Deadman switch |
| Max fabric weight | 15 kg (33.1 lb) |
| Max fabric size | 100 m2 (1076 ft2) |
| Max speed | 12 m/s (39.4 ft/s) |
| Noise emission | ~ 60 dB |
| Ambient temperature | 5-40 °C (41-104 °F) |
| Weight | 70 kg (154.3 lb) |
| Shipping weight | 130 kg (286.6 lb) |
| Mounting clamp | 6x Slim eye coupler 50mm (2in) |
