Curtain Sniffer

Perfect for creating impactful, high-speed stage reveals using a kabuki-dropped curtain that is then instantly sucked into the system.

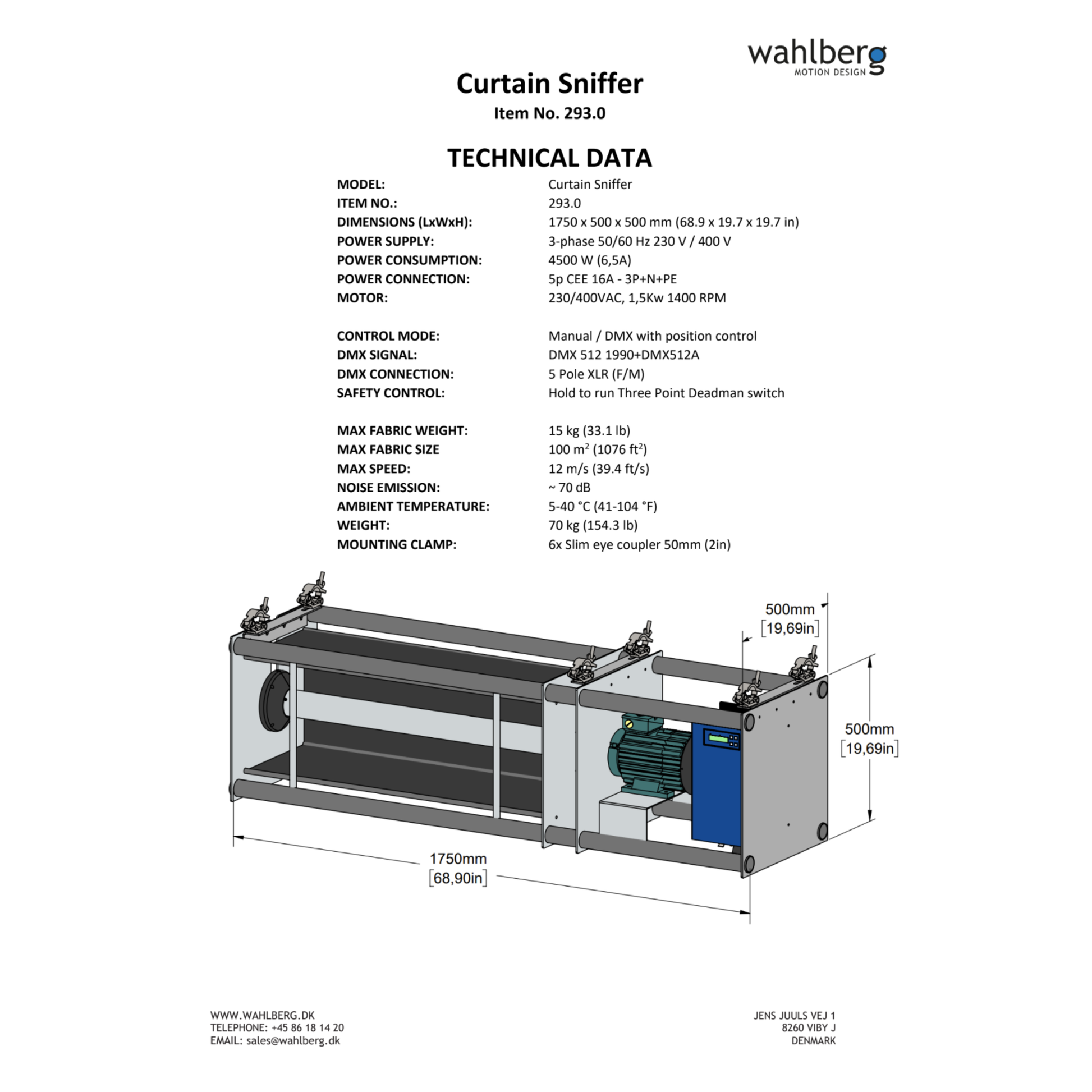

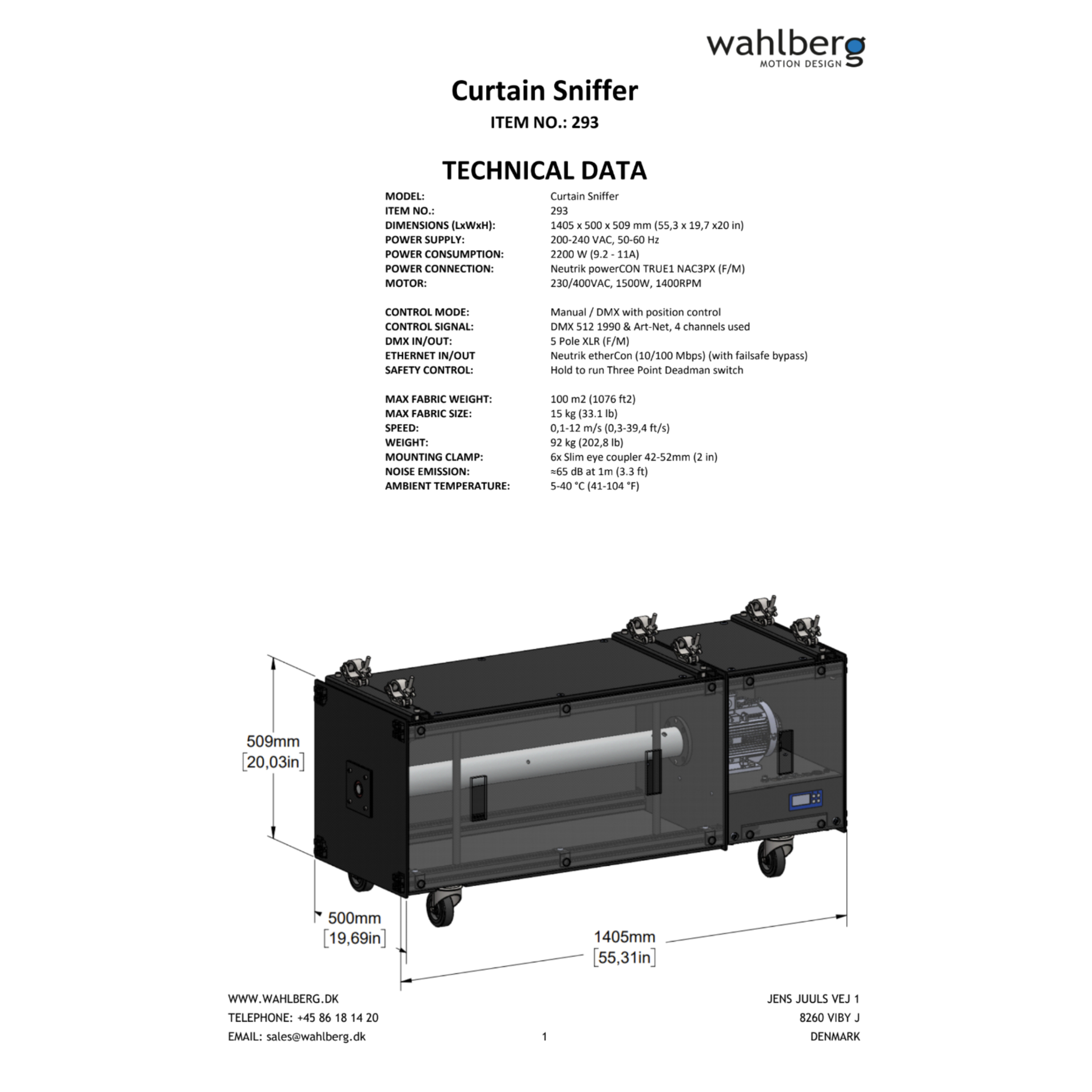

Max fabric weight	15 kg (33.1 lb)
Max fabric size	100 m2 (1076 ft2)
Speed	0,1-12 m/s (0.3-39.4 ft/s)
Safety control	Three-Point Deadman Switch



Description

The Curtain Sniffer can pull in up to 100 m² of fabric weighing up to 15 kg in about 1.5 seconds, creating a truly memorable stage effect for the audience.

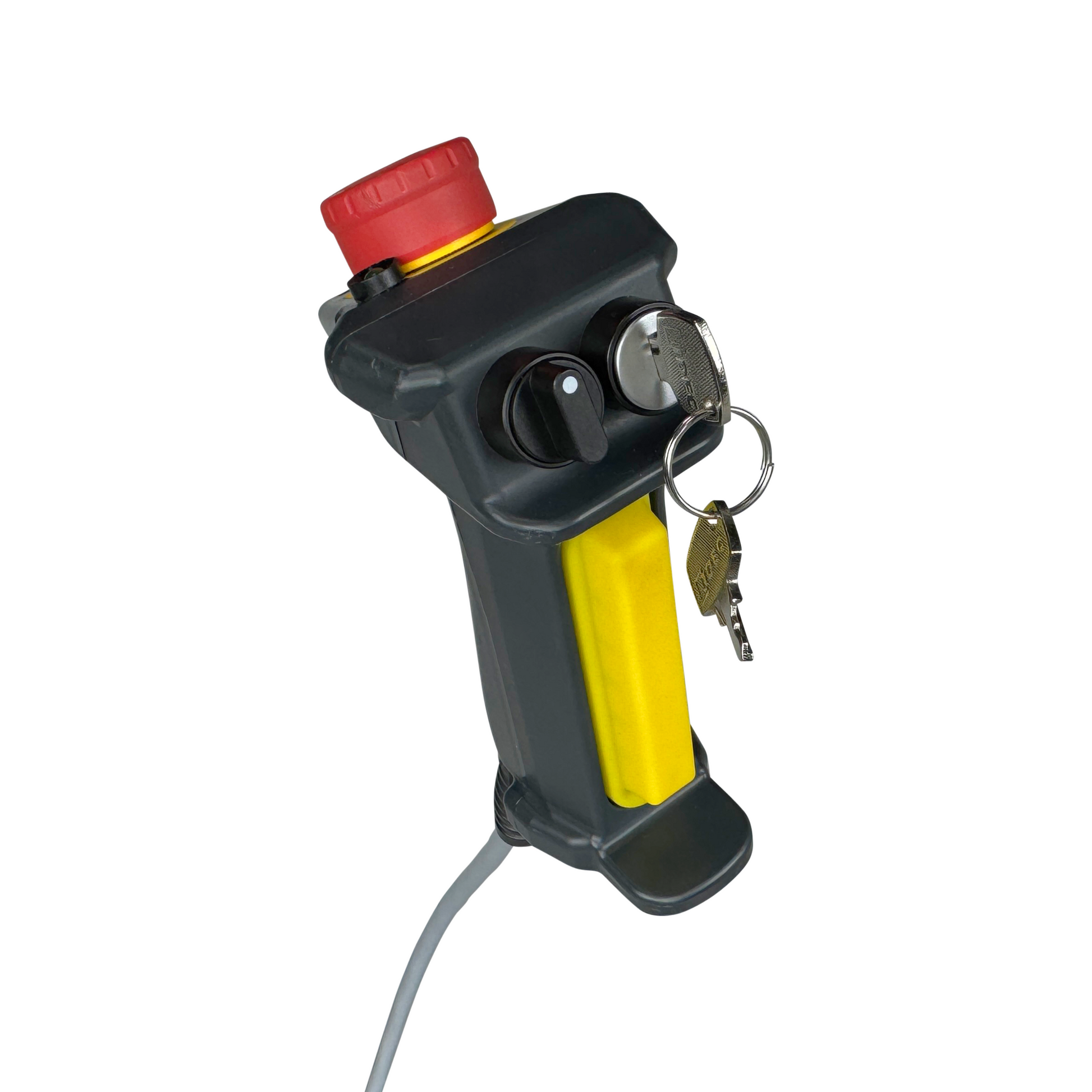

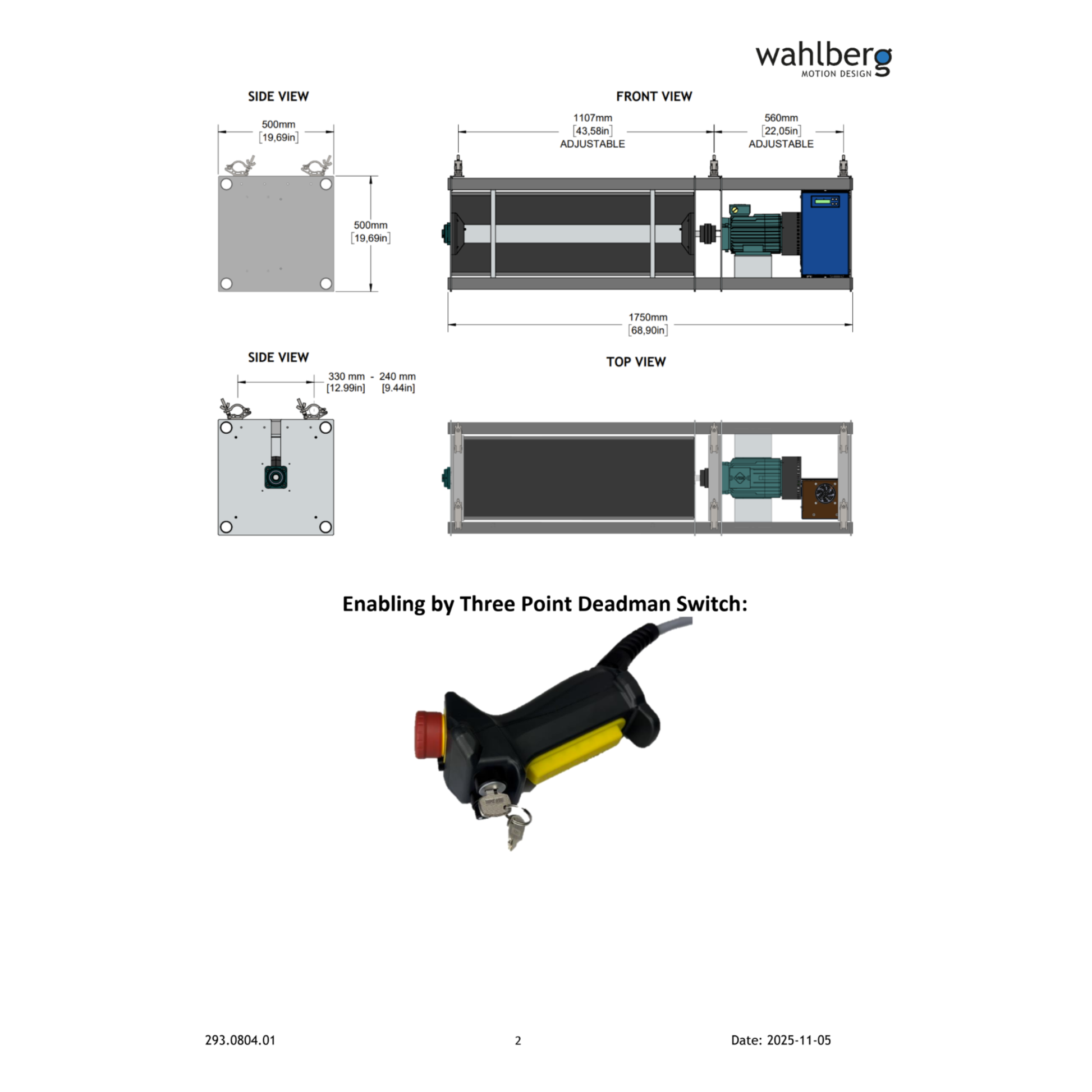

Three-Point Deadman Switch

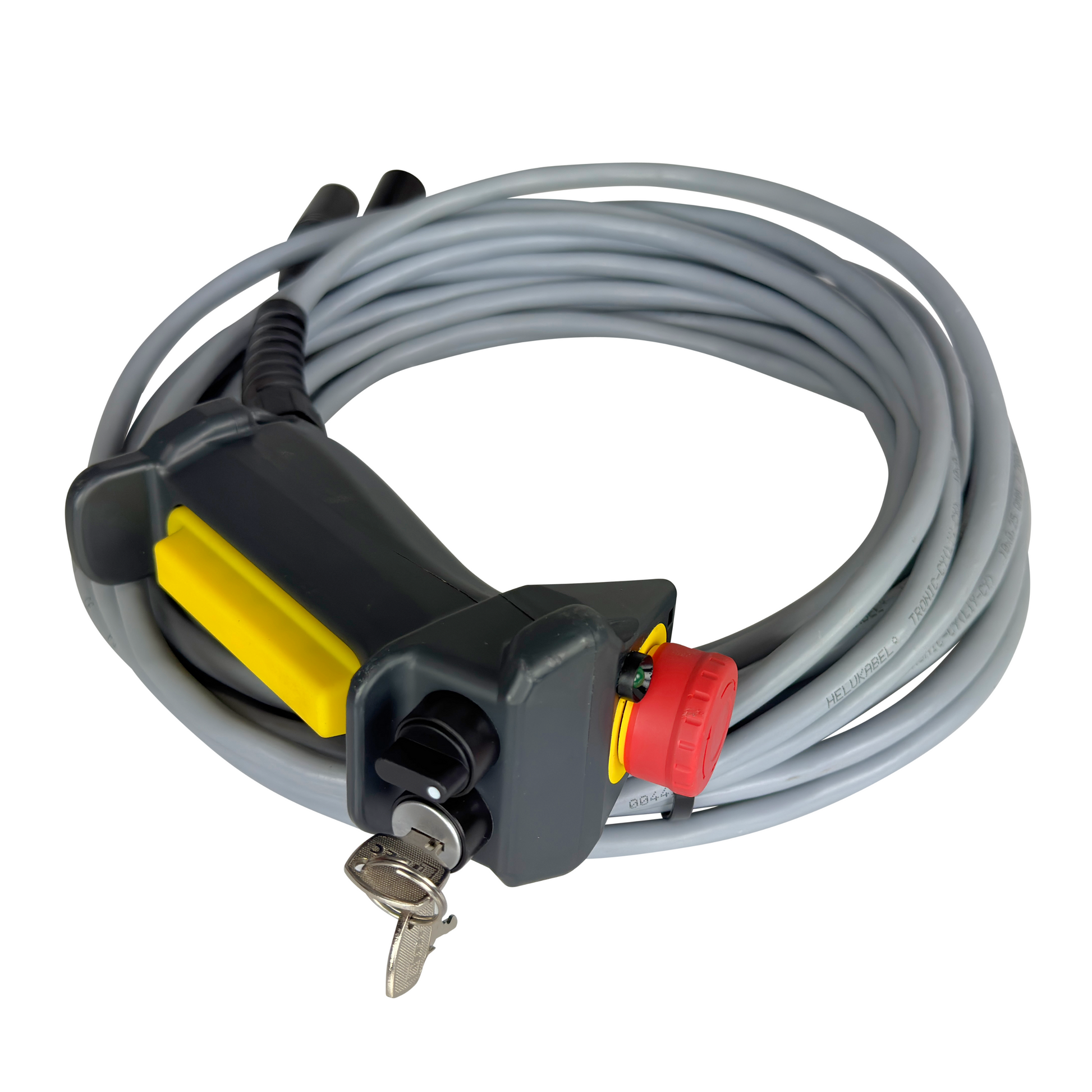

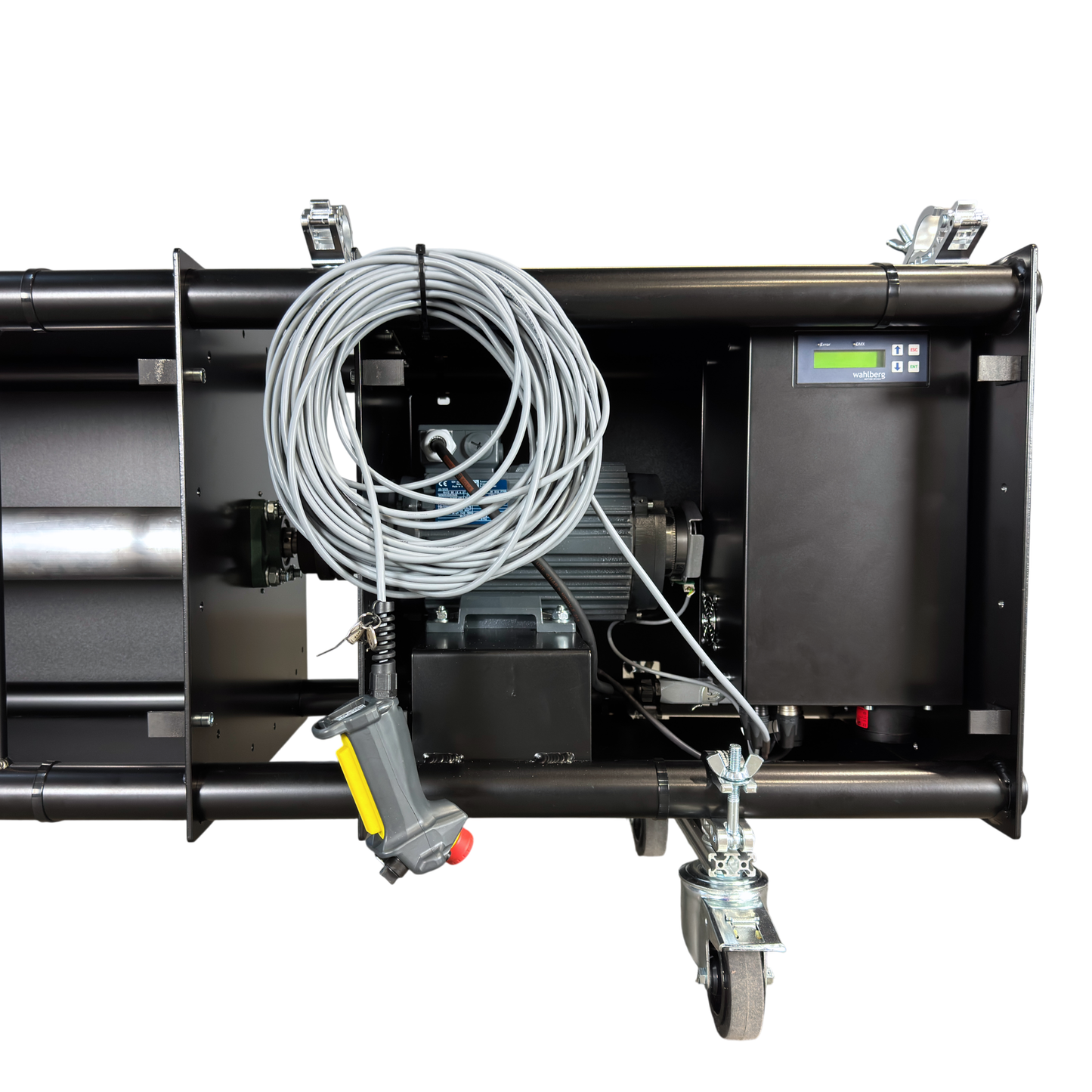

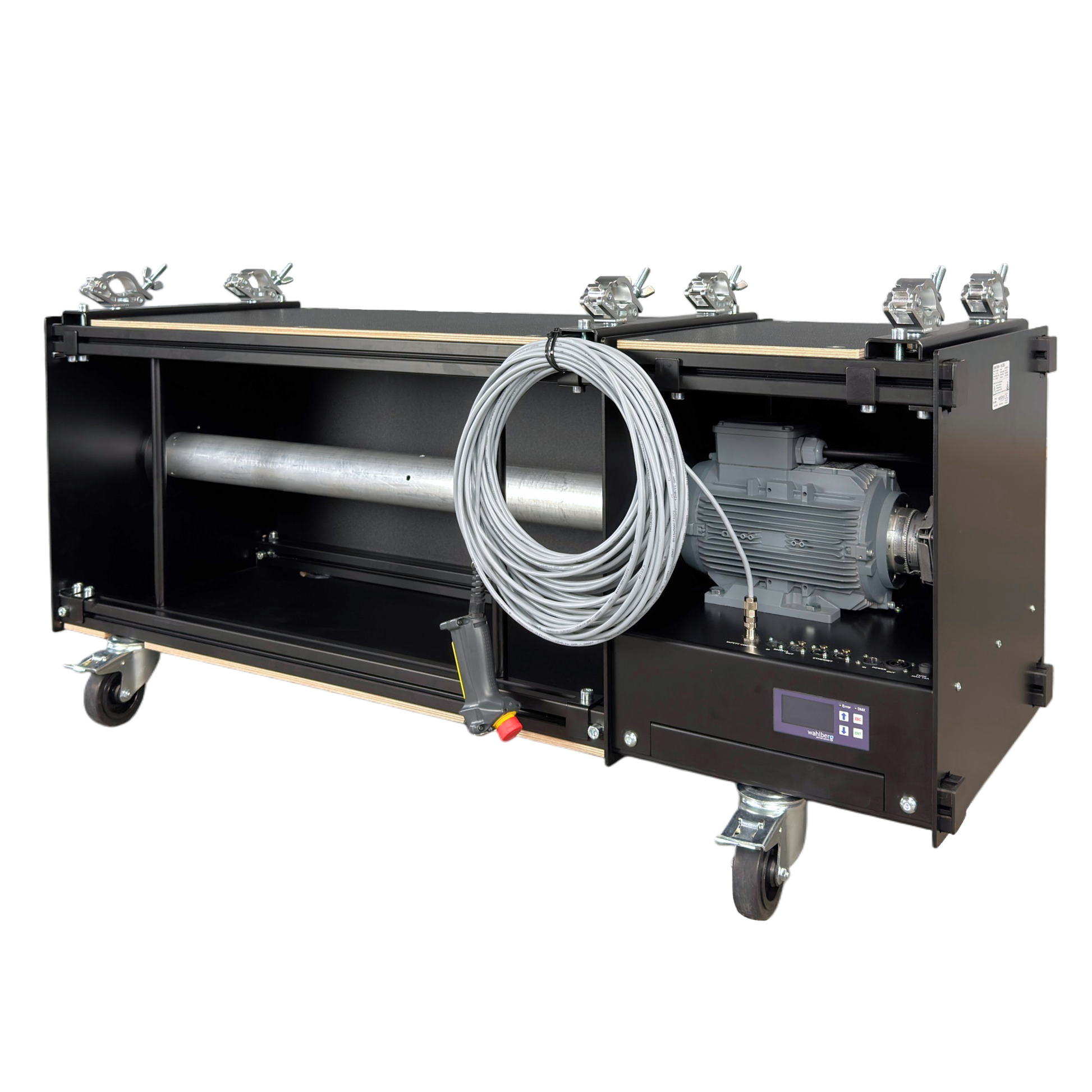

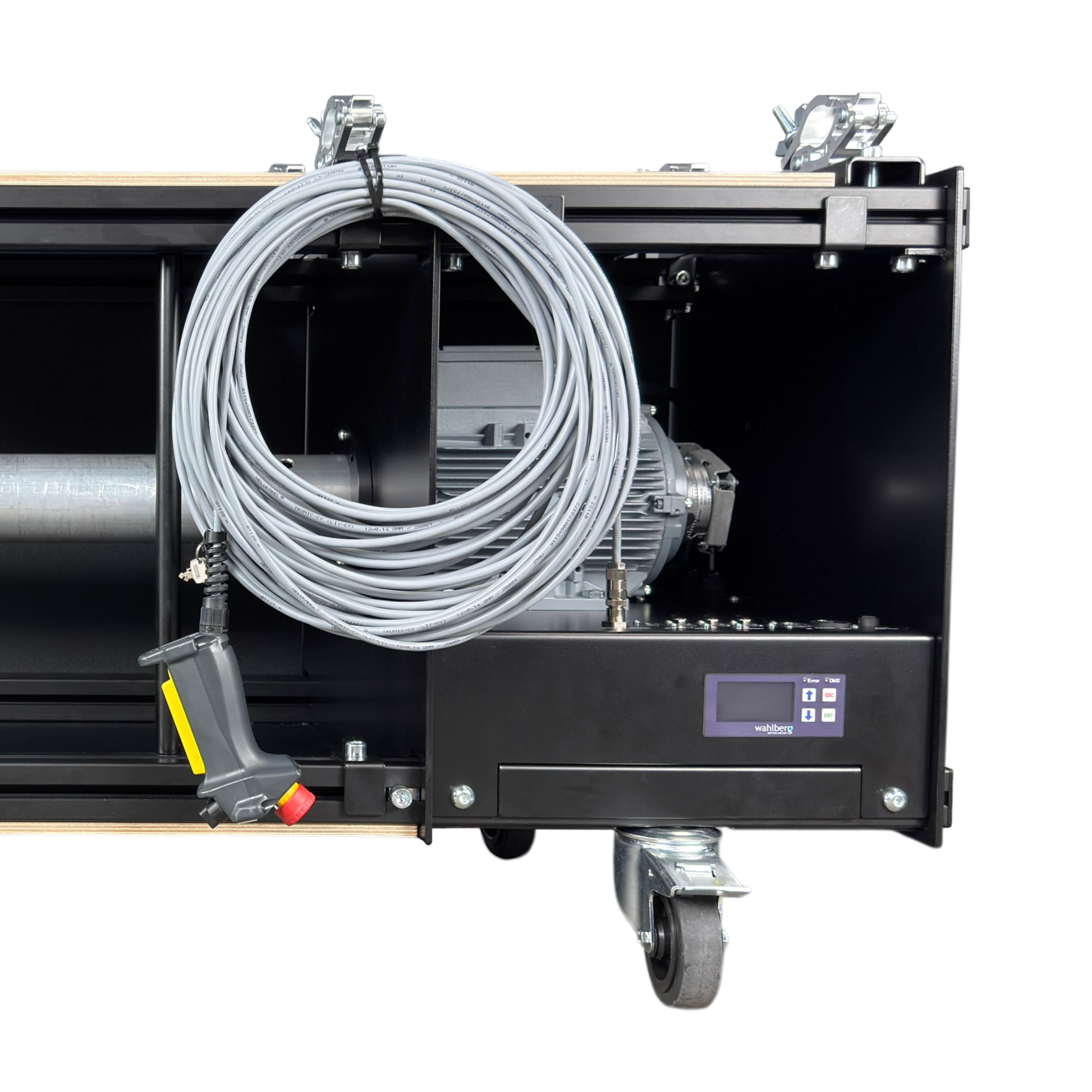

Operation is made safe with the hold-to-run Three-Point Deadman Switch, which must be engaged correctly before the system can pull in fabric at speeds of up to 12 m/s. The Deadman Switch comes with a 10m long cable, so you can operate it from a safe distance.

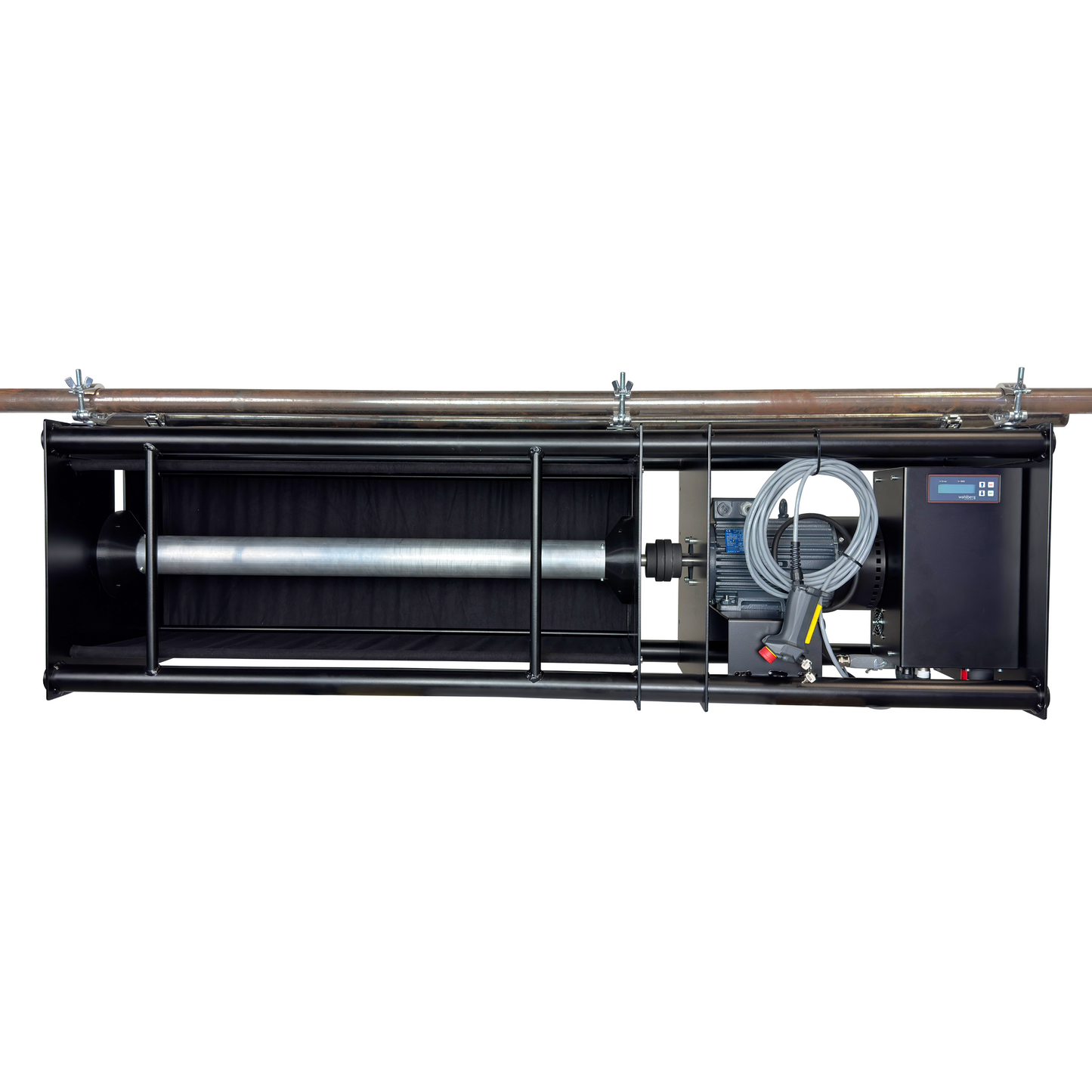

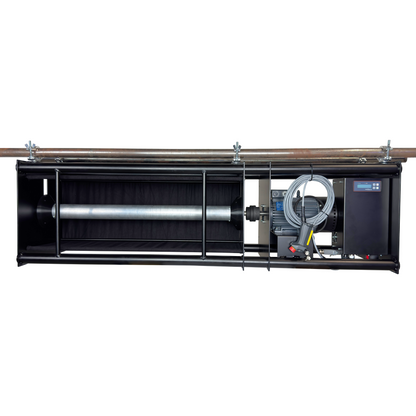

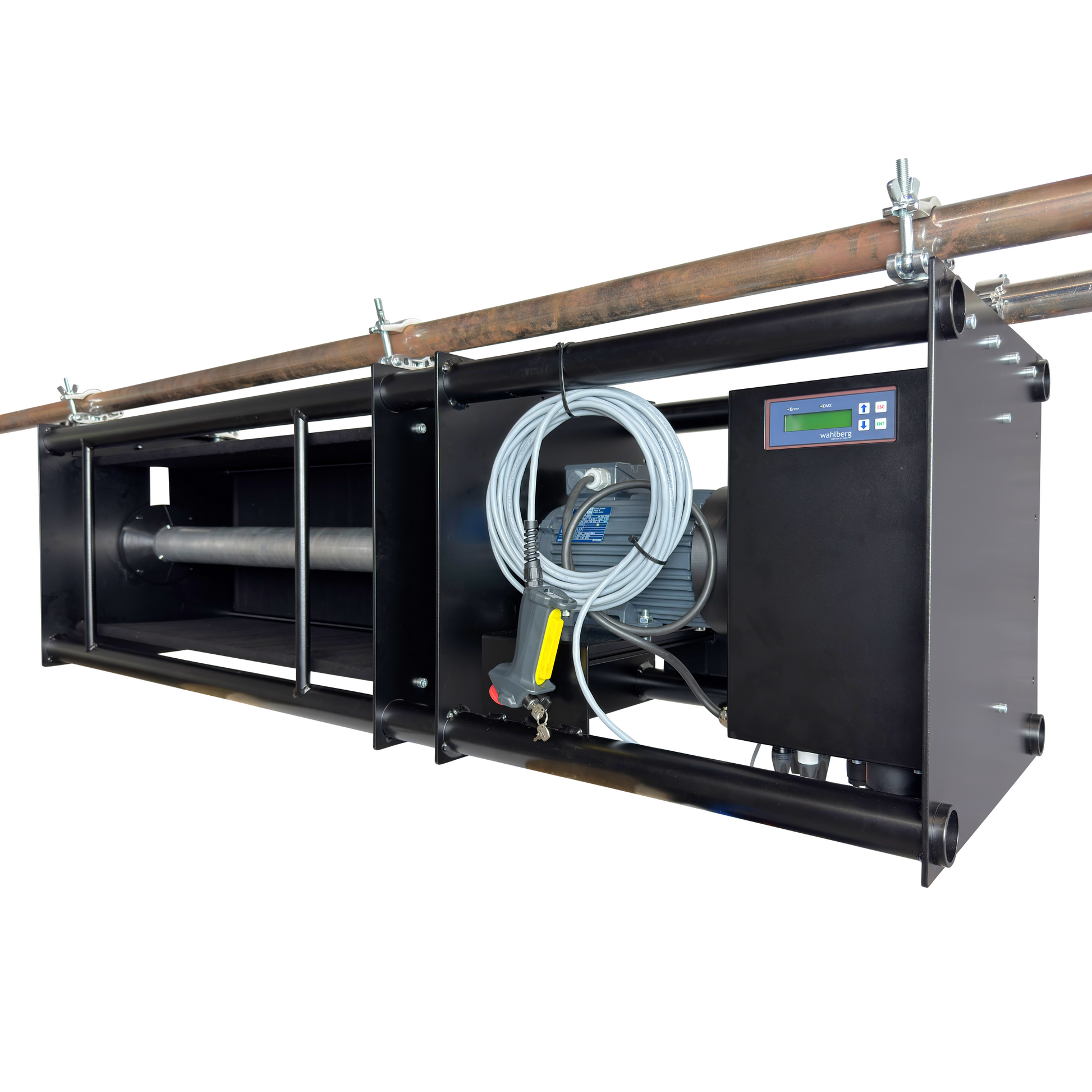

Mounting of the Curtain Sniffer

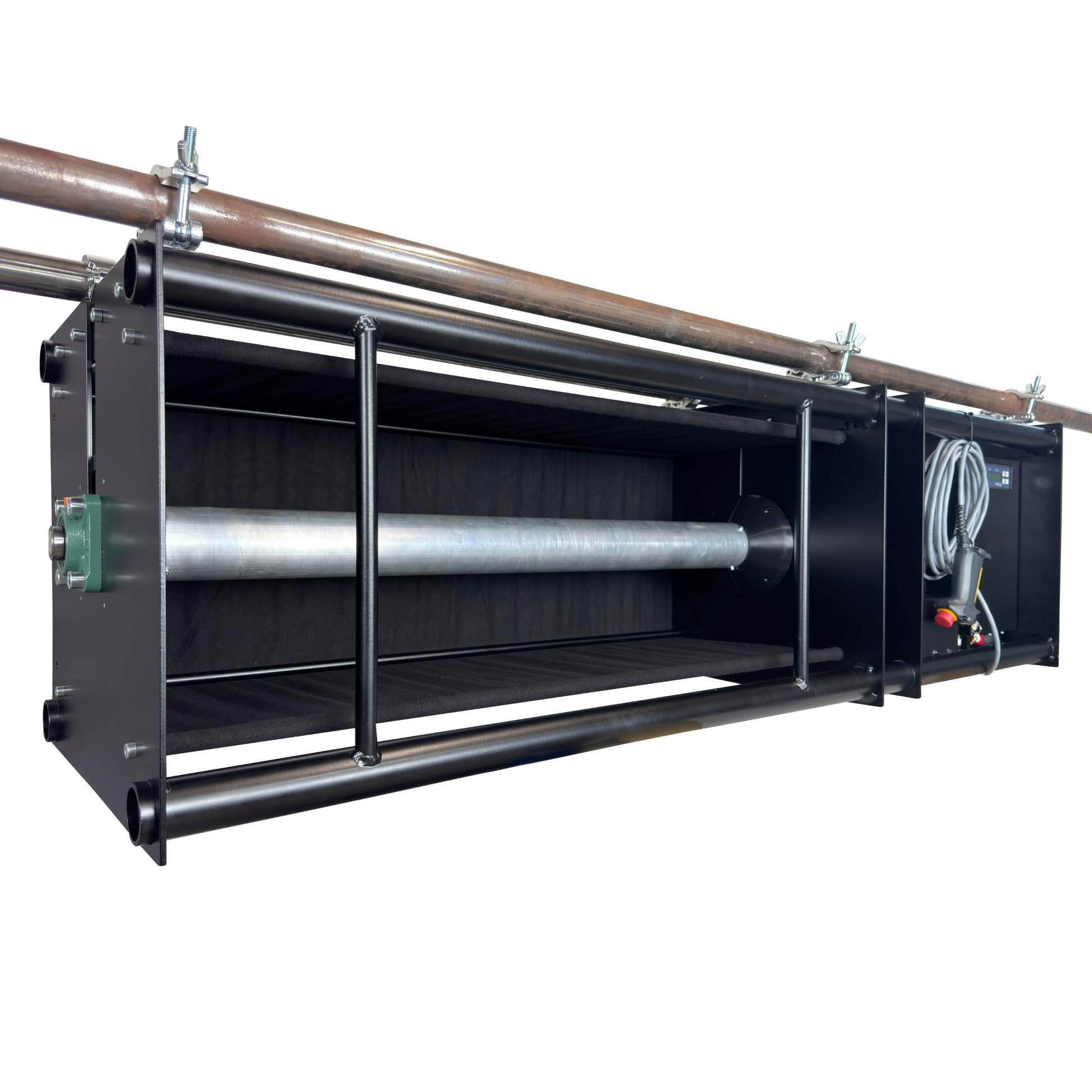

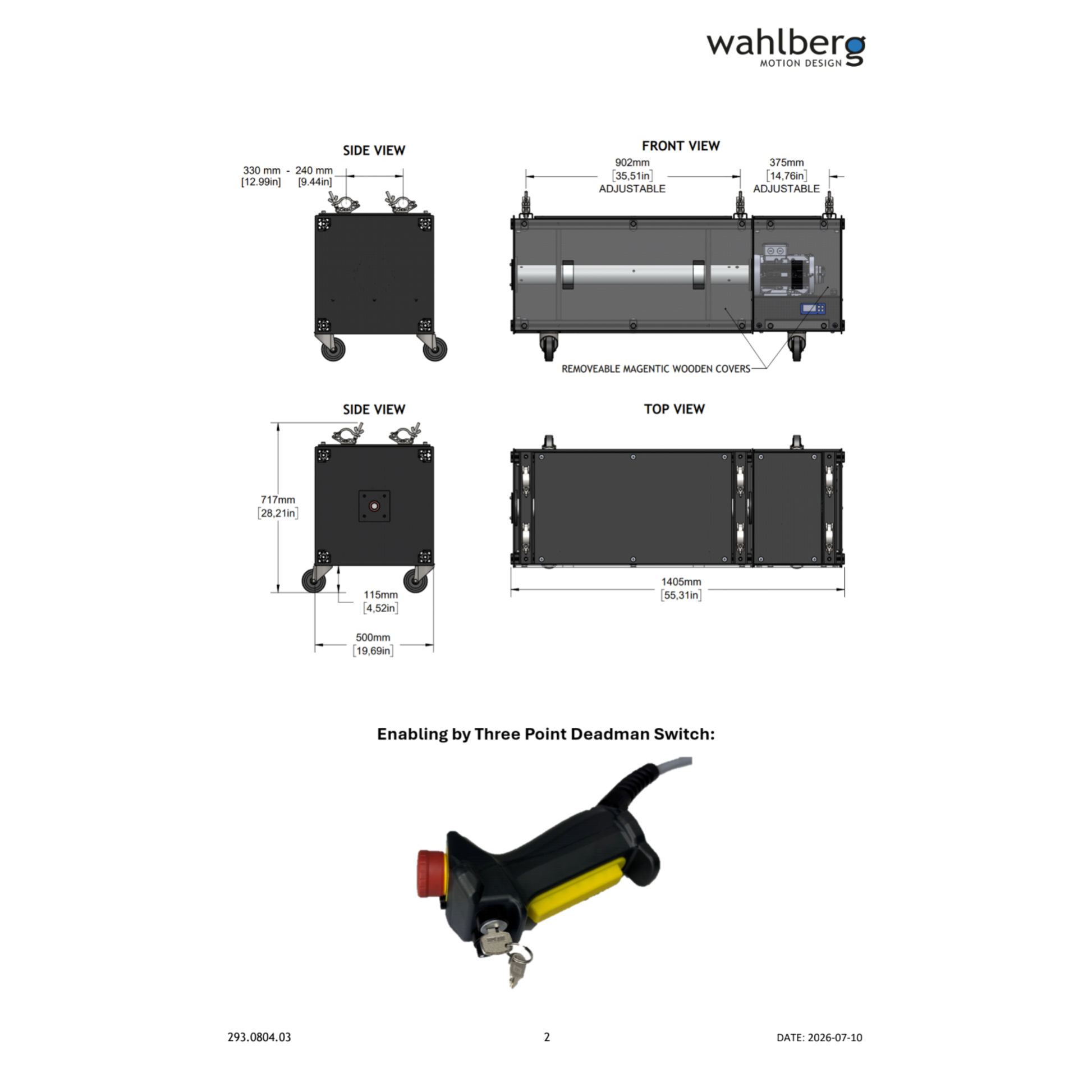

Easily integrate the Curtain Sniffer into your existing stage design using the six included slim eye couplers (50 mm / 2 in), designed for standard truss mounting.

Safe and Efficient Transport

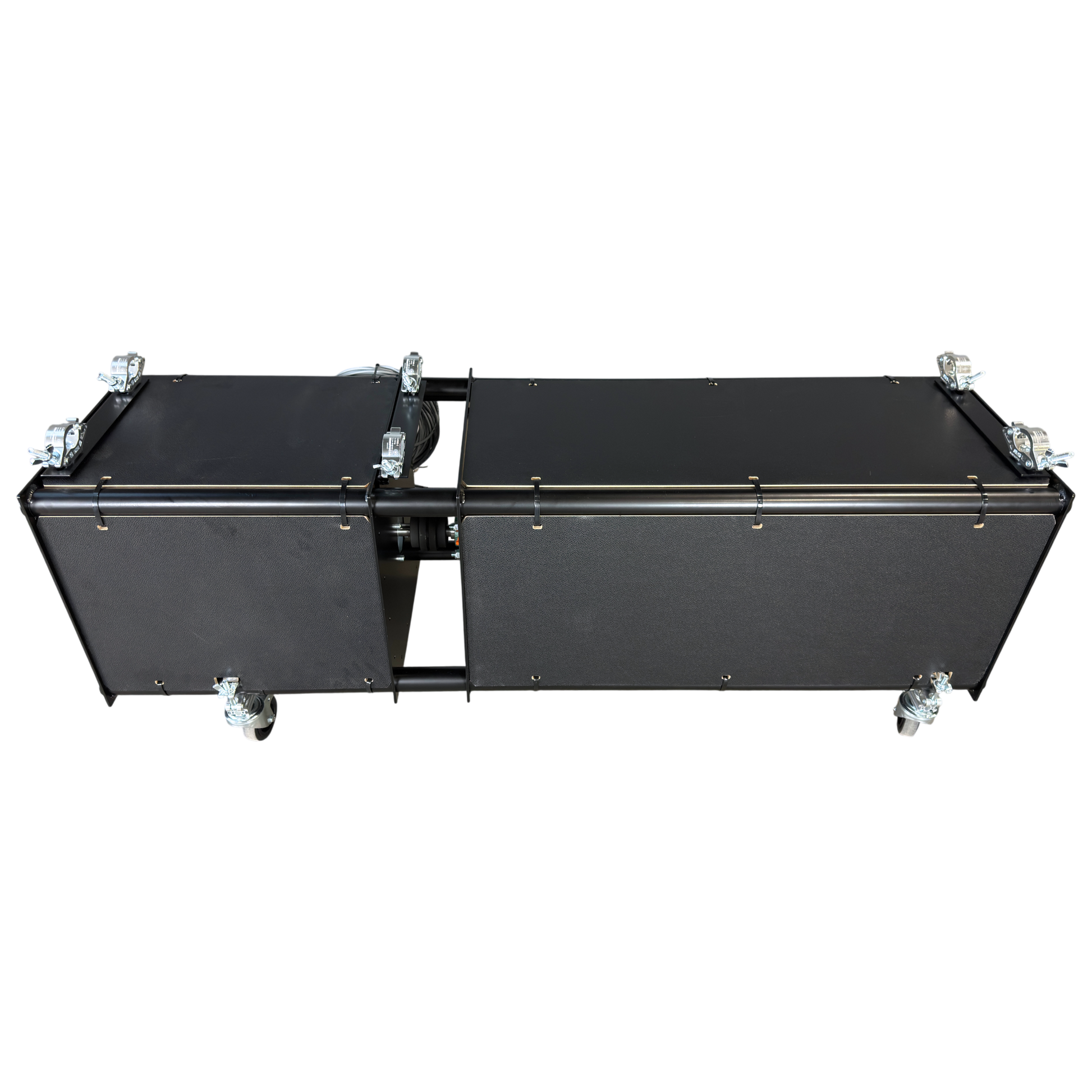

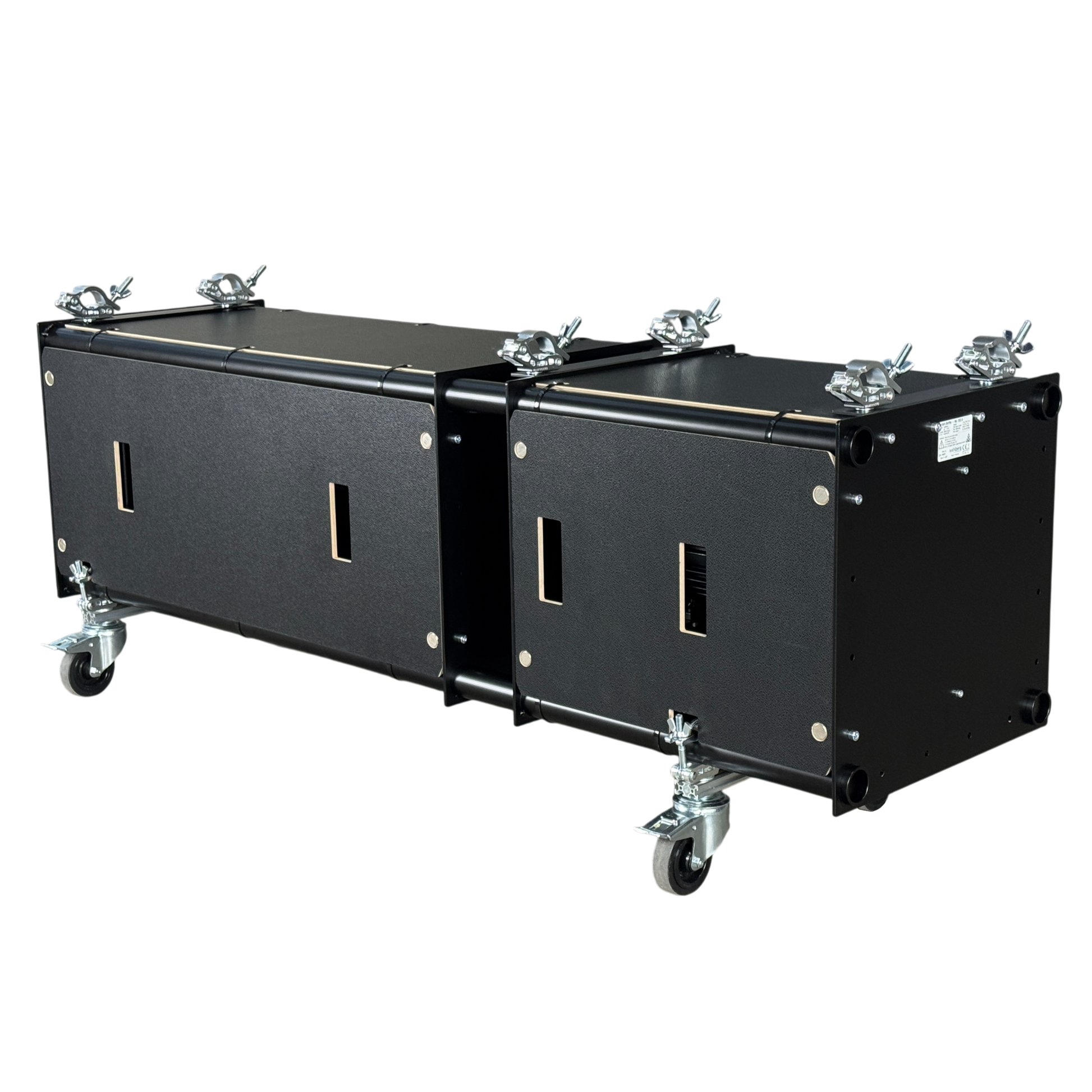

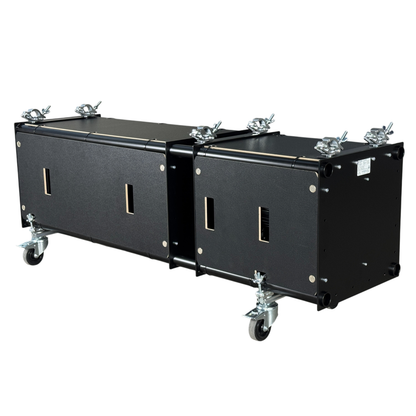

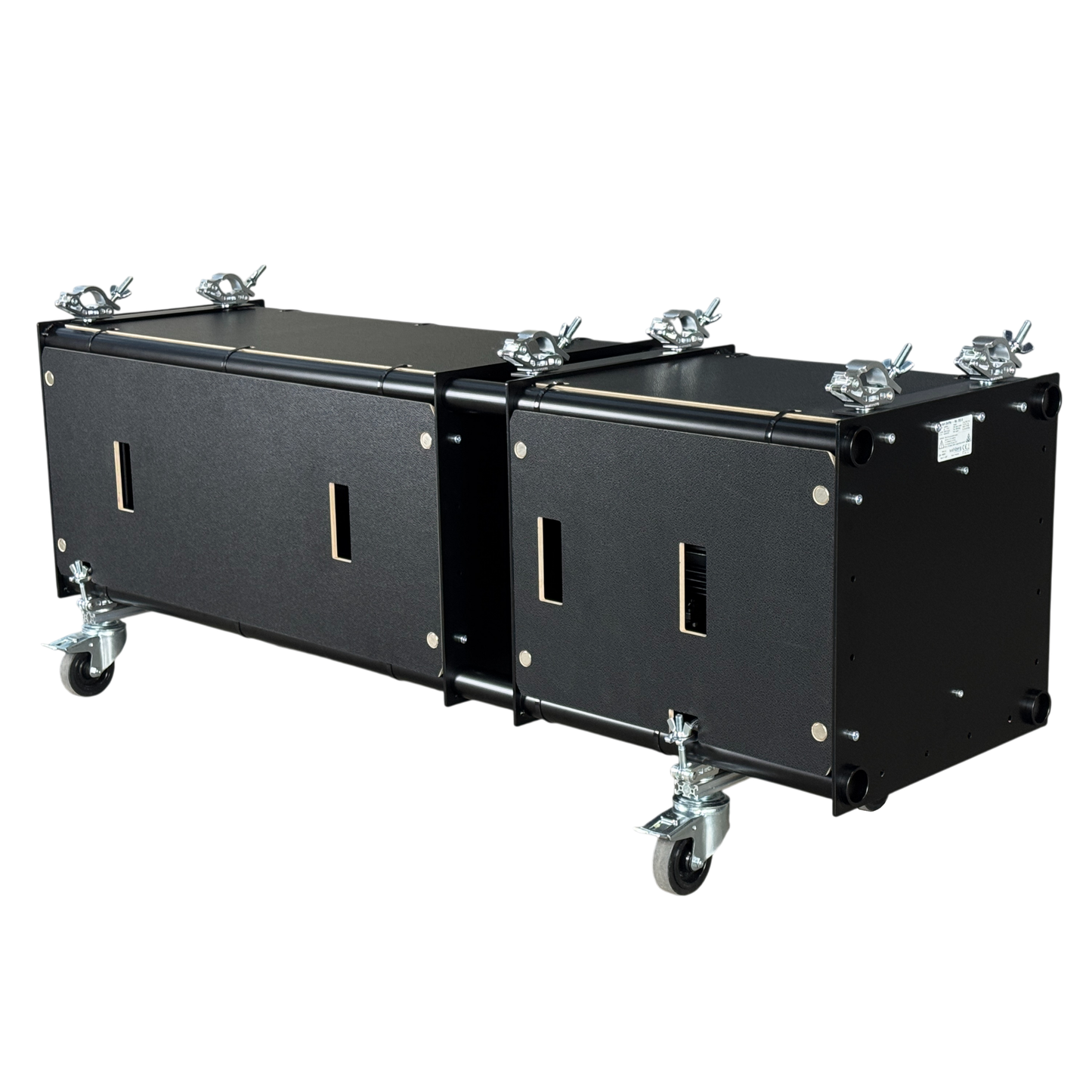

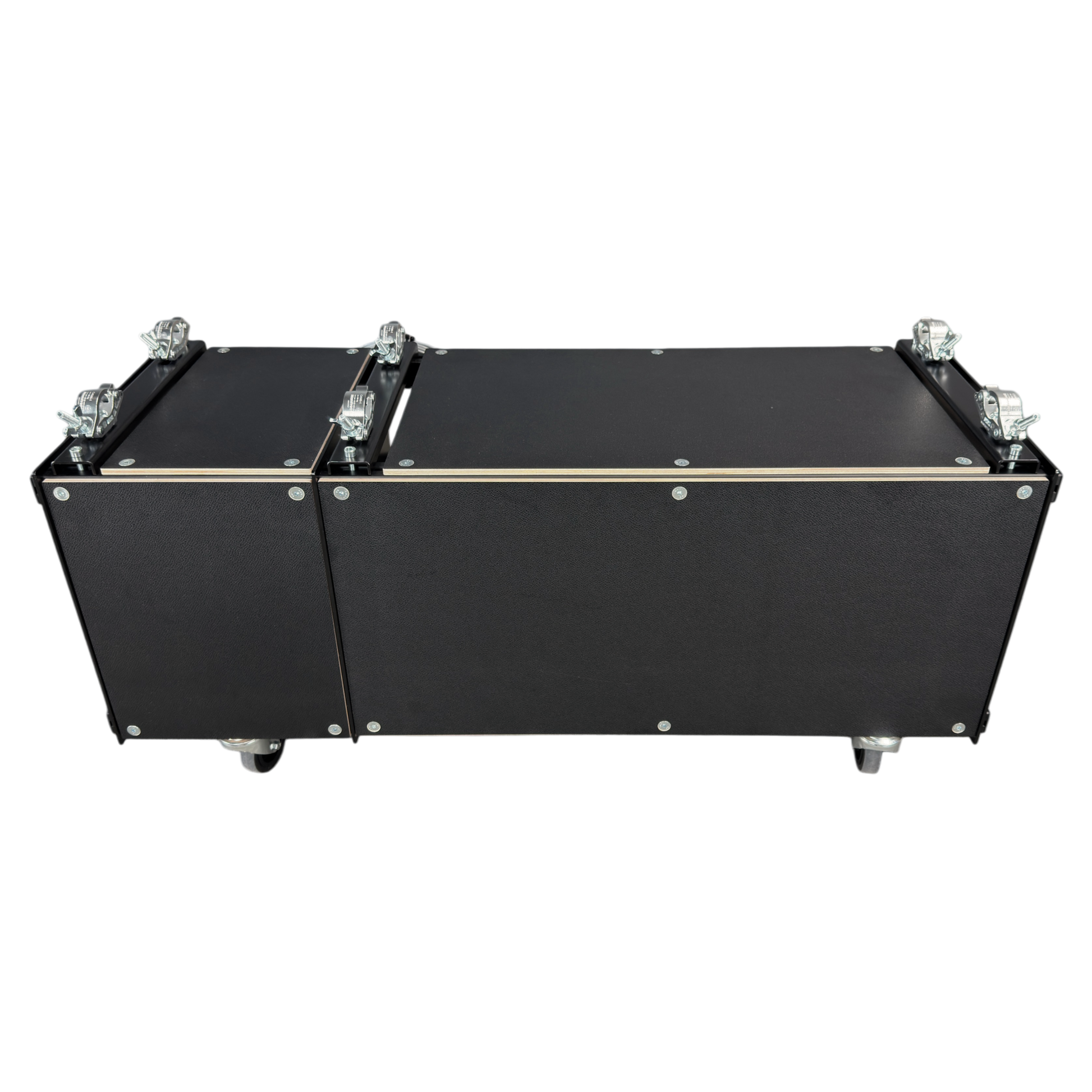

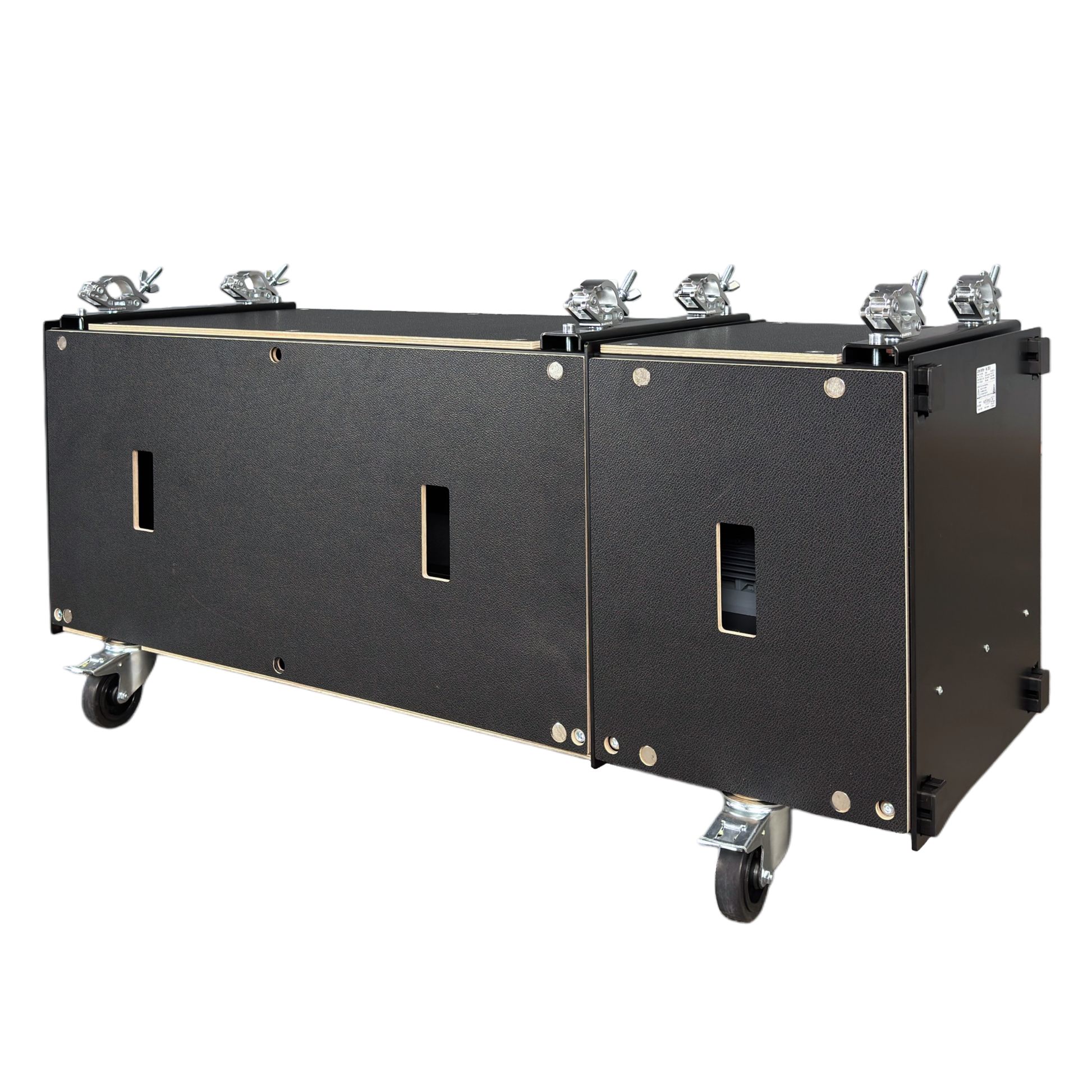

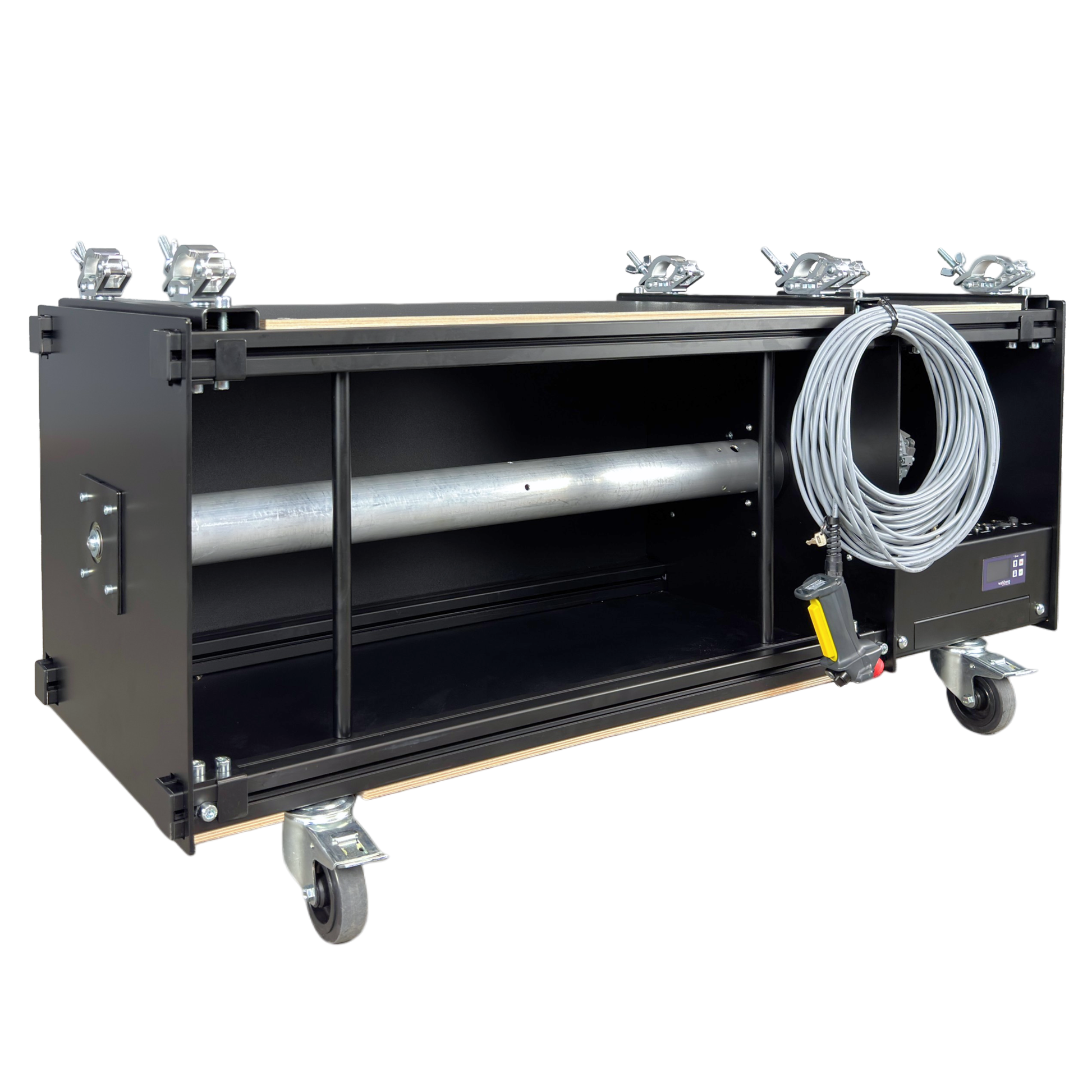

For safe and efficient transport between venues, the unit features integrated castor wheels and protective magnetic wooden covers that shield the equipment from damage.

Operating the Curtain Sniffer

Operate the Curtain Sniffer using a hand controller and a lighting desk for DMX signal, as shown in the illustration below.
