Perfect for moving big LED-screens and electrical equipment discreetly across stage setups.
The standard Floor Rail Cart can provide electrical equipment with power while moving, which creates an opportunity to make dynamic stage designs.
| Maximum load | 300 kg (661 lb) |
| Max speed | 1 m/s (39.4 in/s) |
| Min speed | 0,05 m/s (1.9 in/s) Without load |
| Position control | DMX positioning, precision 1 mm/10 m |

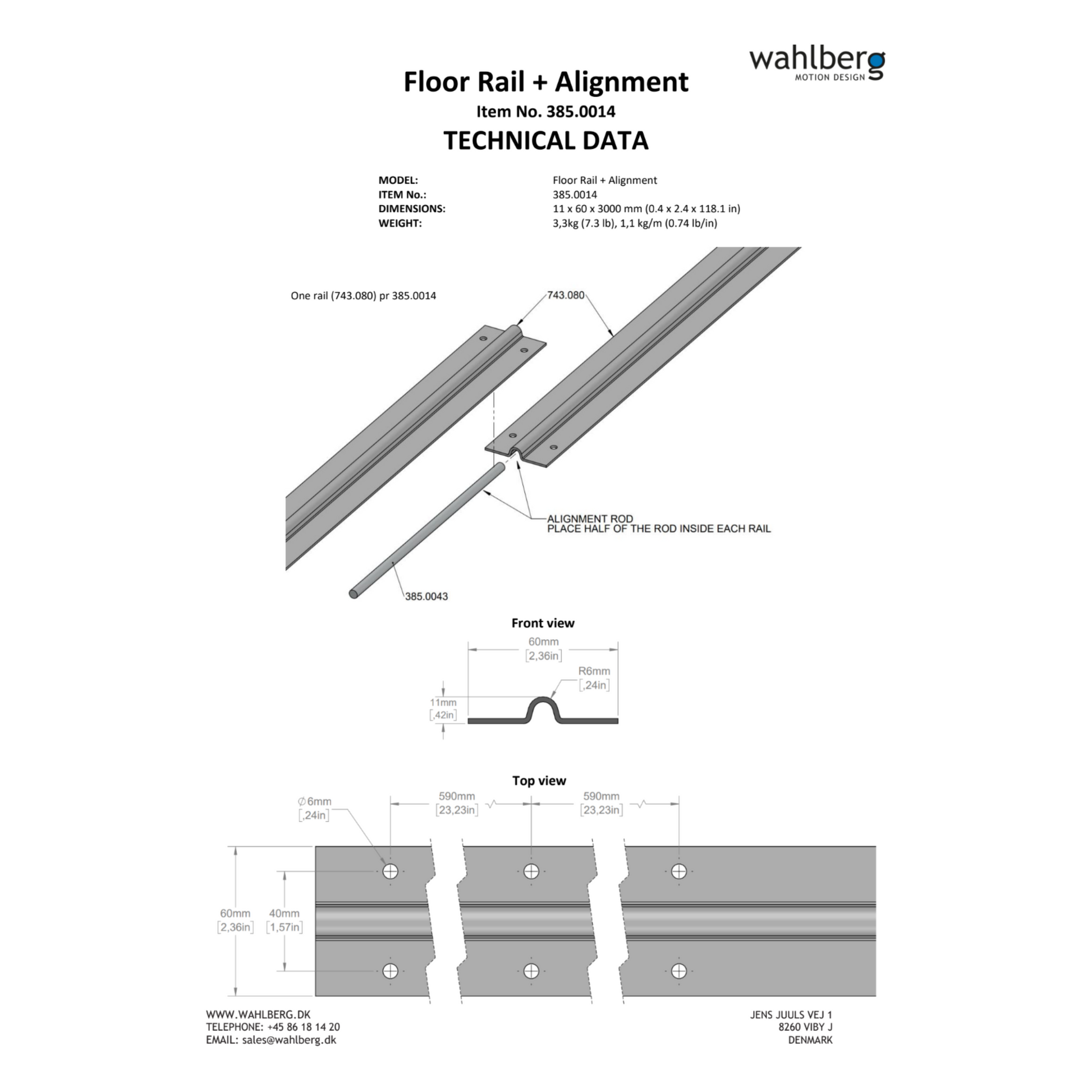

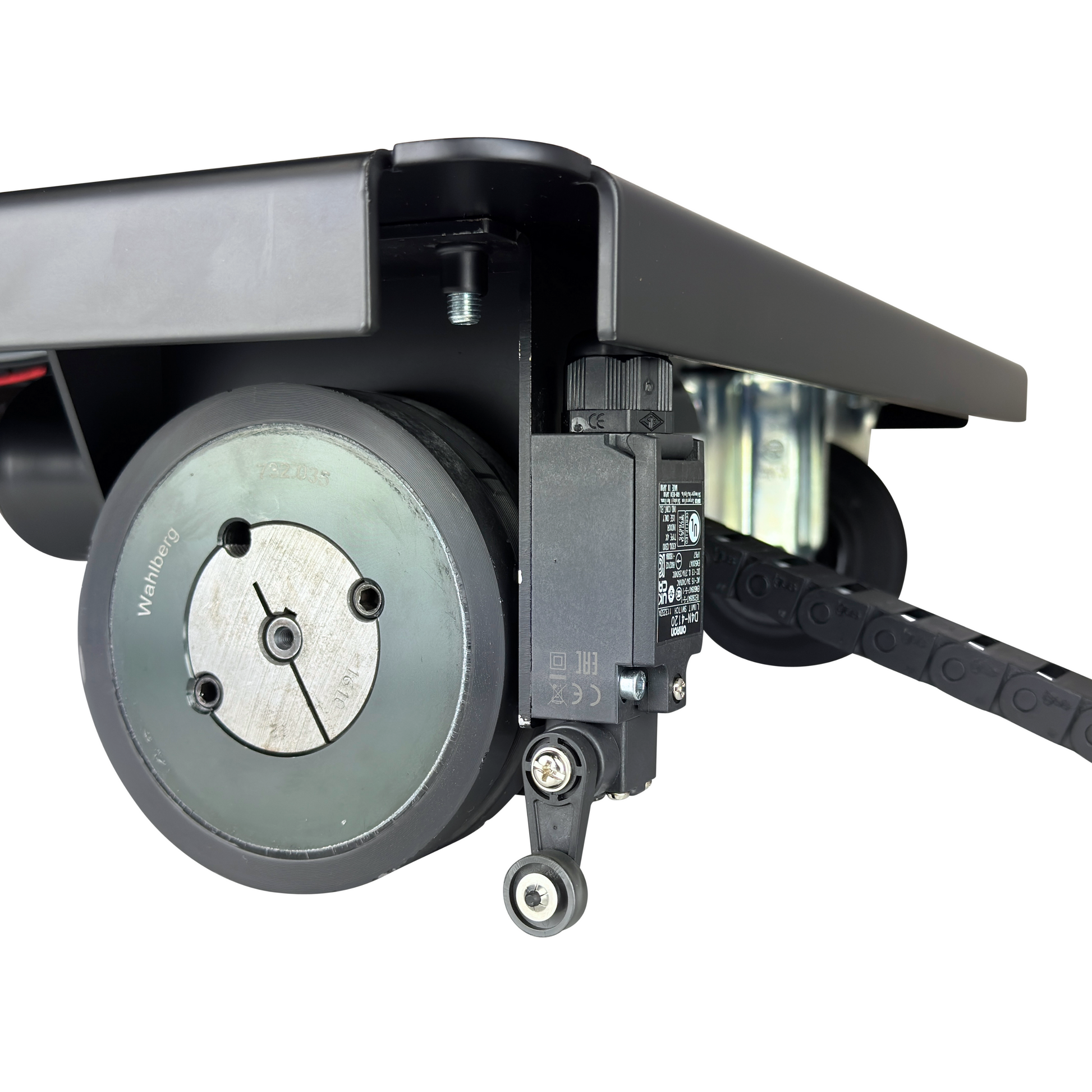

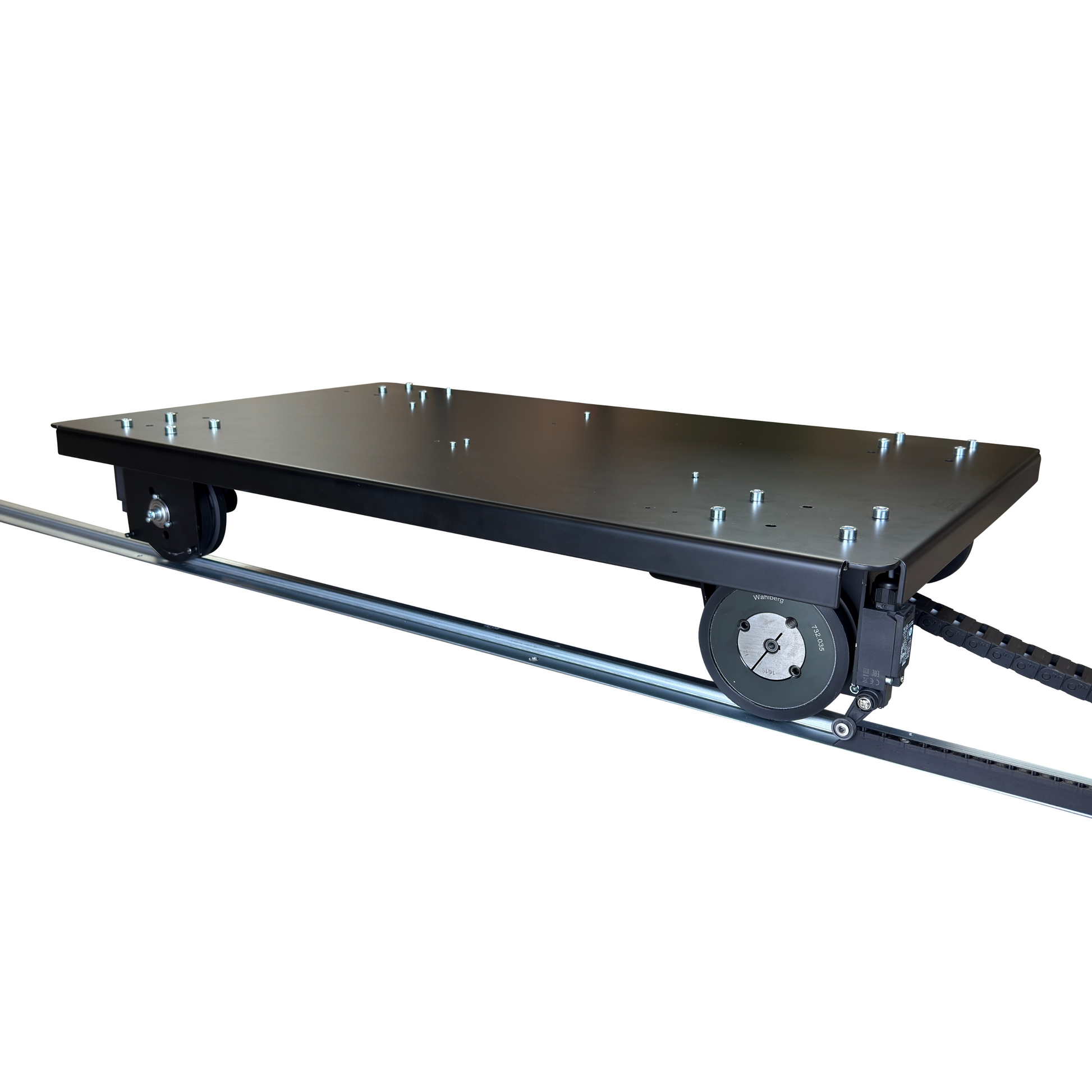

The Floor Rail Cart runs on a very slim and low-profile Floor Rail, which is almost invisible in a stage sphere. Once the rail is equipped with Floor Rail Endstops the cart will stay on the rail at all times with the use of two limit switches.
Description

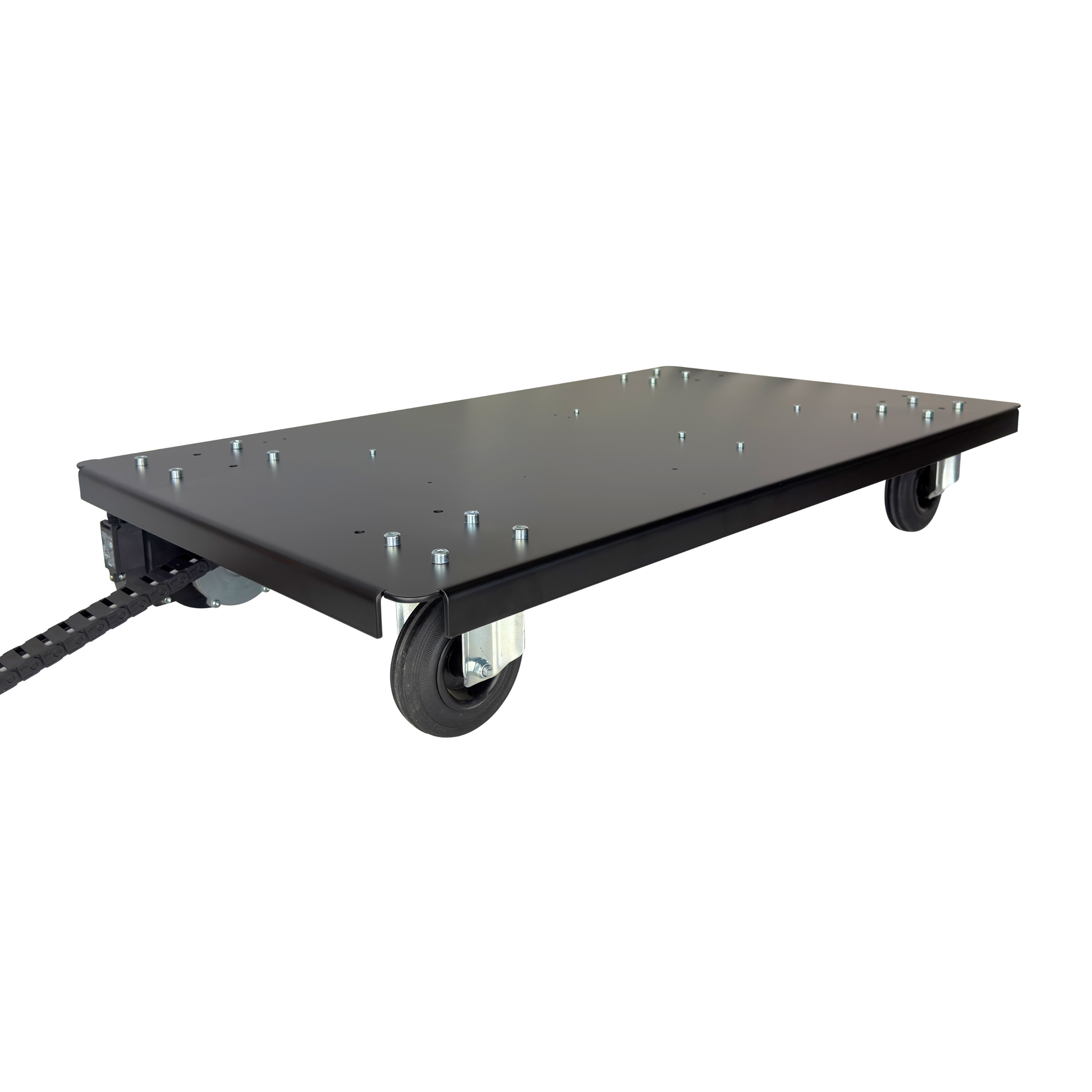

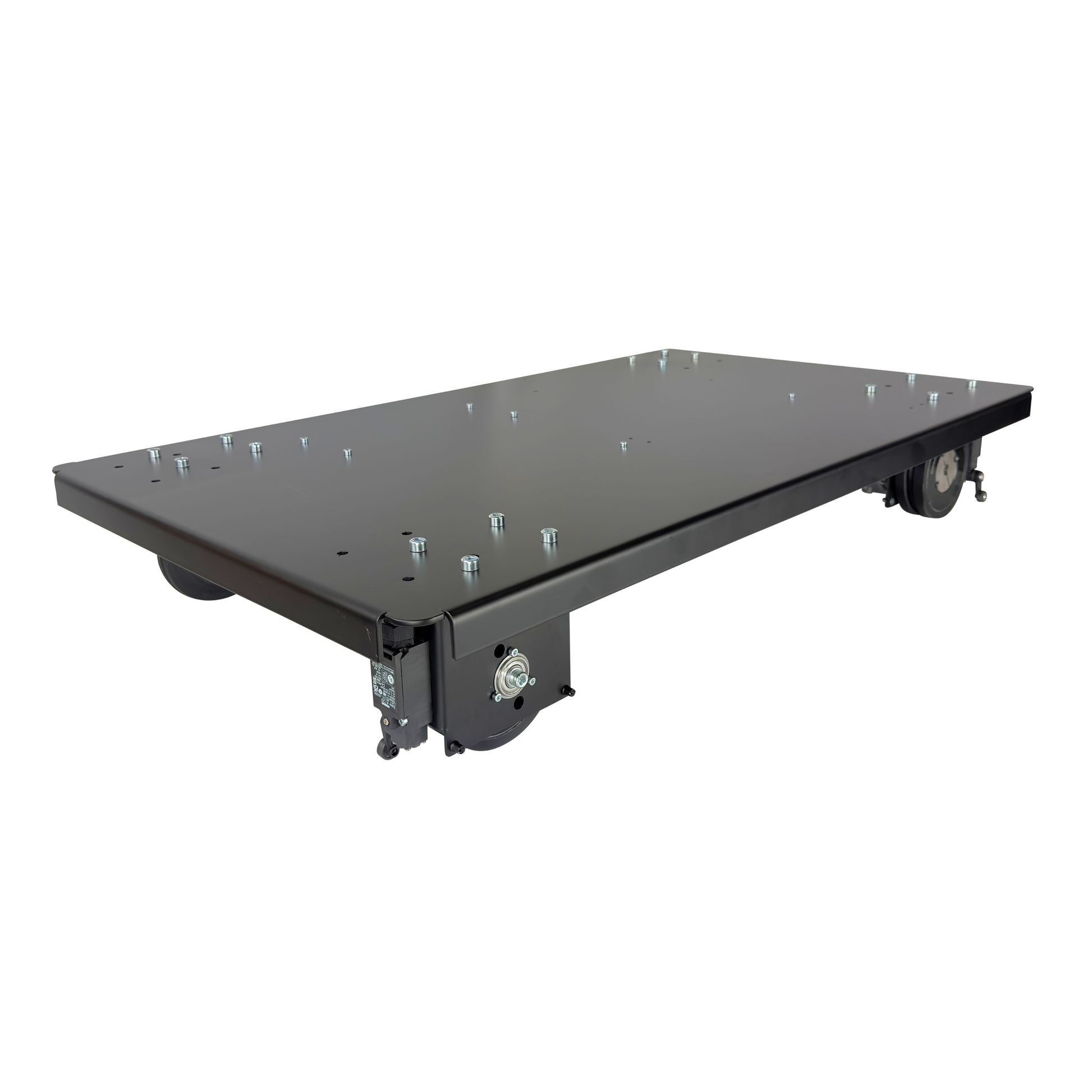

The Floor Rail Cart makes linear movement of big electrical equipment, like LED-screens, on stage easy and discreet. The cart is accurate down to the millimeter over a distance of 10 meters and has 16-bit DMX positioning for very smooth movement.
The low-profile Floor Rail has a very slim and rounded design, which helps create a safe environment for the stage crew.

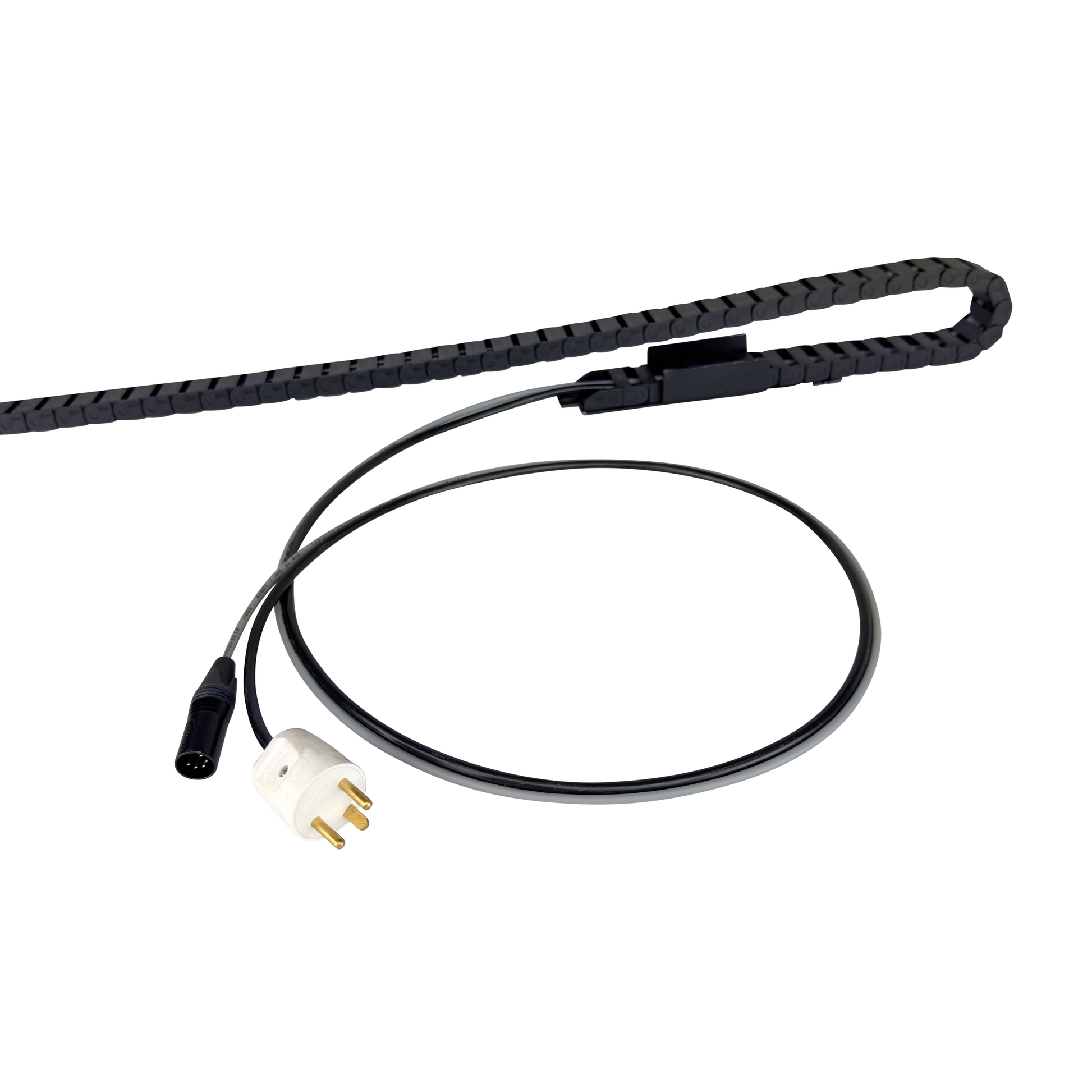

Power and DMX cables are guided through a flexible Cable Chain, which is also made to be as invisible as possible on a stage setting.
Wireless Floor Rail Kit - Discreet Linear Movement on Stage

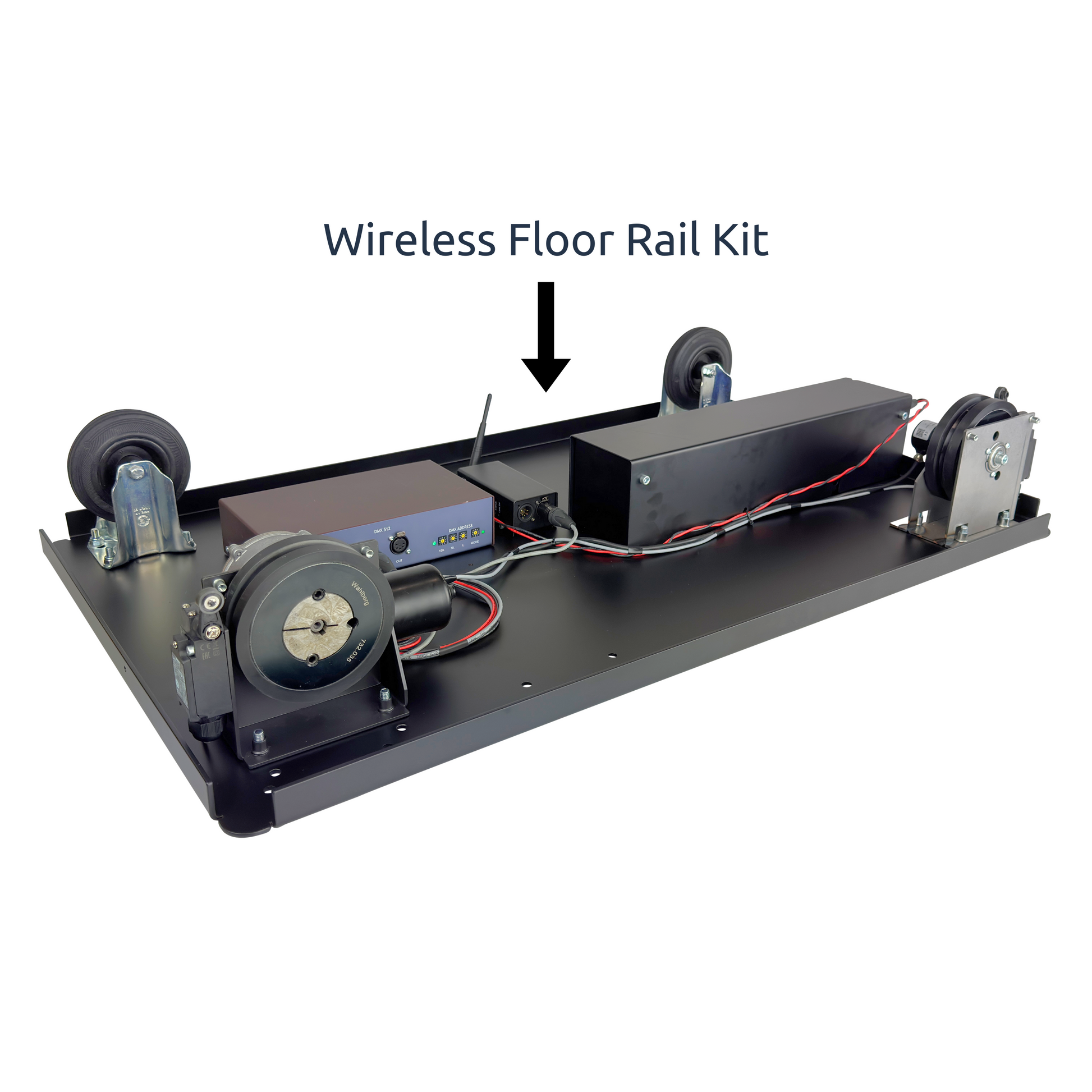

If the Standard Floor Rail Cart is not discreet enough you can add the Wireless Floor Rail Kit, which includes a Floor Rail Battery Pack and a Wireless DMX Transmitter.
The Wireless Floor Rail Kit eliminates the need for the Cable Chain. The Floor Rail Battery Pack makes the cart battery-driven and provides it with up to 5 hours runtime, depending on the load the Floor Rail System is carrying. The Wireless DMX Transmitter makes the cart controllable via wireless CRMX signal.
With the Cable Chain gone you just have the 11mm tall and rounded Floor Rail on stage, which makes it even more discreet.
The Wireless Floor Rail Kit removes the carts ability to provide electrical equipment with power, but it can still move stage props up to 300kg.
Multi cart system
Multiple Floor Rail Carts can run on the same Floor Rail without ever colliding. This opens up for the opportunity to create breathtaking setups with moving LED-walls across an entire stage.

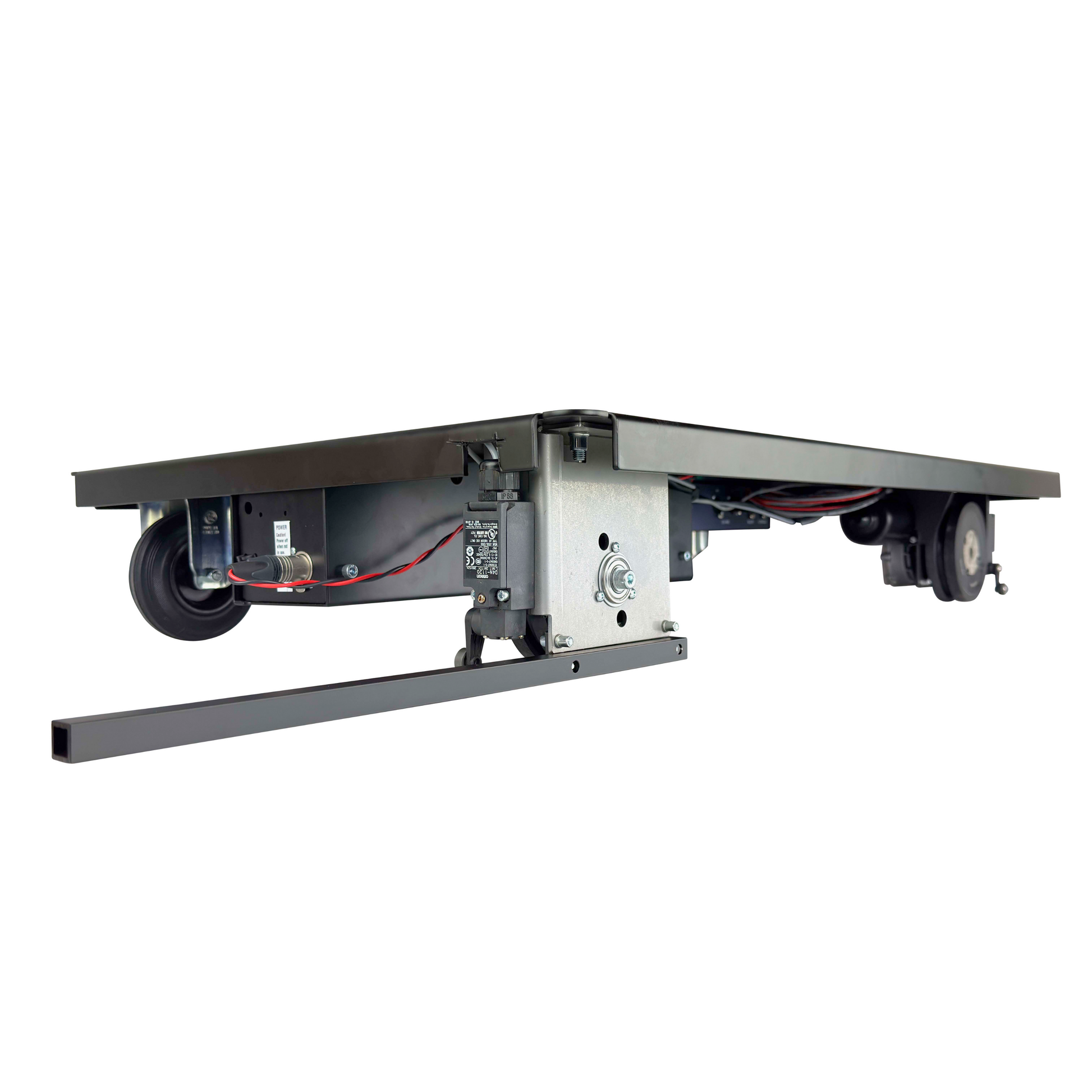

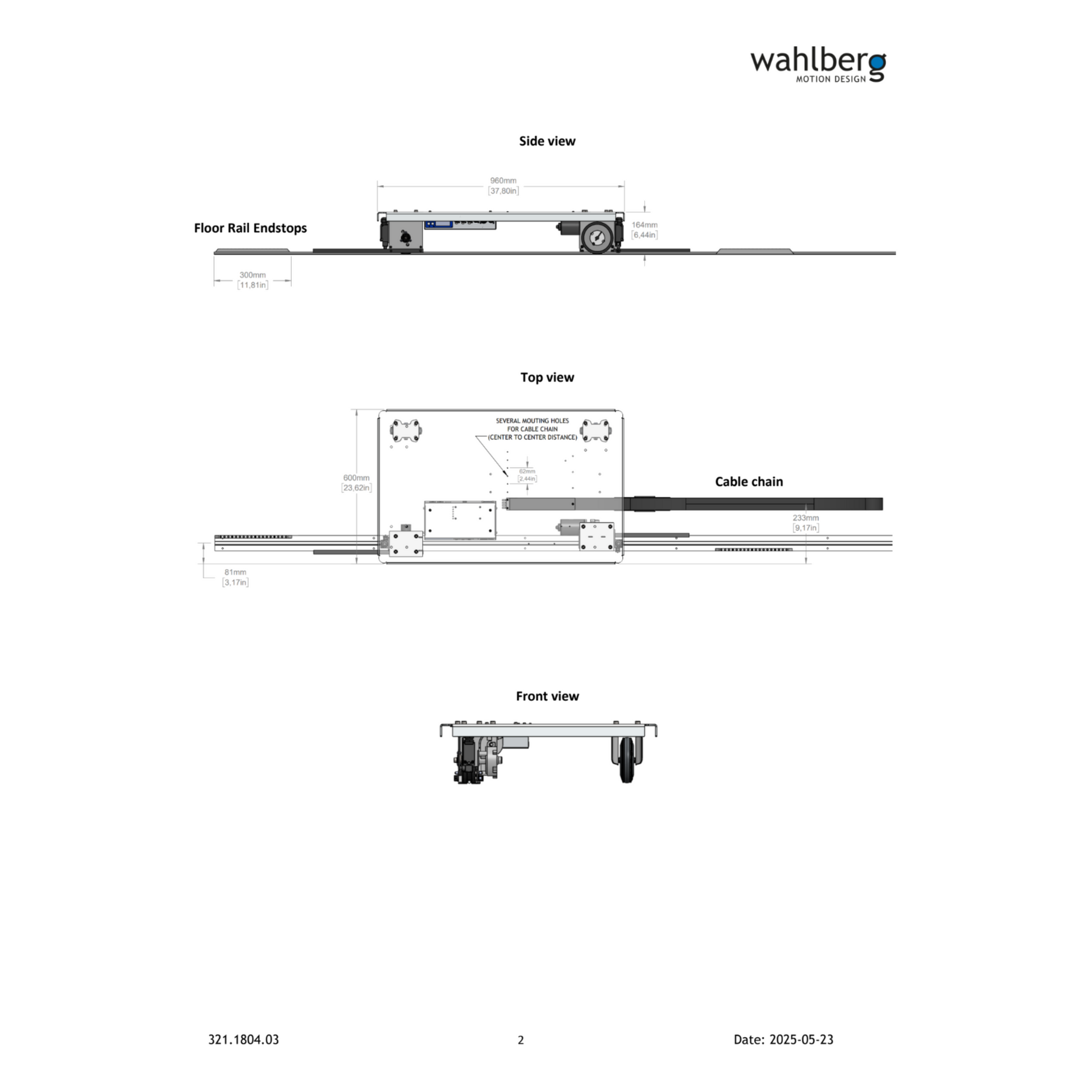

All this is made possible when using our Cart Endstops. These can be mounted onto each Floor Rail Cart as shown in the datasheet. They trigger the limit switches on the carts to ensure a safe multi cart setup.
The content of the Floor Rail Cart package
1 x Floor Rail Cart (See included components below)

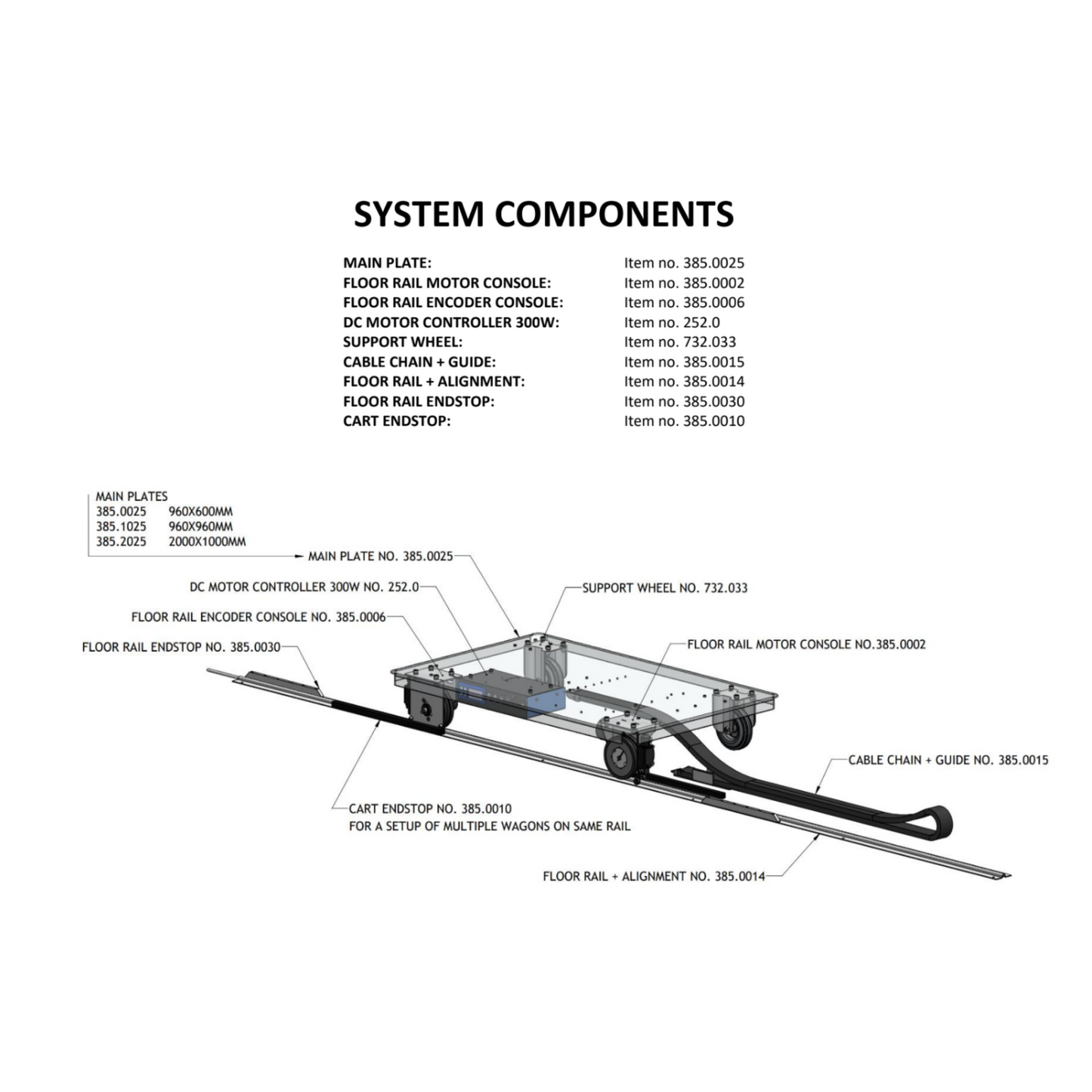

Standard Floor Rail Cart includes:

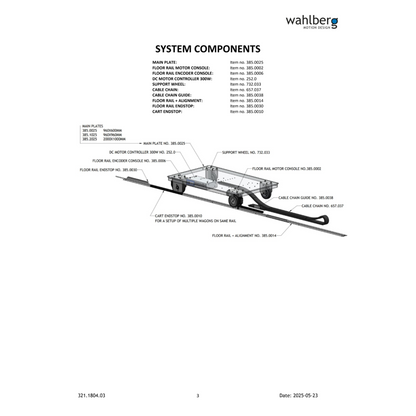

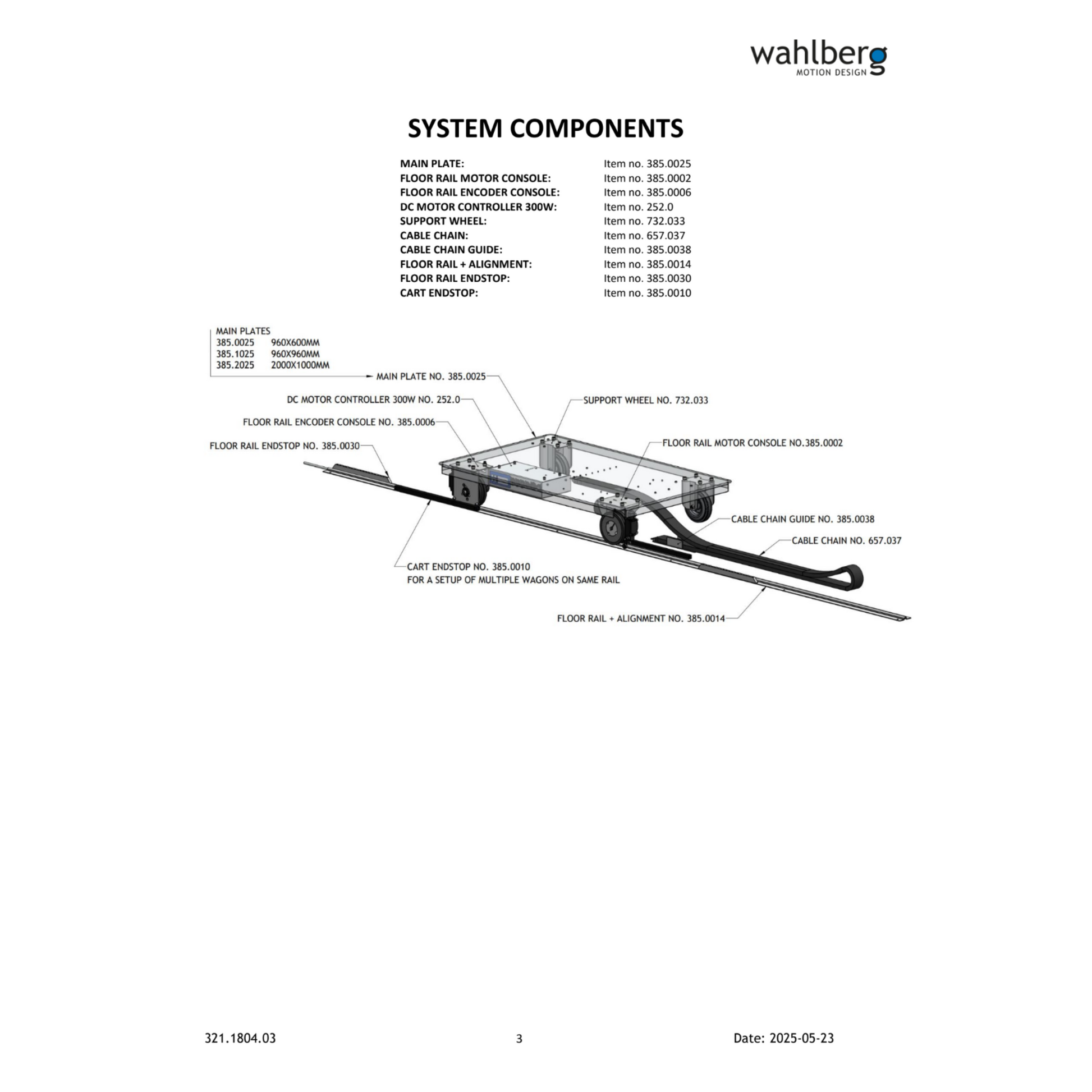

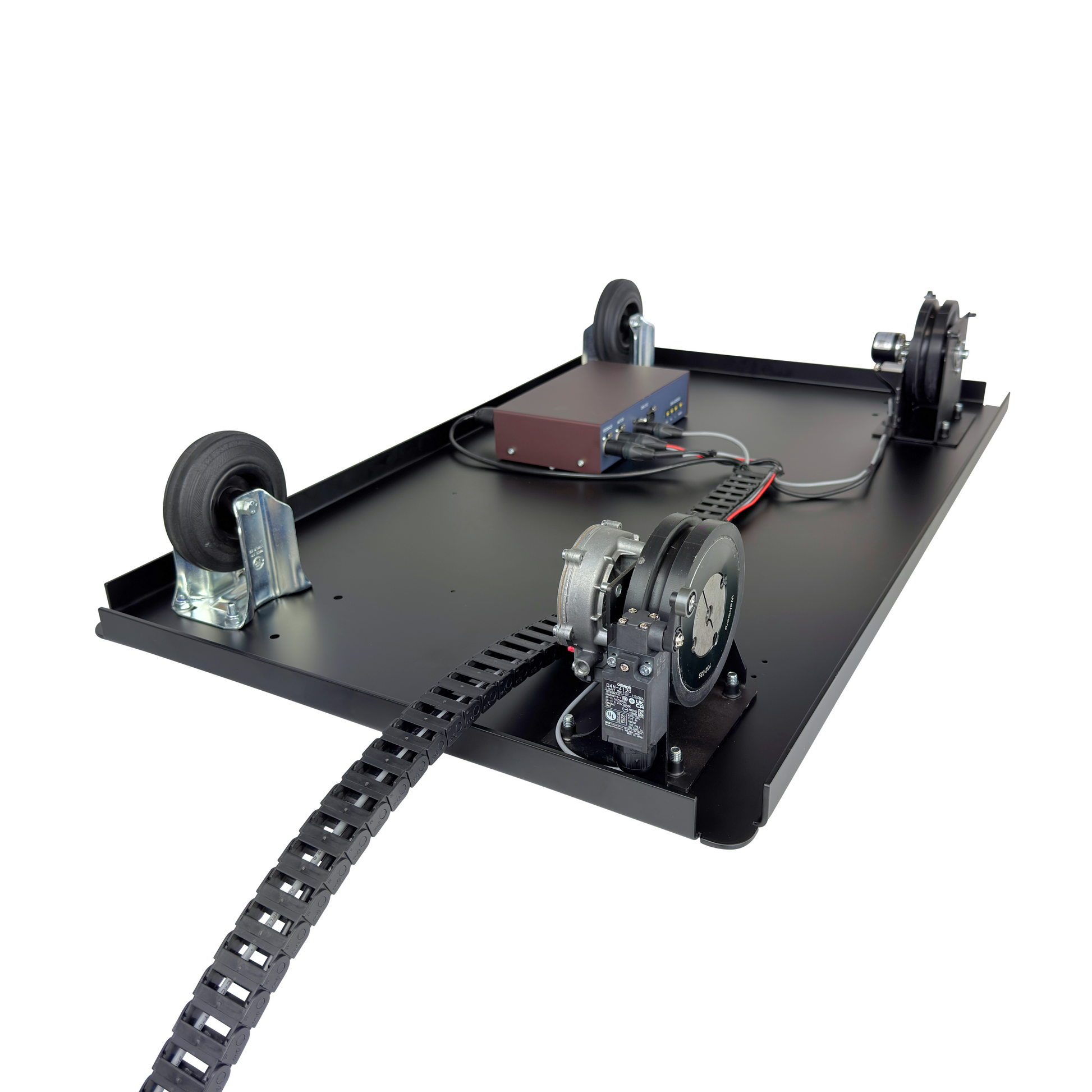

Main Plate (Floor Rail), Floor Rail Encoder Console, Floor Rail Motor Console, DC Motor Controller (300W), Cart Endstop Set and 2 x Support Wheel
Wireless Floor Rail Kit includes:
Floor Rail Battery Pack and Wireless DMX Transmitter
1 x Datasheet
1 x Manual
1 x Cheatsheet
Spare parts
At Wahlberg, we prioritize customer satisfaction. We understand the frustration of having a product that isn't working as it should and don't believe in discarding a perfectly good product just because one part isn't functioning properly. That’s why we offer spare parts for all our products. So, whether you choose to send in your Wahlberg product for professional servicing or prefer DIY repairs, we're here to help. Just download our Exploded View drawings for guidance, and you'll have your product fixed in no time!
Contact us at sales@wahlberg.dk if you can’t find the needed spare part on our website.

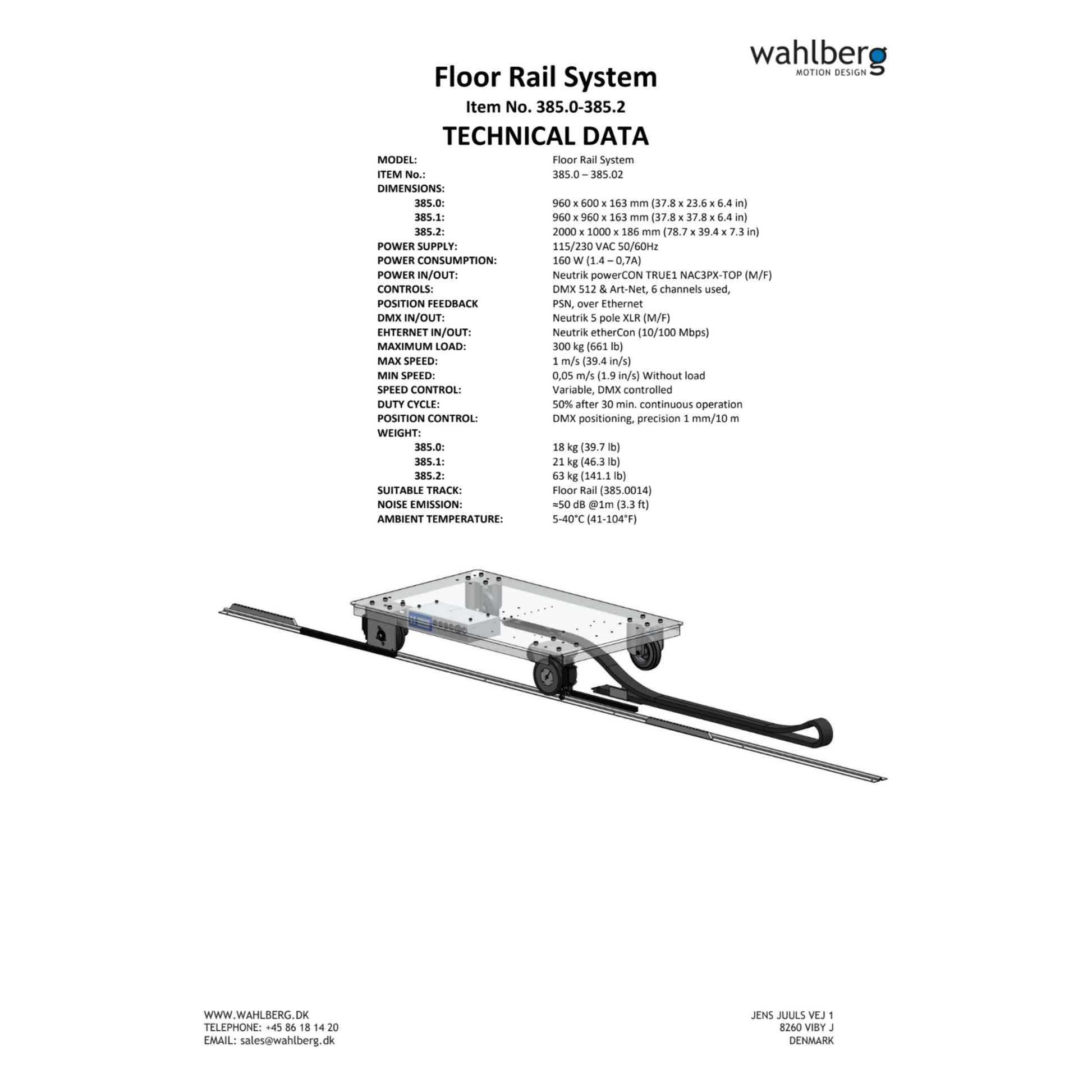

Specifications
| Item number: | 385.0, 385.1 and 385.2 |
|---|---|
| Dimensions: | Other sizes possible |
| 385.0 | 960 x 600 x 163 mm (37.8 x 23.6 x 6.4 in) |
| 385.1 | 960 x 960 x 163 mm (37.8 x 37.8 x 6.4 in) |
| 385.2 | 2000 x 1000 x 186 mm (78.7 x 39.4 x 7.3 in) |
| Power supply: | 115/230 VAC 50/60Hz |
| Power consumption: | |
| Standard Floor Rail Cart | 160 W (1.4 – 0,7A) |
| With Wireless Floor Rail Kit | 2x12Ah, 5 hours runtime without load |
| Power in/out: | Neutrik powerCON TRUE1 NAC3PX-TOP (M/F), Standard version only |
| Controls: | DMX 512 & Art-Net, 6 channels used |
| Position feedback: | PSN, over Ethernet |
| DMX in/out: | Neutrik 5 pole XLR (M/F) |
| Ethernet in/out: | Neutrik etherCon (10/100 Mbps) |
| Maximum load: | 300 kg (661 lb) |
| Max speed: | 1 m/s (39.4 in/s) |
| Min speed: | 0,05 m/s (1.9 in/s) without load |
| Speed control: | Variable, DMX controlled |
| Duty cycle: | 50% after 30 min. continuous operation |
| Position control: | DMX positioning, precision 1 mm/10 m |
| Weight: | |
| 385.0 (96 x 60 cm) | 18 kg (39.7 lb) |
| 385.1 (96 x 96 cm) | 21 kg (46.3 lb) |
| 385.2 (200 x 100 cm) | 63 kg (141.1 lb) |
| With Wireless Floor Rail Kit | +11,7 kg (25.8 lb) |
| Suitable track: | Floor Rail |
| Noise emission: | ≈50 dB @1m (3.3 ft) |
| Ambient temperature: | 5-40°C (41-104°F) |
