Winch 25 Double Cable

Extra stability with two wires with 230 V power for lifting electrical equipment up to 25 kg.

Lifting capacity: 25 kg (55.1 lb)
Lifting height: 12 m (39.4 ft)
Lifting speed: 3-60 cm/s (1.2-23.6 in/s)
Max cable current: 230 V, 5 A

The Winch 25 Double makes parallel lifting easy. The two drums on the same axle ensure that both wires operate at the exact same speed, providing synchronized lifting.

This system also allows for powering equipment via the separately powered lifting wire, delivering 230 V at 5 amps to the suspended unit. It's ideal for lifting heavier electrical stage equipment up to 25 kg, such as lamps, lasers, and chandeliers.

5.050,00 €
Rent this product

Description

The Winch 25 Double Cable is perfect for creating dynamic effects with your electrical scenic elements. The dual wires provide stability, preventing the equipment from spinning while being lifted.

This winch allows your equipment to appear and disappear seamlessly in and out of the stage area, with all movements automated via DMX control from the lighting desk, eliminating the need for manual handling.

Winch 25 Double Cable - 230V Dual Wire Winch for Enhanced Stability

The Winch 25 Double Cable offers versatile solutions for both lighting and stage design, thanks to its flexible installation and mounting options. This winch allows you to expand your stage design with DMX-automated vertical movements of stage props. The winches cables delivers 230 V at 5 amps, making it perfect for lifting and powering electrical equipment such as lighting fixtures, projectors, and other stage props.

The Winch 25 Double Cable features two active lift lines that ensure equipment remains stable and in a fixed position, eliminating any potential for rotation or sway during motion. This dual-wire design provides an added advantage: the spacing between the drums can be adjusted. This feature is particularly useful when dealing with wide equipment, as the increased space between the wires helps maintain stability during lifting.

Similar to other Wahlberg DMX Winches, the Winch 25 Double Cable is compact enough to fit seamlessly into a grid. It can be easily attached to small trusses or mounted at ceiling points without compromising lifting capacity. This winch is especially suited for heavier electrical stage equipment, such as chandeliers, blinders, and other lamp units.

With DMX control and a built-in positioning system, you have complete control over the winch's positions and speed from the lighting desk. This allows for precise adjustments to the movements, ensuring that the effects align perfectly with your stage design. Additionally, you can set the top and bottom limits, allowing you to customize the operating range to fit your specific scene and show requirements.

Spareparts

At Wahlberg, we prioritize customer satisfaction. We understand the frustration of having a product that isn't working as it should and don't believe in discarding a perfectly good product just because one part isn't functioning properly. That’s why we offer spare parts for all our products. So, whether you choose to send in your Wahlberg product for professional servicing or prefer DIY repairs, we're here to help. Just download our Exploded View drawings for guidance, and you'll have your product fixed in no time!

Contact us at sales@wahlberg.dk if you can’t find the needed spare part on our website.

The content of the Winch 25 Double Cable package

1 x Winch 25 Double Cable

2 x Manfrotto Slim coupler

1 x PowerCON True1 NAC3PX-TOP female plug for power cable

1 x User manual

1 x Cheat sheet

Technical Details

Item number .224
Lifting capacity 25 kg (55.1 lb)
Lifting height 12 m (39.4 ft)
Lifting speed 3-60 cm/s (1.2-23.6 in/s)
Through Connection - Input Neutrik etherCON NE8FDP-B
Through Connection - Output Neutrik etherCON NE8FDP-B
Through Connection - Power 5A/230VAC
Voltage 208-240 VAC
Frequency 50-60 Hz
Power consumption 300 W (1,5-1,25 A)
Power inlet Neutrik powerCON TRUE1 NAC3PX-TOP (F/M)
DMX control signal DMX 512 1990+DMX512A
DMX channels 6
DMX control connection 5 Pole XLR (F/M)
Snap hook 40x40x3 Mounting bar 562 mm (22.1 in)
Fleet angle None
Fleet travel 154 mm (60.6 in)
Minimum load 10 kg (22 lb)
Noise emission ≈50 dB at 1 m (3.3 ft)
Ambient temperature 5-40 °C (41-104 °F)
Mounting clamp 2 x Slim eye coupler 42-52mm (2 in)
Motor 230 VAC, 0.25 kW
Duty cycle 35% - 80%, refer to manual
Lifting wire 5mm (13/64 in) Special Kevlar cable
Minimum wire breaking load 100 kg (981 N / 220 lb)
Wire safety factor >8
Max cable current 230 V, 5 A
Expected wire lifetime - 10 kg (22 lb) load Pending
Expected wire lifetime - 20 kg (44.1 lb) load Pending
Shipping weight 38 kg (83.78 lb)
Weight 36 kg (79.4 lb)
Dimensions 796 x 233 x 359 mm (31.3 x 9.2 x14.1 in) without brackets etc.

Downloads

Type Name
pdf Cheatsheet_Winch 25 Double_.221 Download
pdf Manual_Winch 25 Double_.221 Download

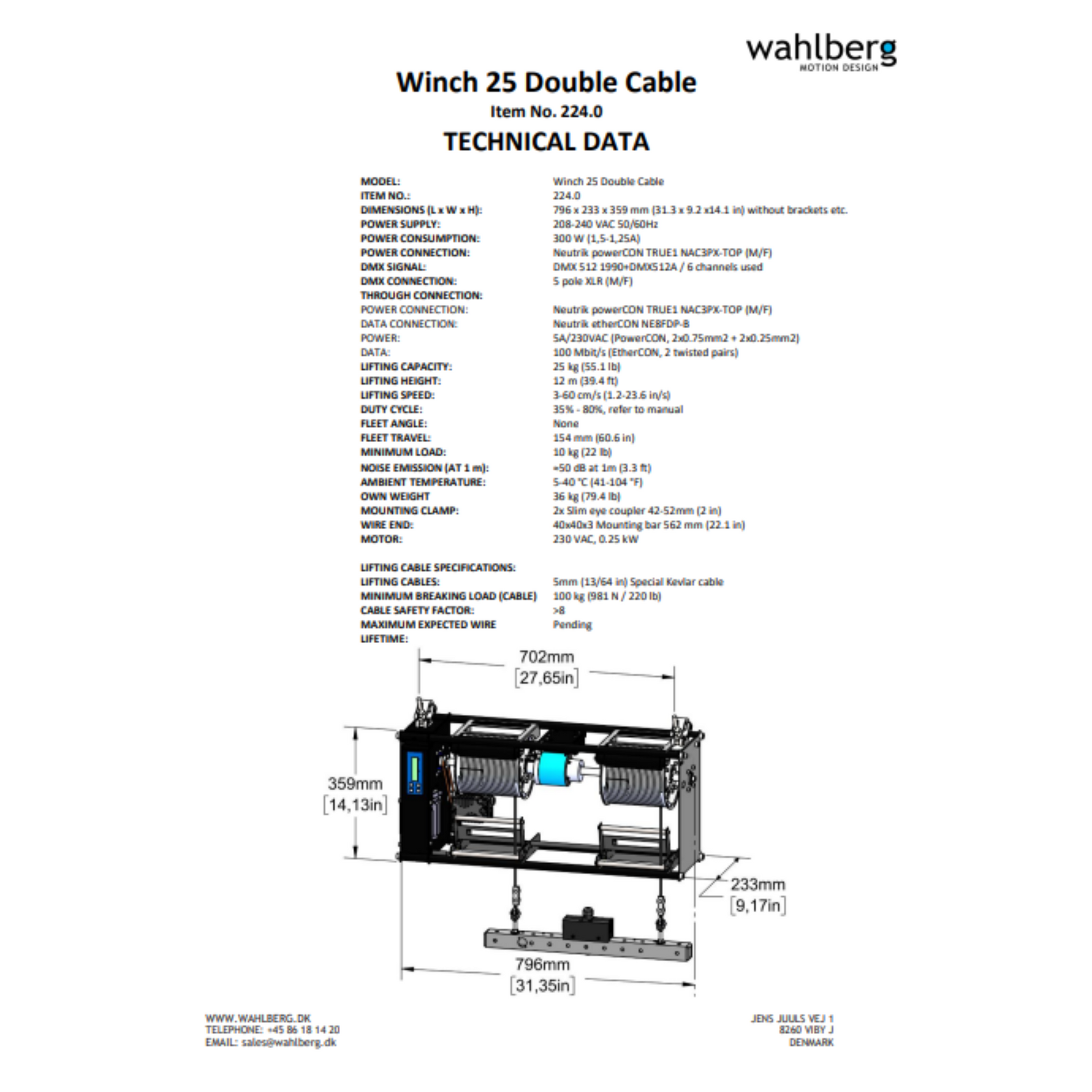

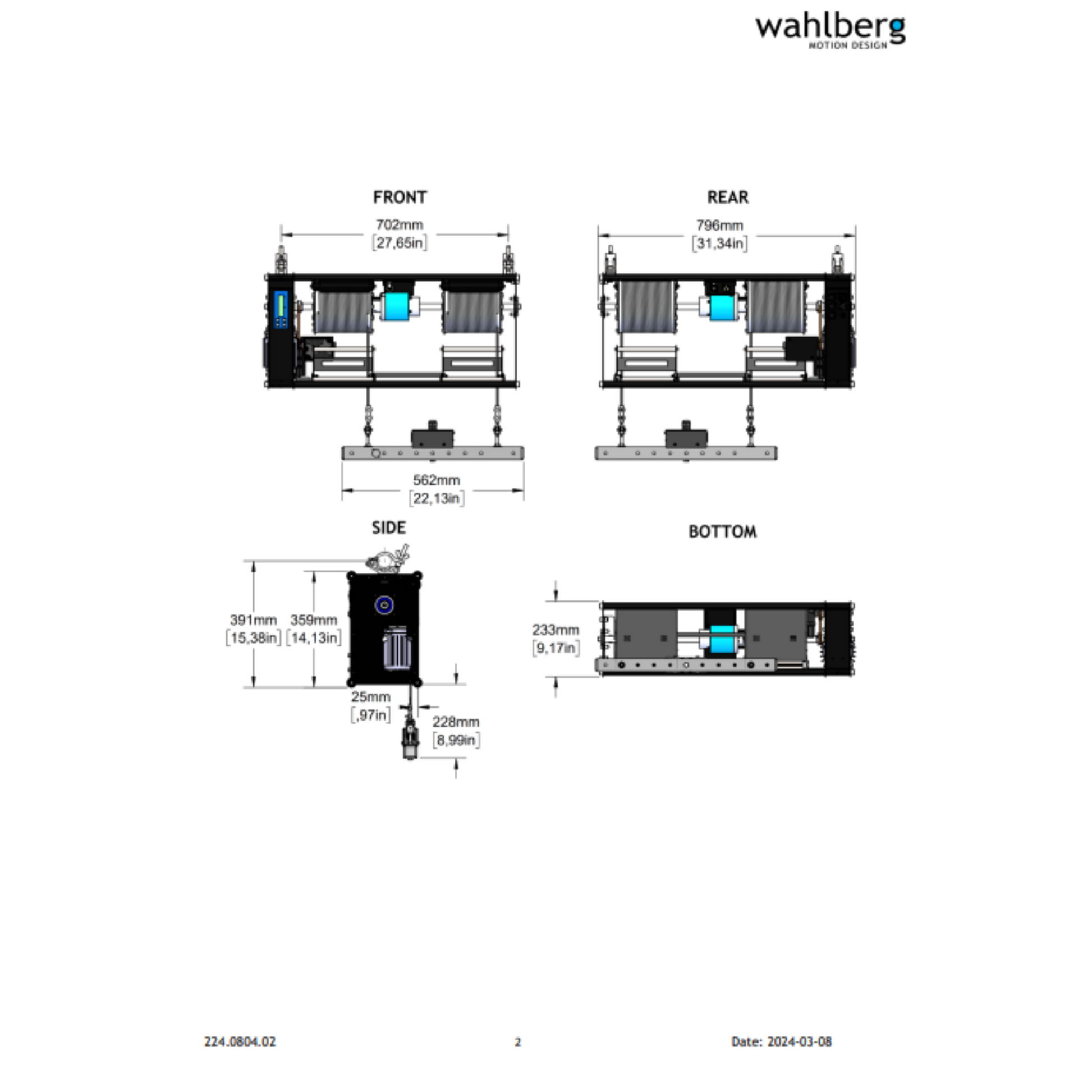

pdf Datasheet_Winch 25 Double Cable_.224 Download
pdf Exploded view_Winch 25 Double Cable_224 Download
3D STEP_Winch 25 Double_.221 Download
