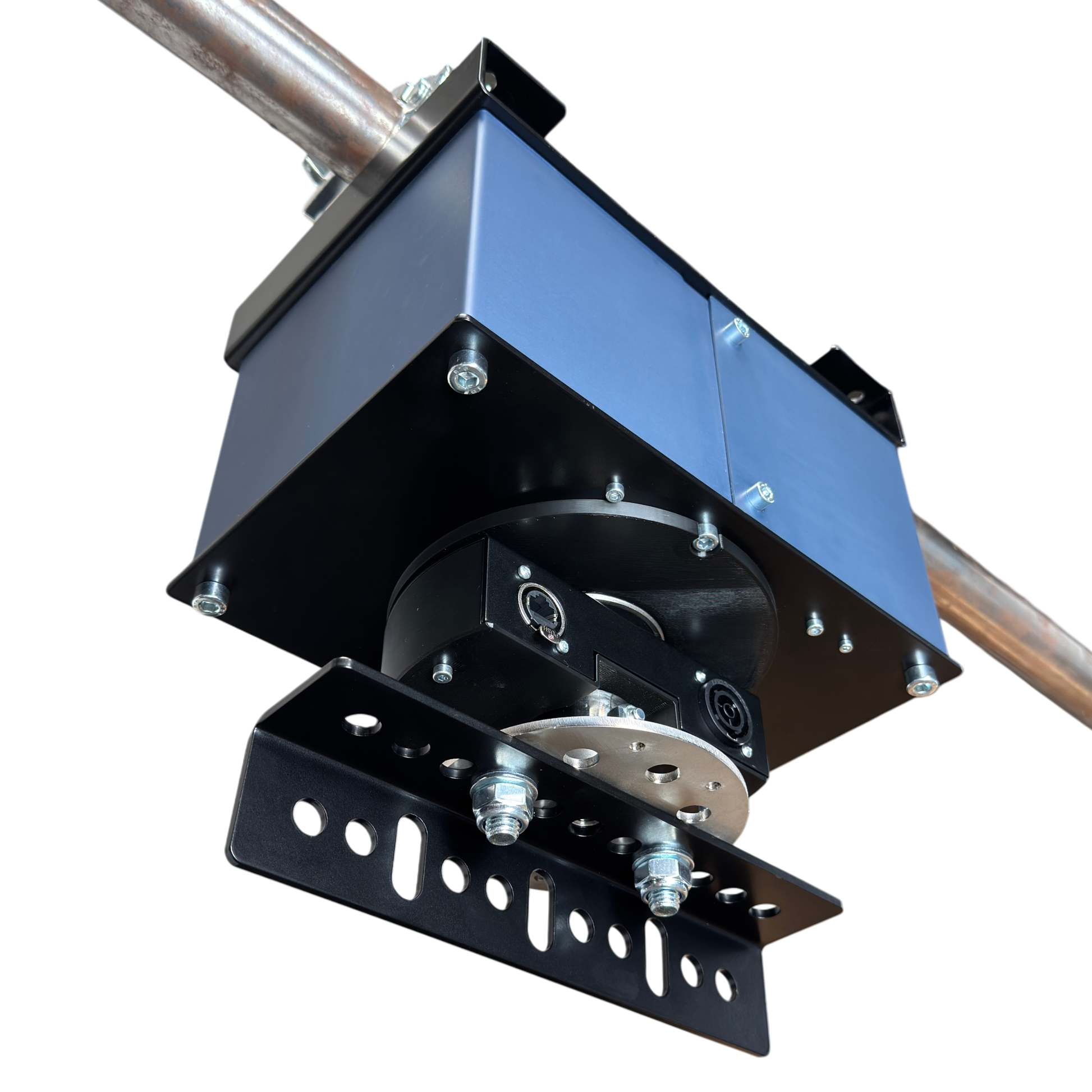

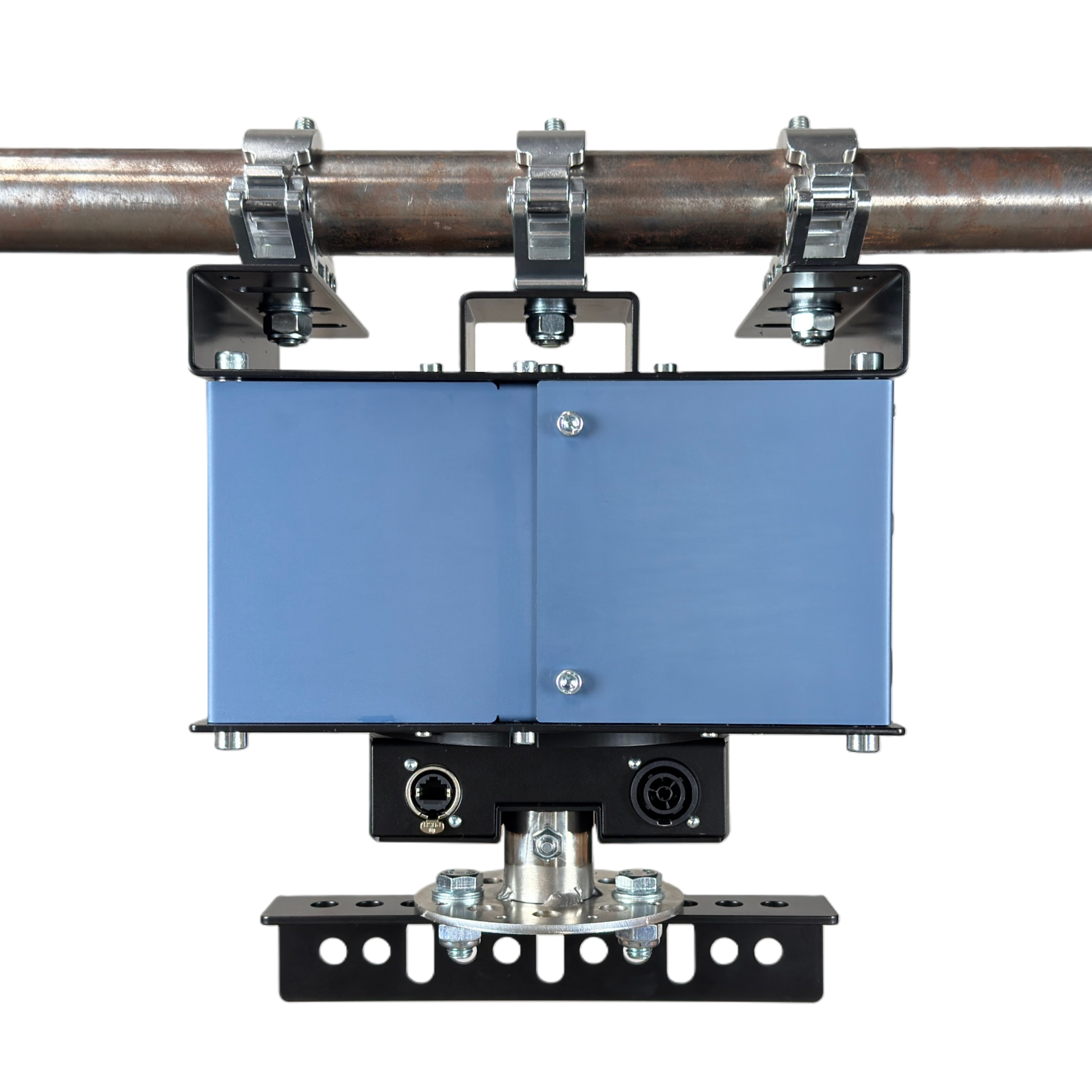

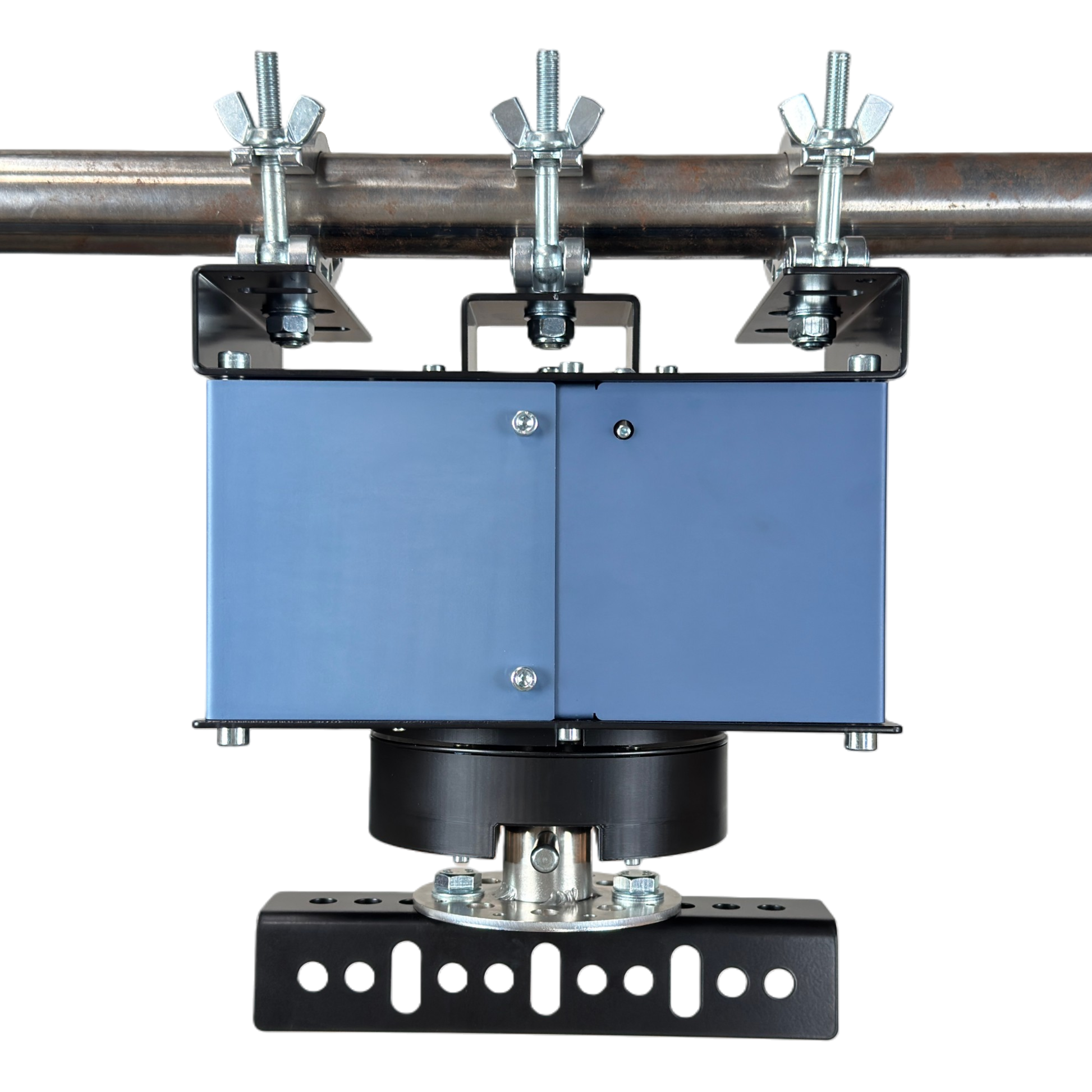

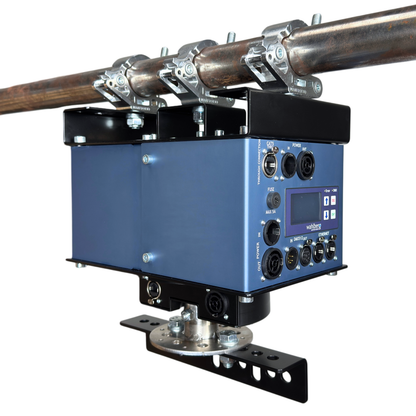

DMX controlled continuous rotation with power and CAT5e outlet.
| Working load limit - Shaft down: | 150 kg (330.7 lb) |
| Rotation speed: | 0,15-5,35 rpm |
| Rotation limit: | No limit (continuous rotation) |
| Control signal: | DMX 512 & Art-Net |
An effective solution for rotating LED screens, lamps and other electrical equipment that requires CAT5e signal.
Description
The DMX Rotator with Power and CAT5e is a professional, motorized spinning-shaft unit designed for the demanding environments of theater, live events, and large-scale installations. With integrated Art-Net and DMX control, it provides an effective solution for rotating LED screens, lamps, and other data-driven equipment without cable restrictions.
The new rotator also features real-time position feedback via PosiStageNet (PSN), enabling you to create immersive visuals and automation cues that track the rotation perfectly.
Power & CAT5e Outlet with Zero Cable Tangling
A built-in slip ring enables both power and 1000 Mbit ethernet data to pass directly through the shaft to the rotating element. This eliminates cable tangling and ensures constant connectivity for illuminated, motorized, or data-driven props, even during continuous rotation.
Enhanced Safety with Friction Coupling
Equipped with an integrated friction coupling, this rotator offers enhanced safety during operation. Should the rotation be accidentally obstructed, the coupling allows the object to stop instantly, preventing damage or injury.
High-Precision Positioning & Flexibility
• Pinpoint Accuracy: Achieve synchronized, repeatable cues with a high-precision 16-bit positioning system accurate to ±0.1°.
• Dynamic Speed & Load Capacity: The rotator supports downward loads of up to 150 kg. With variable speeds ranging from 0,15 to 5,35 rpm, you can execute everything from smooth, subtle turns to fast, dynamic motion effects.

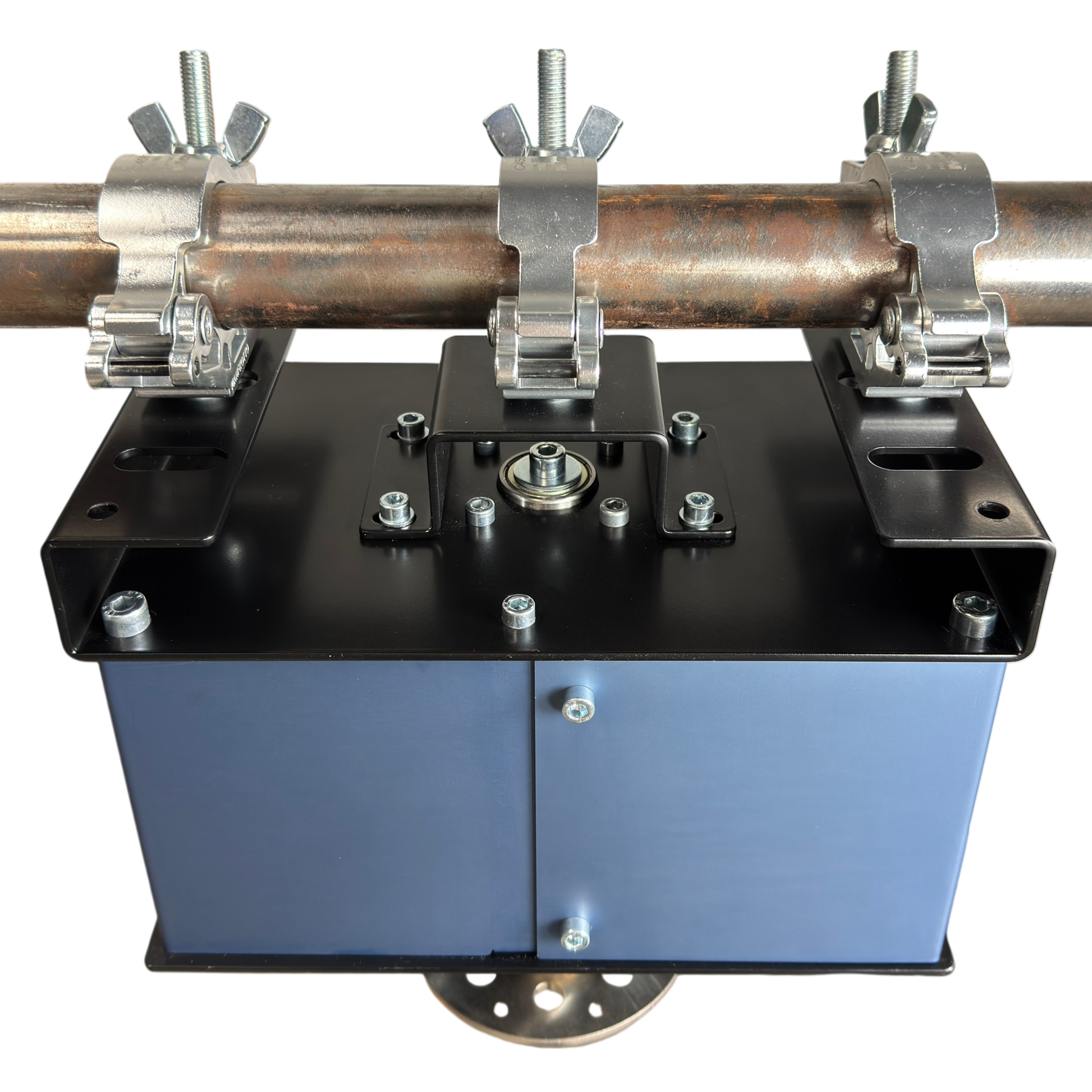

• 360° Mounting Flexibility: Designed to give you total freedom in set configuration, the unit can be mounted with the shaft pointing downward, upward, or sideways. (Please consult the manual for specific guidelines regarding upward and sideways installations).
Scalable Kinetic Installations

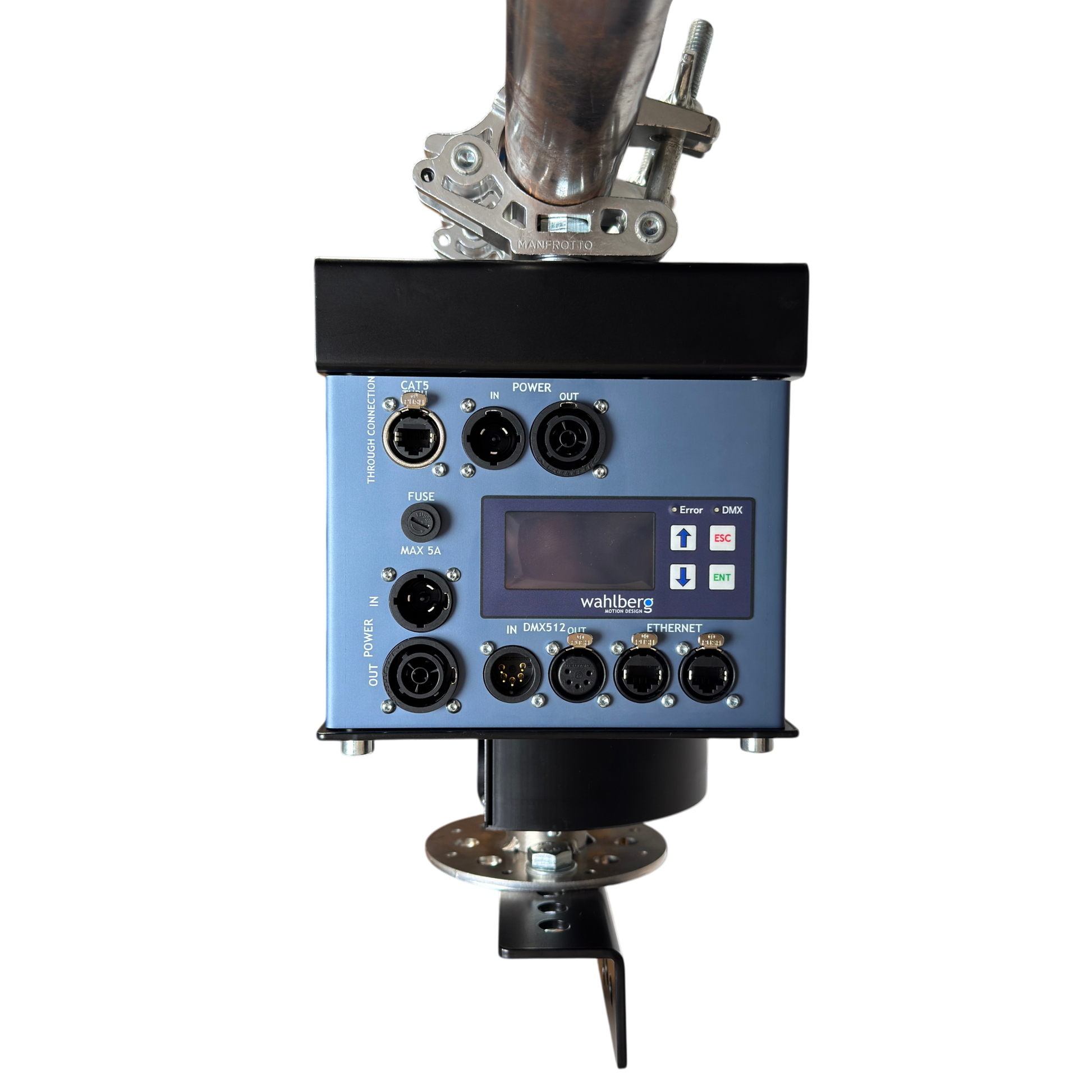

Designed for synchronization, multiple units can be daisy-chained using power and DMX in/out ports. This makes the Rotator the ideal building block for complex, large-scale kinetic installations where dozens or hundreds of units must be perfectly coordinated.
DMX Channel Configuration
Fully controllable from your lighting desk via 6 DMX channels:
• Channel 1–2: 16-bit positioning control (target angle).
• Channel 3: Variable rotation speed.
• Channel 4: Continuous CW rotation or optional soft CW limits.
• Channel 5: Continuous CCW rotation or optional soft CCW limits.
• Channel 6: Mode selection (Positioning, Positioning with Soft-limit Save, or Angular mode).
The content of the DMX Rotator with Power and CAT5e package
1 x DMX Rotator with Power and CAT5e
2 x PowerCON Female plug for power cable and through connection
1 x PowerCON Male plug for through connection
1 x Shaft Mounting Clamp
1 x User manual
1 x Cheat Sheet
Spare parts
We offer spare parts for all our products. You can usually find the item numbers of the needed part in the Exploded View in the Downloads section of a product. If you can't find what you need then don't hesitate to reach out to sales@wahlberg.dk with a photo of the broken part.

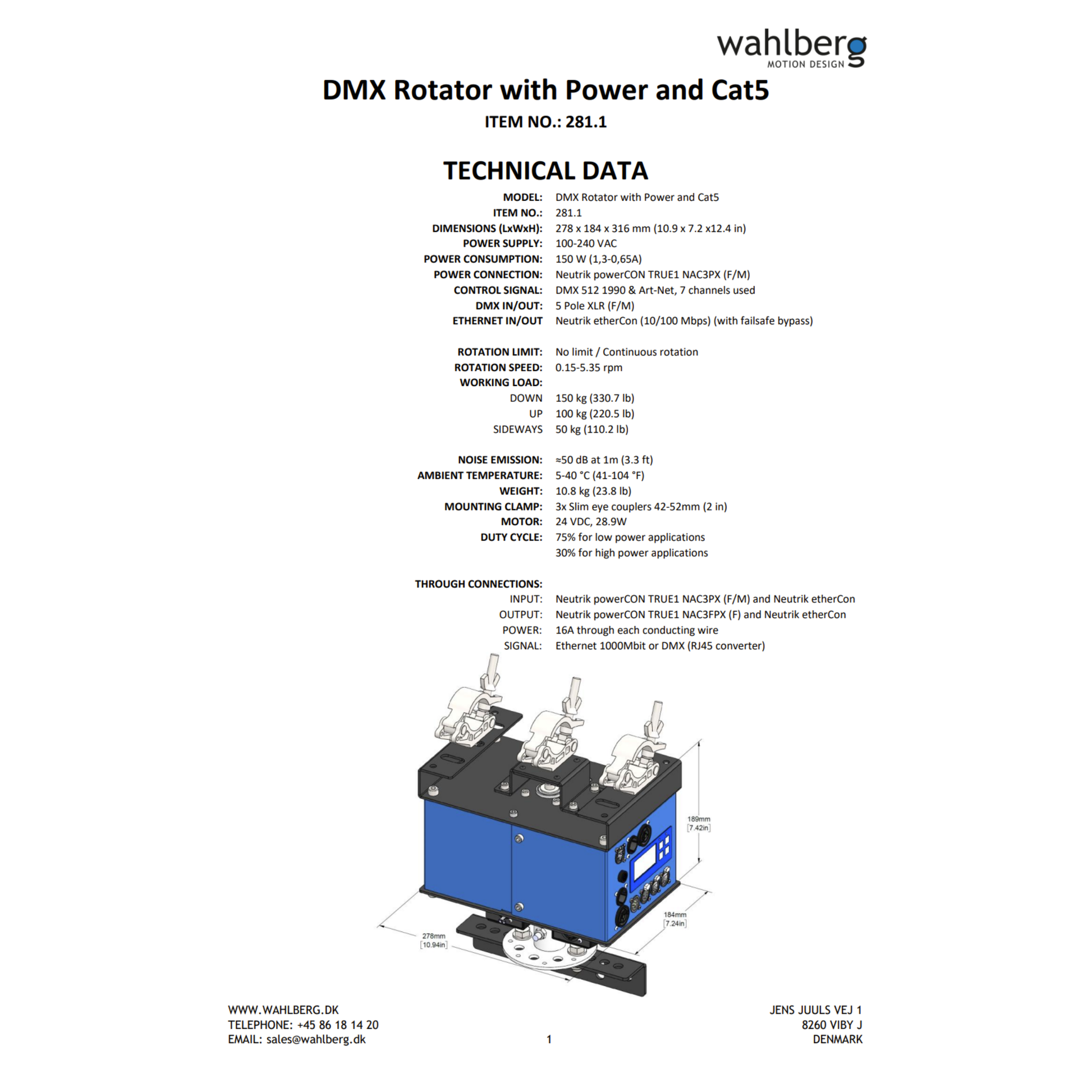

Specifications

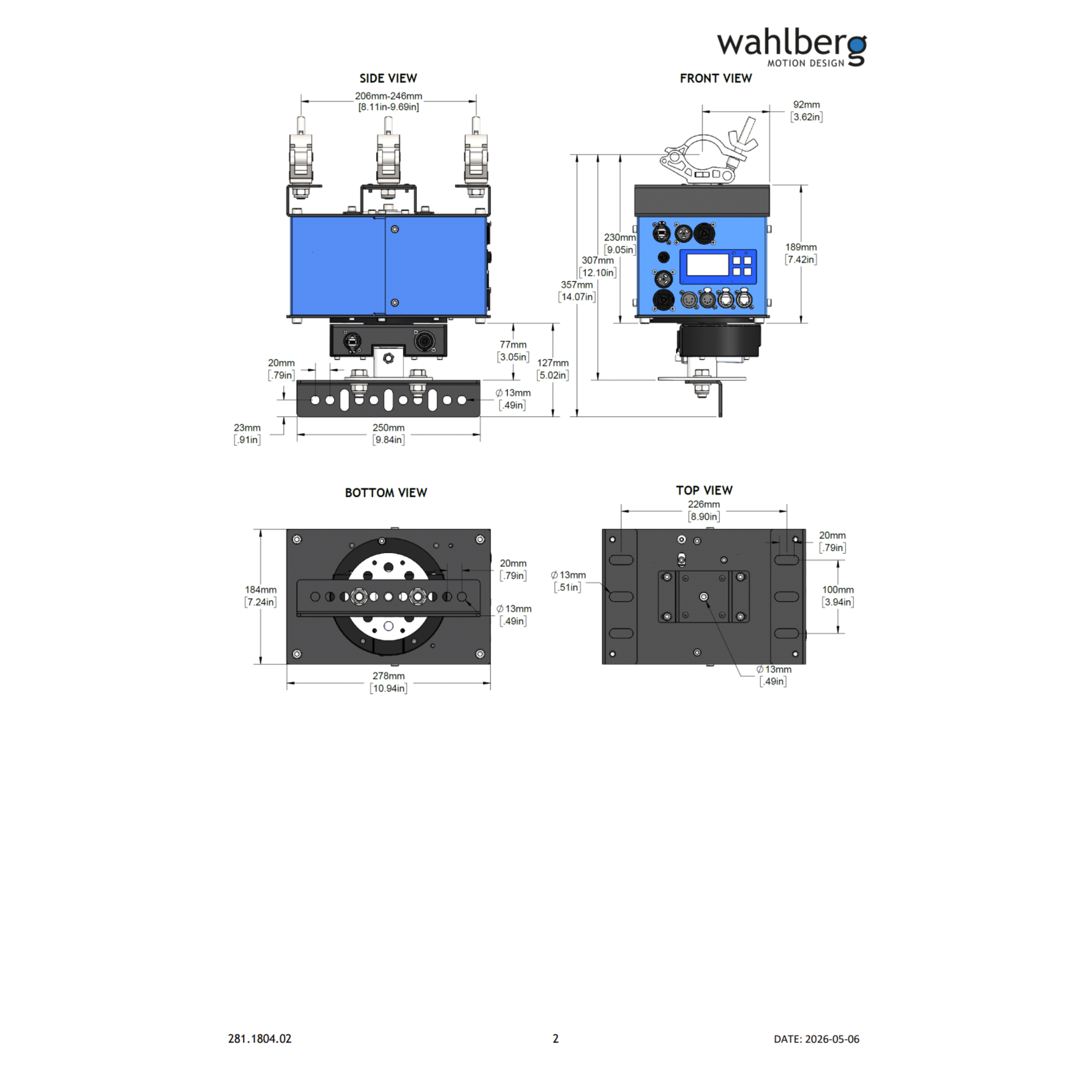

| Item number | .281.1 |
|---|---|
| Dimensions (LxWxH) | 278 × 184 × 316 mm (10.9 × 7.2 × 12.4 in) |
| Power supply | 100-240 VAC |
| Power consumption | 150 W (1,3-0,65A) |
| Power connection | Neutrik powerCON TRUE1 NACPX (F/M) |
| Control signal | DMX 512 1990 & Art-Net (6 channels used) |
| DMX in/out | 5 pole XLR (M/F) |
| Ethernet in/out | Neutrik etherCon (10/100 Mbps) (with failsafe bypass) |
| Rotation limit | No limit / Continuous rotation |
| Rotation speed | 0,15-5,35 rpm (variable) |
| Working load limit: | |
| Shaft down | 150 kg (330.7 lb) |
| Shaft up | 100 kg (220.5 lb) |
| Shaft sideways | 50 kg (110.2 lb) |
| Noise emission | ≈50 dB at 1m (3.3 ft) |
| Ambient temperature | 5-40 °C (41-104 °F) |
| Weight | 10,8 kg (23.8 lb) |
| Shipping weight | 12,8 kg (28.2 lb) |
| Mounting clamp | 3x Slim eye couplers 42-52mm (2 in) |
| Motor | 24 VDC, 28.9W |
| Duty cycle: | |
| Low power applications | 75% |
| High power applications | 30% |
| Through connection: | |
| Input | Neutrik powerCON TRUE1 NAC3PX (F/M) and Neutrik etherCon |
| Output | Neutrik powerCON TRUE1 NAC3FPX (F) and Neutrik etherCon |
| Power | 16A through each conducting wire |
| Signal | Ethernet 1000 Mbit or DMX (RJ45 converter) |
