Unique DMX Controlled Watch
The DMX Clockwork is an advanced mechanical clockwork for the stage and other performance spaces.
- Direction, speed and position is controlled from the lighting desk
Description
With simple programming the movement and timing of the clock will fit perfectly to your show.
Each clock hand has its own motor, with individual control channels, thereby movement is endless - Eg. one clock hand can run forward, while the other runs backwards.
Position is controlled by a 16 bit position channel, the position value choses what "time" you want to stop at. The movement speed is also controlled by a DMX channel.

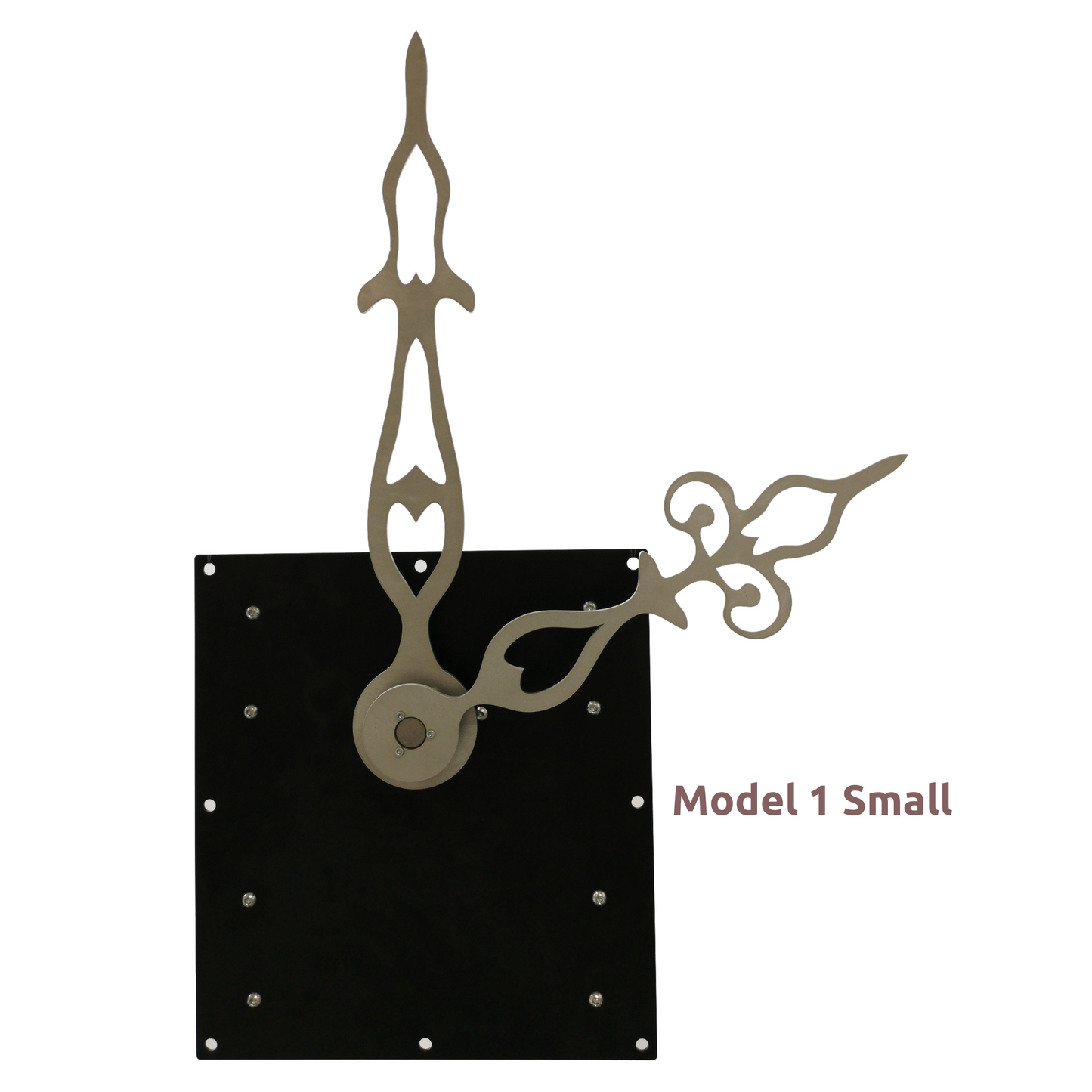

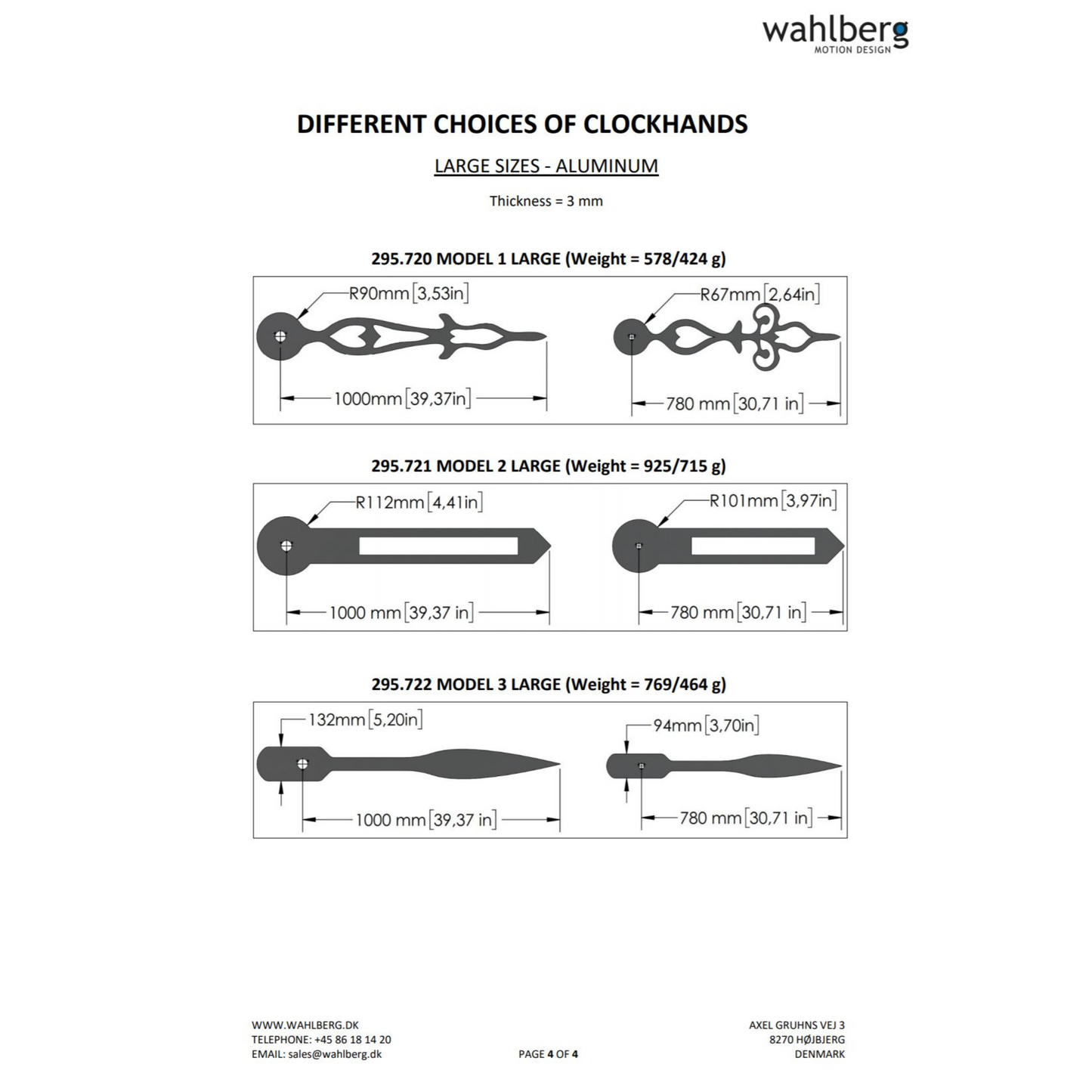

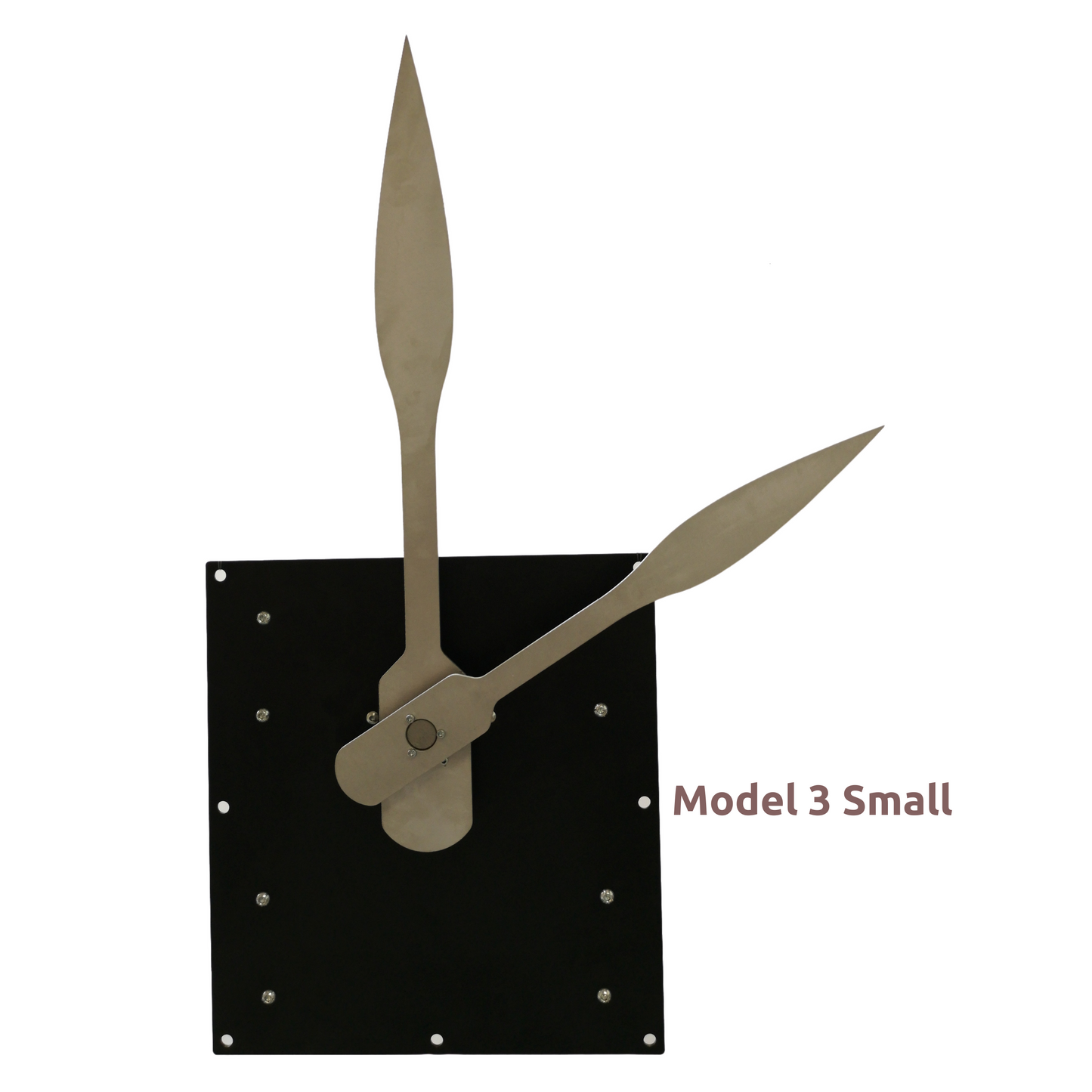

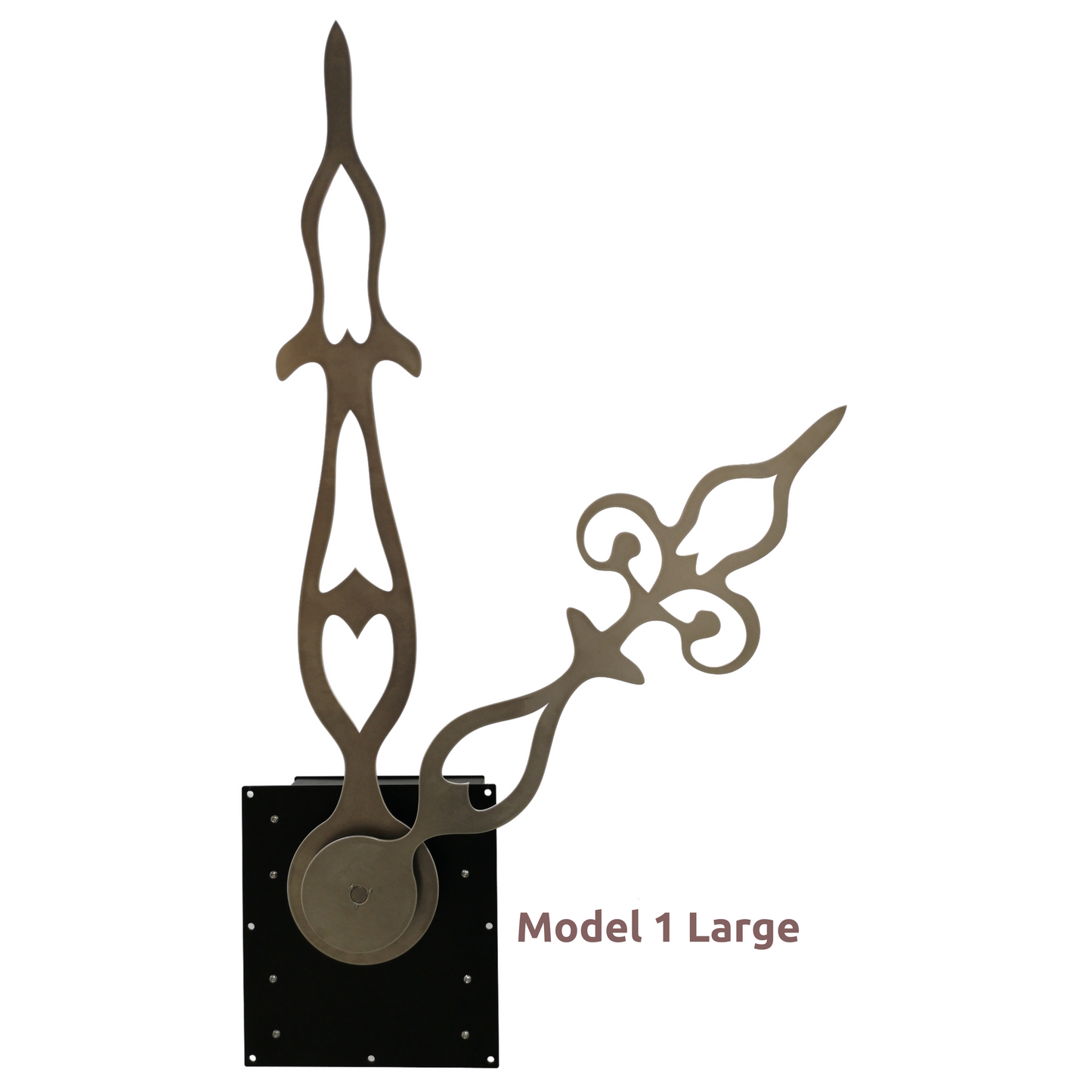

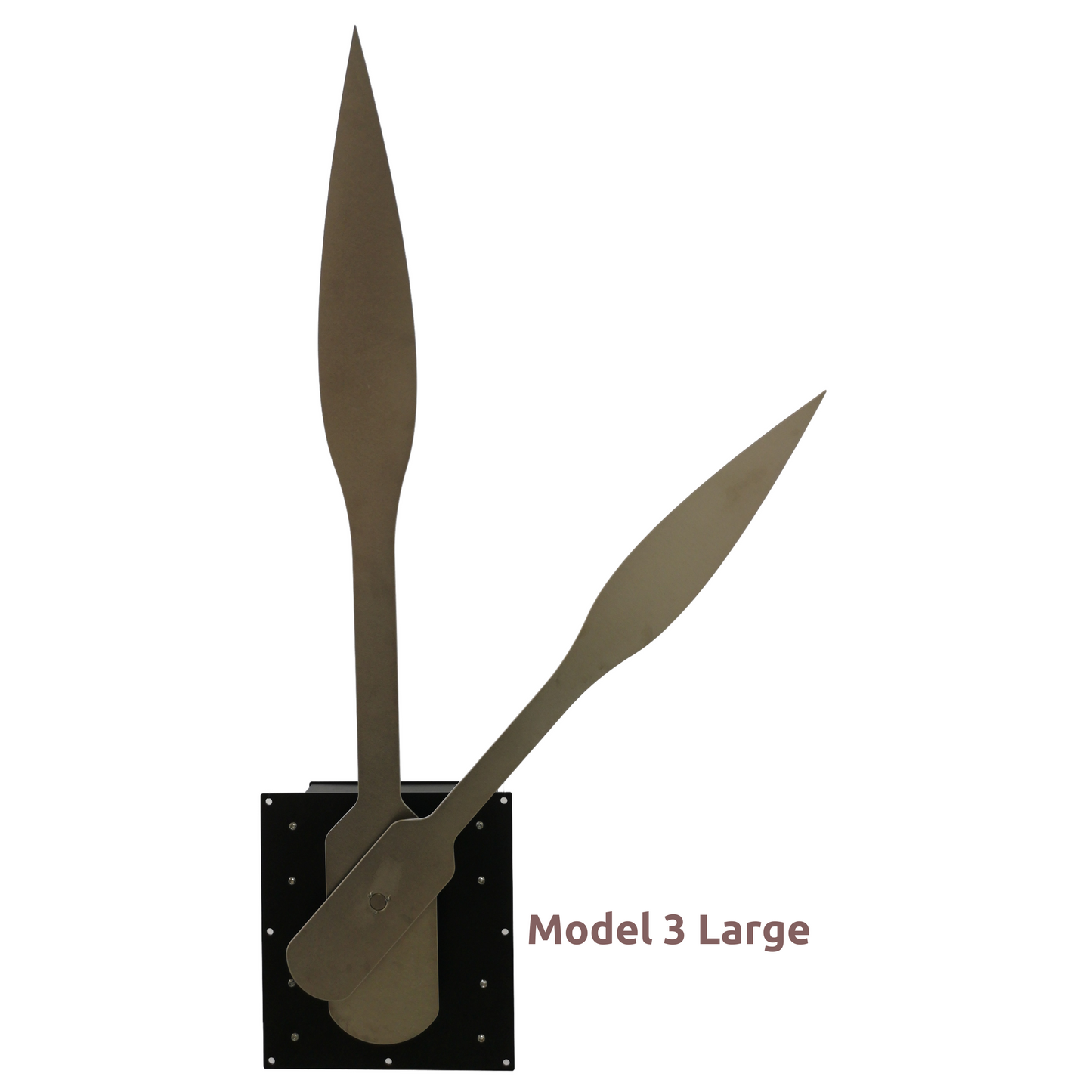

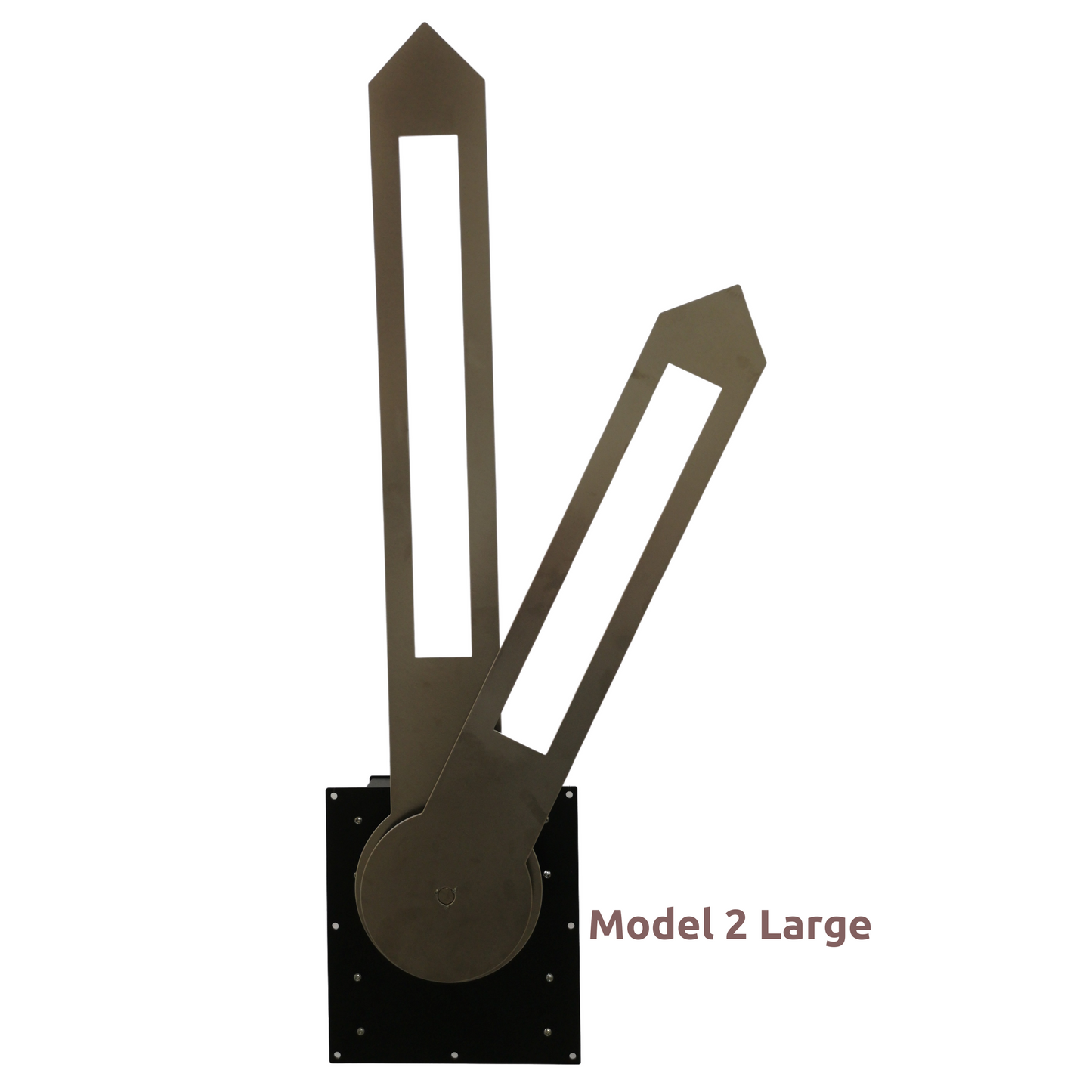

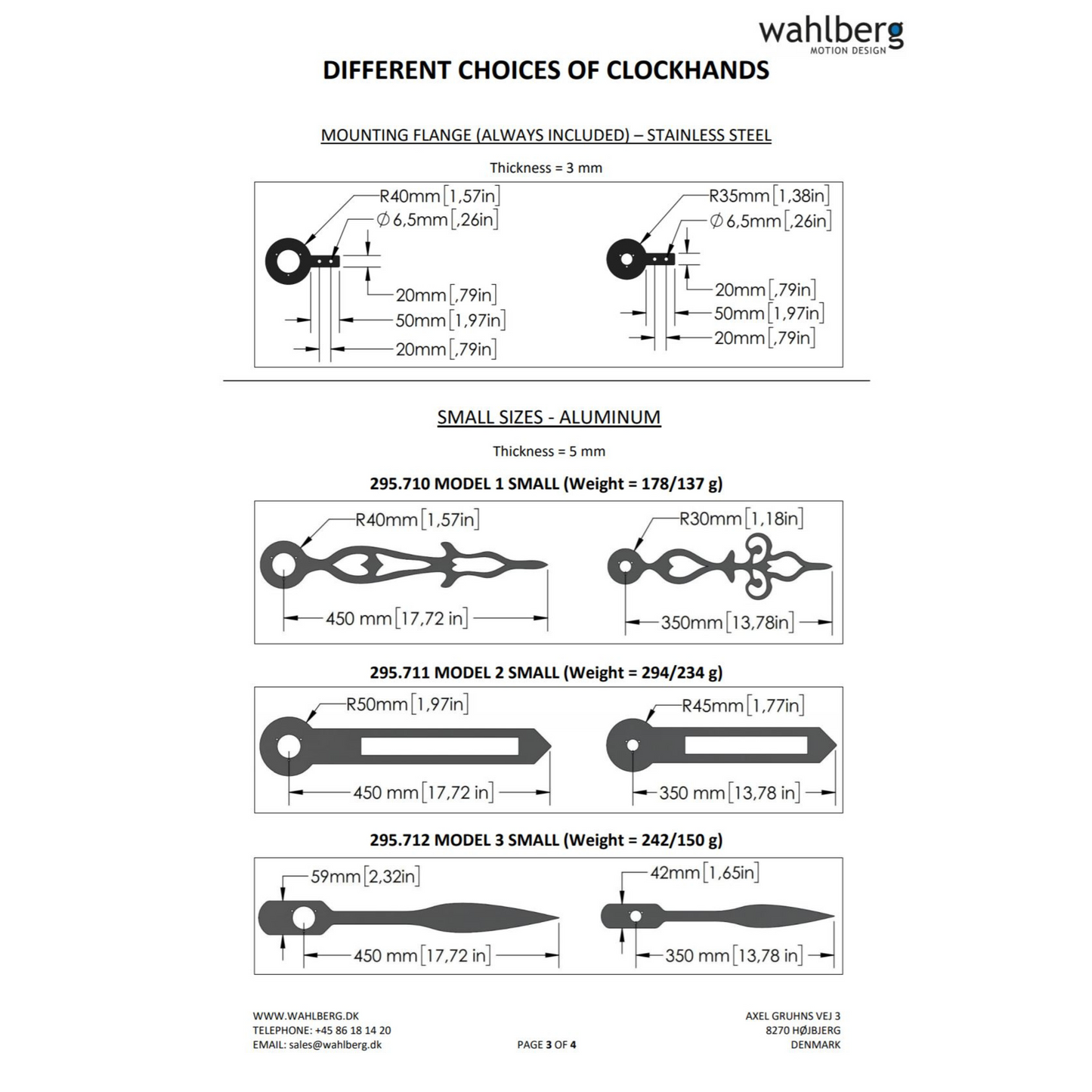

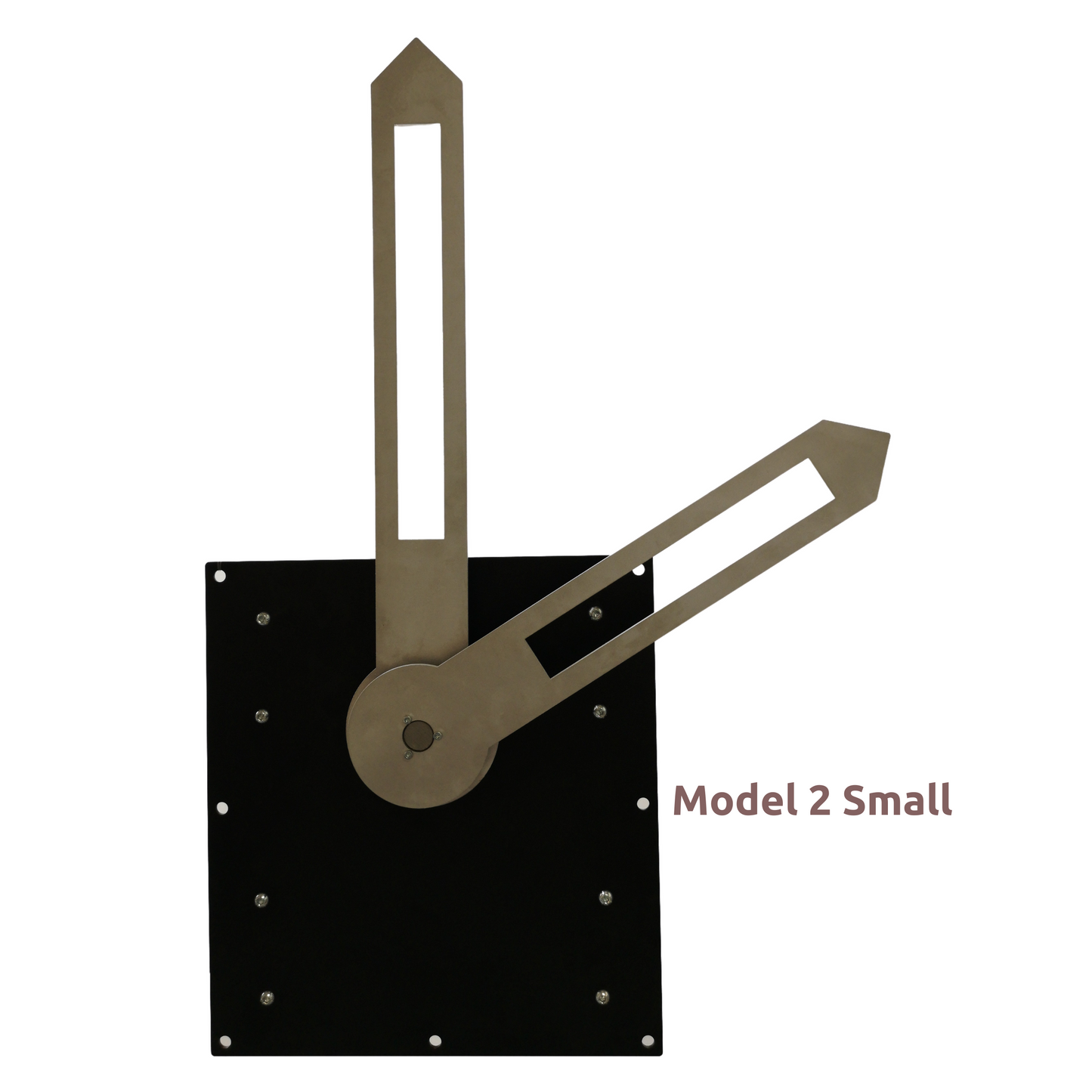

Choose from different sets of clock hands; antique-, modern- or neutral style, which is available in two sizes, and make your clock work precise and for dramatic effect on stage.
The content of the DMX Clockwork package
1 x DMX Clockwork (Selected variant)
1 x User Manual
1 x Cheat sheet
Spare parts
We offer spare parts for all our products. You can usually find the item numbers of the needed part in the Exploded View in the Downloads section of a product. If you can't find what you need then don't hesitate to reach out to sales@wahlberg.dk with a photo of the broken part.

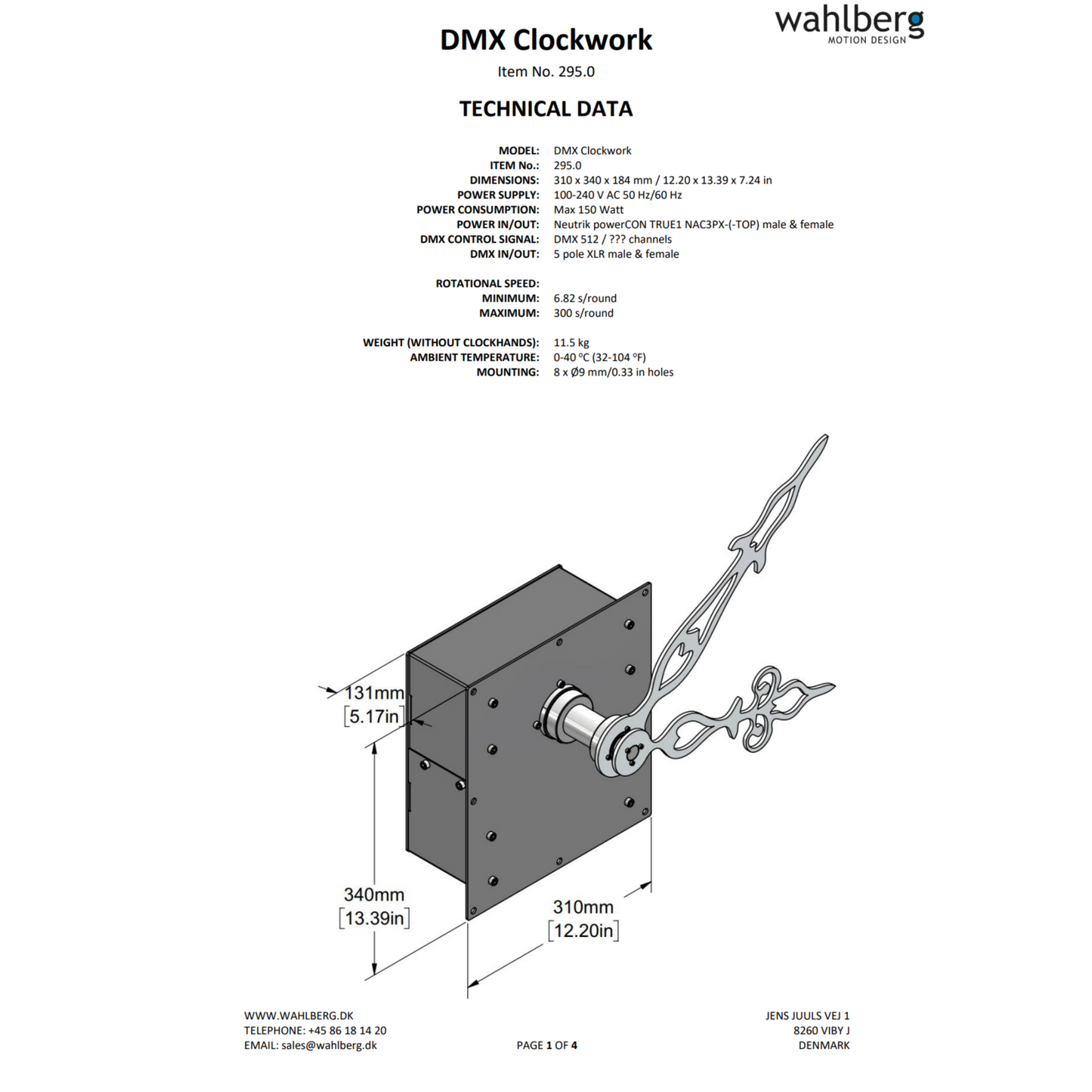

Specifications
| Item no | .295 |
|---|---|

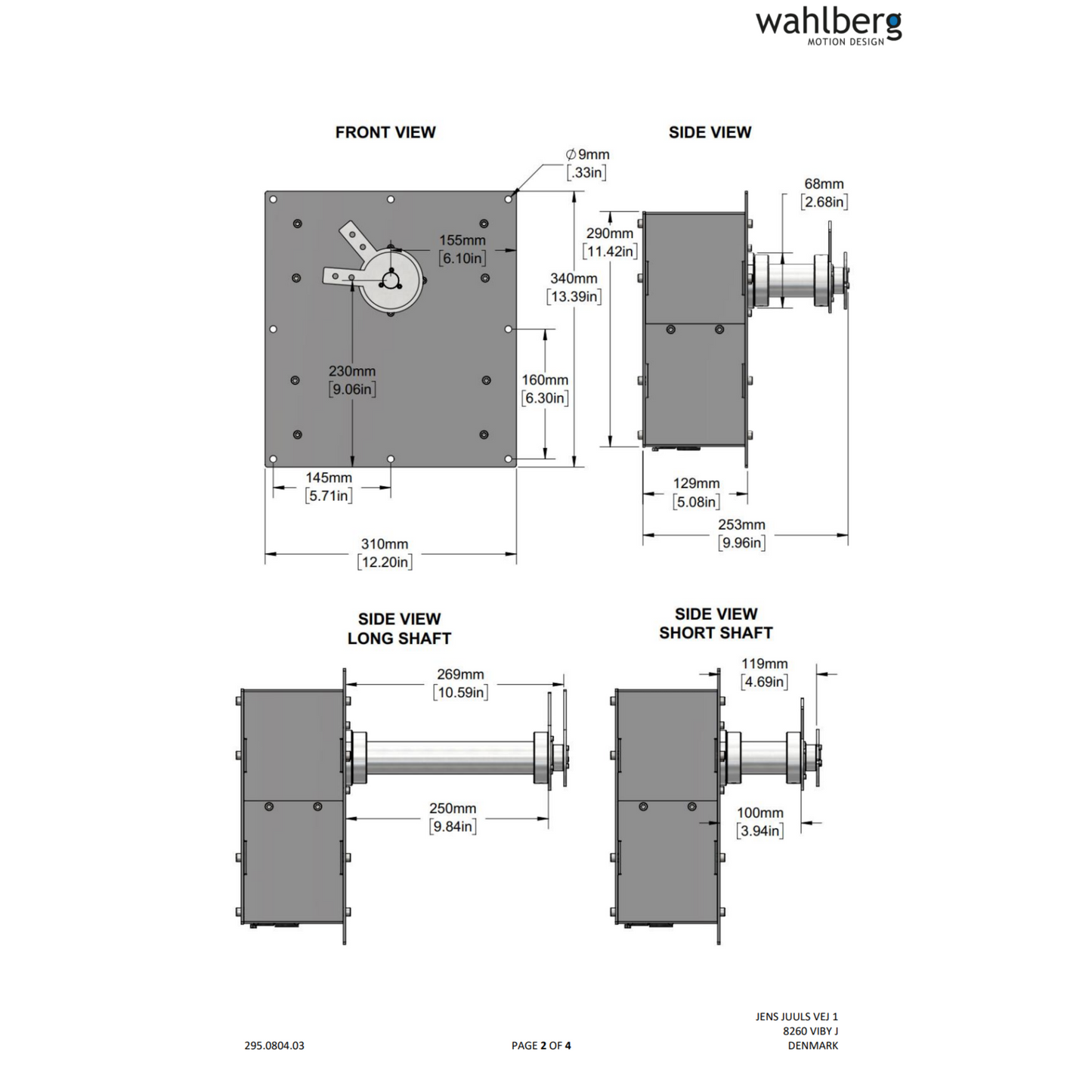

| Dimensions | 310 x 340 x 184 mm (12.20 x 13.39 x 7.24 in) |
| Power supply | 100-240 V AC 50 Hz/60Hz |
| Power consumption | Max 150 Watt |
| Power In/out | Neutrik powerCON TRUE1 NAC3PX-(-TOP) male & female |
| DMX controlled signal | DMX 512 |
| DMX IN/OUT | 5 pole XLR male & female |
| Rotation speed minimum | 6,82 s/round |
| Rotation speed maximum | 300 s/round |
| Weight (without clockhands) | 11,5 kg |
| Ambient temperature | 0-40 C ( 32-140 F ) |
| Mounting | 8 x Ø9/0,33 in holes |
Downloads
- Manual_DMX Clockwork_.295 (PDF)
- Cheatsheet_DMX Clockwork_.295 (PDF)
- Datasheet_DMX Clockwork_.295 (PDF)
- STEP_DMX Clockwork_Main_Assembly_295.0001.04 (STEP)
- STEP_Model 1 Large_The Large Clock Hand_295.0407.01 (STEP)
- STEP_Model 1 Large_The Small Clock Hand_295.0408.02 (STEP)
- STEP_Model 1 Small_The Large Clock Hand_295.0401.01 (STEP)
- STEP_Model 1 Small_The Small Clock Hand_295.0402.02 (STEP)
- STEP_Model 2 Large_The Large Clock Hand_295.0409.01 (STEP)
- STEP_Model 2 Large_The Small Clock Hand_295.0410.02 (STEP)
- STEP_Model 2 Small_The Large Clock Hand_295.0403.01 (STEP)
- STEP_Model 2 Small_The Small Clock Hand_295.0404.02 (STEP)
- STEP_Model 3 Large_The Large Clock Hand_295.0411.01 (STEP)
- STEP_Model 3 Large_The Small Clock Hand_295.0412.02 (STEP)
- STEP_Model 3 Small_The Large Clock Hand_295.0405.01 (STEP)
- STEP_Model 3 Small_The Small Clock Hand_295.0406.02 (STEP)
