Control Box

The Control Box can be used to simplify the control of our motion products and eliminate the need for a lighting desk.

Compatible with the following products:

• Winch 10 series
• Winch 50 series
• DMX Giga Rotator with Power and CAT5
• High-speed Roll Down
• AC Motor Controller 550 W + 3000 W

Description

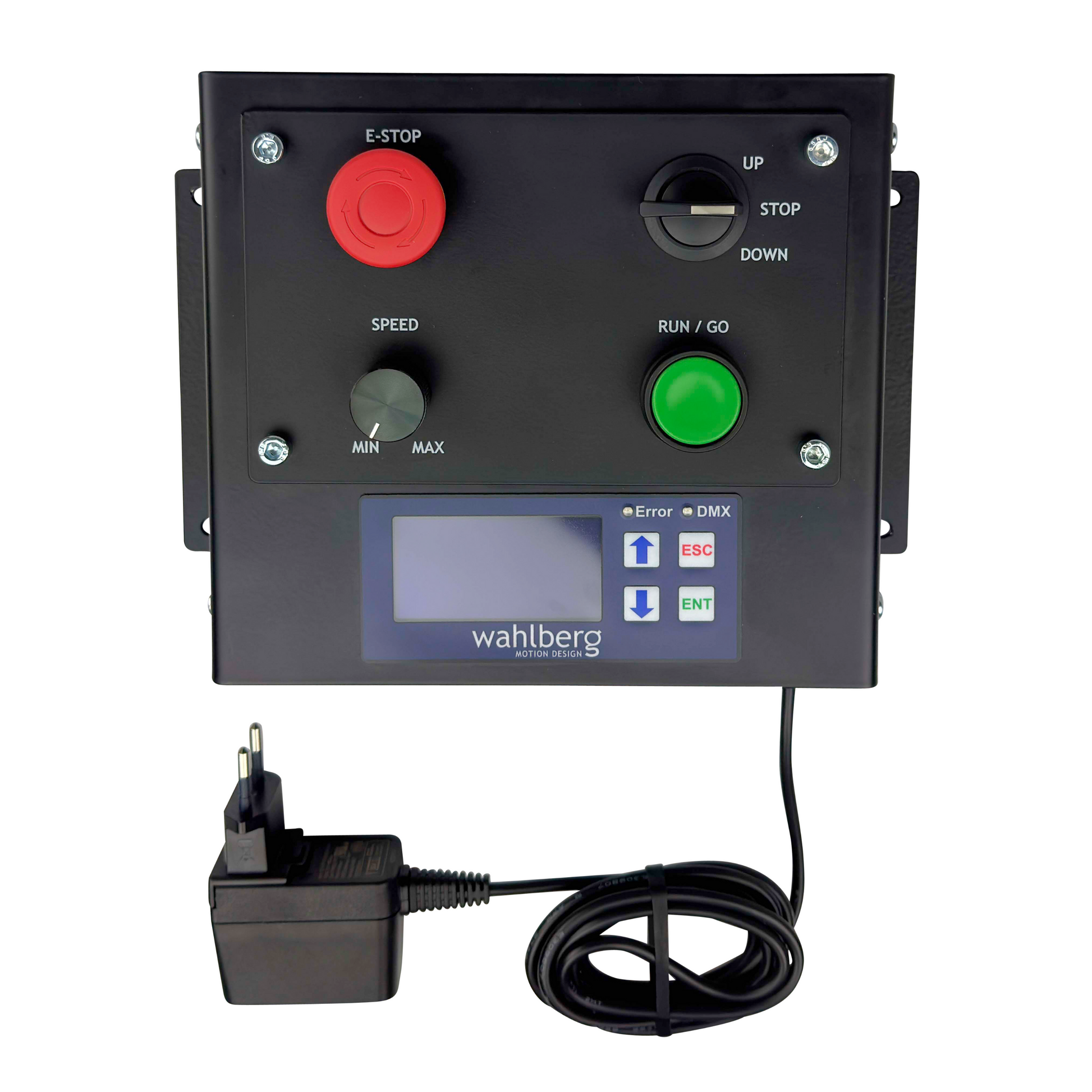

The Control Box is very user-friendly with its built-in interface for basic control settings. It has an E-STOP (emergency stop) button, an UP/STOP/DOWN switch, a SPEED knob and a RUN/GO button.

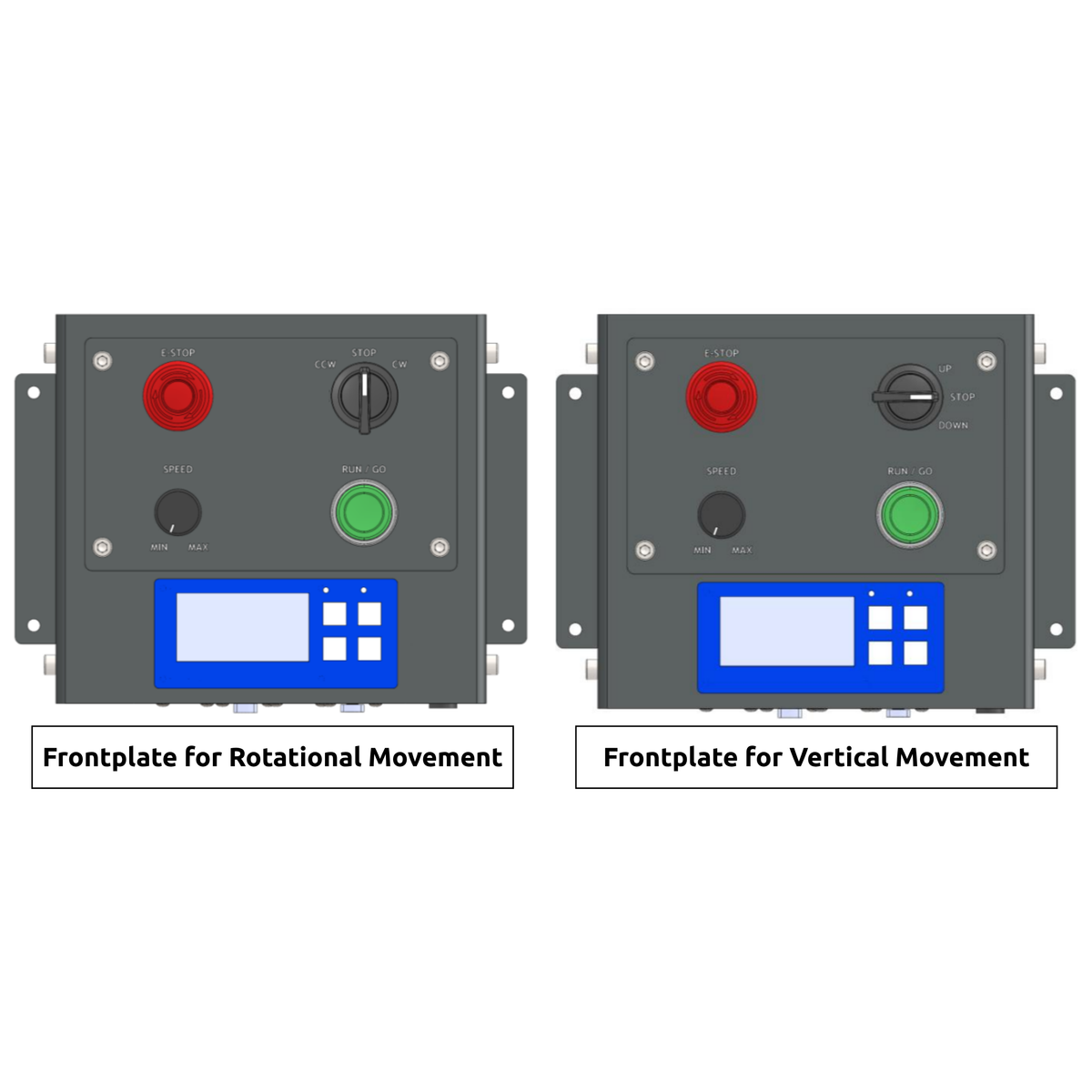

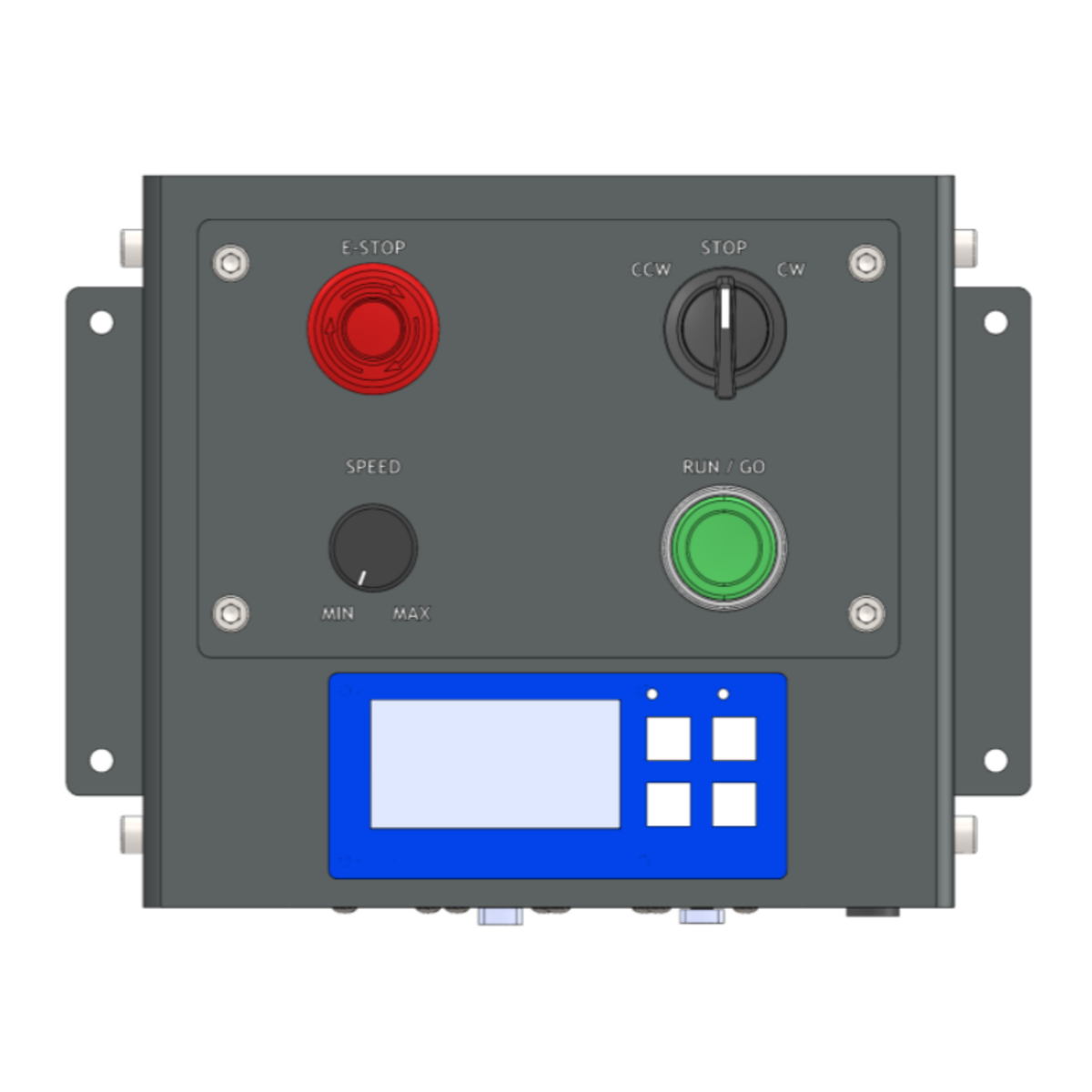

A version with a CCW/STOP/CW switch is available for controlling the Giga Rotator to switch between continuous clockwise and counterclockwise movement, while also controlling the speed.

The user interface makes it possible for people with little-to-no knowledge about DMX to control our motion products safely and with great precision. The standard Control Box offers control over up and down movement.

System Menu & Mode Settings

The user interface also includes a built-in OLED display with a simple four-button setup (Up, Down, Enter and Escape) for accessing the menu system, where additional settings and configurations can be adjusted.

Before operating the Control Box the system menu must be used to select the connected motion product and define the DMX address.

Different modes can also be selected in the system menu. Please read the manual to make sure you choose the right mode for your motion product.
