AC Motor Controller 550 W
AC Motor Controller 550 W
Regular price
€1.200,00
Regular price
Sale price
€1.200,00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

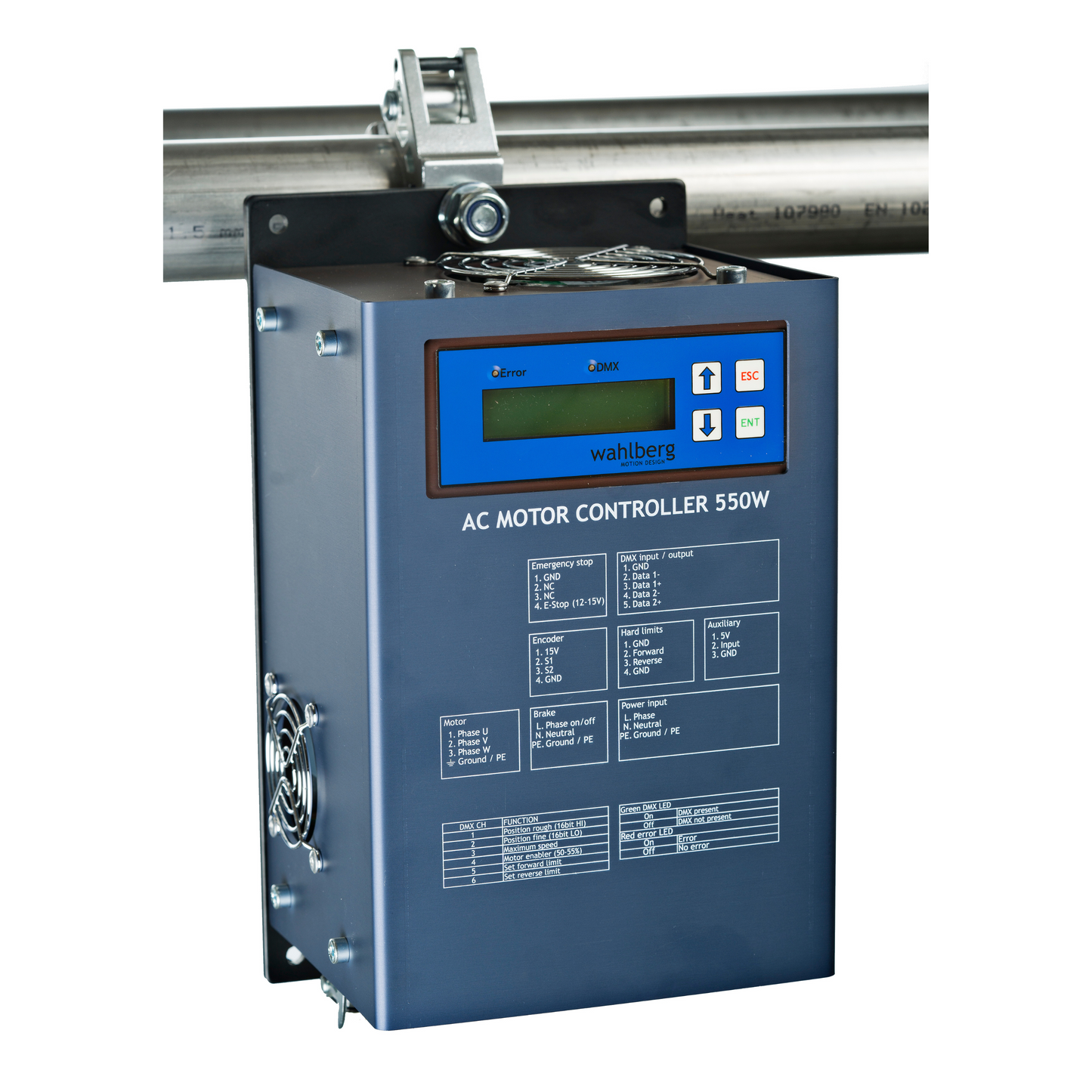

The AC Motor Controller (550 W) is an advanced tool for controlling mechanical movements.
Direction, speed and position are controlled from the lighting desk. With simple programming the movements can be adjusted individually.
Advanced configuration can be done using the the built-in LCD display.
Description
The content of the AC Motor Controller 550 W package
1 x AC Motor controller
1 x powerCON TRUE1 female plug NAC3FX-W for power cable
1 x Harting HAN A 3P male connector for motor cable with PG11 cable gland (Metal)
1 x User manual
1 x Cheat sheet

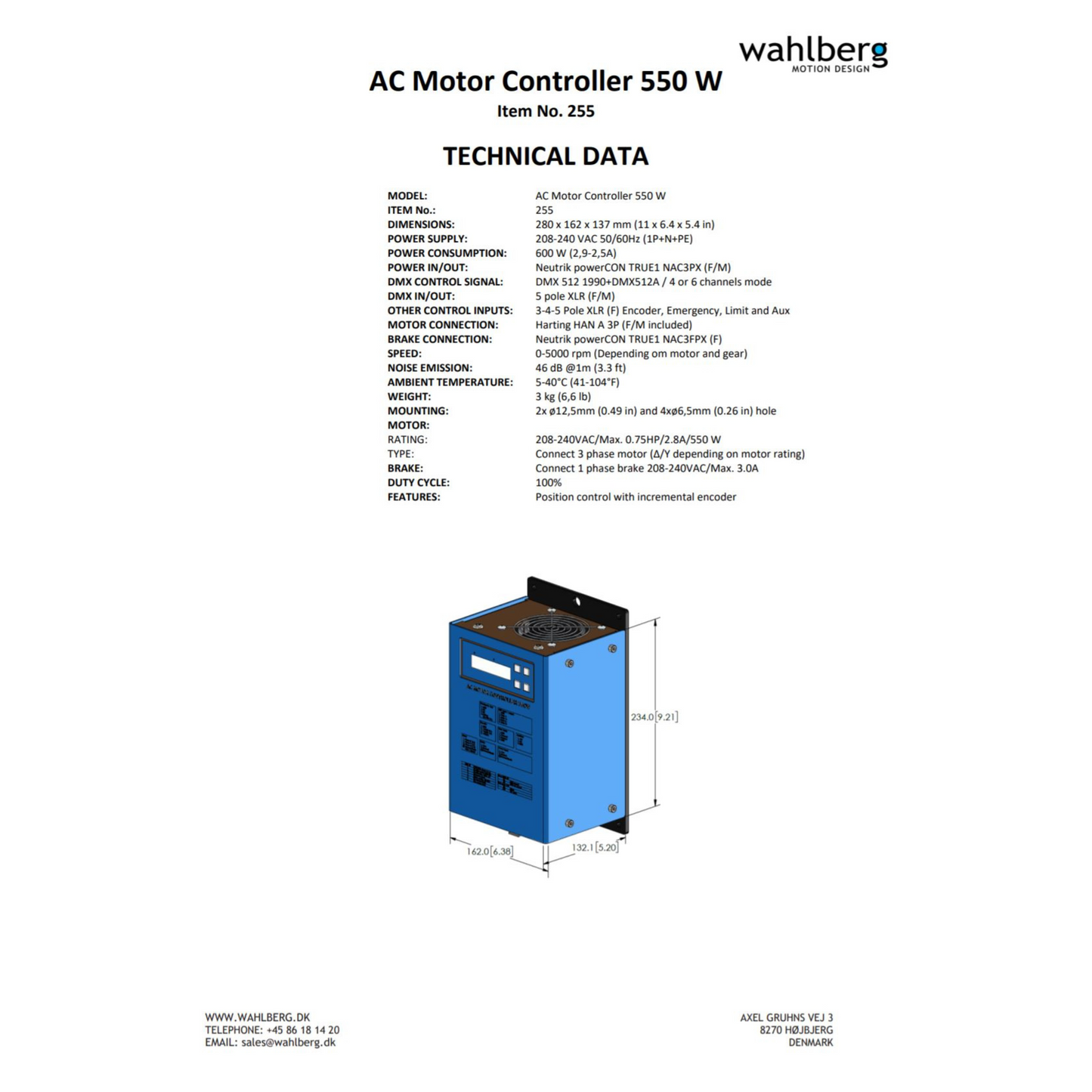

Specifications
Technical Details |
|
| Item number | .255 |
|---|---|
| Power supply | 208-240 VAC 50/60 Hz ( 1P+N+PE ) |
| Power consumption | 600 W ( 2,9 - 2,5A ) |

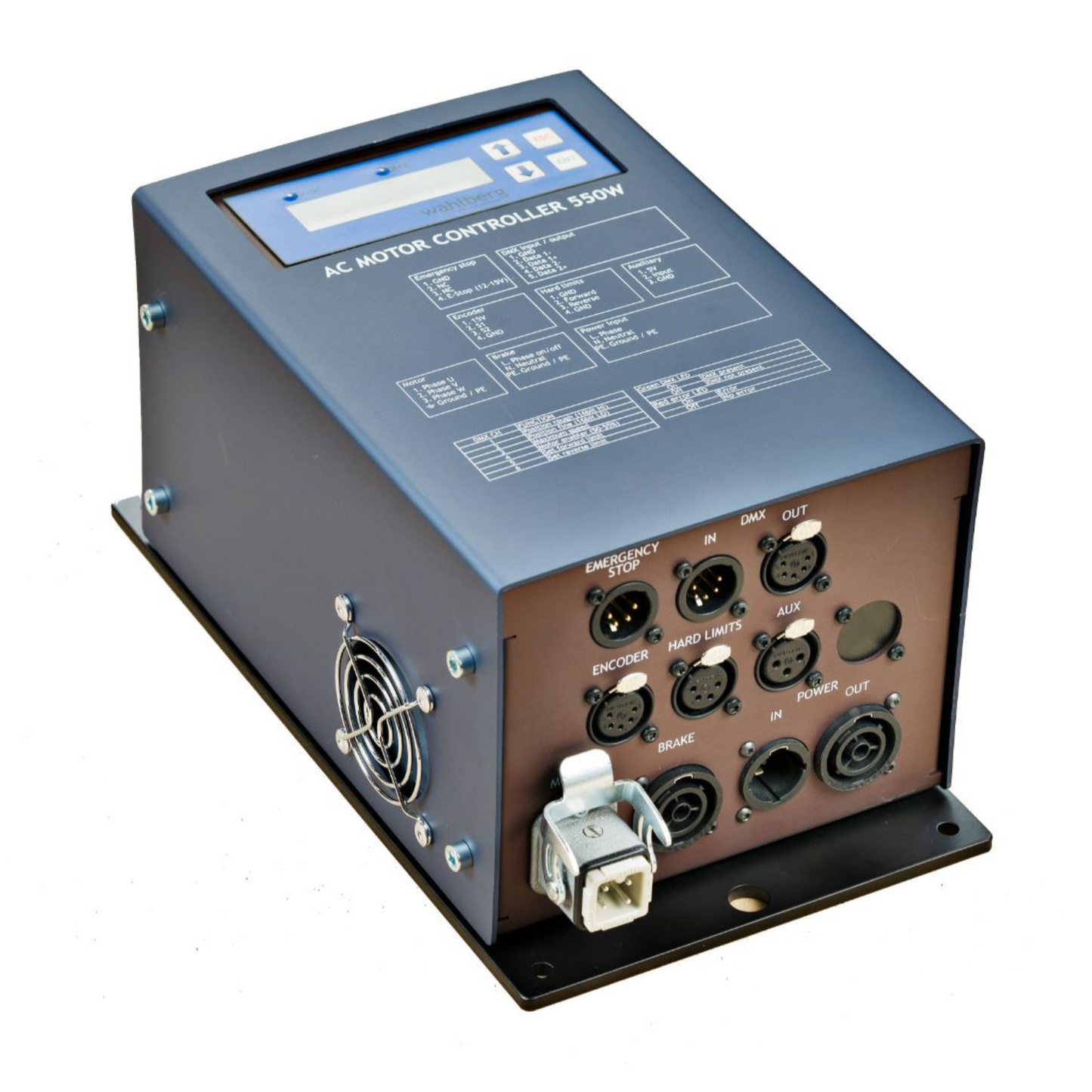

| Power inlet | Neutric powerCON TRUE1 NAC3PX ( F/M ) |
| DMX control signal | DMX 512 1990 + DMX512A / 4,6 or 10 Channel modes. |
| DMX connection | 5 pole ( F/M ) |
| Other control inputs | 3-4-5 XLR 8F) Encoder, Emergency, limit and AUX |
| Motor output | Harting HAN A 3P ( F/M included) |
| Brake Connection | neutric powerCON TRUE1 NAC3FPX ( F ) |
| Speed | 0-5000 rpm ( depending on motor and gear ) |
| Noise emission | 46 db @1m ( 3,3 ft ) |
| Ambient Temperature | 5-40 C ( 41-104 F ) |
| Weight | 3 kg ( 6,6 lb ) |
| Mounting | 2xø12,5 mm ( 0,49 in ) and 4xø6,5 mm ( 0,26 in ) hole |
| Rating | 208-240 VAC/Max. 0,75 HP/2,8A/550 W |
| Brake | connect 1 phase brake 208-240 VAC/max. 3.0A |
| Duty-Cycle | 100% |
| Type | Connect 3 phase motor (∆/Υ depending on motor rating) |

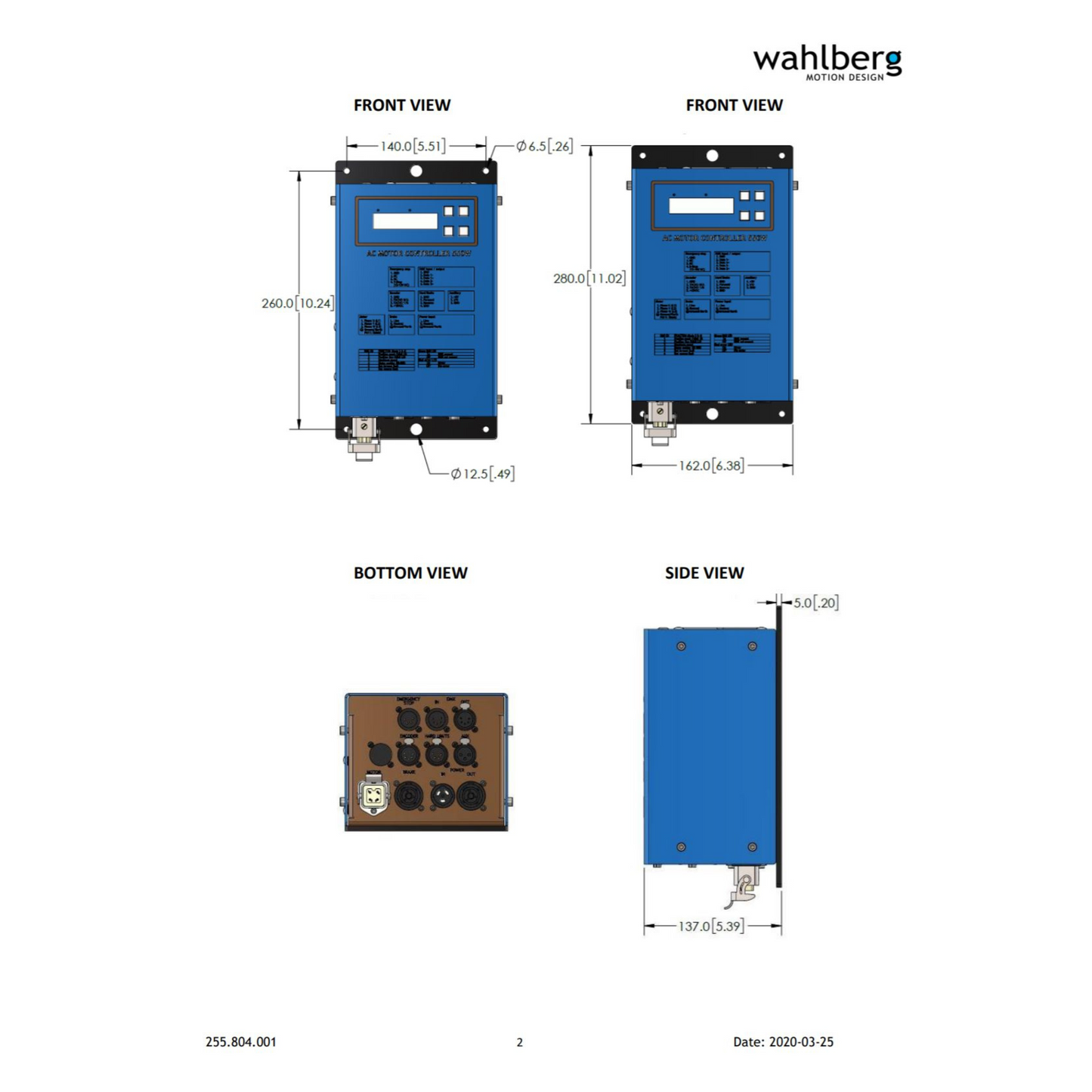

| Dimensions | 280 x 162 x 137 mm ( 11 x 6,4 x 5,4 in ) |
