Wahlberg Motion Design is a creative company devoted to the creation, innovation and design of products to create automatic DMX effects of stage props and lights.
Our Track Runner with Friction Wheel is the tour friendly solution with quick setup and dismantle.
|Load capacity:||100 kg (220.4 lb)|
|Pull capacity:||500 kg (1102 lb)|
|Fast version - Speed:||7,3-42 cm/s (2.9-16.5 in/s)|
|Slow version - Speed:||4-23 cm/s (1.6-9.1 in/s)|
You can make smooth moving effects for your stage equipment including electrical elements such as moving heads etc.
When you want to make your stage equipment move without having to assign man power to do it, the solution with our Track Runner with Friction Wheel is a great solution. This way you can achieve great and smooth horizontal motion effects on stage. Perfectly suited for moving stage props, lights, screens etc.
You have a high degree of freedom regarding your equipment. The large capacity of the Track Runner with Friction Wheel up to 100 kilos allows for usage for several occasions.
By combining it with our Passive Runners you have even more opportunities. If you have bigger loads that calls for several fixing points of the equipment to maintain stability this is a great solution.
You will furthermore have increased lifting and pushing capacity; 100 kilos for each passive runner that is included and up to 500 kilos in total (which is max pushing capacity of the track Runner).
As mentioned above the Track Runner with Friction Wheel has many possibilities of usage. A very popular way of using has been to move lights and spotlights.
You can use it with our Track Profile with conductor rail where you don't need to wire the whole length of the movement because there is power in the rail. The Track Runner with friction wheel is powered via the integrated conductor rail. You only need to power the equipment mounted on the runner.
The wireless DMX makes the installation very flexible, so you can set up the track system anywhere in your stage setting with no wiring limitations.
The Track Runner with Friction Wheel has an advanced positioning system allowing for precise and smooth movements. You have full control and you can program both speed, position and movements at the lighting desk via DMX control.

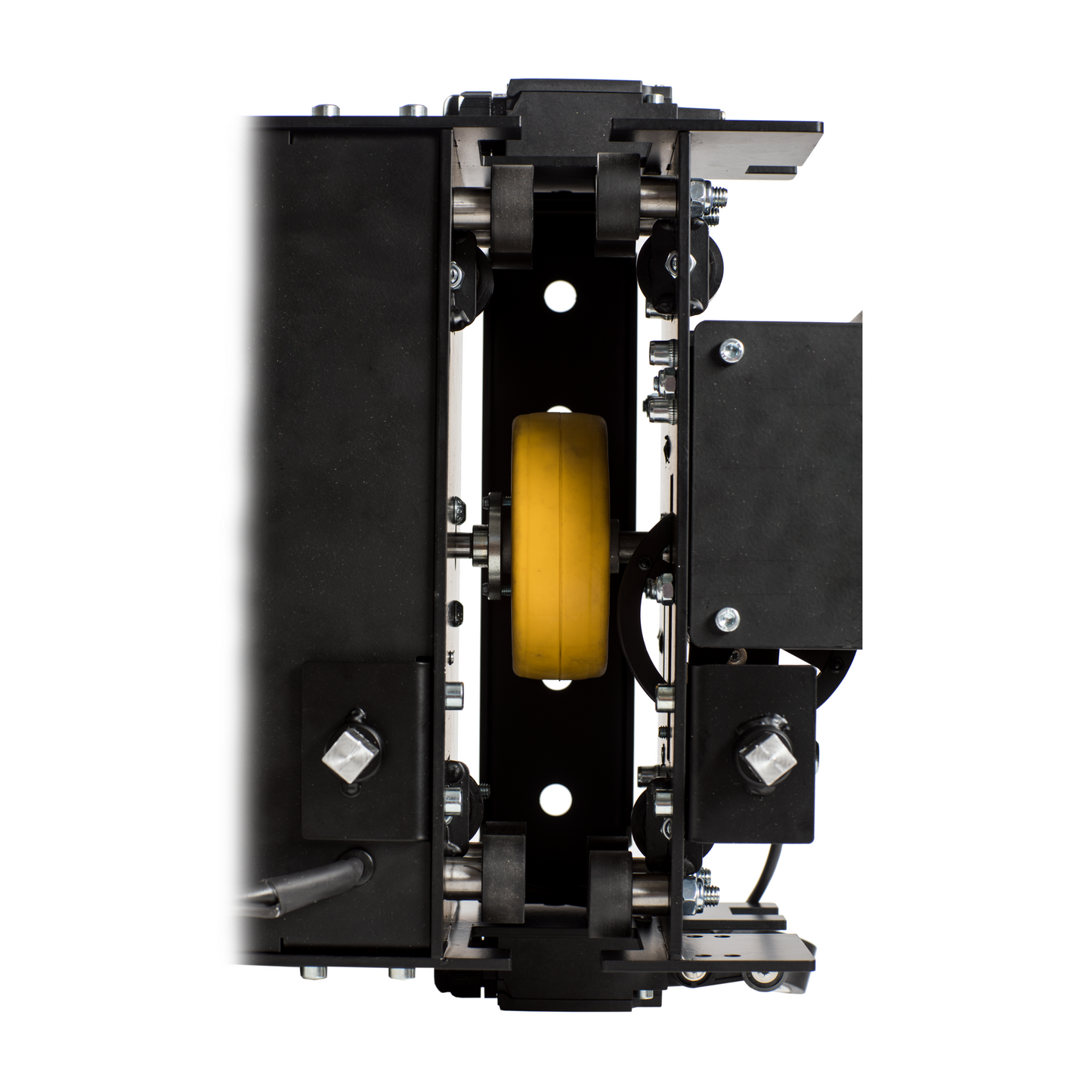

The friction wheel grabs around the track making it very stable and steady while moving the equipment. Perfect if you need to gain maximum stability in the motion process e.g. for projectors.
The content of the Track Runner with Friction Wheel, fast package
1 x Track Runner with Friction Wheel
1 x PowerCON TRUE1 plug
2 x Limit Switch profiles
2 x M6 x 60
1 x User manual
1 x Cheat sheet

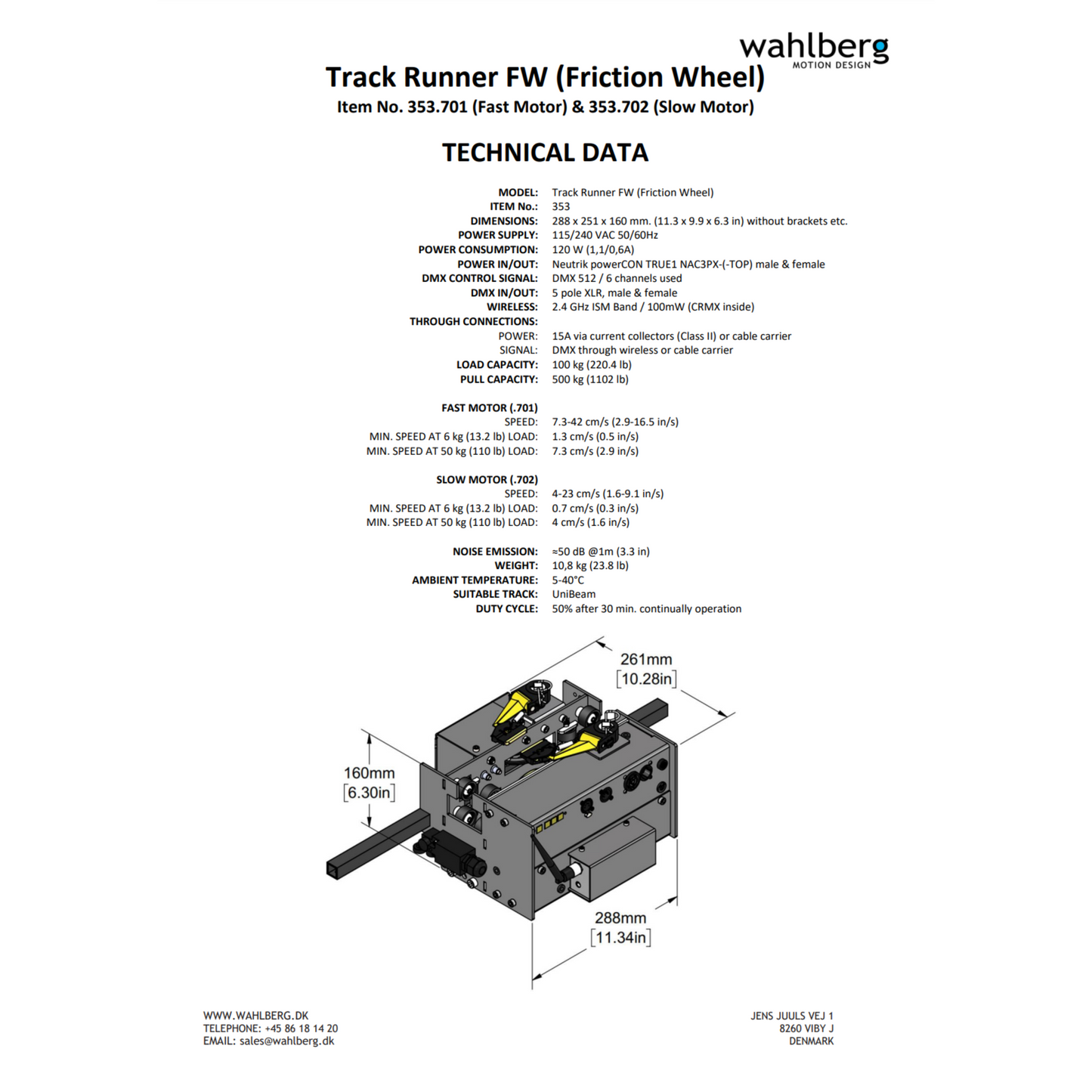

|Load capacity||100 kg (220.4 lb)|
|Pull capacity||500 kg (1102 lb)|
|Fast version - Speed||7,3-42 cm/s (2.9-16.5 in/s)|
|Fast version - Min. speed low load (6 kg / 13.2 lb)||1,3 cm/s (0.5 in/s)|
|Fast version - Min. speed high load (50 kg / 110.2 lb)||7,3 cm/s (2.9 in/s)|
|Slow version - Speed||4-23 cm/s (1.6-9.1 in/s)|
|Slow version - Min. speed low load (6 kg / 13.2 lb)||0,7 cm/s (0.3 in/s)|
|Slow version - Min. speed high load (50 kg / 110.2 lb)||4 cm/s (1.6 in/s)|
|Power consumption||120 W (1,1/0,6A)|
|Power inlet||Neutrik powerCON TRUE1 NACPX (F/M)|
|DMX control signal||DMX 512 1990+DMX512A|
|DMX control connection||5 Pole XLR (F/M)|
|Wireless||2.4 GHz ISM Band / 100mW (CRMX inside)|
|Through connection - Power||15 A via current collectors or cable carrier|
|Through connection - Signal||DMX through wireless or cable carrier|
|Noise emission||≈50 dB at 1 m (3.3 ft)|
|Ambient temperature||5-40 °C (41-104 °F)|
|Fast version - Motor||24 VDC, 92W|
|Slow version - Motor||24 VDC, 54W|
|Duty cycle||50 % when running more than 30 min.|
|Shipping weight||11 kg (24.2 lb)|
|Weight||10,8 kg (23,8 lb)|

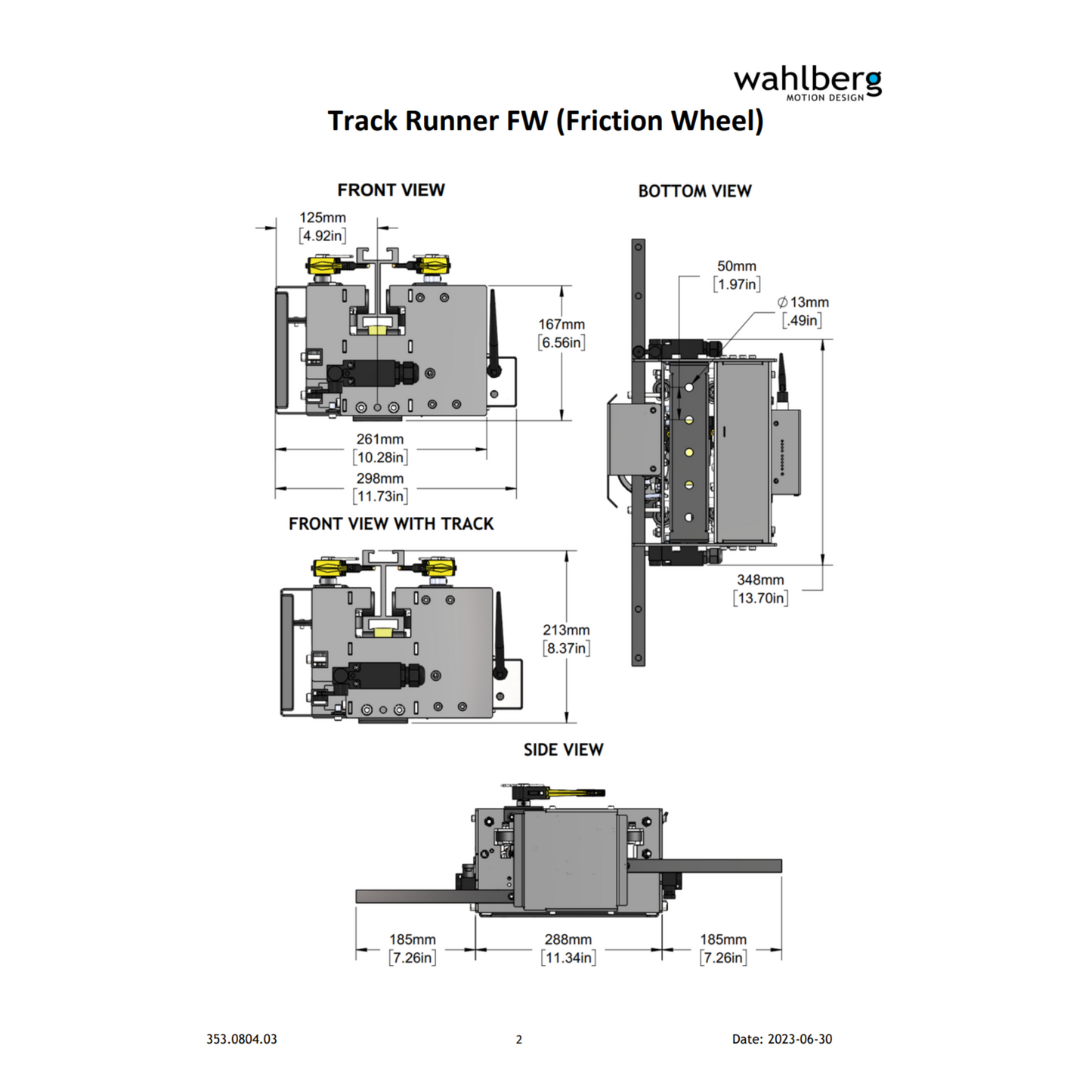

|Dimensions||288 x 251 x 160 mm (11.3 x 9.9 x 6.3 in)|
|Cheat -Sheet_Track Runner Series||Download|
