Track Runner with Friction Wheel, fast

Our Track Runner with Friction Wheel is the tour friendly solution with quick setup and dismantle.

Load capacity: 100 kg (220.4 lb)
Pull capacity: 500 kg (1102 lb)
Fast version - Speed: 7,3-42 cm/s (2.9-16.5 in/s)
Slow version - Speed: 4-23 cm/s (1.6-9.1 in/s)

You can make smooth moving effects for your stage equipment including electrical elements such as moving heads etc.

2.200,00 €
Rent this product

Description

When you want to make your stage equipment move without having to assign man power to do it, the solution with our Track Runner with Friction Wheel is a great solution. This way you can achieve great and smooth horizontal motion effects on stage. Perfectly suited for moving stage props, lights, screens etc.

You have a high degree of freedom regarding your equipment. The large capacity of the Track Runner with Friction Wheel up to 100 kilos allows for usage for several occasions.

By combining it with our Passive Runners you have even more opportunities. If you have bigger loads that calls for several fixing points of the equipment to maintain stability this is a great solution.

You will furthermore have increased lifting and pushing capacity; 100 kilos for each passive runner that is included and up to 500 kilos in total (which is max pushing capacity of the track Runner).

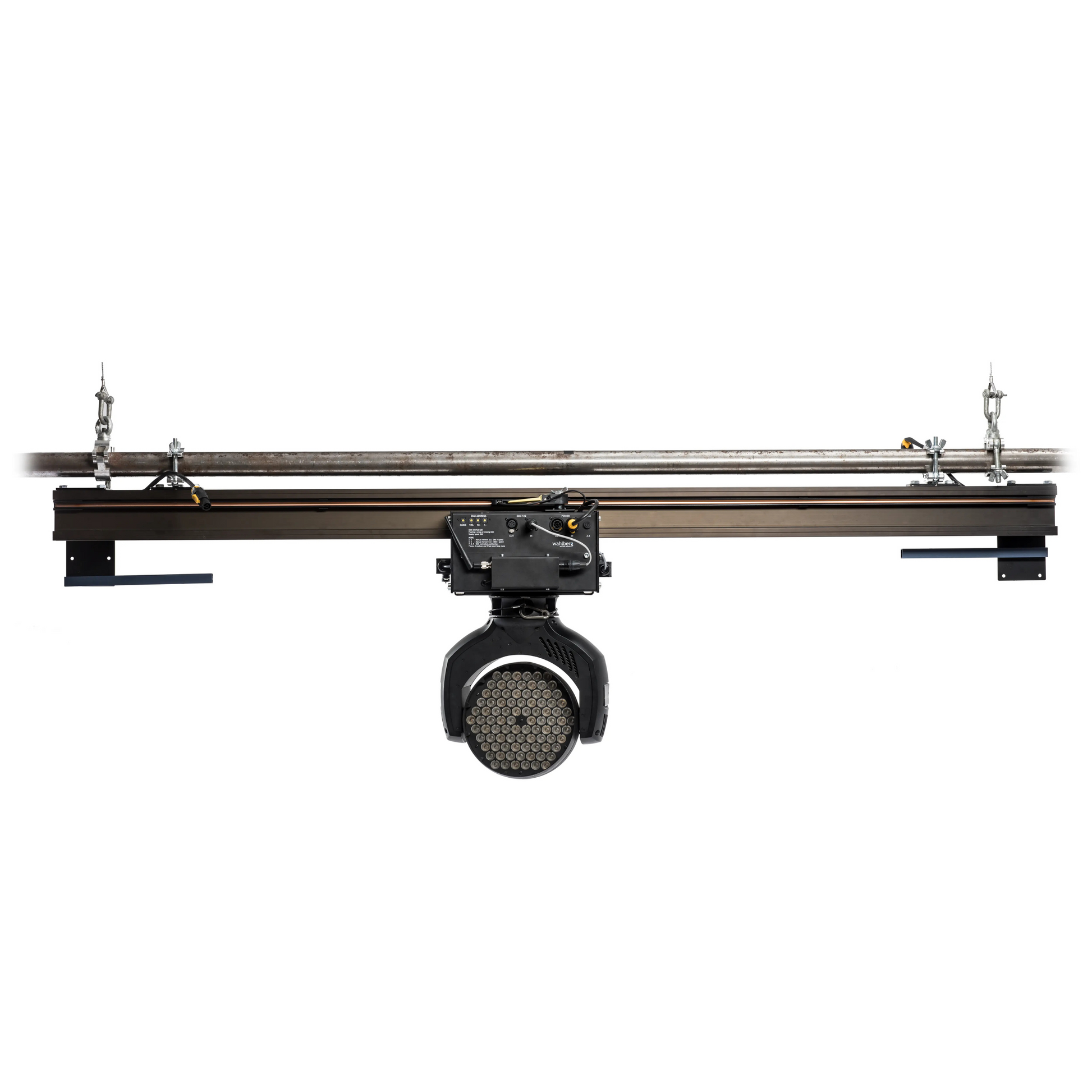

Moving Spot Lights with the Track Runner with Friction Wheel

As mentioned above the Track Runner with Friction Wheel has many possibilities of usage. A very popular way of using has been to move lights and spotlights.

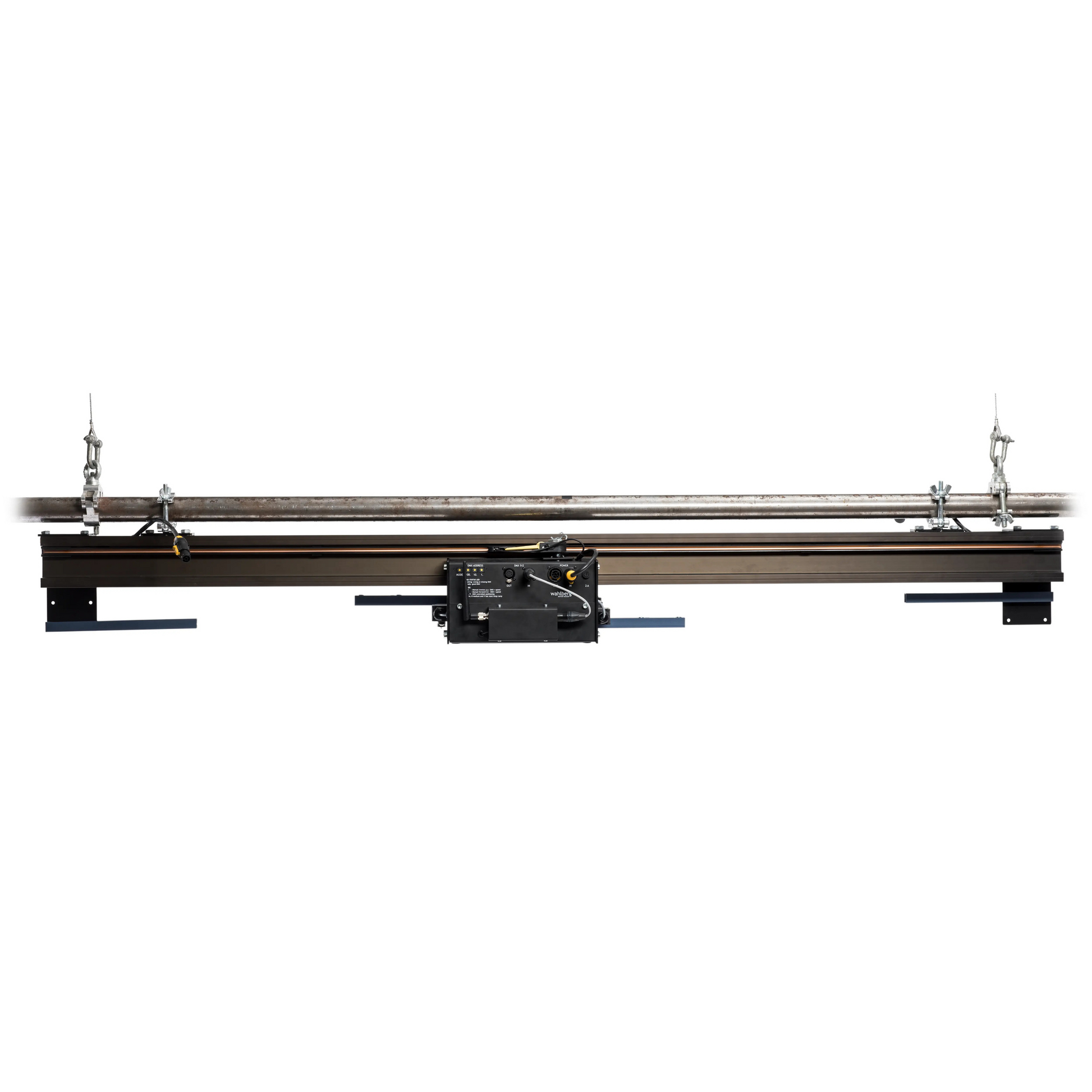

You can use it with our Track Profile with conductor rail where you don't need to wire the whole length of the movement because there is power in the rail. The Track Runner with friction wheel is powered via the integrated conductor rail. You only need to power the equipment mounted on the runner.

The wireless DMX makes the installation very flexible, so you can set up the track system anywhere in your stage setting with no wiring limitations.

You can also use it with our Standard Track Profile and Cable Runners.

Stability and Precision

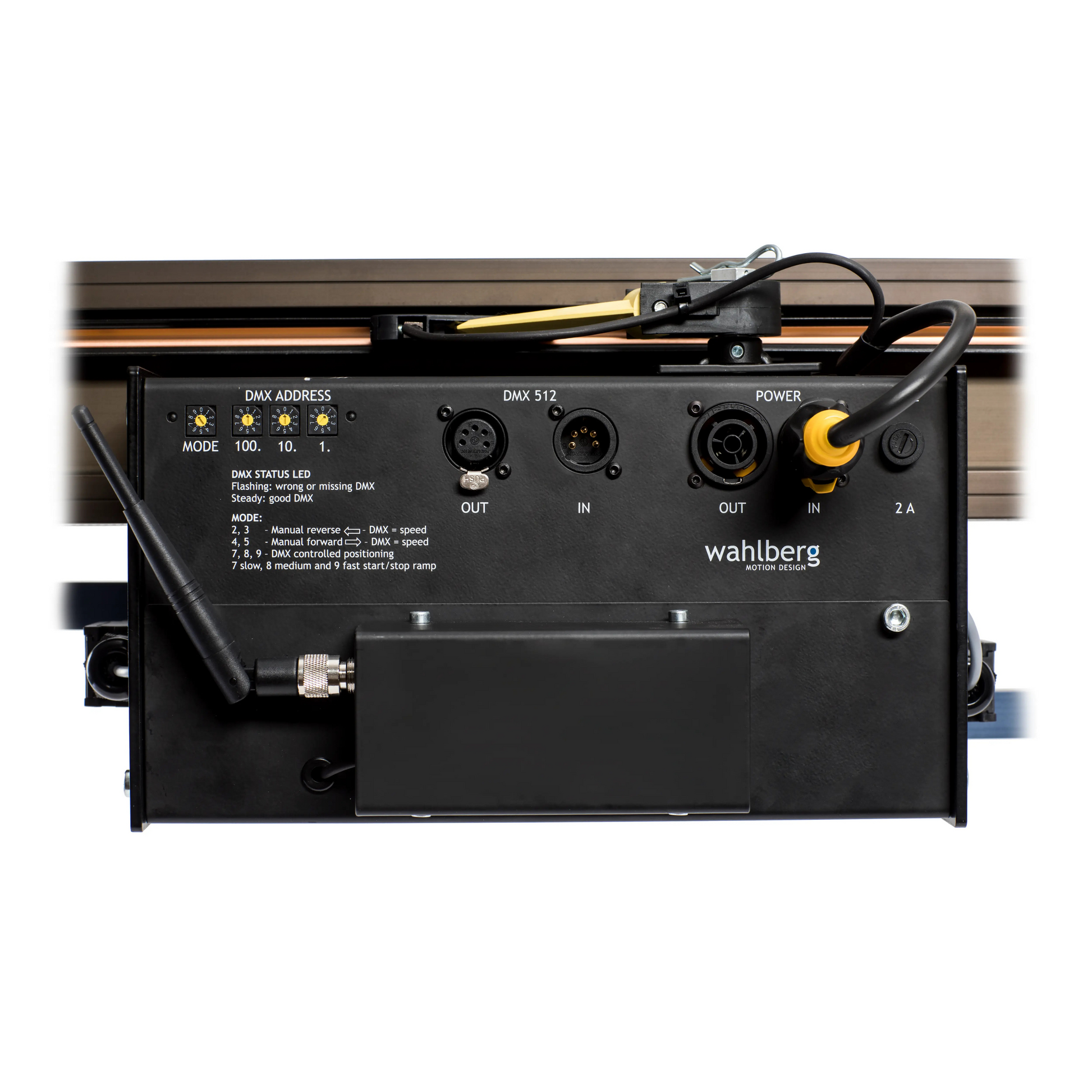

The Track Runner with Friction Wheel has an advanced positioning system allowing for precise and smooth movements. You have full control and you can program both speed, position and movements at the lighting desk via DMX control.

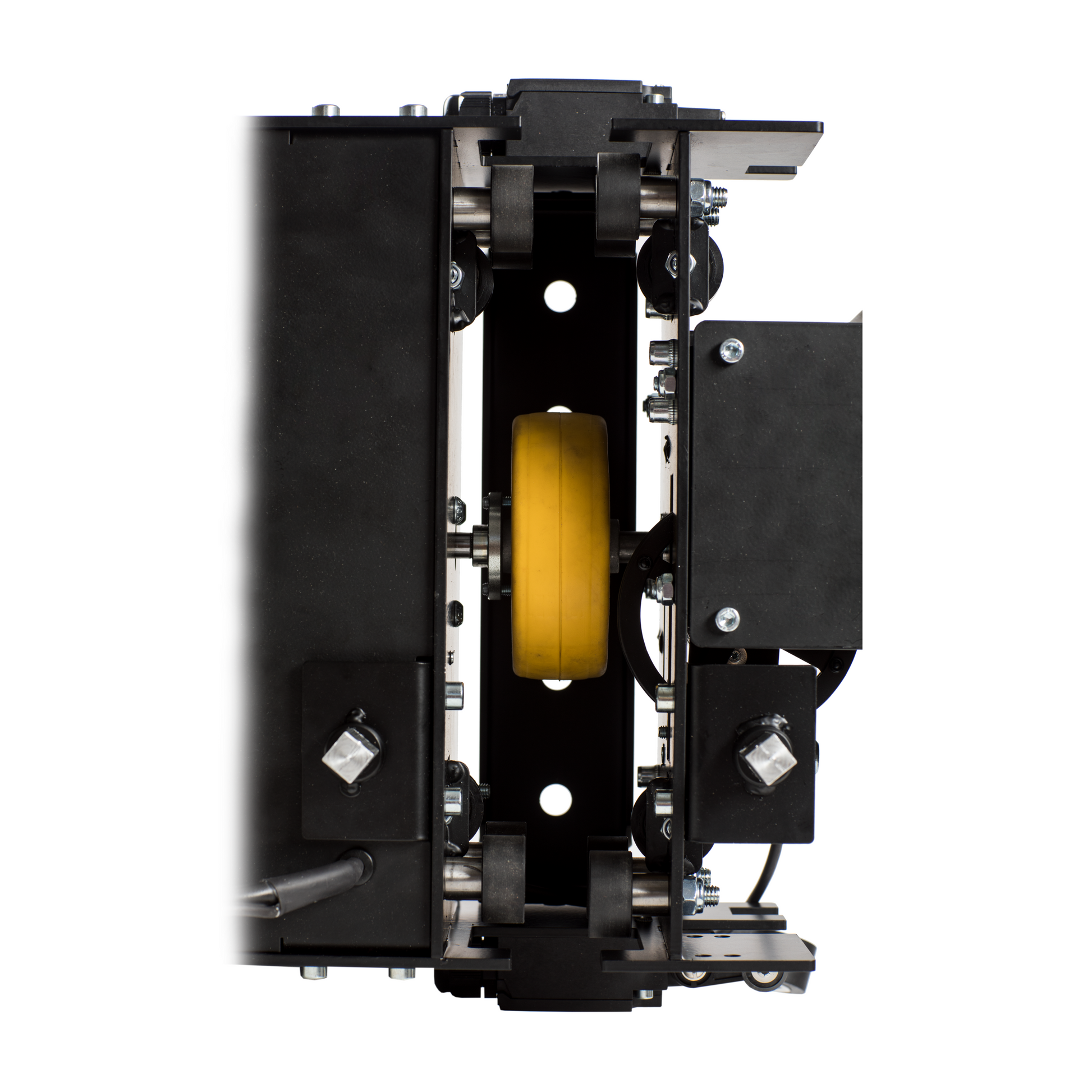

The friction wheel grabs around the track making it very stable and steady while moving the equipment. Perfect if you need to gain maximum stability in the motion process e.g. for projectors.

The content of the Track Runner with Friction Wheel, fast package

1 x Track Runner with Friction Wheel

1 x PowerCON TRUE1 plug

2 x Limit Switch profiles

2 x M6 x 60

1 x User manual

1 x Cheat sheet

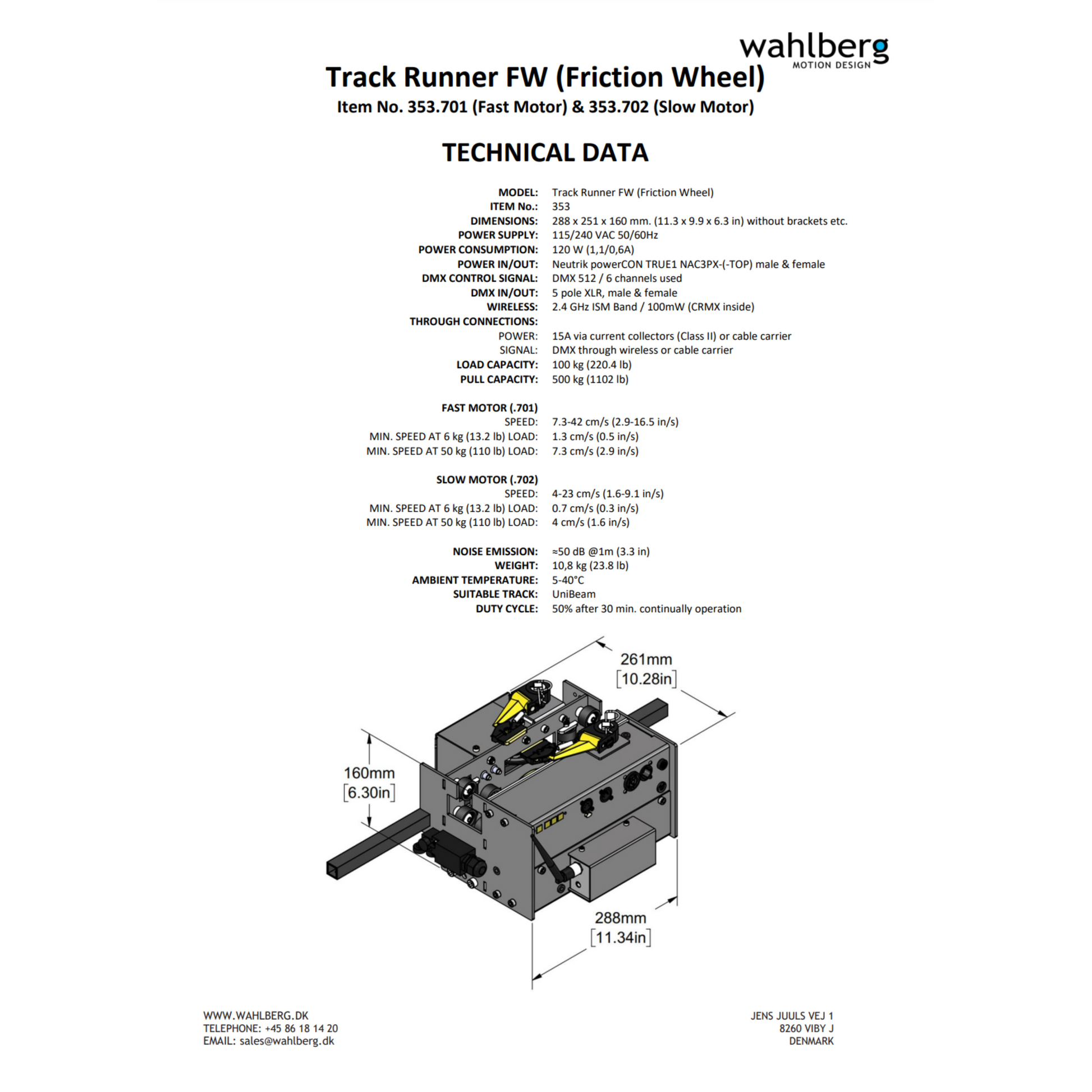

Technical Details

Item number 353
Load capacity 100 kg (220.4 lb)
Pull capacity 500 kg (1102 lb)
Fast version - Speed 7,3-42 cm/s (2.9-16.5 in/s)
Fast version - Min. speed low load (6 kg / 13.2 lb) 1,3 cm/s (0.5 in/s)
Fast version - Min. speed high load (50 kg / 110.2 lb) 7,3 cm/s (2.9 in/s)
Slow version - Speed 4-23 cm/s (1.6-9.1 in/s)
Slow version - Min. speed low load (6 kg / 13.2 lb) 0,7 cm/s (0.3 in/s)
Slow version - Min. speed high load (50 kg / 110.2 lb) 4 cm/s (1.6 in/s)
Voltage 115/230 VAC
Frequency 50-60 Hz
Power consumption 120 W (1,1/0,6A)
Power inlet Neutrik powerCON TRUE1 NACPX (F/M)
DMX control signal DMX 512 1990+DMX512A
DMX channels 6
DMX control connection 5 Pole XLR (F/M)
Wireless 2.4 GHz ISM Band / 100mW (CRMX inside)
Through connection - Power 15 A via current collectors or cable carrier
Through connection - Signal DMX through wireless or cable carrier
Noise emission ≈50 dB at 1 m (3.3 ft)
Ambient temperature 5-40 °C (41-104 °F)
Fast version - Motor 24 VDC, 92W
Slow version - Motor 24 VDC, 54W
Duty cycle 50 % when running more than 30 min.
Shipping weight 11 kg (24.2 lb)
Weight 10,8 kg (23,8 lb)

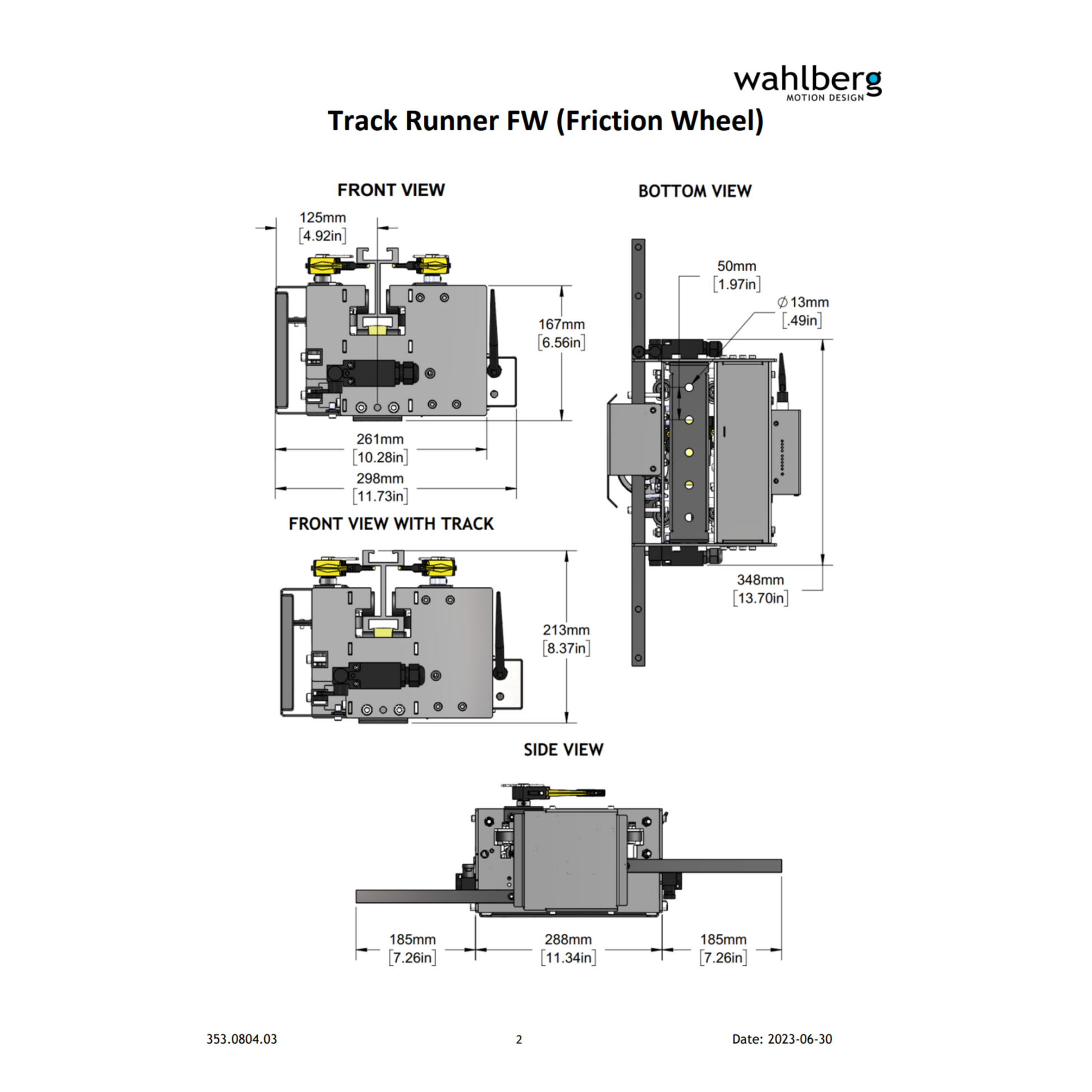

Dimensions 288 x 251 x 160 mm (11.3 x 9.9 x 6.3 in)

Downloads

Type Name
pdf 352.805.005_Manual-Trackrunner Download
pdf 806.352.002_Trackrunner-Cheat Sheet Download
pdf Track-Runner-Spec.-Sheet Download
pdf 185.806.003_Wireless-Cheet Sheet2 Download
pdf Track-Runner-2016-jan-web Download
zip Wahlberg@Wahlberg-Trackrunner @ Mode-789-Dot2 Download
zip Wahlberg@Wahlberg-Trackrunner @ Mode-789-MA2 Download
xml Wahlberg@Trackrunner@7,8,9 Download

DMX Compatible



All Wahlberg products are DMX compatible. Read more about DMX control.



Learn more about the technology behind

Wahlberg Motion Design is a creative company devoted to the creation, innovation and design of products to create automatic DMX effects of stage props and lights.



Read more about Wahlberg Motion Design here
