Mega Track Runner
Mega Track Runner
Couldn't load pickup availability
Moving heavy objects both vertically and horizontally. The strongest runner in our portofolio.
| Load capacity: | 75 kg (165 lb) |
| Pull capacity: | 2000 kg (4409.2 lb) |
| Speed: | 0,5-18 cm/s (0.02-7.1 in/s) |
Precise and easy to control from the wireless DMX - position and speed controlled directly from the console.
Mount load directly onto the unit and enjoy smooth and precise moving effects for any stage prop weighing up to 75 kg.
Description
The Mega Track Runner seamlessly moves your larger stage elements horizontally or vertically from point to point.
By combining the Mega Track Runner and our Tooth Rack Track Profile with Conductor Rail you get power to the unit and the mounted object. This means that you can cordlessly move electrical equipment like lamps and spot lights to create beautiful moving light effects for your stage design.
Mega Track Runner - The Heavy-Duty Solution
The ways of which you can apply the Mega Track Runner in your stage and lighting design are endless. The load capacity makes it possible to lift even the biggest and heaviest stage items up to 75 kg. Can be combined with our Passive Runners, which can handle weights up to 2000 kg.
It is necessary to use this with our track profiles with tooth rack. The tooth rack secures a high degree of precision. It is a perfect solution if you want to move your stage equipment, such as heavy moving heads, between exact positions.
You can also use the Mega Track Runner with other products in the Wahlberg range. Mount e.g. a Roll Down to make a moving projection screen or you can mount one of our DMX Winches to combine vertical and horizontal movements of your objects.
Try our Mega Track Runner today and explore the many opportunities you have to create beautiful moving effects for your stage equipment. It is a great way to create brand new dimensions for your lighting design thanks to the possibility to run with powered track and wireless DMX.
The content of the Mega Track Runner package
1 x Mega Track Runner
1 x Mega Track Runner End Stop Set (If multiple runners are installed on the same track)
4 x M6x8 bolt (used for mounting Mega Track Runner End Stop Set)
1 x powerCon TRUE1 male plug NAC3MX-W(-TOP) for power cable connection
1 x Antenna
1 x Mega Track Runner Manual (one per shipment)
1 x Track Installation Manual (one per shipment)
1 x Cheatsheet (one per shipment)
Spare parts
At Wahlberg, we prioritize customer satisfaction. We understand the frustration of having a product that isn't working as it should and don't believe in discarding a perfectly good product just because one part isn't functioning properly. That’s why we offer spare parts for all our products. So, whether you choose to send in your Wahlberg product for professional servicing or prefer DIY repairs, we're here to help. Just download our Exploded View drawings to find the spare parts needed, and you'll have your product fixed in no time!
Contact us at sales@wahlberg.dk if you can’t find the needed spare part on our website.

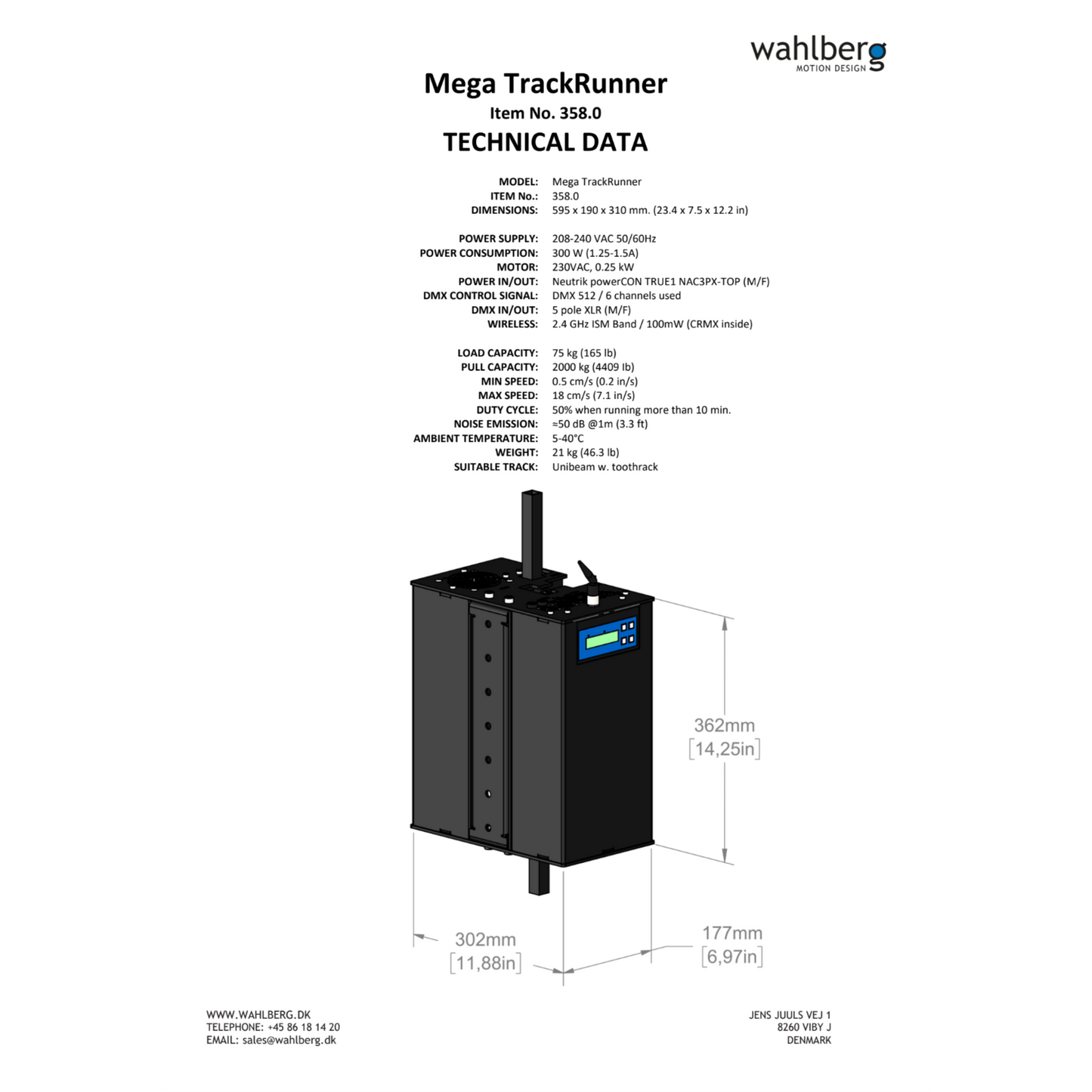

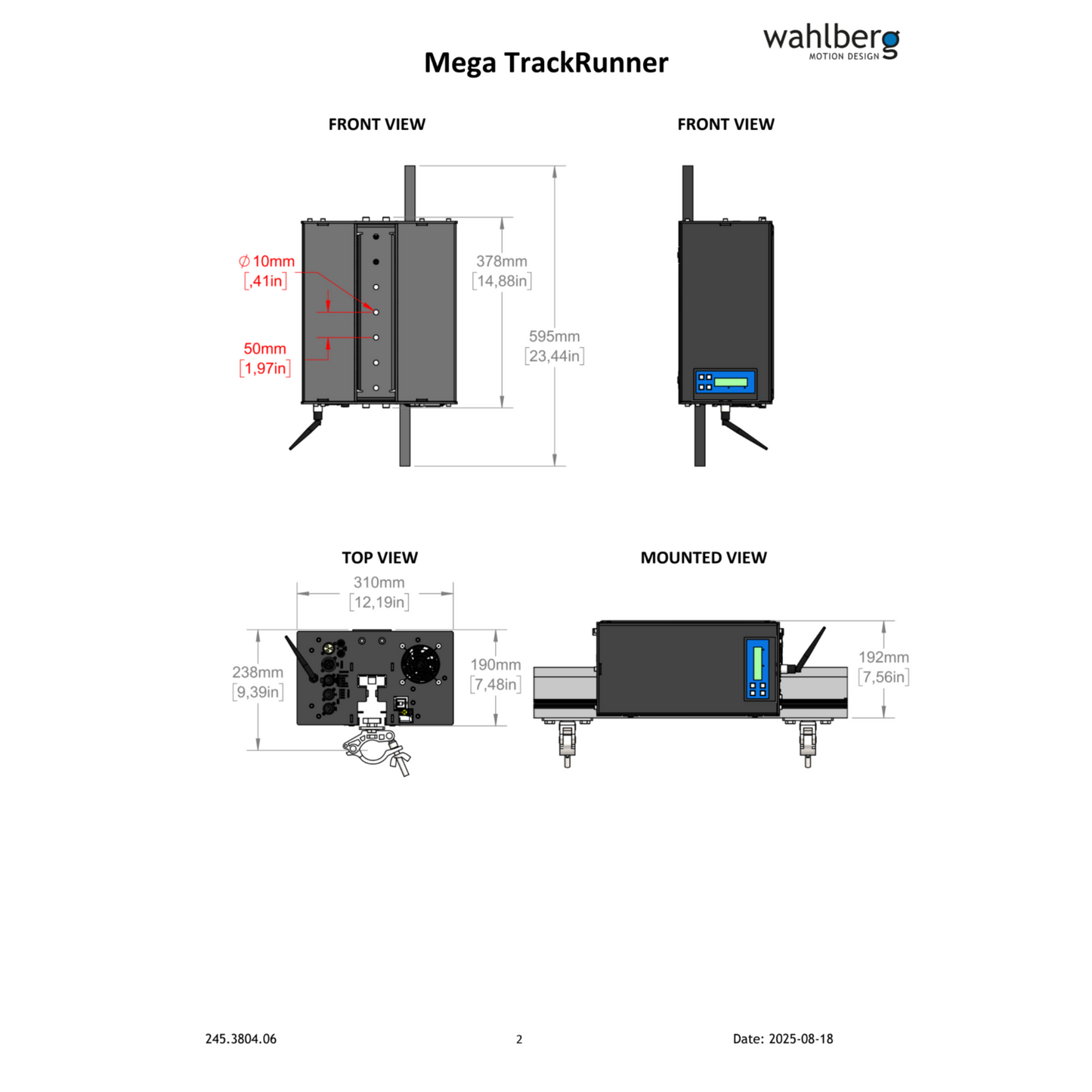

Specifications
| Item number | 358.0 |
|---|---|
| Load capacity | 75 kg (165 lb) |
| Pull capacity | 2000 kg (4409.2 lb) |
| Speed | 0,5-18 cm/s (0.02-7.1 in/s) |
| Voltage | 230 VAC |
| Frequency | 50-60 Hz |
| Power consumption | 300 W (1.25-1.65A) |
| Power inlet | Neutrik powerCON TRUE1 NACPX (F/M) |
| DMX control signal | DMX 512 1990+DMX512A |
| DMX channels | 6 |
| DMX control connection | 5 Pole XLR (F/M) |
| Through connection - Power | 15 A through cable carrier |
| Through connection - Signal | DMX through wireless or cable carrier |
| Noise emission | ≈50 dB at 1 m (3.3 ft) |
| Ambient temperature | 5-40 °C (41-104 °F) |
| Motor | 230 VAC, 0.25 kW |
| Duty cycle | 50% when running more than 10 min. |
| Shipping weight | 23 kg (50.71 lb) |
| Weight | 21 kg (46.3 lb) |
| Dimensions | 595 x 190 x 310 mm (23.4 x 7.5 x 12.2 in) |
