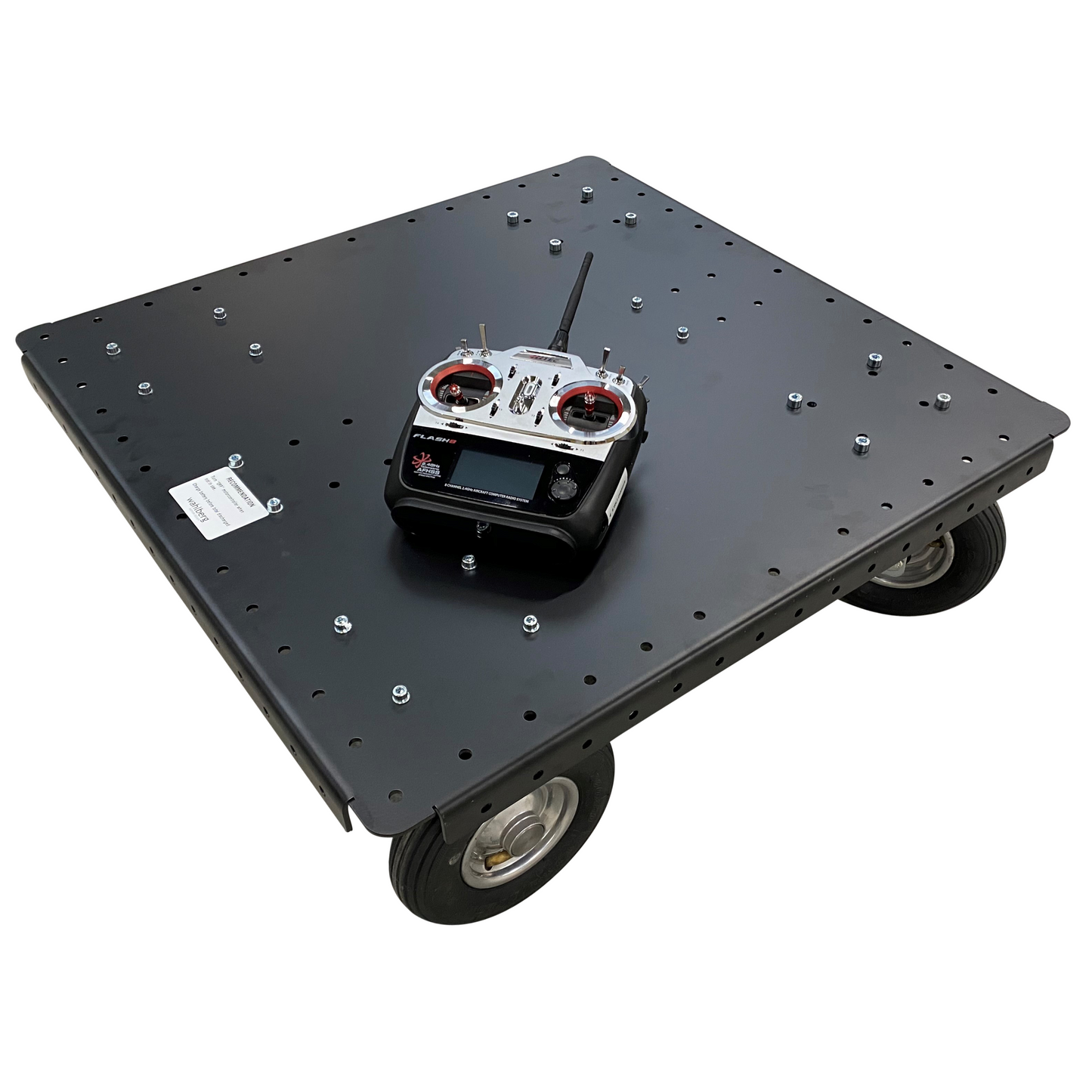

Remote Controlled Platform, Off-road wheels

Easy movements and controlling your stage props around your stage.

Battery operation time: 1,5 hour drive, 10 hour standby
Off-road wheel platform - Moving speed (No load): 2 m/s or 7,2 km/t (6.5 ft/s or 4.4 mph)
Off-road wheel platform - Maximum load: 200 kg (440.9 lb)
Motor speed: 190 RPM / NO LOAD.

For moving your stage items and controlling the movements via a wireless controller our Remote Controlled Platform is a great solution. Very user-friendly remote control.

You can mount any stage object to the platform, and the high maximum load makes it possible to achieve almost any idea you want. Move your stage props seamlessly around the stage.

The Remote Controlled Platfom comes in three different types of wheels: Standard wheels, Off-road wheels and Mega Off-Road Wheels. The Off-road wheels are taller than the Standard wheels and is more susceptible for bumpy environments and slippery surfaces.

Please note that the Remote Controlled Platform is not DMX compatible.

2.750,00 €
Rent this product


The Remote Controlled Platform is a handy and easily controlled moving platform for entertainment, exhibition and trade fairs. There are many ways of which the platform can be integrated in your setup, and therefore also applies to many different scenarios.

You can control the platform via the wireless controller. All movements can be controlled by either the performer himself or from backstage by another person.

It is possible to mount any object to the platform within the load capacities as long as it is mounted properly to the platform.

Remote Controlled Platform for any stage object

Originally, the Remote Controlled Platform was developed for stage productions. With this product you can take any stage object and move it onto the platform to make moving effects around the stage for it.

However, the design and user friendliness make it very relevant to include it in other areas as well.

In the past, it has been used for movement of scenic elements and props as well as performers. Both prop and performer can be placed on the platform e.g. in a couch or chair on top of the platform.

Moving Stage Platform with Many Possibilities

The size of the platform comes in a standard size of 70x70 cm. However, the motor console can easily be moved onto a custom-made platform with 4 screws and a little creativity. So, it is possible to make any element move with this system. See a small video of how it is done here.

It is fully remote controlled and makes movement of props and large items on stage possible. This is either done by the operators backstage or from the performers using the controller on stage.



Easy to control

With the wireless controller it is easy to control the platform by only one hand with the right gimbal (joystick) at the wireless controller. You can adjust the speed and acceleration/deacceleration ramp in the settings of the wireless remote control to achieve the movements you like.

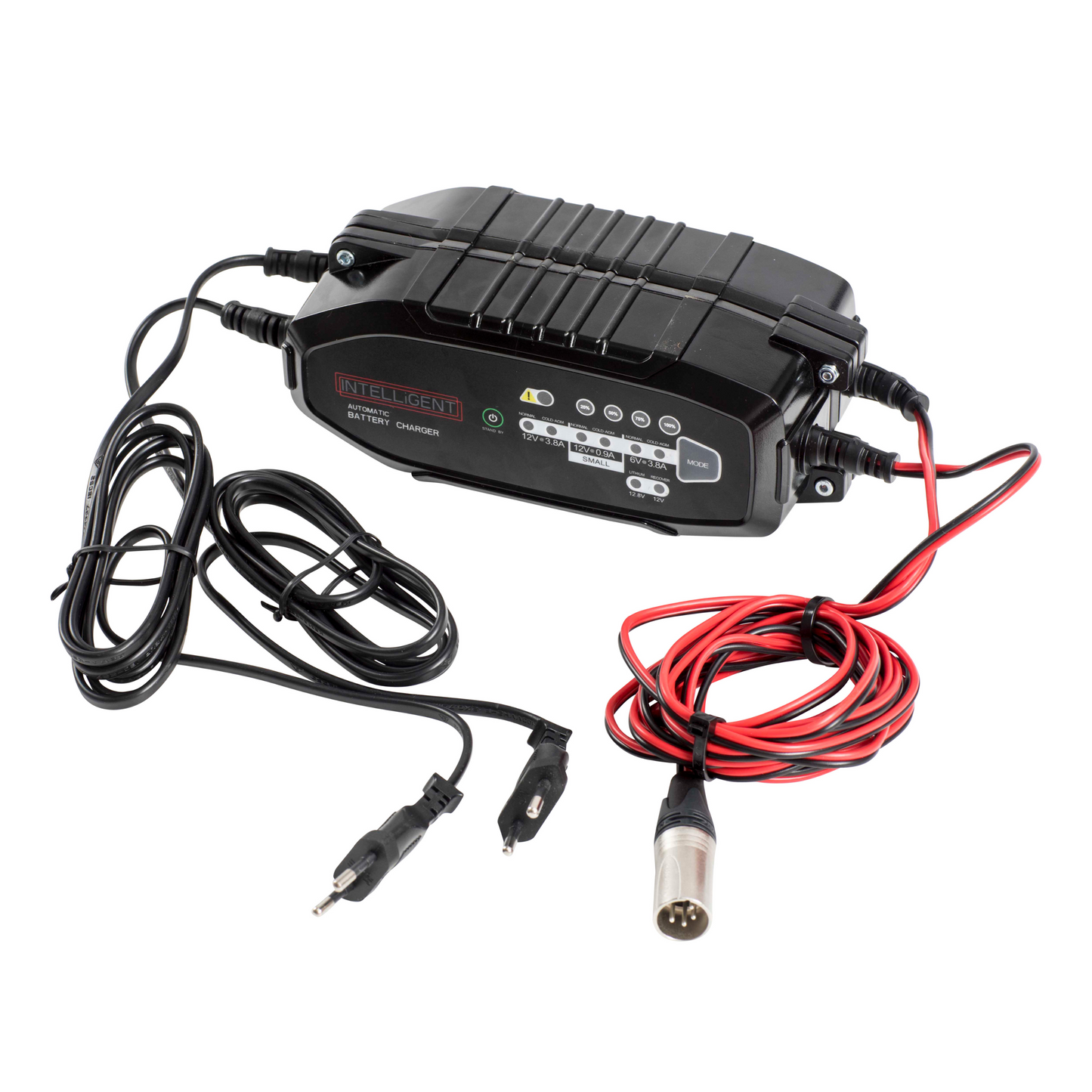

Battery charger for the Remote Controlled Platform

With the battery charger you can charge the Remote Controlled Platform in 1,5 hour.


At Wahlberg, we prioritize customer satisfaction. We understand the frustration of having a product that isn't working as it should and don't believe in discarding a perfectly good product just because one part isn't functioning properly. That’s why we offer spare parts for all our products. So, whether you choose to send in your Wahlberg product for professional servicing or prefer DIY repairs, we're here to help. Just download our Exploded View drawings for guidance, and you'll have your product fixed in no time!

Contact us at if you can’t find the needed spare part on our website.

The content of the Remote Controlled Platform, Off-road wheels package

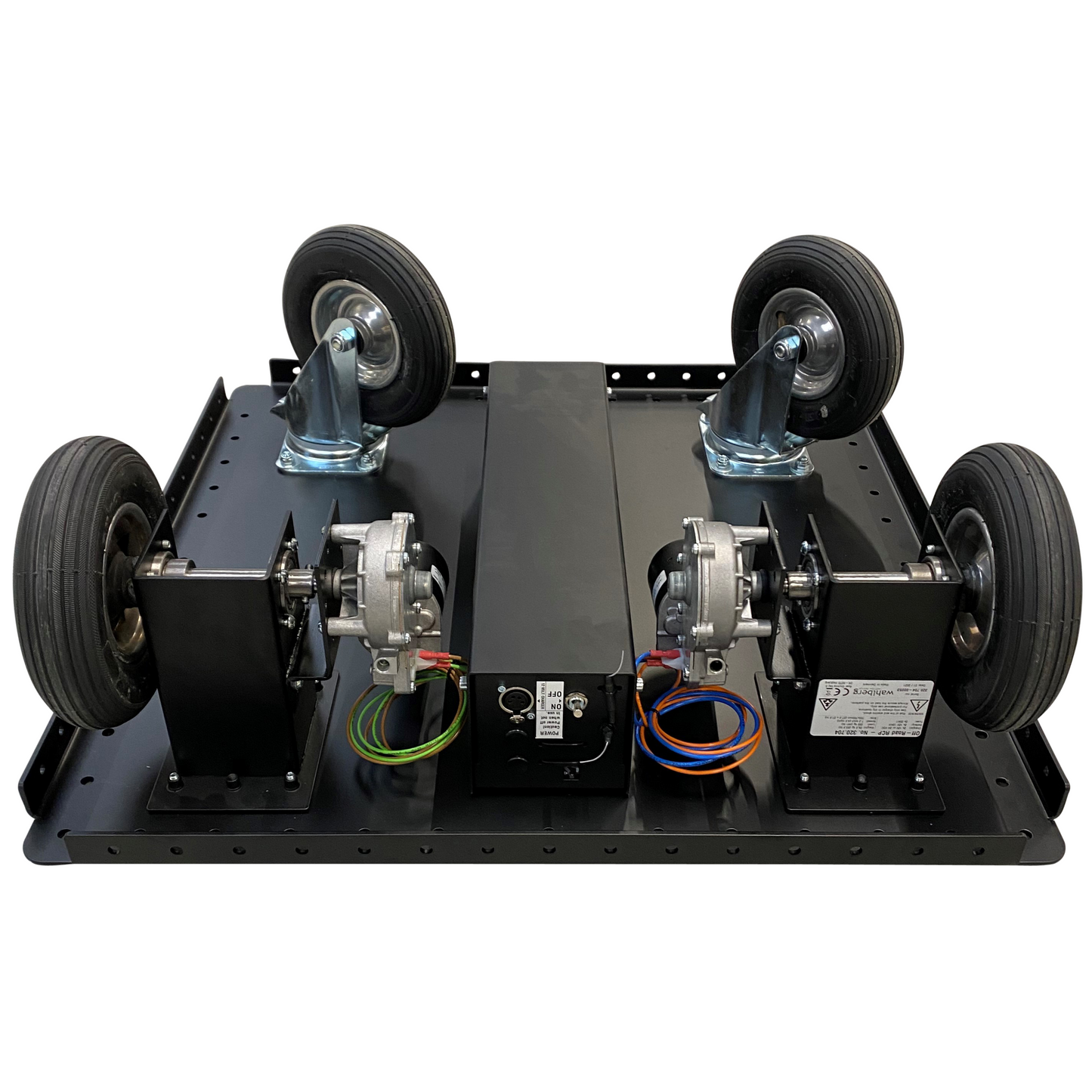

1 x Platform with motor units and battery pack incl. receiver unit

1 x Charger for platform ( standard version )

1 x Remote controller hitec flash 8

1 x Li-Fe battery for remote 6.4V 1400mAh

1 x Charger for Remote

1 x User Manual

Technical Details

Item number .320.704
Power supply Internal battery pack, 2 x 12 volt, 12 amp
Platform battery 2 x 12 V 12 AH
Battery operation time 1,5 hour drive, 10 hour standby
Charger for platform 100-240 V AC 50-60 Hz 50VA, EU
Charging time for platfom 1.5 hour
Charger for remote 100-240 V AC 50-60 Hz Flash 8 only
Off-road wheel platform - Height 240 mm (9.5 in)
Off-road wheel platform - Moving speed (No load) 2 m/s or 7,2 km/t (6.5 ft/s or 4.4 mph)
Off-road wheel platform - Maximum load 200 kg (440.9 lb)
Off-road wheel platform - Wheels 200 mm (7.9 in)
Transmitter Digital RC, 2.4 GHz band
Range 1000 m (3000 ft)
Ambient temperature 5-40°C (41-104°F)
Duty cycle 50 % when running more than 60 min.
Motor speed 190 RPM / NO LOAD.
Shipping weight 30 kg (66.14 lb)
Weight 29 kg (63.9 lb)
Dimensions (L x W) 700 × 700 mm (27.56 x 27.56 in)


Type Name
pdf Manual_Remote Controlled Platform Series_.320 Download


DMX Compatible


All Wahlberg products are DMX compatible. Read more about DMX control.
