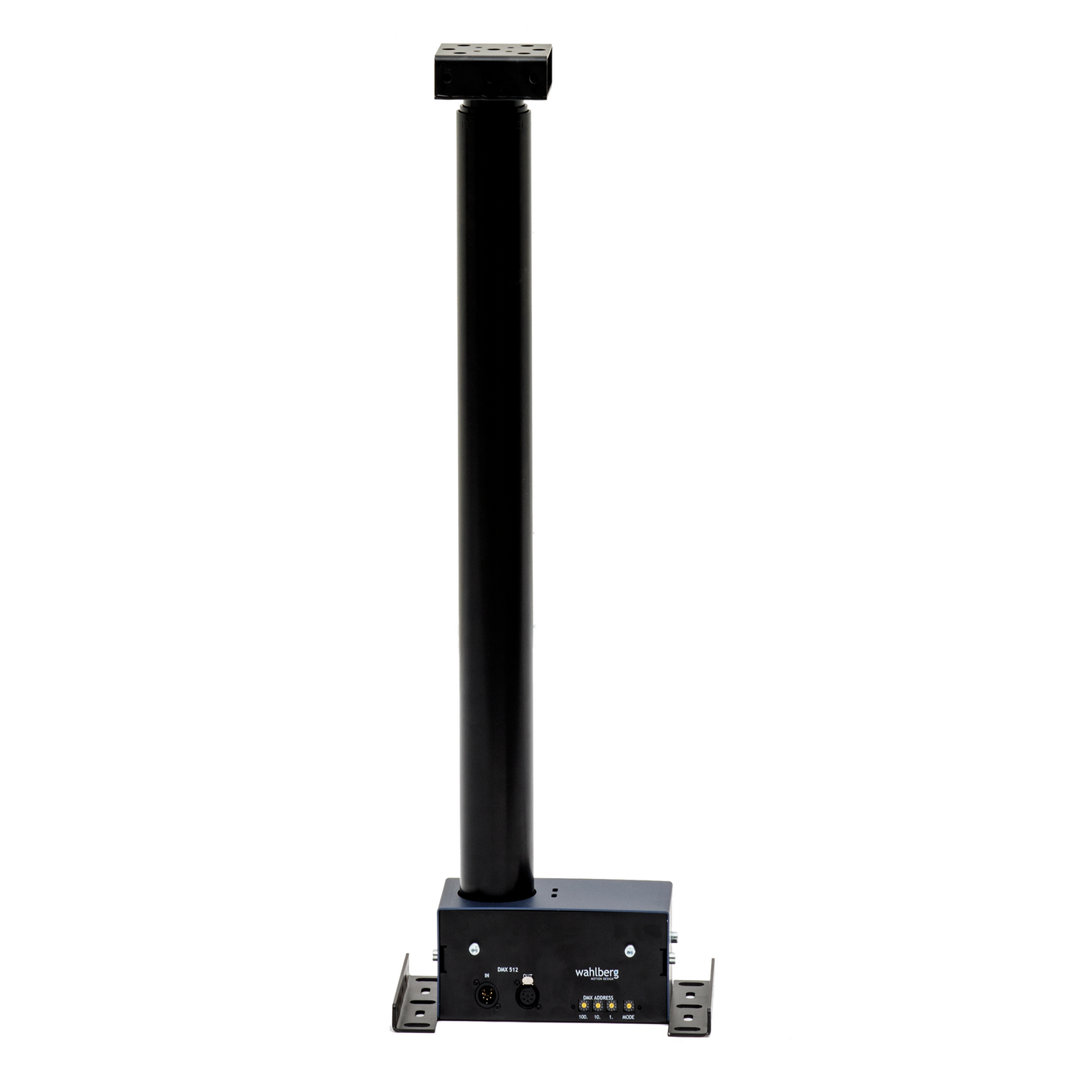

Lifting Column

Vertically lift stage equipment for elevating effects.

Lifting capacity - Pushing up: 60 kg (132.3 lb)
Lifting height: 97 cm (81-178 cm) (38.2 in (31.9-70.1 in))
Lifting speed: 0-5,5 cm/s (0-2.2 in/s)

The Lifting Column is a great tool for your stage design to elevate your stage props such as moving heads, lamps, light beams, cameras and much more.

It is great both for permanent stage setups, touring and other projects.

1.200,00 €
Rent this product

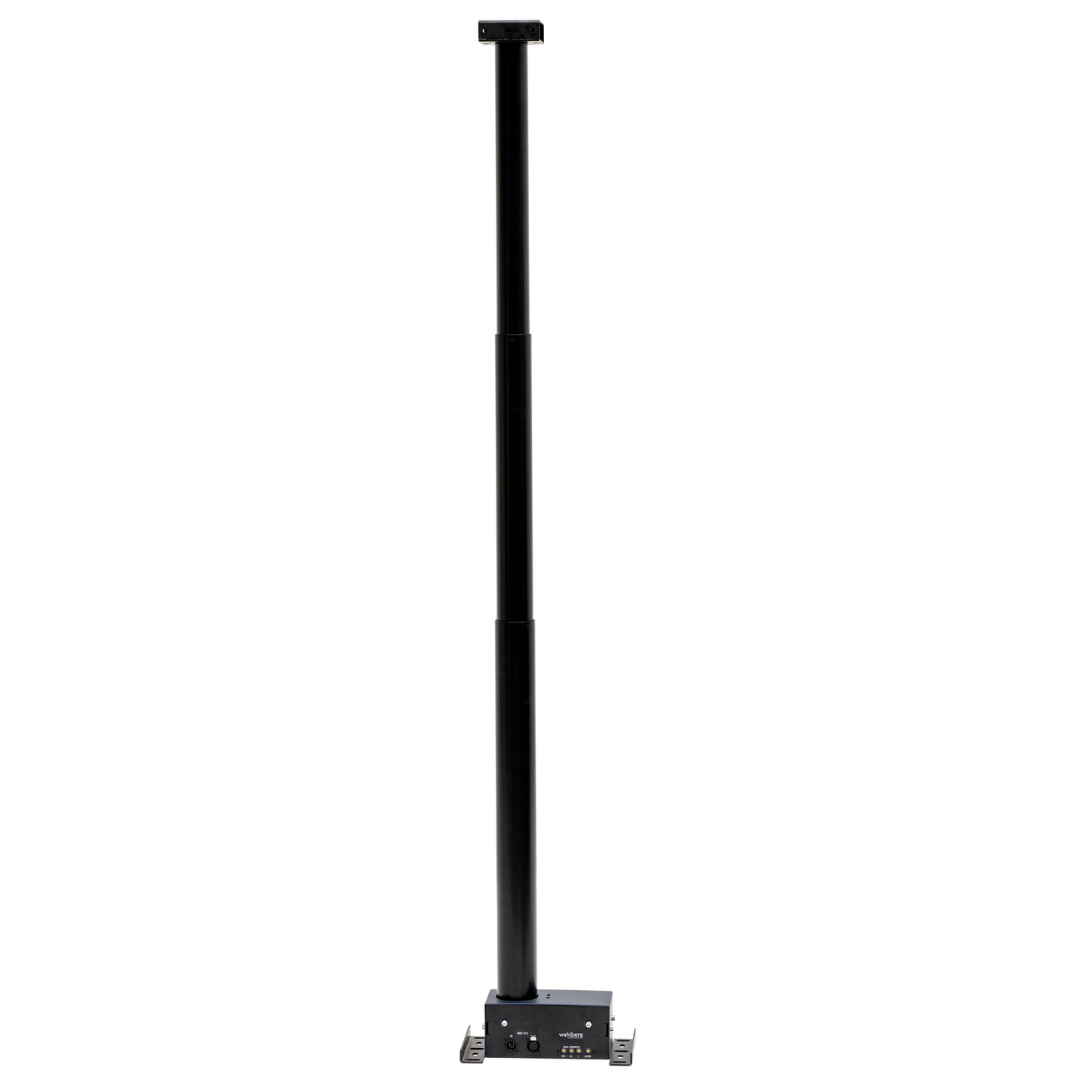

The Lifting Column is designed with an integrated DC Motor Controller. This is a great advantage because it is very easy to control since you can control everything directly from your lighting desk via DMX. It is a very compact design with an integrated guide and actuator pushing your equipment from 97 cm – from 81 cm up to 178 cm.

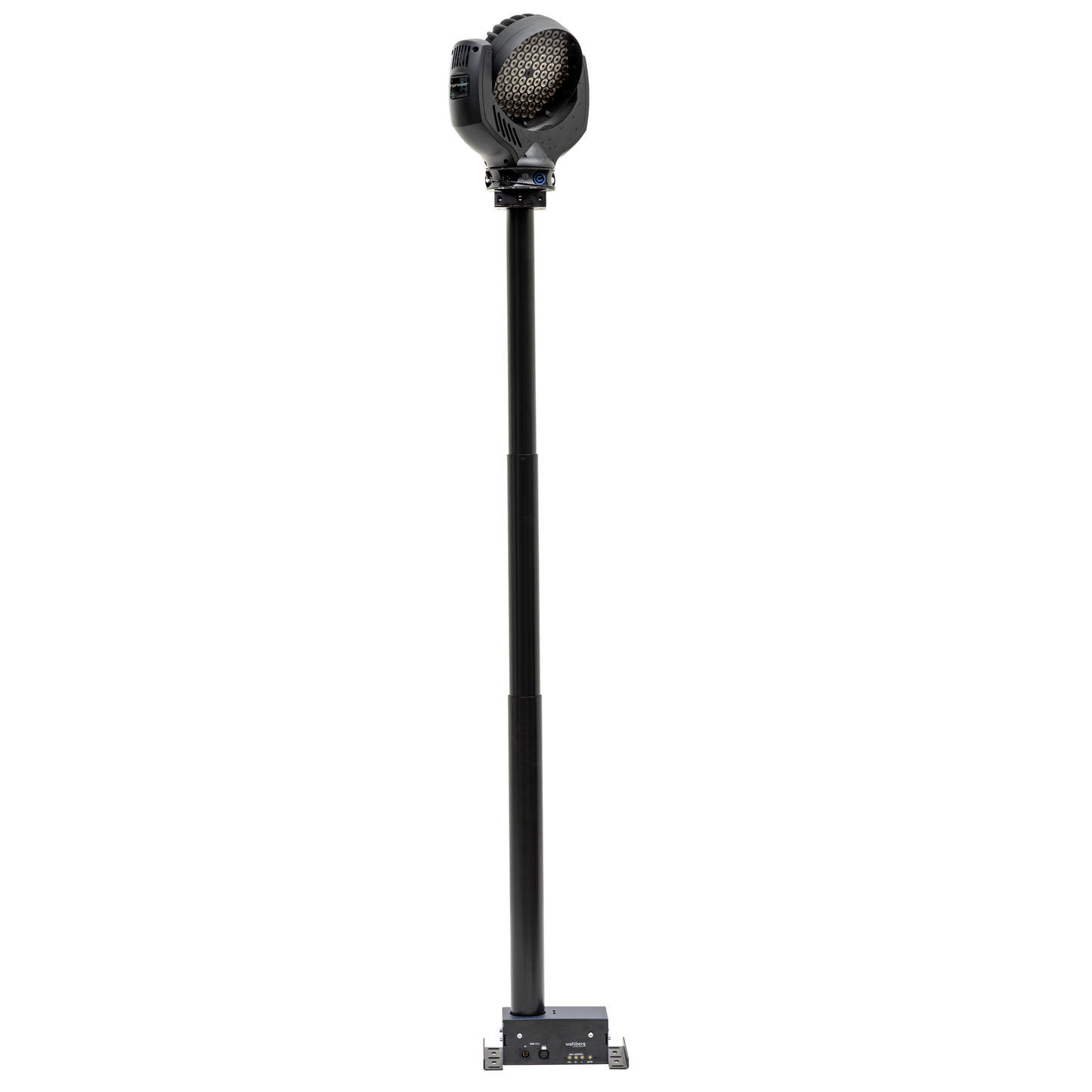

It is your simple elevation tool for lights, moving heads, props, platforms and other light items in concerts, shows or theater production.

You can control the Lifting Column with just 3 DMX channels. With these channels you can control both the positions, lifting speed and limits as well as reset functions.

It has highly accurate positioning control with the DMX control. Furthermore, it is easy to transport, so perfect for touring events and on-site productions.

Lifting Column – A Tool With Great Details

With up to 60 kilos of pushing capacity it makes your possibilities countless. You can use the Lifting Column for many purposes to make elevating effects for your stage equipment.

Additionally, it is also possible to mount the unit at different angles and push the equipment in different angles. For sideways mounting the load limit is 10 kilos.

There is no risk of rotation/twisting since the shaft is fixed. It has been reinforced with an optimized motor housing that is designed for extra strength and stability. In other words, your equipment is very stable both in still positions and while in motion.

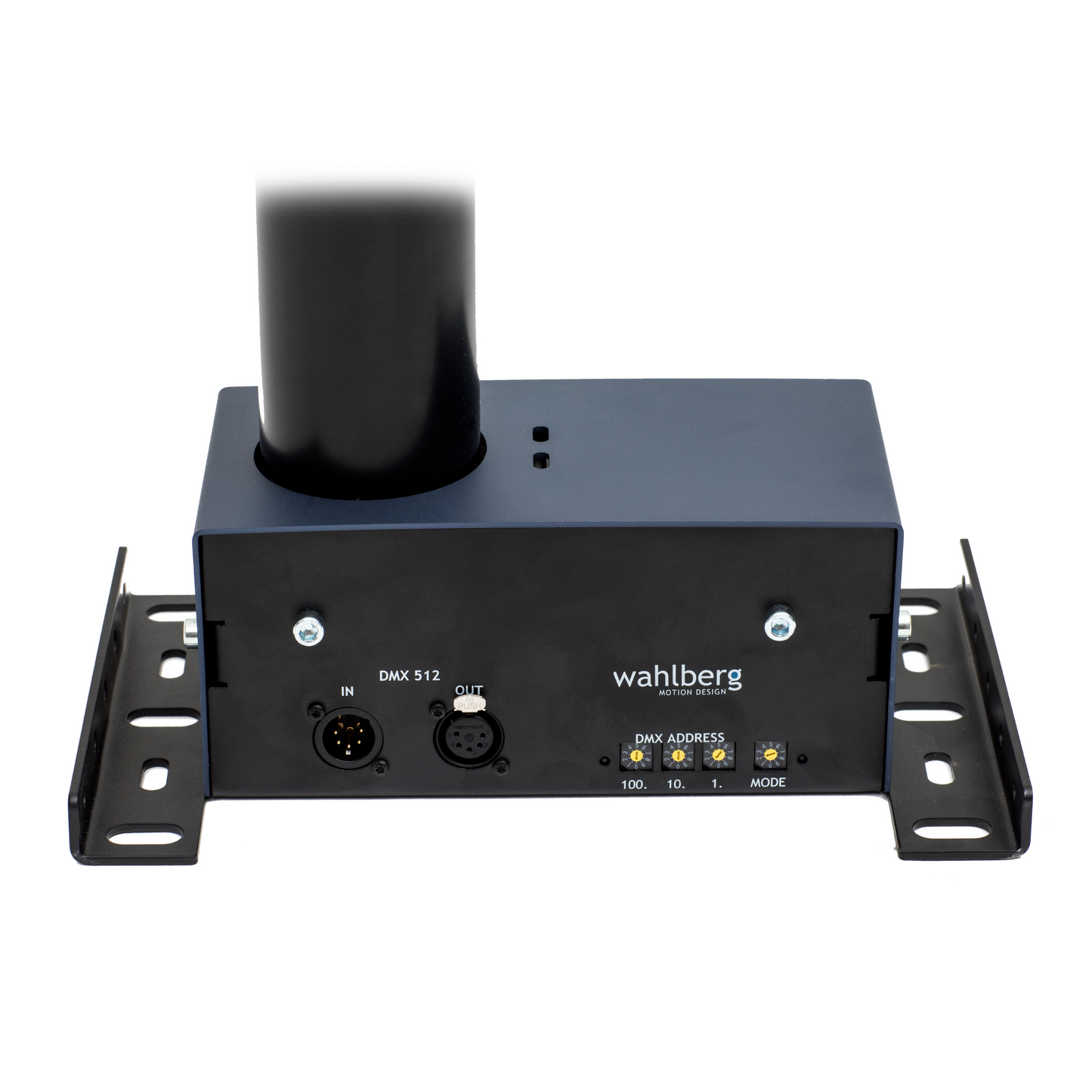

You can easily daisy chain several Lifting Columns with the power in-out and DMX in-Out. This allows you to create advanced and dynamic movements with 100’s of lifting columns working together in the same installation.


At Wahlberg, we prioritize customer satisfaction. We understand the frustration of having a product that isn't working as it should and don't believe in discarding a perfectly good product just because one part isn't functioning properly. That’s why we offer spare parts for all our products. So, whether you choose to send in your Wahlberg product for professional servicing or prefer DIY repairs, we're here to help. Just download our Exploded View drawings for guidance, and you'll have your product fixed in no time!

Contact us at if you can’t find the needed spare part on our website.

The content of the Lifting Column package

1 x Lifting Column

1 x Neutrik PowerCon NAC3FX-W female plug for power cable

1 x User manual

1 x Cheat sheet

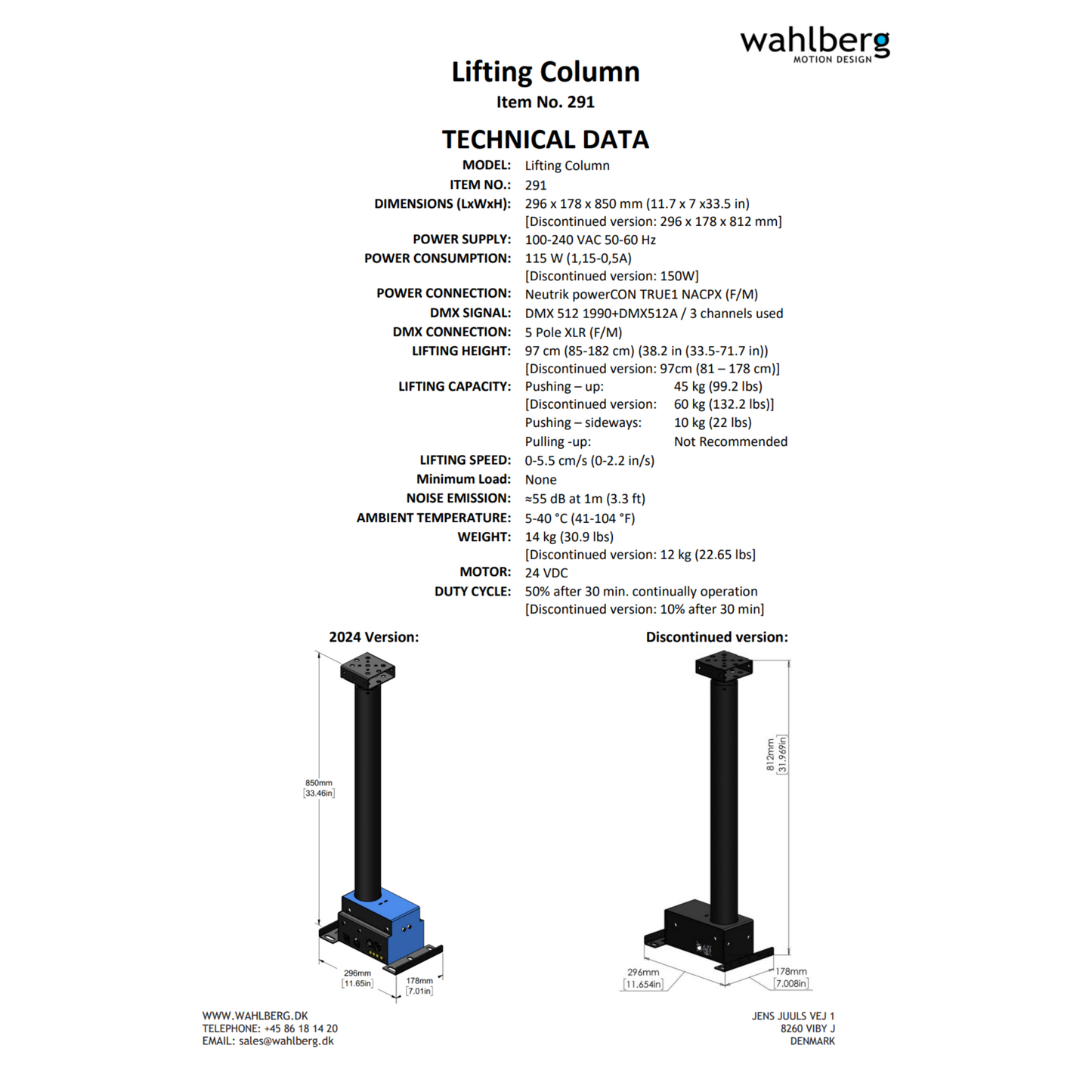

Technical Details

Item number .291
Lifting capacity - Pushing up 60 kg (132.3 lb)
Lifting capacity - Pushing sideways 10 kg (22 lb)
Lifting capacity - Pulling up Not recommended
Lifting height 97 cm (81-178 cm) (38.2 in (31.9-70.1 in))
Lifting speed 0-5,5 cm/s (0-2.2 in/s)
Voltage 100-240 VAC
Frequency 50-60 Hz
Power consumption 150 W (1,5-0,63A)
Power inlet Neutrik powerCON TRUE1 NACPX (F/M)
DMX control signal DMX 512 1990+DMX512A
DMX channels 6
DMX control connection 5 Pole XLR (F/M)
Noise emission ≈55 dB at 1 m (3.3 ft)
Ambient temperature 5-40 °C (41-104 °F)
Mounting clamp 4 x M12 Screw holes
Motor 24 VDC
Duty cycle 10-30 % depending on load and speed
Weight 12 kg (26.5 lb)

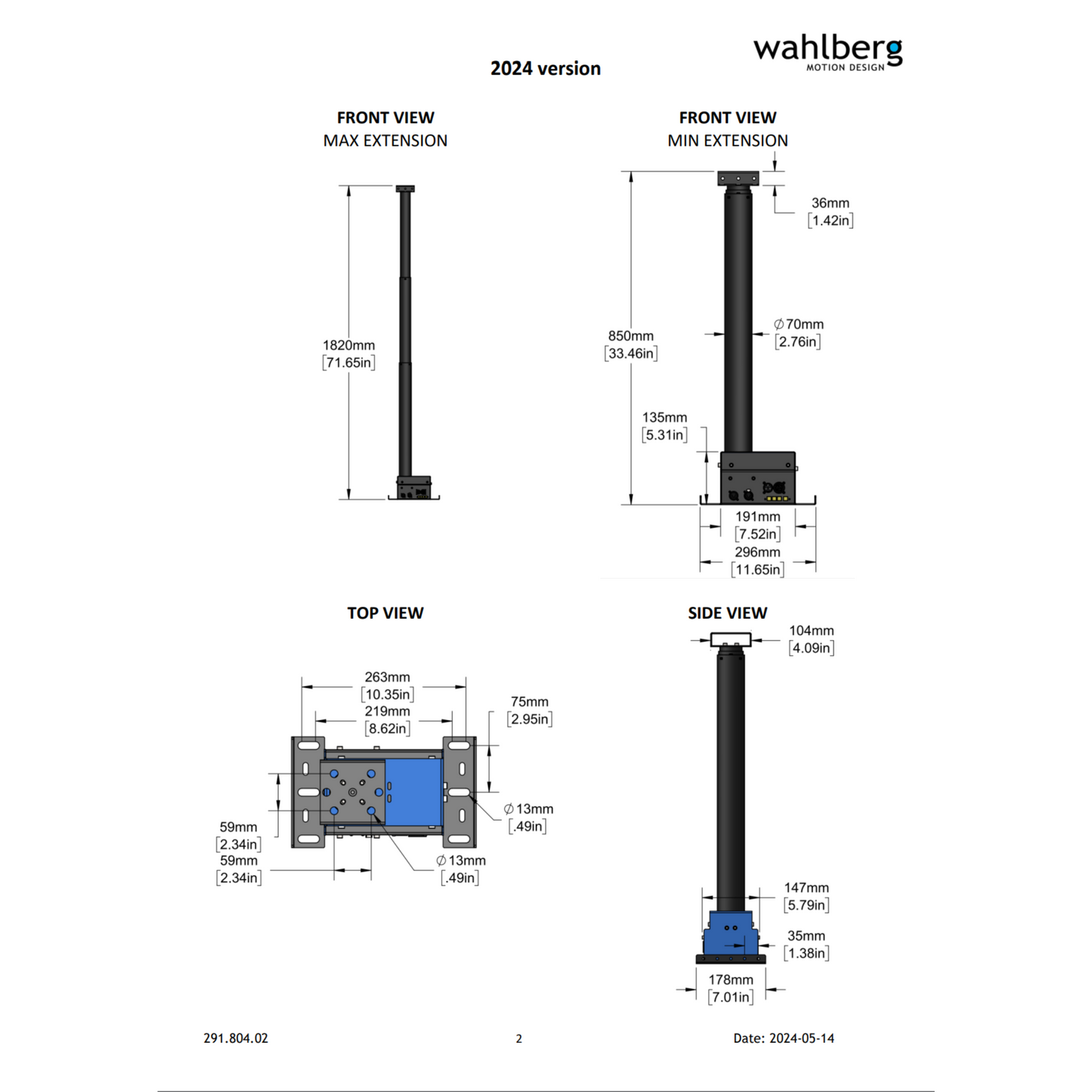

Dimensions 296 x 178 x 812 mm (11.7 x 7 x 32 in)


Type Name
pdf Cheatsheet_Lifting Column_.291 Download
pdf Manual_Lifting Column_.291 Download
pdf Datasheet_Lifting Column_.291 Download
xml Wahlberg@Lifting_Column@1,2,3 Download
3D STEP_Lifting Column_.291 Download
3D STEP_Lifting_Column_Contracted_.291 Download

DMX Compatible


All Wahlberg products are DMX compatible. Read more about DMX control.


Learn more about the technology behind

Wahlberg Motion Design is a creative company devoted to the creation, innovation and design of products to create automatic DMX effects of stage props and lights.


Read more about Wahlberg Motion Design here
