Advanced controlling of your mechanical movements of stage props.
| Power consumption: | 120 W |
| Motor: | DC motor 6-24 V Max 120W |
| DMX channels: | 5 |
The DC Motor Controller is an advanced tool for controlling mechanical movements generated by motors. Perfect for controlling mechanical movements of your stage objects.
All features are controlled from the lighting desk via the integrated DMX control. You have many feedback options: analog, tacho, limit switches and more. Easy to install and use.
Description
If you have a motor that generates movements for your stage equipment, the DC Motor Controller is a great product for controlling and automating these motors. It is an advanced tool for controlling mechanical movements generated by motors with a maximum power consumption of 3 amp.

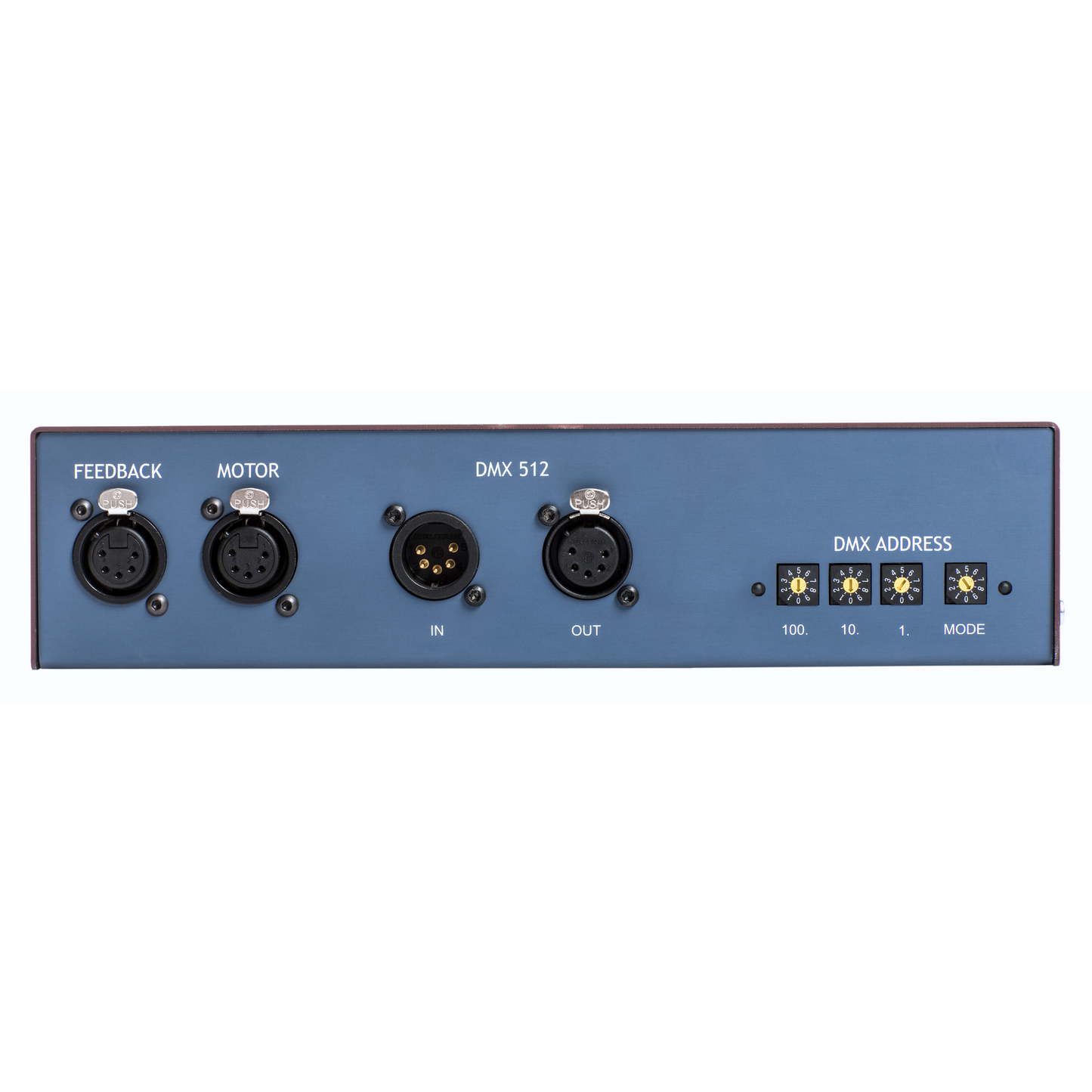

The DC Motor Controller can be connected to DMX with a 5 pole XLR male plug. This way you can control the direction, speed and positioning from the lighting desk. You only need to connect the DC Motor as well as DMX control board (such as lighting desk or another separate controller).
Control mechanical movements with the DC Motor Controller
With simple programming you can adjust all movements individually.
It is perfect for controlling mechanical movements, made with a DC Motor Unit. The movements can either be done using this DC Motor Controller, or you can further connect the unit to a separate controller via DMX. Afterwards you can then control the features directly from your lighting desk.
Perfectly suited for theatres, venues etc. that needs to move equipment on stage and be able to control these movements easily and effectively.
There are many feedback options available such as: Analog, tacho, limit switches, etc.
Many products in the Wahlberg Motion Design product range are connected via the DC Motor Controller for full DMX control. An example of such is the Lifting Column.
The content of the DC Motor Controller package
1 x DC Motor Controller
1 x PowerCON TRUE1 female plug
Spare parts
At Wahlberg, we prioritize customer satisfaction. We understand the frustration of having a product that isn't working as it should and don't believe in discarding a perfectly good product just because one part isn't functioning properly. That’s why we offer spare parts for all our products. So, whether you choose to send in your Wahlberg product for professional servicing or prefer DIY repairs, we're here to help. Just download our Exploded View drawings for guidance, and you'll have your product fixed in no time!
Contact us at sales@wahlberg.dk if you can’t find the needed spare part on our website.

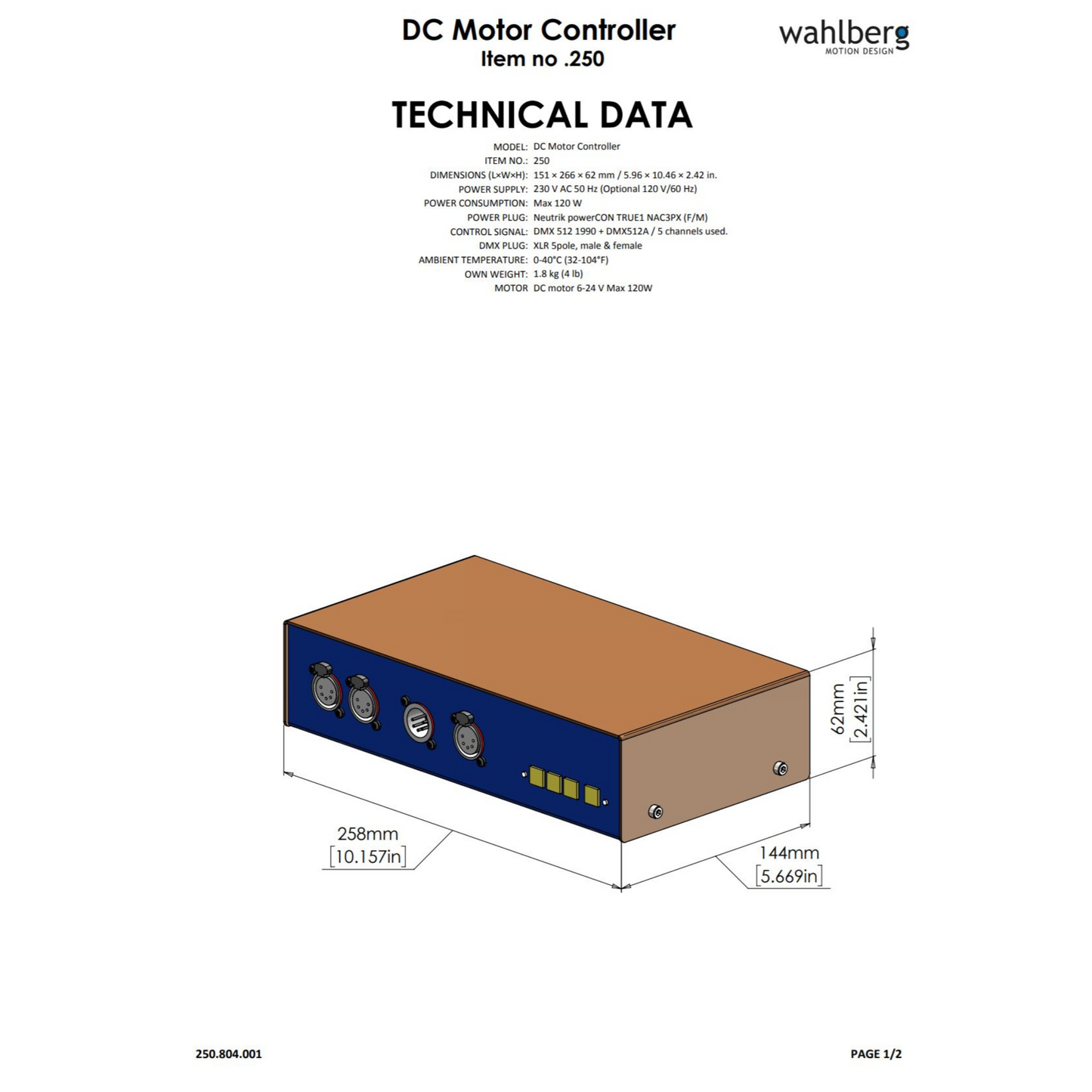

Specifications
| Item number | .250 |
|---|---|
| Power supply | 230 V AC |
| Power consumption | 120 W |
| Power inlet/outlet | |
| Motor | DC motor 6-24 V Max 120W |
| DMX control signal | DMX 512 |
| DMX connection | |
| DMX channels | 5 |
| DMX plugs | XLR 5 pole Male & Female |
| Duty cycle | |
| Ambient temperature | 0-40 °C |
| Shipping weight | |
| Shipping dimensions | |
| Weight | 1,8 kg (4 lb) |

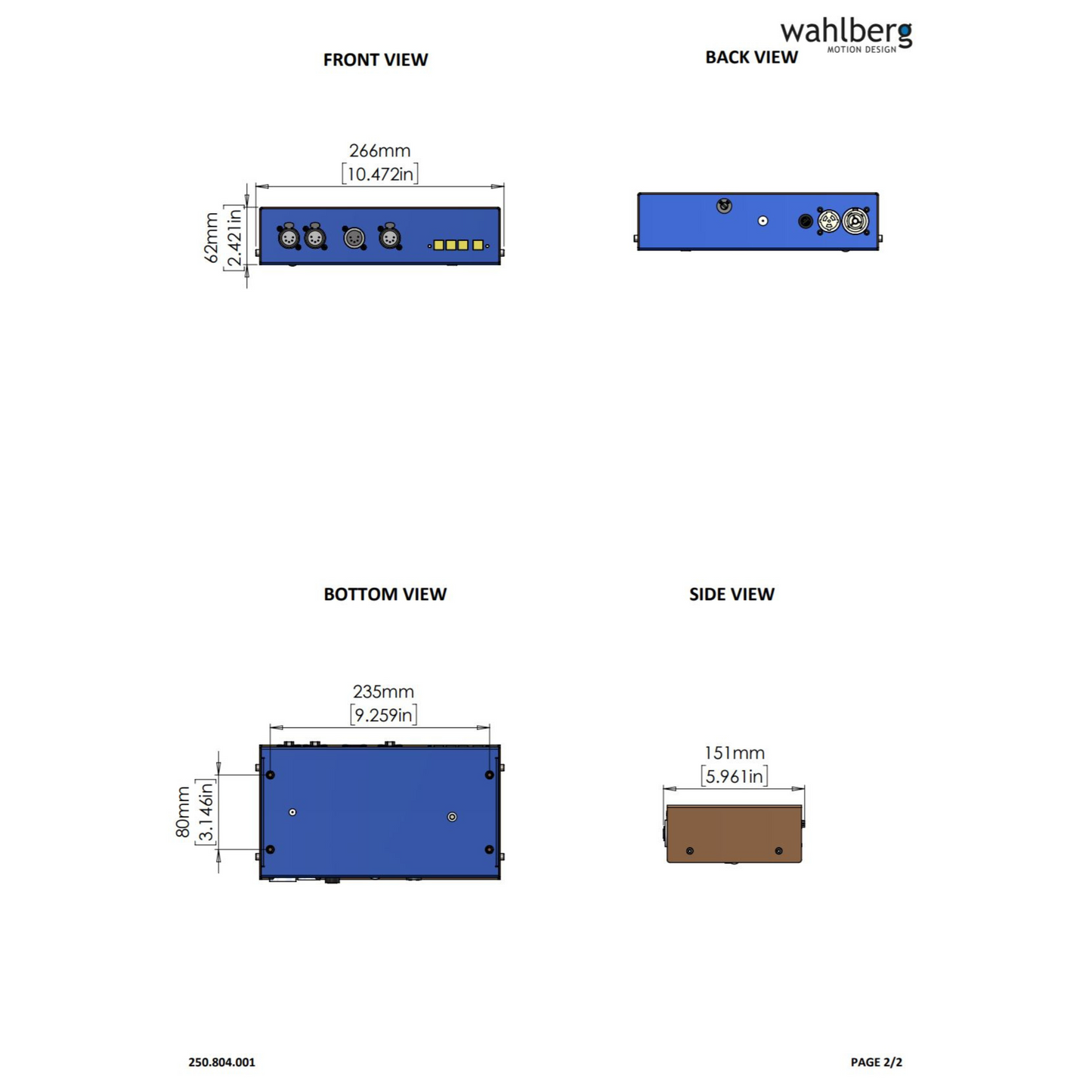

| Dimensions | 260 x 145 x 60 mm (10.2 x 5.7 x 2.3 in) |
