Winch 50 Double + Power and Cat5

Lift heavy objects and control while lifting thanks to integrated Cat5 cable.

Lifting capacity:	50 kg (110.2 lb)
Lifting height:	12,5 m (41 ft)
Lifting speed:	3-84 cm/s (1.2-33.1 in/s)
Ethernet:	100 Mbit/s (two twisted pairs)
Minimum load:	3,5kg (7.72 lb)

Heavy lifting of objects up to 50 kilos. Double wire lifting for increased stability.

Integrated Cat5 cable makes it perfectly suited for high-end lasers, LED screens, moving heads etc.

7.700,00 €

Rent this product

Description

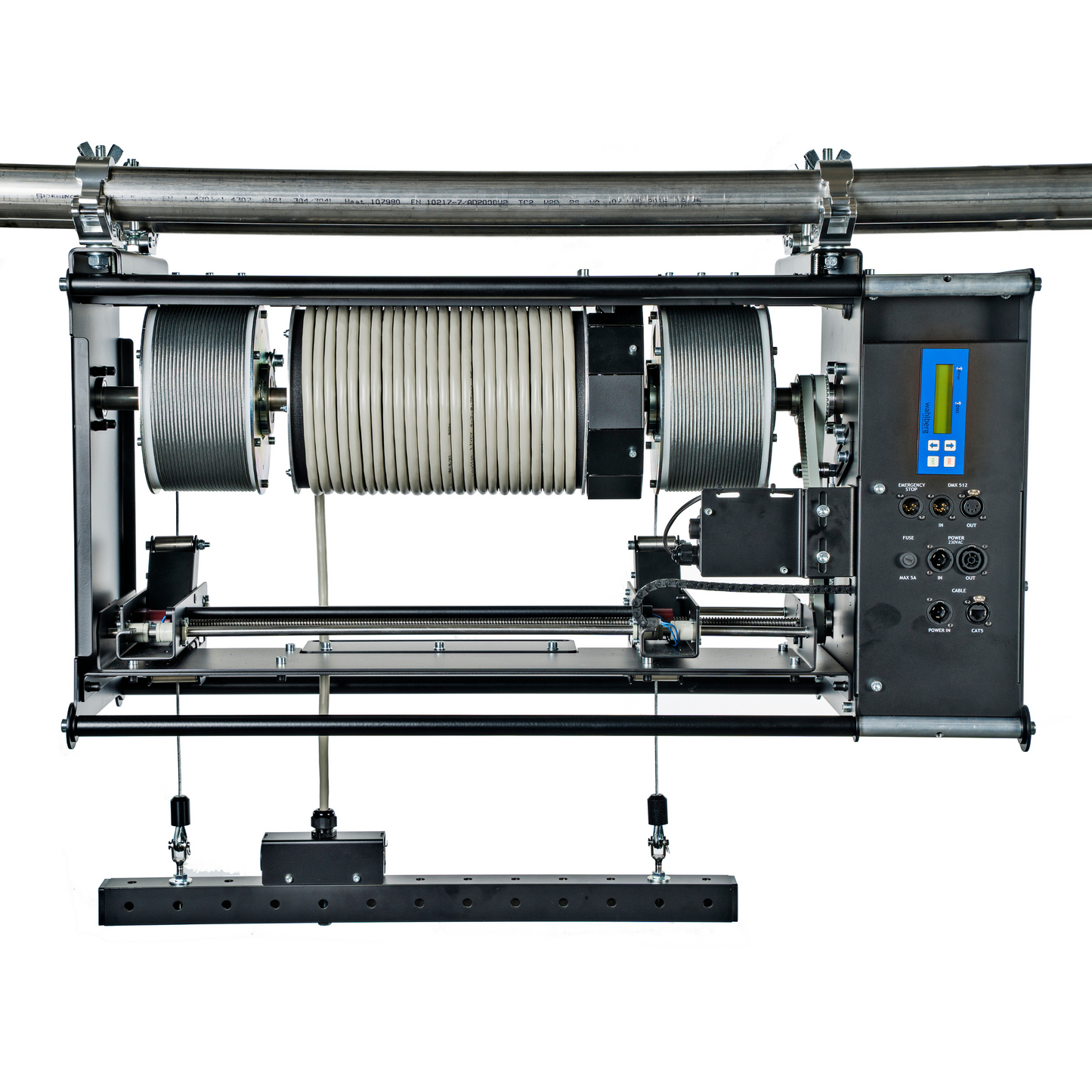

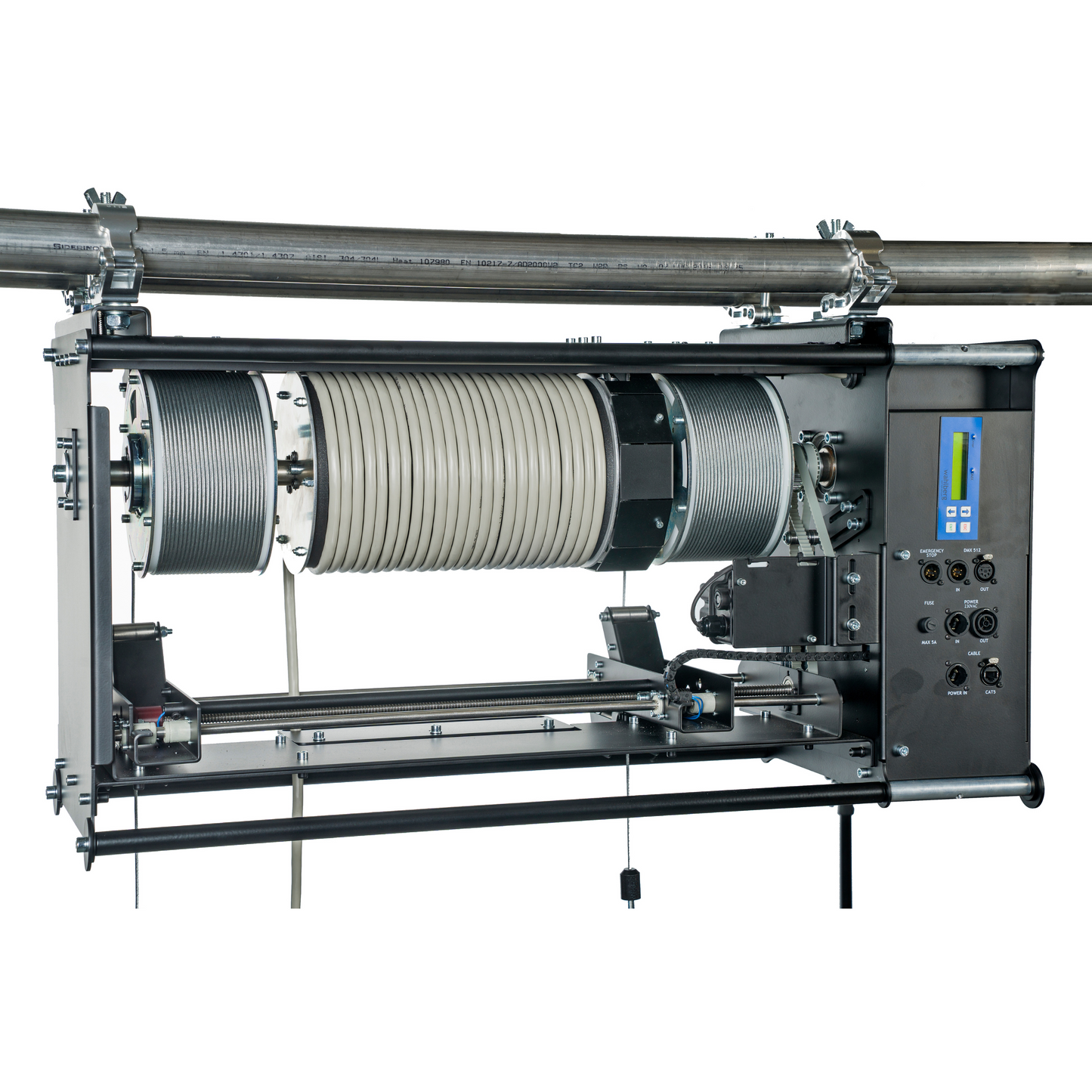

The Winch 50 Double + Power and Cat5 is a double wire winch ideal for lifting high-end lasers, LED screens and moving heads. The two wires make sure the object doesn’t spin and is lifted smoothly.

It has up to 2300 Watts power output and 100 Mbit/s cat 5 performance, all integrated in a cable running between the two lifting wires.

All parameters are controlled via DMX from a lighting desk and its 16-bit positioning system, makes it possible to program the winch down to the millimeter.

Spareparts

At Wahlberg, we prioritize customer satisfaction. We understand the frustration of having a product that isn't working as it should and don't believe in discarding a perfectly good product just because one part isn't functioning properly. That’s why we offer spare parts for all our products. So, whether you choose to send in your Wahlberg product for professional servicing or prefer DIY repairs, we're here to help. Just download our Exploded View drawings for guidance, and you'll have your product fixed in no time!

The content of the Winch 50 Double + Power and Cat5 package

1 x Winch 50 Double + Power and Cat5

4 x Manfrotto Slim coupler

1 x User manual

1 x Cheat Sheet

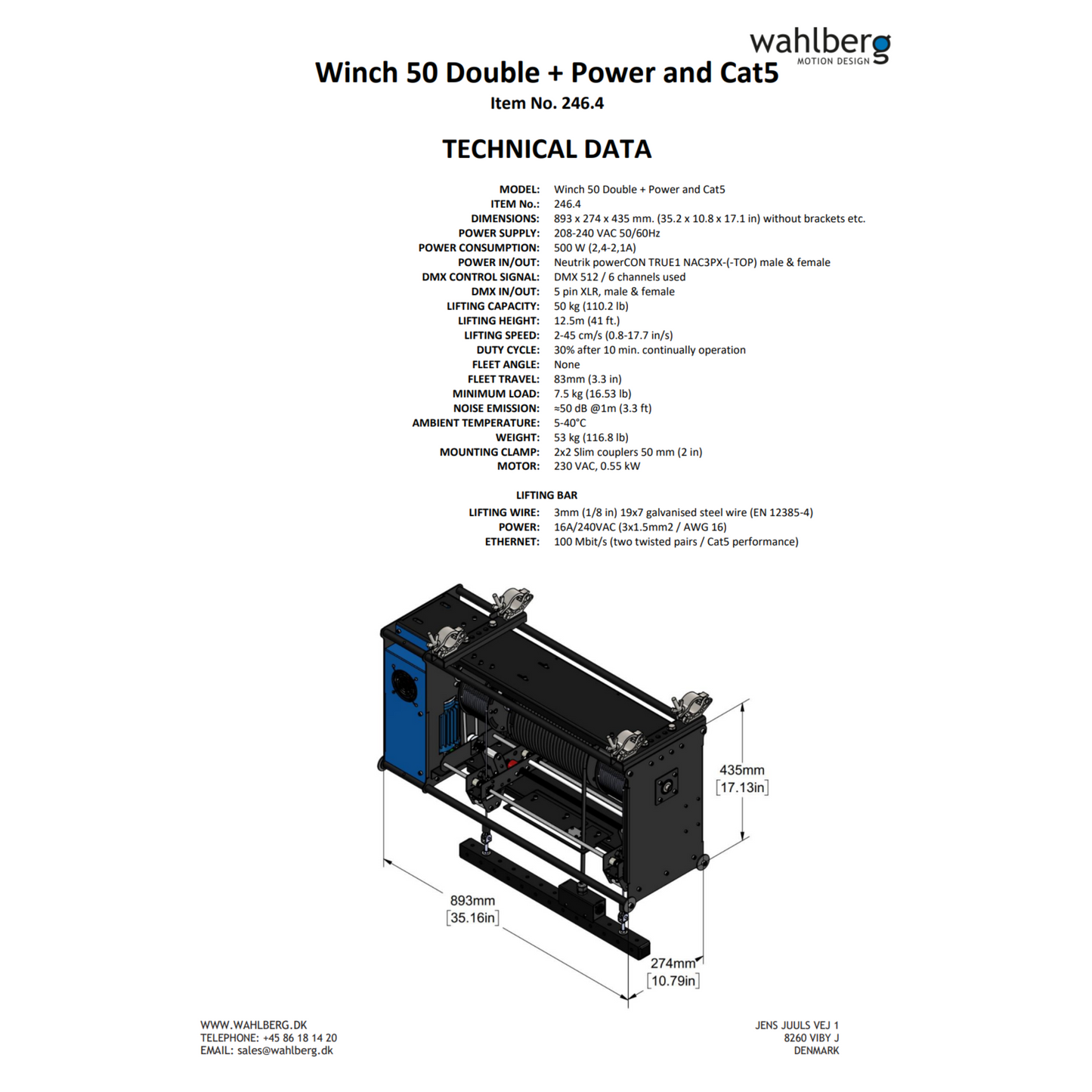

Technical Details
Item number	.246.704
Lifting capacity	50 kg (110.2 lb)
Lifting height	12,5 m (41 ft)
Lifting speed	3-84 cm/s (1.2-33.1 in/s)
Through Connection - Input	Neutrik powerCON TRUE1 & EtherCON (F)
Through Connection - Output	Neutrik powerCON TRUE1 & EtherCON (M)
Through Connection - Power	16A/240VAC 2x1.5mm2 (AWG 16)
Through Connection - Signal	Two twisted pairs Cat5 (100 Mbit/s)
Ethernet	100 Mbit/s (two twisted pairs)
Voltage	208-240V/AC 50-60 Hz
Frequency	50-60 Hz
Power consumption	825 W (4,0-3,5A)
Power inlet	Neutrik powerCON TRUE1 NAC3PX-TOP (F/M)
DMX control signal	DMX 512 1990 + DMX512A
DMX channels	6
DMX control connection	5 Pole XLR (F/M)
Snap hook	2x8 mm (5/16 in) galvanized steel w/Bar 652 mm (25.2 in)
Fleet angle	None
Fleet travel	80 mm (3.1 in)
Minimum load	3,5kg (7.72 lb)
Noise emission	≈50 dB at 1m (3.3 ft)
Ambient temperature	5-40 °C (41-104 °F)
Mounting clamp	4 x Slim eye coupler 42-52 mm (2 in)
Motor	230 VAC, 0.55 kW
Duty cycle	30 % when running more than 10 min.
Lifting wire	3 mm (1/8 in) 19x7 galv. steel wire (EN 12385-4)
Minimum wire breaking load	590 kg (5786 N / 1301 lb)
Wire safety factor	>10
Expected wire lifetime - 10 kg (22 lb) load	Pending
Expected wire lifetime - 20 kg (44.1 lb) load	Pending
Expected wire lifetime - 40 kg (88.2 lb) load	Pending
Shipping weight	55 kg (121.2 lb)
Weight	52 kg (114.6 lb)

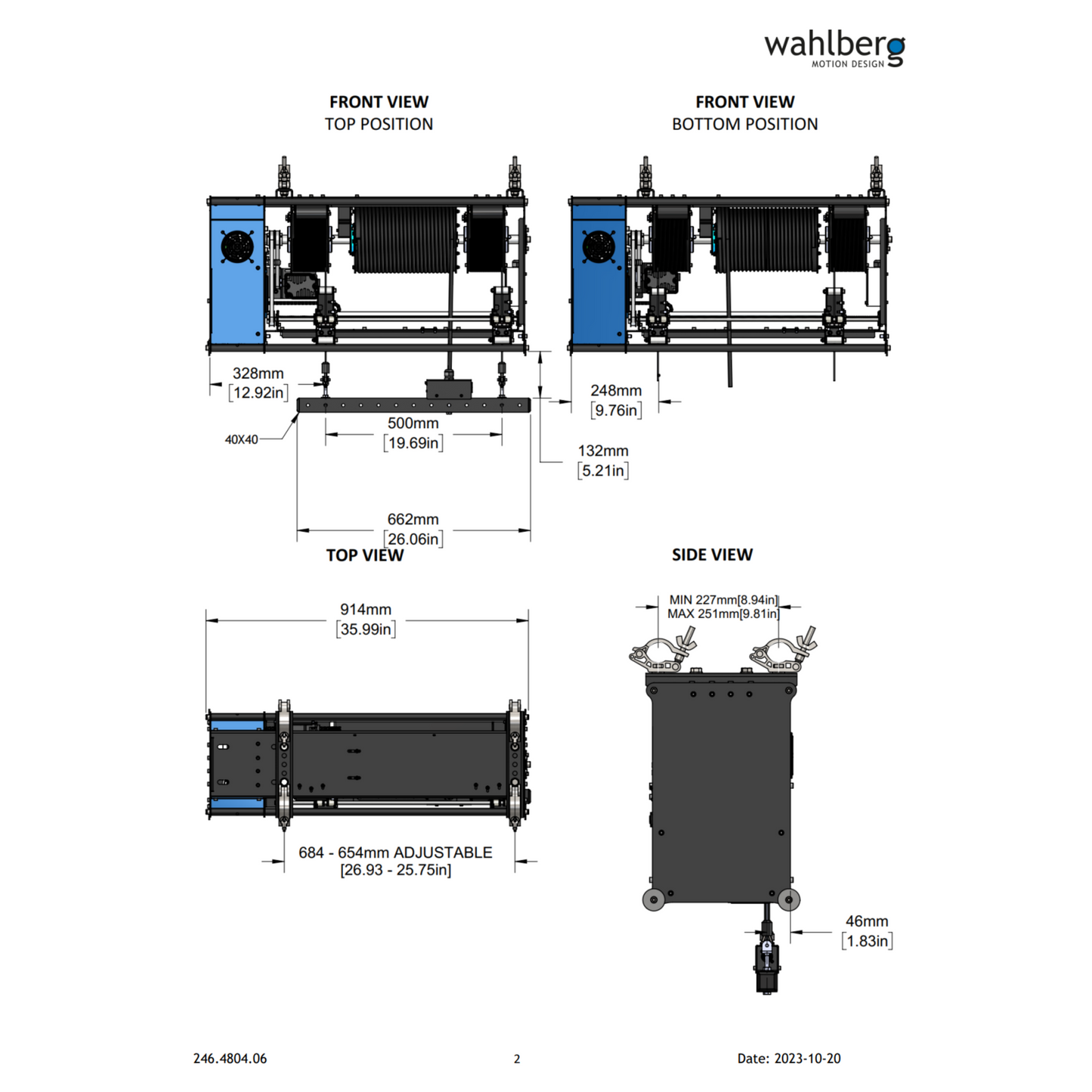

Dimensions	893 x 274 x 455 mm (35.2 x 10.8 x17.9 in)
