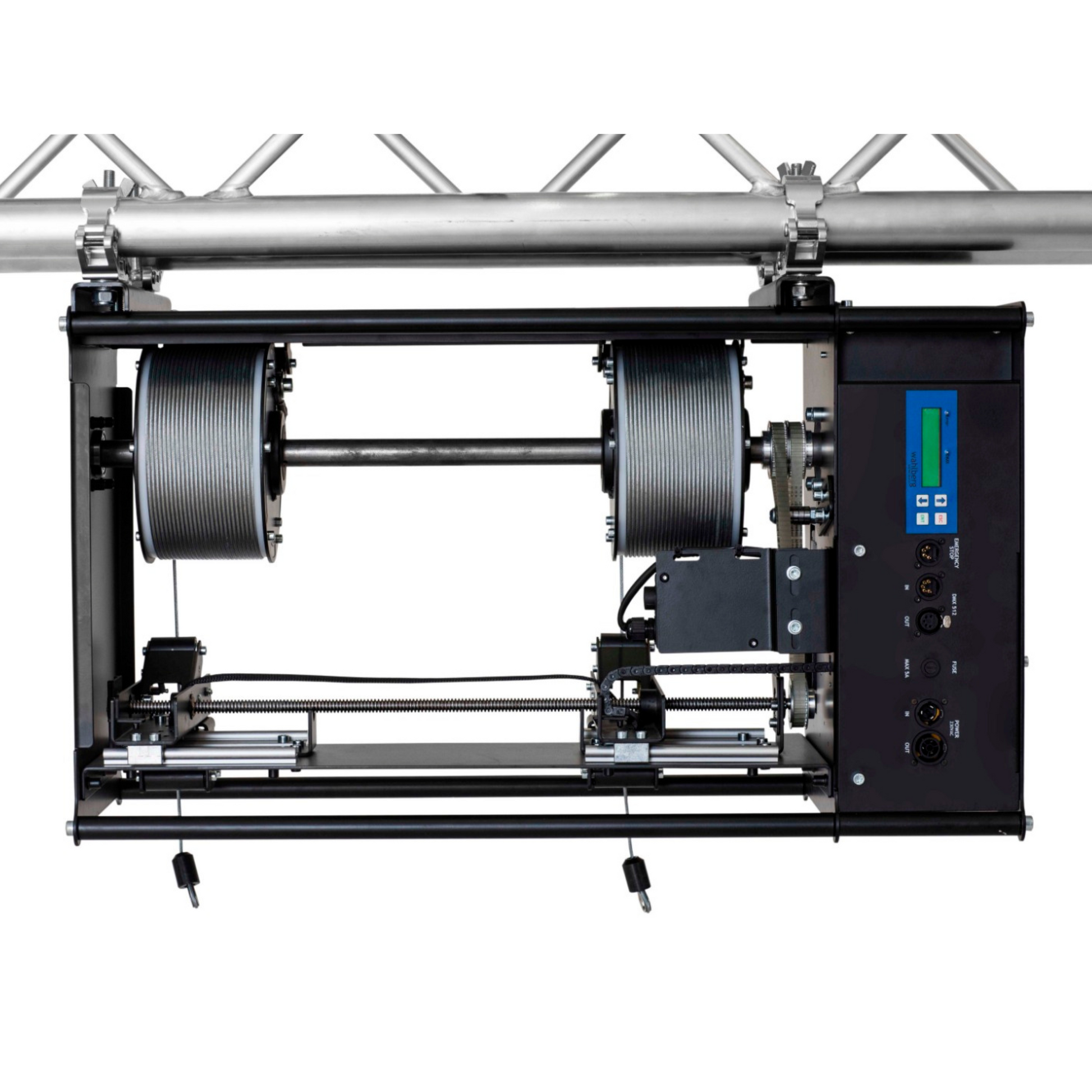

Winch 50 Double

A double-wire stage winch for heavy rigging. Lift up to 50 kg in and out of the stage area.

Lifting capacity: 50 kg (110.2 lb)
Lifting height: 12,5 m (41 ft)
Lifting speed: 9-45 cm/s (3.5-17.7 in/s)

The double wire secures extra stability of the objects, so they don’t rotate. You can easily control all movements of the winch with the integrated DMX control.

6.050,00 €
Rent this product


This is a double-wire winch for vertical lifting of your stage items. The Winch 50 Double has been widely used to be used by theatres, shows and concerts all over the world. The heavy load capacity of up to 50 kg creates endless opportunities to apply the winch for various occasions and shows, as well as the two-wire system secures your objects while being lifted.

You can lift stage props in and out of the stage sphere by lifting your objects vertically. The Winch 50 Double makes it possible to create moving effects for almost any stage prop. The double-wire system secures a stable and steady lifting of your objects.

Features of Winch 50 Double

The Winch 50 double is built with a control system that ensures that the motor is only powered when the control signal is reliable as well as the position and speed control is on. The motor position is calculated with a PID regulator which calculates the motor speed and distance.

The load is mounted at two fixing points with a wire spacing of 40 cm which means that the equipment is securely mounted.

Our Winch 50 Double is applicable in most venues thanks to the lifting height of 12,5 m. You can easily set the top and bottom limits, so it fits exactly the dimensions of your area of use. This way you can operate the winch within any range of the 12,5 m.

The lifting speed is between 9 cm/s and 45 cm/s depending on the total weight of load mounted to the operating Winch 50 Double.

You can easily connect the winches as a chain allowing for advanced and creative ways of making dynamic movements of larger objects that needs further fixing points for extra stability.

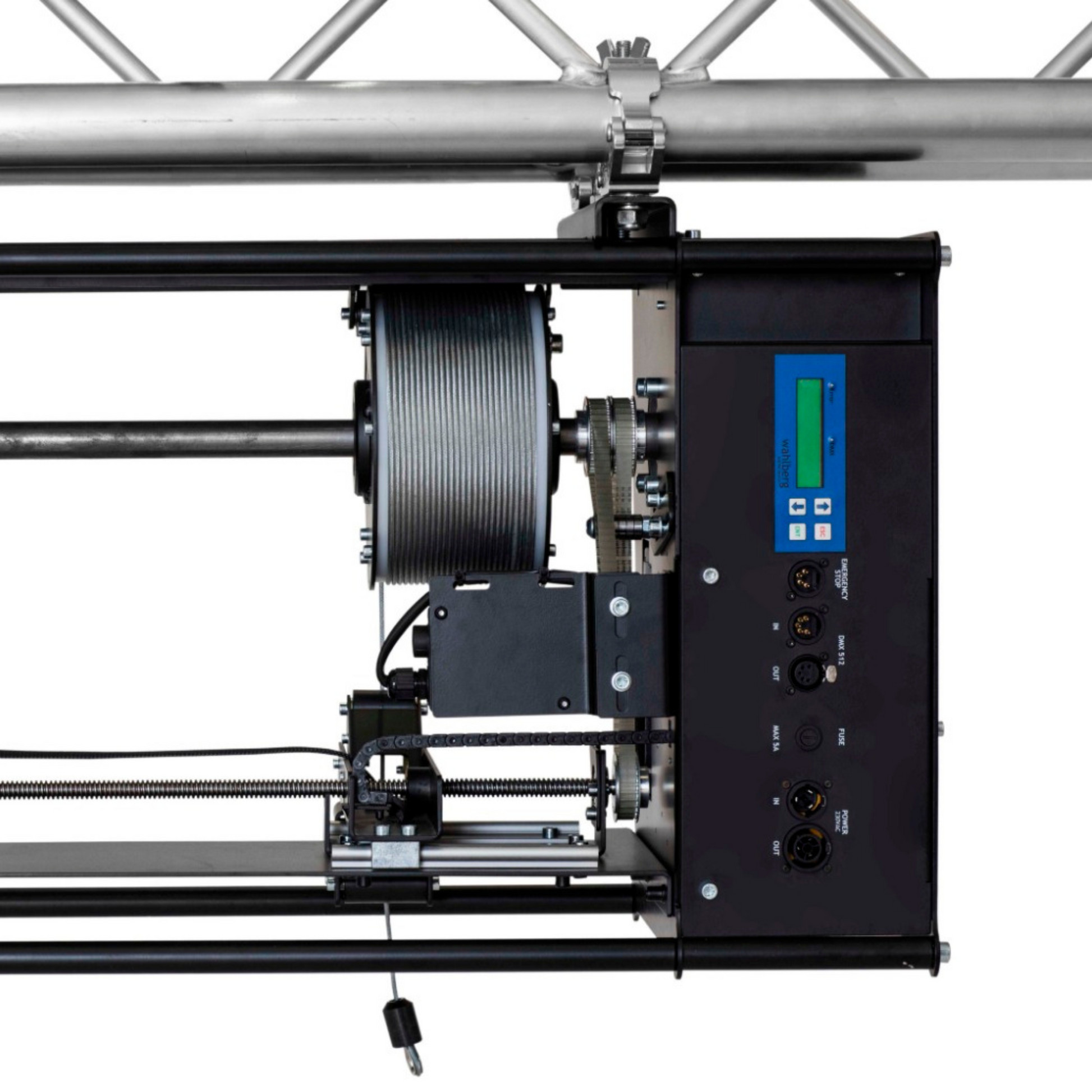

It is easy to control the Winch 50 Double via the built-in DMX control system. This way you can control movements, speed and positions via your lighting desk. The moving effects of your heavy and large stage props becomes much easier. Make sure to also check out the full range of our stage winches here.

The content of the Winch 50 Double package

1 x Winch 50 Double

4 x Manfrotto Slim coupler

1 x PowerCon NAC3FX-W female plug for power cable

1 x PowerCon NAC3FX-W female plug for lifting wire power

1 x User manual

1 x Cheat Sheet

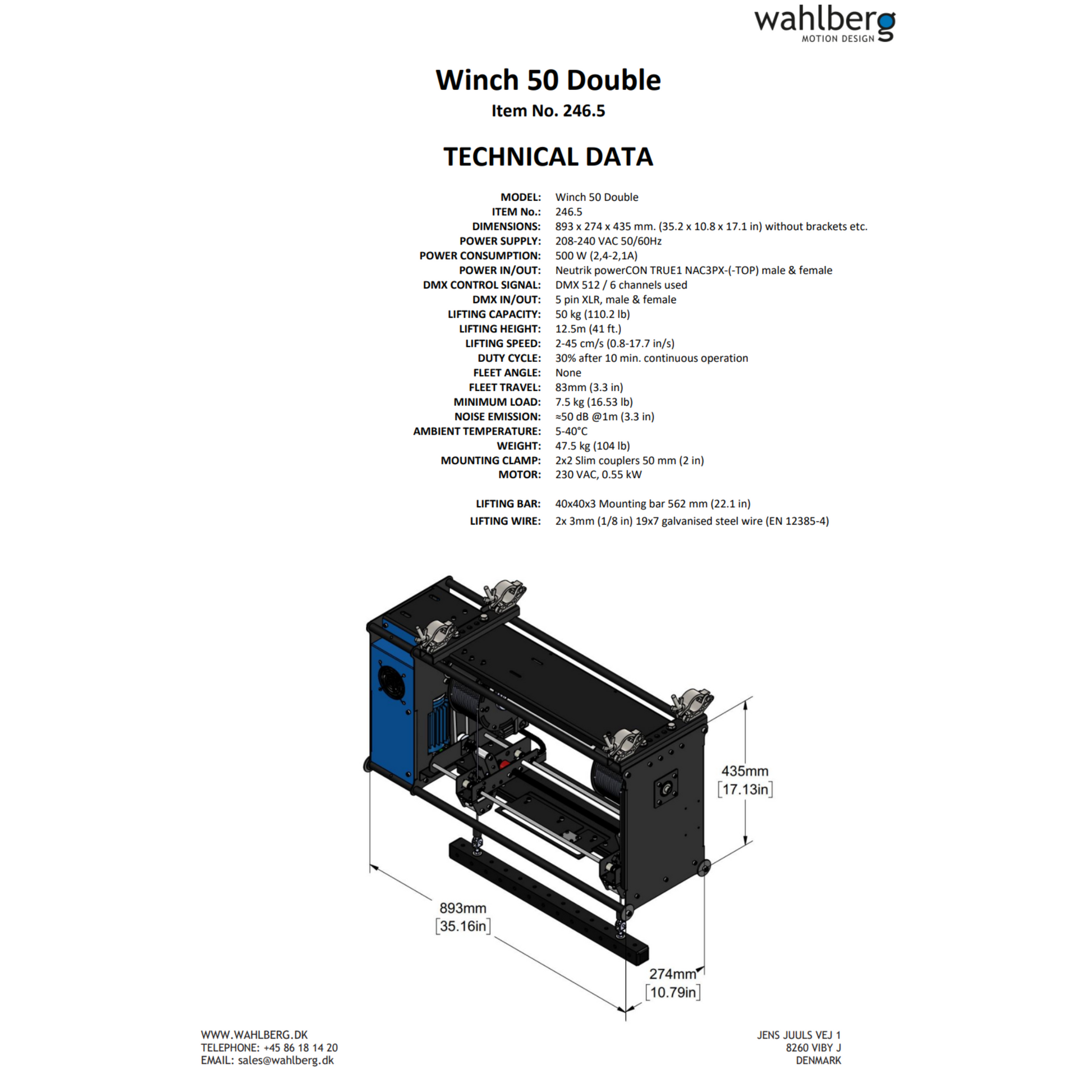

Technical Details

Item number .246
Lifting capacity 50 kg (110.2 lb)
Lifting height 12,5 m (41 ft)
Lifting speed 9-45 cm/s (3.5-17.7 in/s)
Voltage 208-240 VAC
Frequency 50-60 Hz
Power consumption 500 W (2,4-2,1 A)
Power inlet Neutrik powerCON TRUE1 NACPX (F/M)
DMX control signal DMX 512 1990+DMX512A
DMX channels 6
DMX control connection 5 Pole XLR (F/M)
Snap hook 2x8 mm (5/16 in) galvanized steel w/Bar 512 mm (20.2 in)
Fleet angle None
Fleet travel 83 mm (3.3 in)
Minimum load 5 kg (11.02 lb)
Noise emission ≈50 dB at 1 m (3.3 ft)
Ambient temperature 5-40 °C (41-104 °F)
Mounting clamp 4 x Slim eye coupler 42-52 mm (2 in)
Motor 230 VAC, 0.55 kW
Duty cycle 30 % when running more than 10 min.
Lifting wire 3 mm (1/8 in) 19x7 galv. steel wire (EN 12385-4)
Minimum wire breaking load 588 kg (5766 N / 1296 lb)
Wire safety factor >10
Expected wire lifetime - 10 kg (22 lb) load Pending
Expected wire lifetime - 20 kg (44.1 lb) load Pending
Expected wire lifetime - 40 kg (88.2 lb) load Pending
Shipping weight 48 kg (105.8 lb)
Weight 45 kg (99.2 lb)

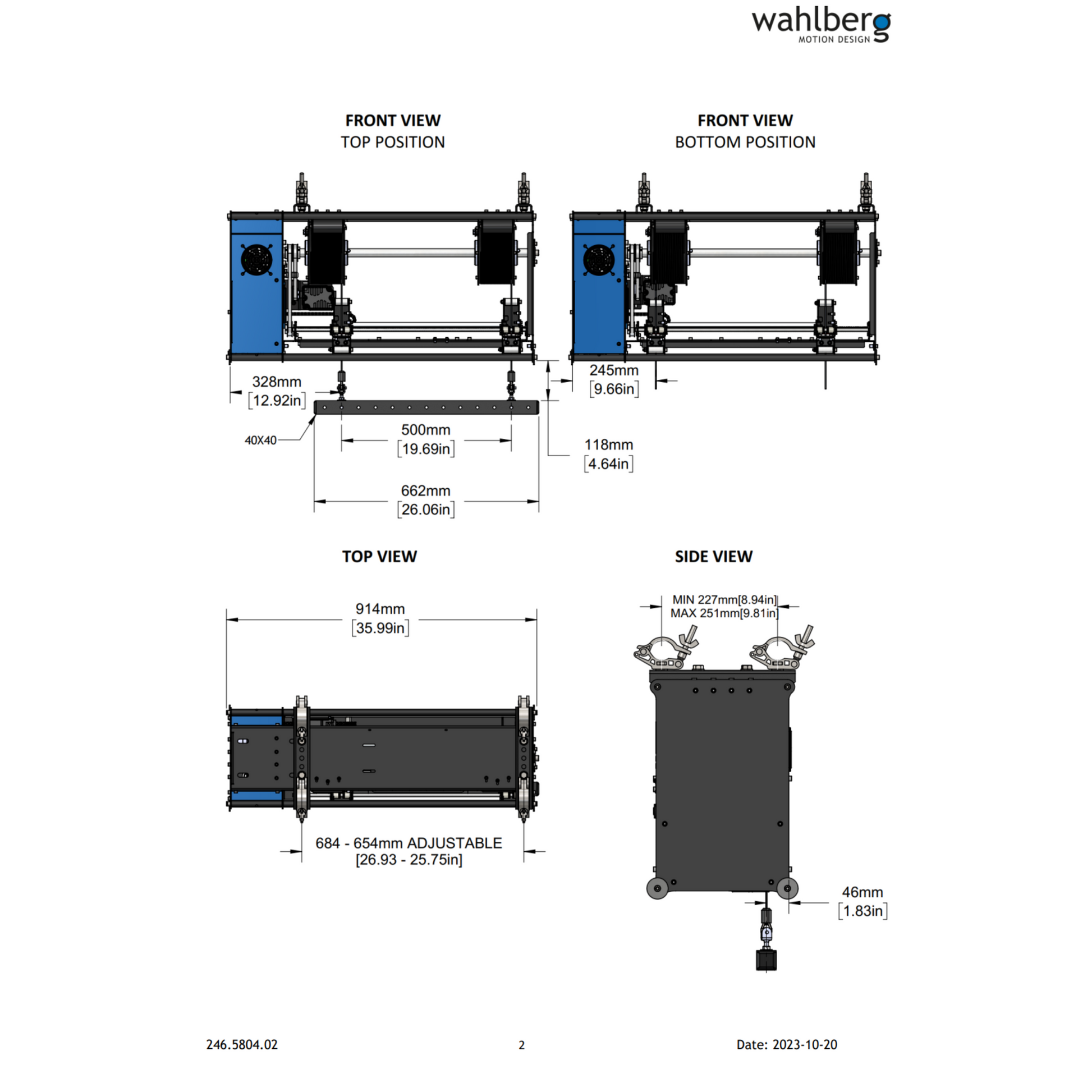

Dimensions 797 x 298 x 445 mm (31.4 x 11.7 x 17.5 in)


Type Name
pdf Cheatsheet_Winch 50 Double_.246 Download
pdf Manual_Winch 50 Double_.246 Download
pdf Datasheet_Winch 50 Double_.246 Download
3d STEP_Winch 50 Double_.246 Download
