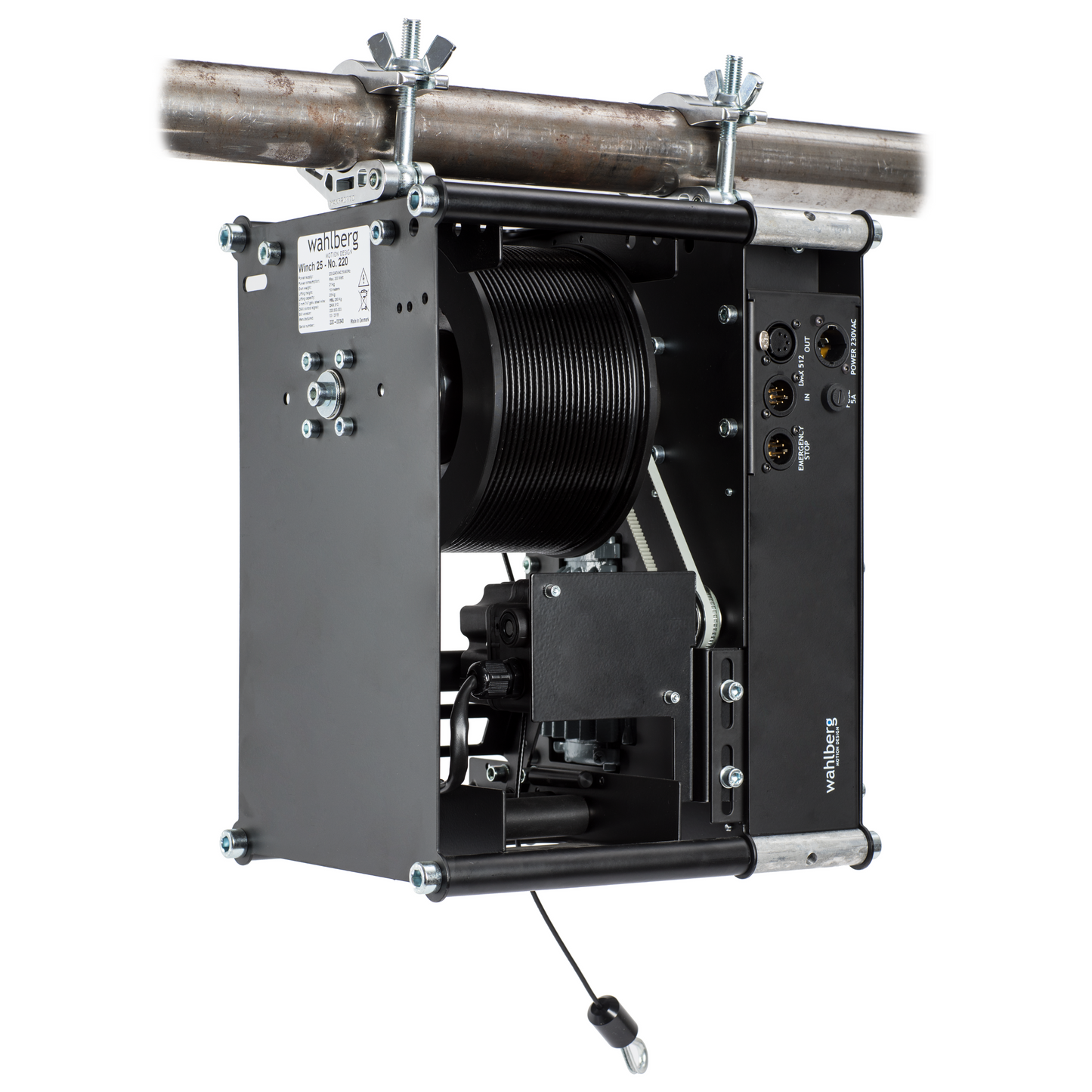

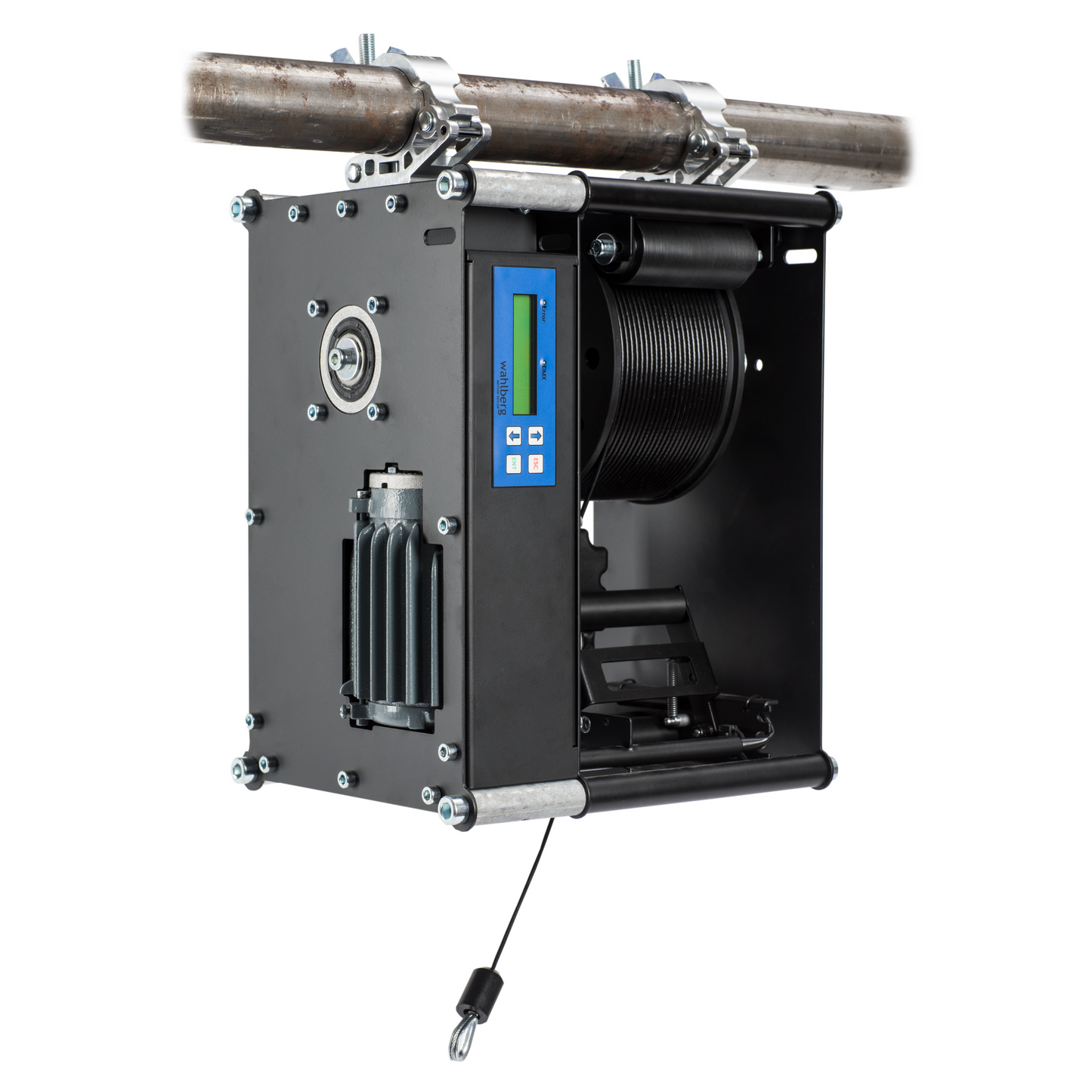

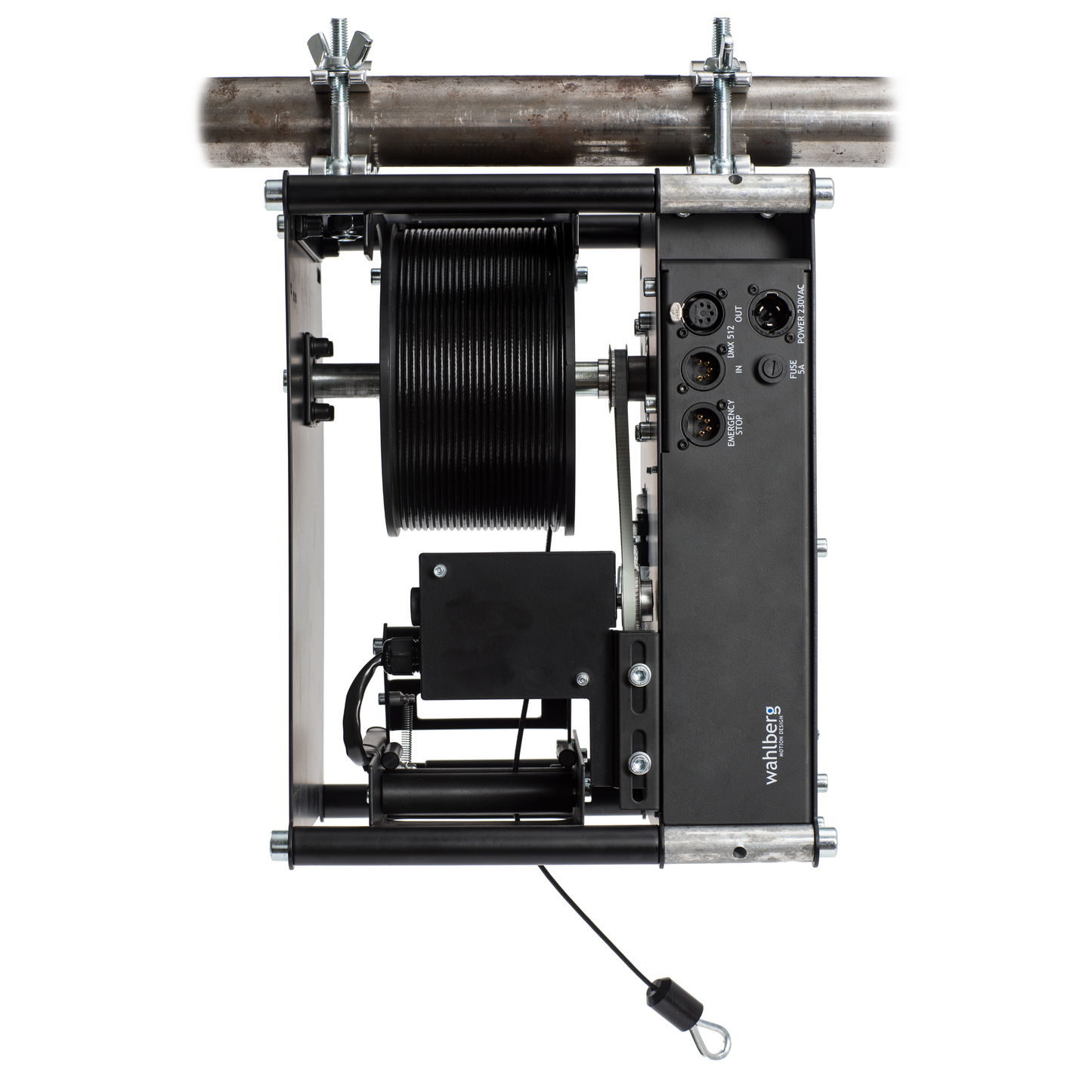

Winch 25

Self-contained Winch 25 with DMX control, great for lifting purposes in all kinds of stage venues.

Lifting capacity: 25 kg (55.1 lb)
Lifting height: 10 m (32.8 ft)
Lifting speed: 5-40 cm/s (2-15.7 in/s)

With up to 25 kg lifting capacity you have several opportunities with the Winch 25.

Move any of your stage props in and out of the stage sphere by lifting them with the winch.

The nylon coated wire is rolled on to a grooved drum, which makes it possible to DMX control it via 16-bit position down to the millimeter.

The moving effects are fully automated from the lighting desk or separate DMX controller to make the movements smooth and beautiful.

2.800,00 €
Rent this product

Description

The Winch 25 is great for lifting and moving your different stage props in and out of the stage area. You have full control over the movements because you can control speed and positions to meet exactly your requirements.

You can control the Winch 25 directly from the lighting desk, so movements on and off the stage can be controlled in interaction with the existing stage design. The winch is thus adding dynamism and diversity into the show, by extending your opportunities to create stunning moving effects of your elements. Create just the right atmosphere for the show you are going to use the winch for.

Mount any stage prop on the Winch 25

It is very suitable for heavy fabric rigging, and for lifting scenic elements like chandeliers, mirrors and window units. However, you can mount almost any scenic element to the Winch 25 and create a moving effects for props up to 25 kg. If you have other specifications, you can also see our full range of DMX Winches here.

To make sure that you can control the winch exactly as you want to it is made with a built-in positioning system. This way the winch moves towards a DMX controlled position which you can set as you like and as the show demands. The motion of the winch can be stopped at variable positions with high accuracy within just millimeters.

It is also possible to adjust the limits of the working range via the display and keyboard. So, you can operate the Winch 25 within any range of the total lifting height of the winch. You can operate the Winch 25 exactly as you want to, so it is suitable for any stage performance you are designing, at any venue.

The content of the Winch 25 package

1 x Winch 25

2 x Manfrotto Slim coupler

1 x PowerCON NAC3FX-W female plug for power cable

1 x User manual

1 x Cheat sheet

Technical Details

Item number 220
Lifting capacity 25 kg (55.1 lb)
Lifting height 10 m (32.8 ft)
Lifting speed 5-40 cm/s (2-15.7 in/s)
Voltage 200-240 VAC
Frequency 50-60 Hz
Power consumption 300 W (1,5-1,25 A)
Power inlet Neutrik powerCON TRUE1 NACPX (F/M)
DMX control signal DMX 512 1990+DMX512A
DMX channels 6
DMX control connection 5 Pole XLR (F/M)
Snap hook 8 mm (5/16 in) galvanized steel
Fleet angle None
Fleet travel 76 mm (3 in)
Minimum load 1 kg (2.2 lb)
Noise emission ≈50 dB at 1 m (3.3 ft)
Ambient temperature 5-40 °C (41-104 °F)
Mounting clamp 4 x Slim eye coupler 42-52 mm (2 in)
Motor 230 VAC, 0.25 kW
Duty cycle 30 % when running more than 10 min.
Lifting wire 2 mm (5/64 in) 7x7 PP coated galv. steel wire (EN 12385-4)
Minimum wire breaking load 280 kg (2746 N / 617 lb)
Wire safety factor >10
Expected wire lifetime - 5 kg (11 lb) load Pending
Expected wire lifetime - 10 kg (22 lb) load Pending
Expected wire lifetime - 20 kg (44.1 lb) load Pending
Shipping weight 25 kg (55.1 lb)
Weight 21 kg (46.3 lb)

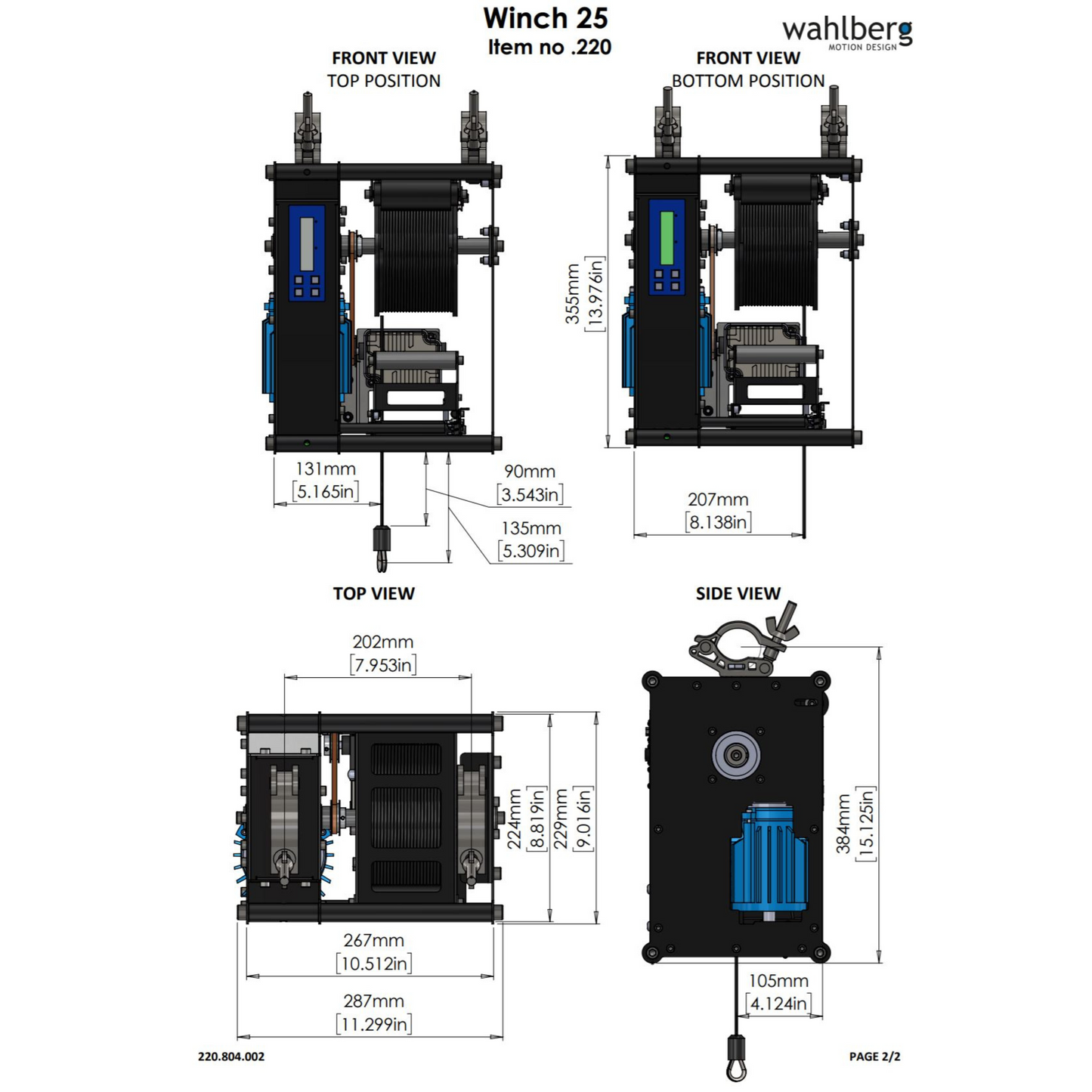

Dimensions 287 x 229 x 355 mm (11.3 x 9 x 14 in)

Downloads

Type Name

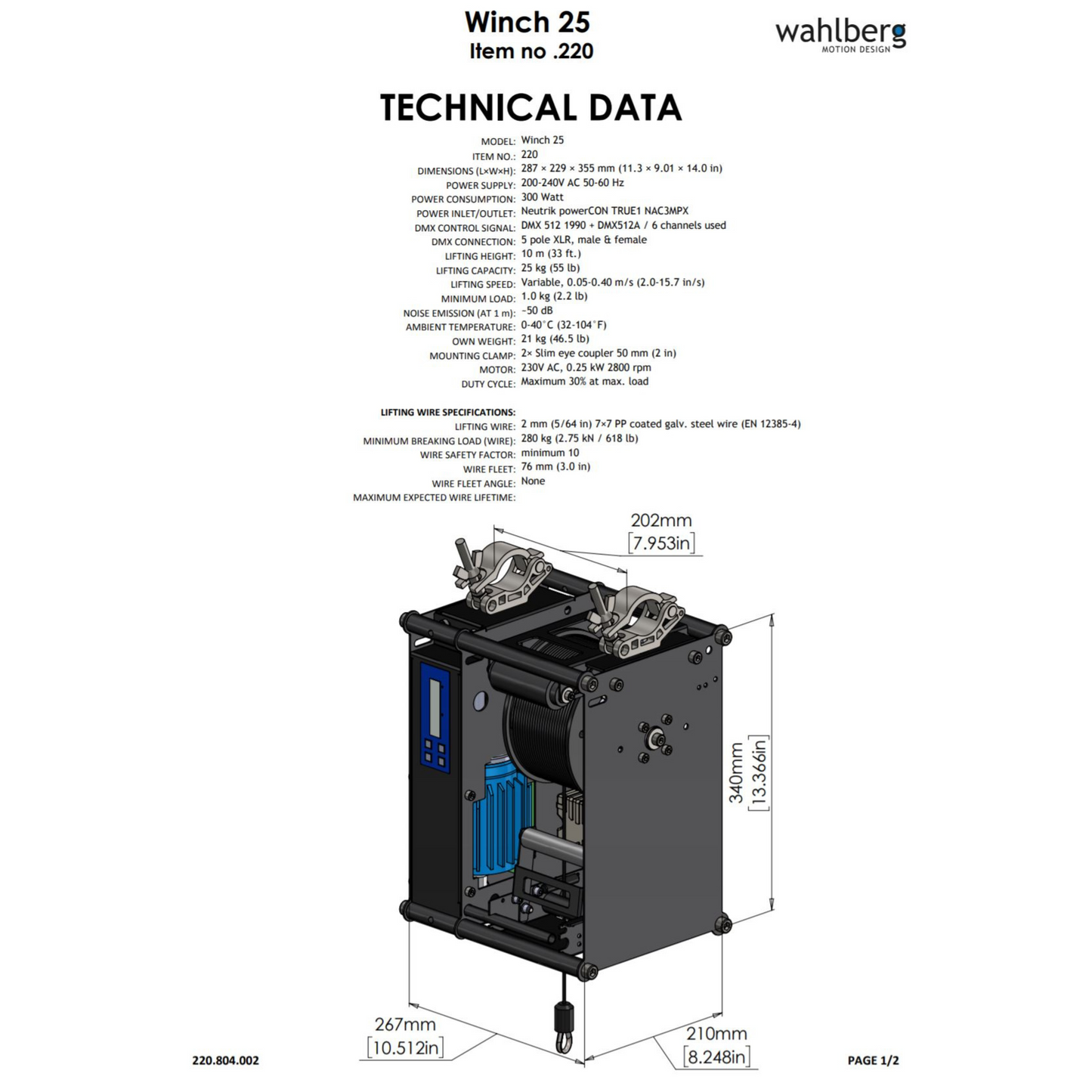

pdf 220.804.002_Data-sheet-winch-25 Download
pdf 220.806.005_Winch25_cheat-sheet_A5 Download
pdf 220.805.010_Manual_Winch25-25D Download
STEP 220.001.001_Winch25_SingleWire Download
