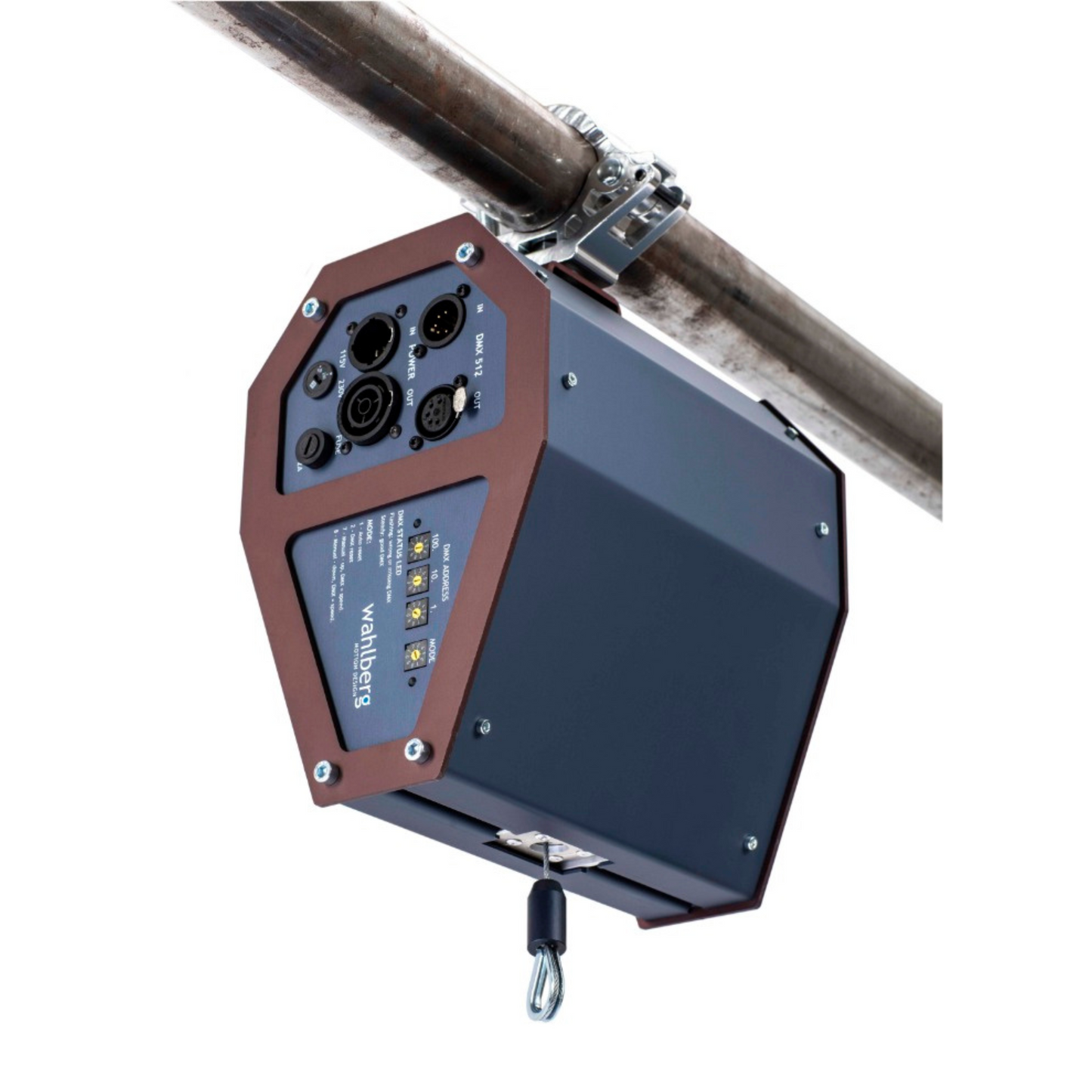

Winch 10

Create effective movements for your stage objects. Easy control and programming.

Lifting capacity: 10 kg (22 lb)
Lifting height: 10 m (32.8 ft)
Lifting speed: 5-30 cm/s (2-11.8 in/s)

Make great scene design effects with the Winch 10 for stage props with a load up to 10 kg. You can create any movements and control positions, speed and much more directly from the lighting desk.

It is perfect for stage designs where you need automatic movements of stage objects easily and effectively.

1.050,00 €
Rent this product


With our Winch 10 you have many opportunities to create beautiful scenic movements, to create a brand new or extend the existing stage design. It has been widely applied on stages all over the world such as theaters, concert halls, venues and much more.

The flexible design of the Winch 10 makes your lifting of objects much more efficient. You can control the winch via DMX, so there is no manual handling by pulling the wires or likewise. All effects can be automated thus perfect for integrating in your scene and lighting show. Easy to control at your lighting desk.

It is possible to lift medium sized stage props up to 10 kg. So, for instance you can lift screens, drapes and much more both inside and outside of the stage area.

Wahlberg Winch 10 – A flexible solution

The practical application the Winch 10 is very diverse, and it can be used and implemented in the stage design in several different ways. For instance, you can connect several Winch 10’s to lift simultaneously. This is great for lifting large items or several items at the same time.

Combined with the easy control of the movements from the lighting desk, it is only your imagination that sets the limit of how you can use the Winch 10. It is great for adding beautiful moving stage effects creating a dynamic show with smooth automatic movements of your elements on stage.

The standard Winch 10 has a lifting height of 10m (33 ft). You can operate the winch within this range, and you can adjust the top and bottom limits to meet the requirements of your setup and surroundings. Thus, the operating range is also flexible depending your setup.


At Wahlberg, we prioritize customer satisfaction. We understand the frustration of having a product that isn't working as it should and don't believe in discarding a perfectly good product just because one part isn't functioning properly. That’s why we offer spare parts for all our products. So, whether you choose to send in your Wahlberg product for professional servicing or prefer DIY repairs, we're here to help. Just download our Exploded View drawings for guidance, and you'll have your product fixed in no time!

Contact us at if you can’t find the needed spare part on our website.

The content of the Winch 10 package

1 x Winch 10

1 x Manfrotto Slim coupler

1 x Mounting bolt, nut, and washers (M12) for slim coupler mounting

1 x Neutrik PowerCon NAC3FX-W female plug for power cable

1 x 8 mm snap hook

1 x User manual

1 x Cheat sheet

Technical Details

Item number .241
Lifting capacity 10 kg (22 lb)
Lifting height 10 m (32.8 ft)
Lifting speed 5-30 cm/s (2-11.8 in/s)
Voltage 115/230 VAC
Frequency 50-60 Hz
Power consumption 120 W (1,1/0,6 A)

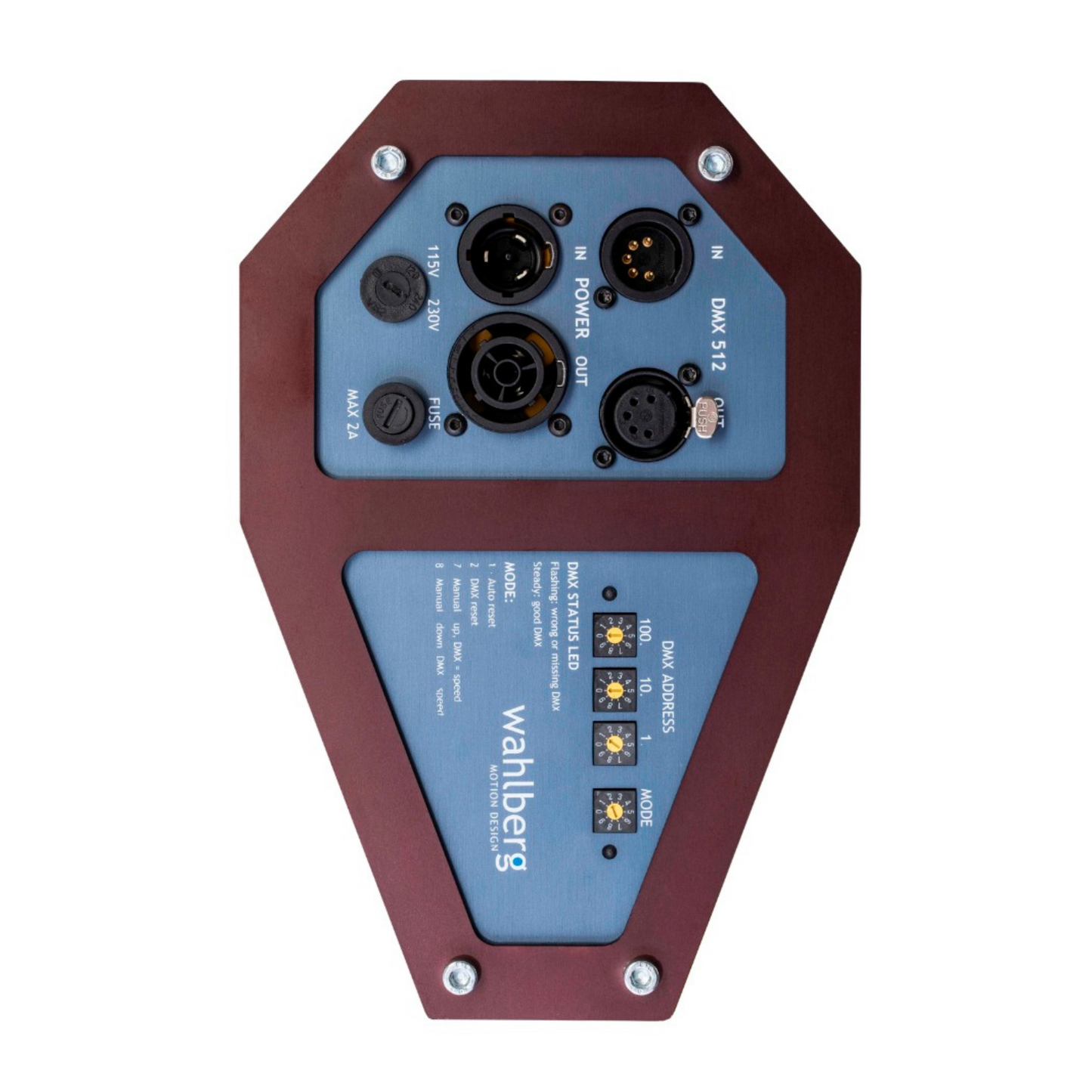

Power inlet Neutrik powerCON TRUE1 NACPX (F/M)
DMX control signal DMX 512 1990+DMX512A
DMX channels 7
DMX control connection 5 Pole XLR (F/M)
Snap hook 8 mm (5/16 in) galvanized steel
Fleet angle None
Fleet travel None
Overload capability 125 %
Minimum load 0,45 kg (0.99 lb)
Noise emission ≈55 dB at 1 m (3.3 ft)
Ambient temperature 5-40 °C (41-104 °F)

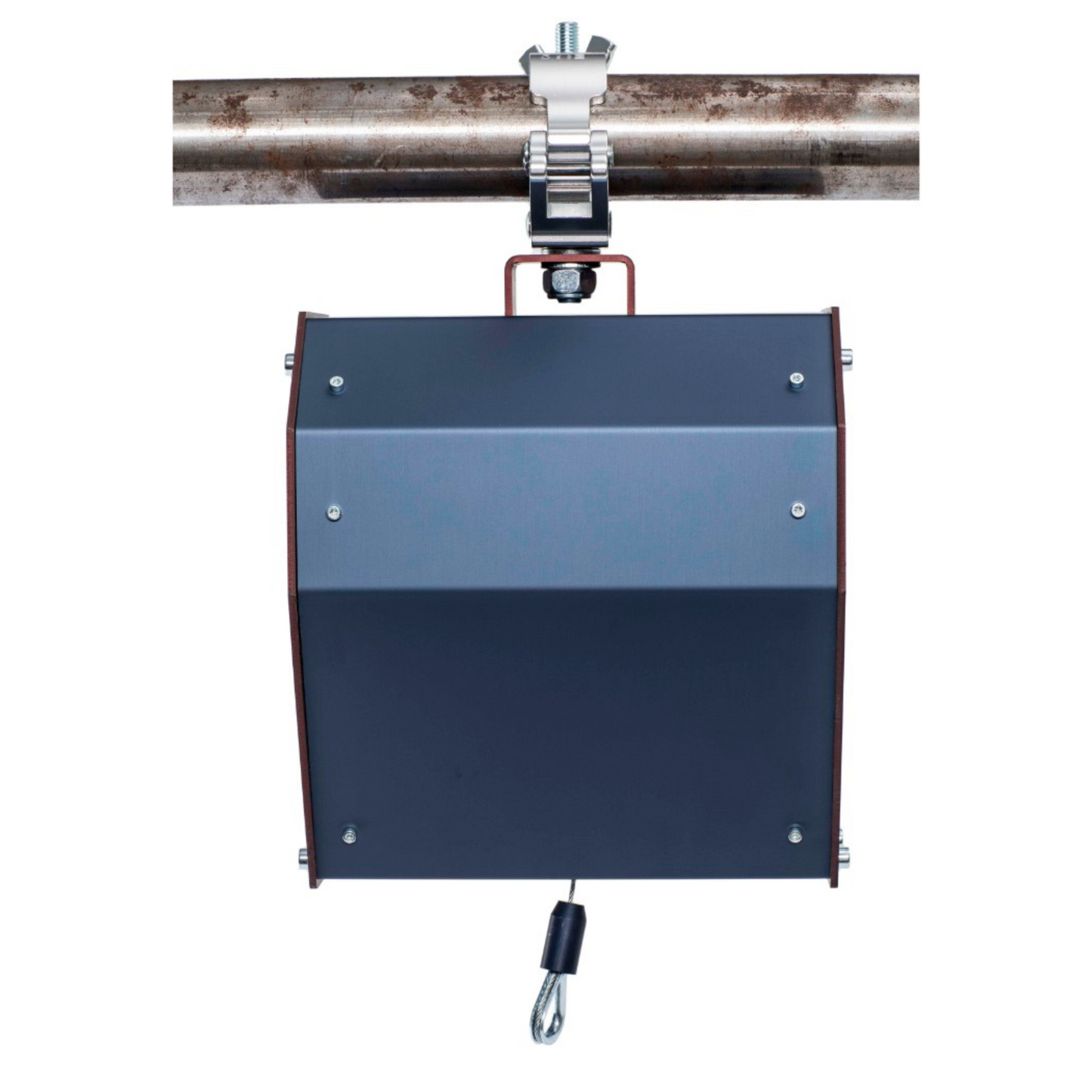

Mounting clamp 1 x Slim eye coupler 42-52 mm (2 in)
Motor 24 VDC, 54 W
Duty cycle 30 % when running more than 10 min.
Lifting wire 2 mm (5/64 in) 7x7 galv. steel wire (EN 12385-4)
Minimum wire breaking load 280 kg (2746 N / 617 lb)
Wire safety factor >10
Expected lifting wire lifetime - 2,5 kg (5.5 lb) load Up to 80000 full cycles
Expected lifting wire lifetime - 5 kg (11 lb) load Up to 20000 full cycles
Expected lifting wire lifetime - 10 kg (22 lb) load Up to 15000 full cycles
Shipping weight 7 kg (15.4 lb)
Weight 5,5 kg (12,1 lb)

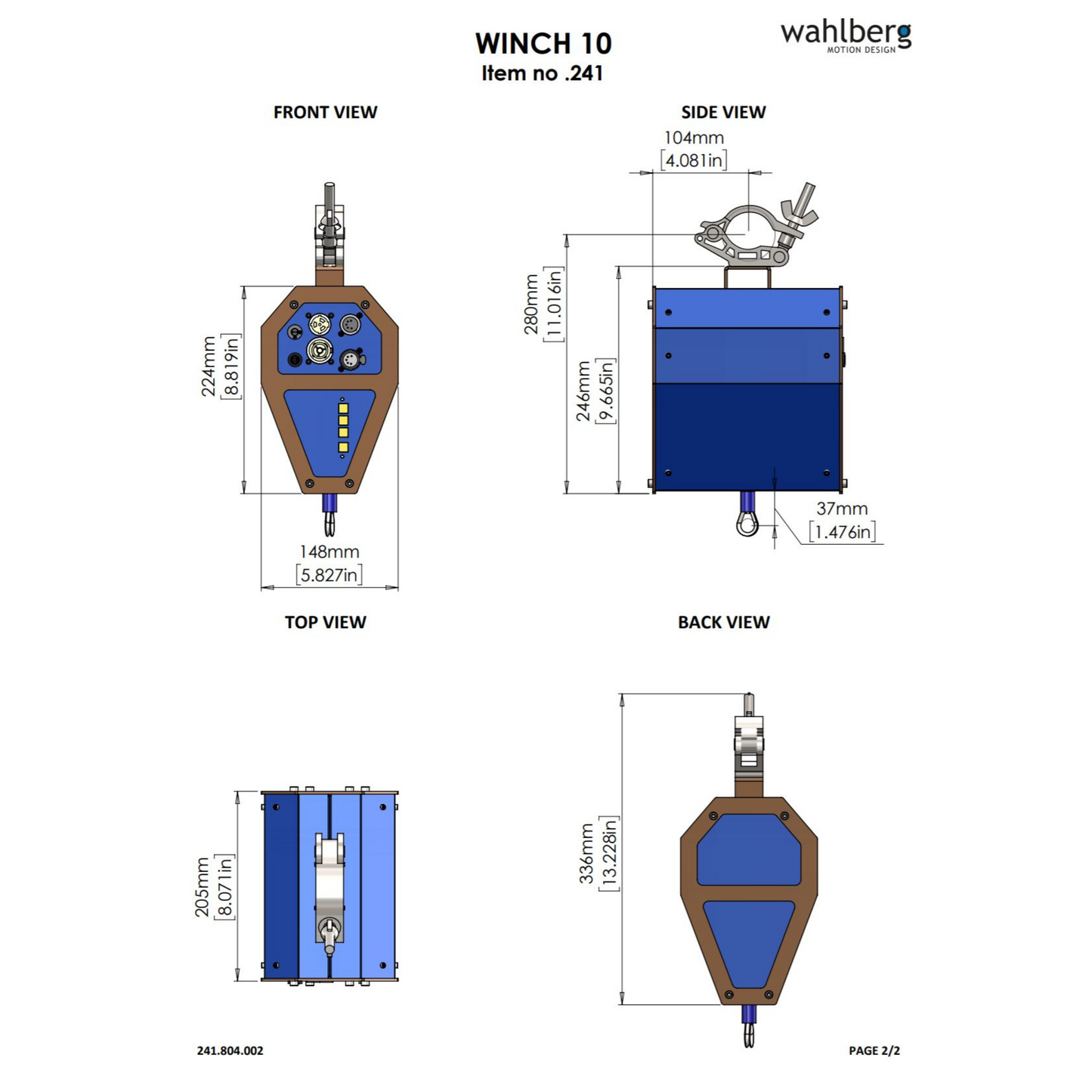

Dimensions 205 x 148 x 246 mm (8.1 x 5.8 x 9.7 in)


Type Name
pdf Cheatsheet_Winch 10_.241 Download
pdf Manual_Winch 10_.241 Download

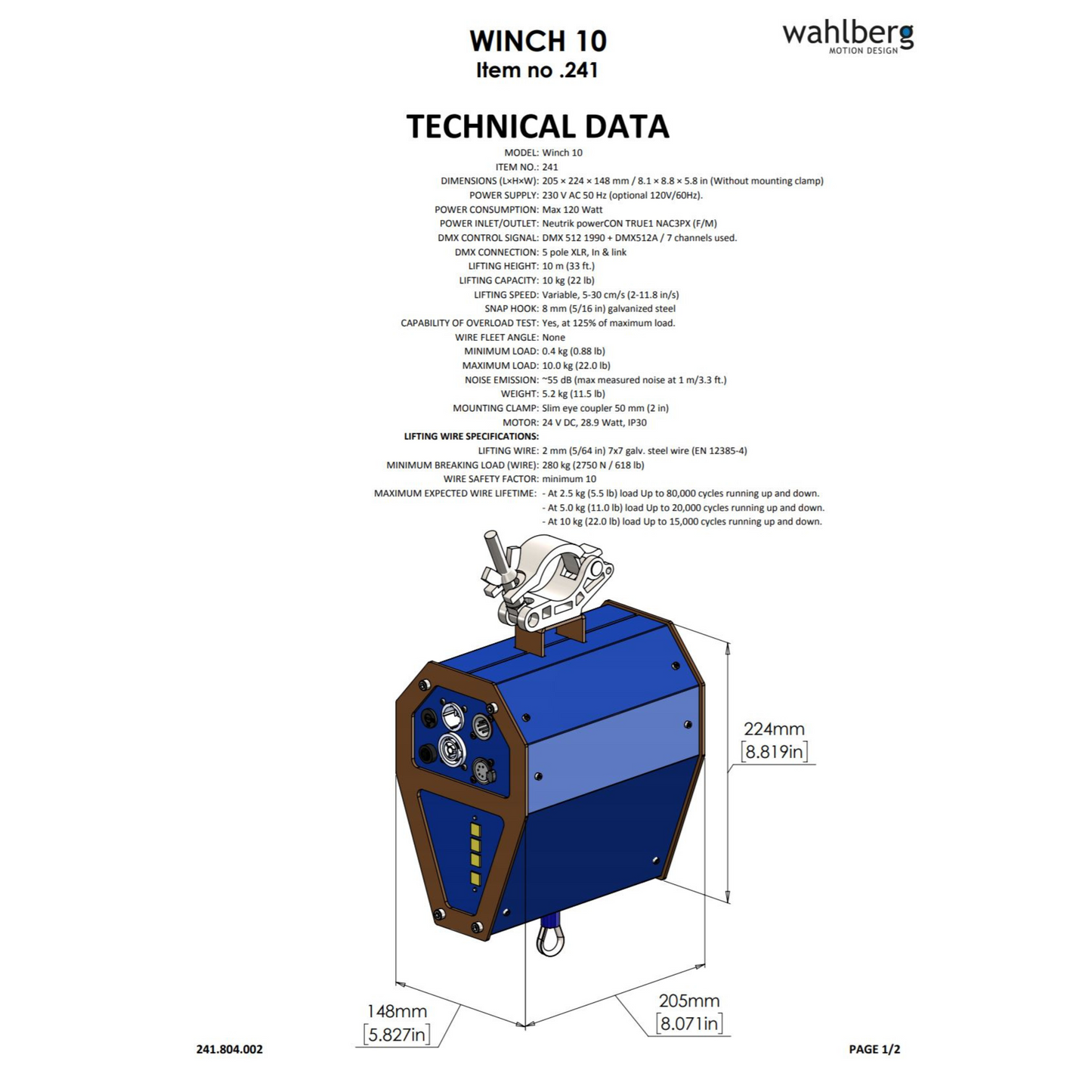

pdf Datasheet_Winch 10_.241 Download
pdf Exploded view_Winch 10_.241 Download
zip MA2_Personalety_Winch 10_.241 Download
zip Dot2_Personalety_Winch 10_.241 Download
xml Wahlberg@Winch10@2 Download
3D STEP_Winch 10_.241 Download

DMX Compatible


All Wahlberg products are DMX compatible. Read more about DMX control.
