DMX Rotator with Power Outlet

Unique DMX Rotator with power outlet for spinning your electrical stage props to display the items at different angles on your stage.

Working load limit - Shaft down: 150 kg (330.7 lb)
Rotation speed: 0,15-6,8 rpm
Rotation limit: No limit / Continuous rotation

An effective solution for rotating e.g. LED-screens, lamps etc.

1.300,00 €
Rent this product

Description

The DMX Rotator with power outlet is a strong rotator motor, that you can use for many occasions for your stage shows. The power outlet makes it possible to also rotate electrical equipment to make beautiful, special effects on stage.

You can spin the motor with variable speed, both clockwise and counterclockwise. You have full control over all movements and speed directly from the lighting desk, thanks to the DMX control.

Our DMX Rotator with power outlet and DMX has a servo positioning system, with different operation modes. It is possible to spin the motor continuously with variable speed for some minutes. You can also change direction during spinning and when needed, stop the motor at a certain angle.

It is possible to attach almost any scenic element to the DMX Rotator with power outlet. Previously, it has e.g. been used to rotate curtains, banners, huge mirror balls or other kinds of set pieces in the theater, show and exhibition area.

DMX Rotator with Power Outlet - A Motor Rotator for Electrical Stage Props

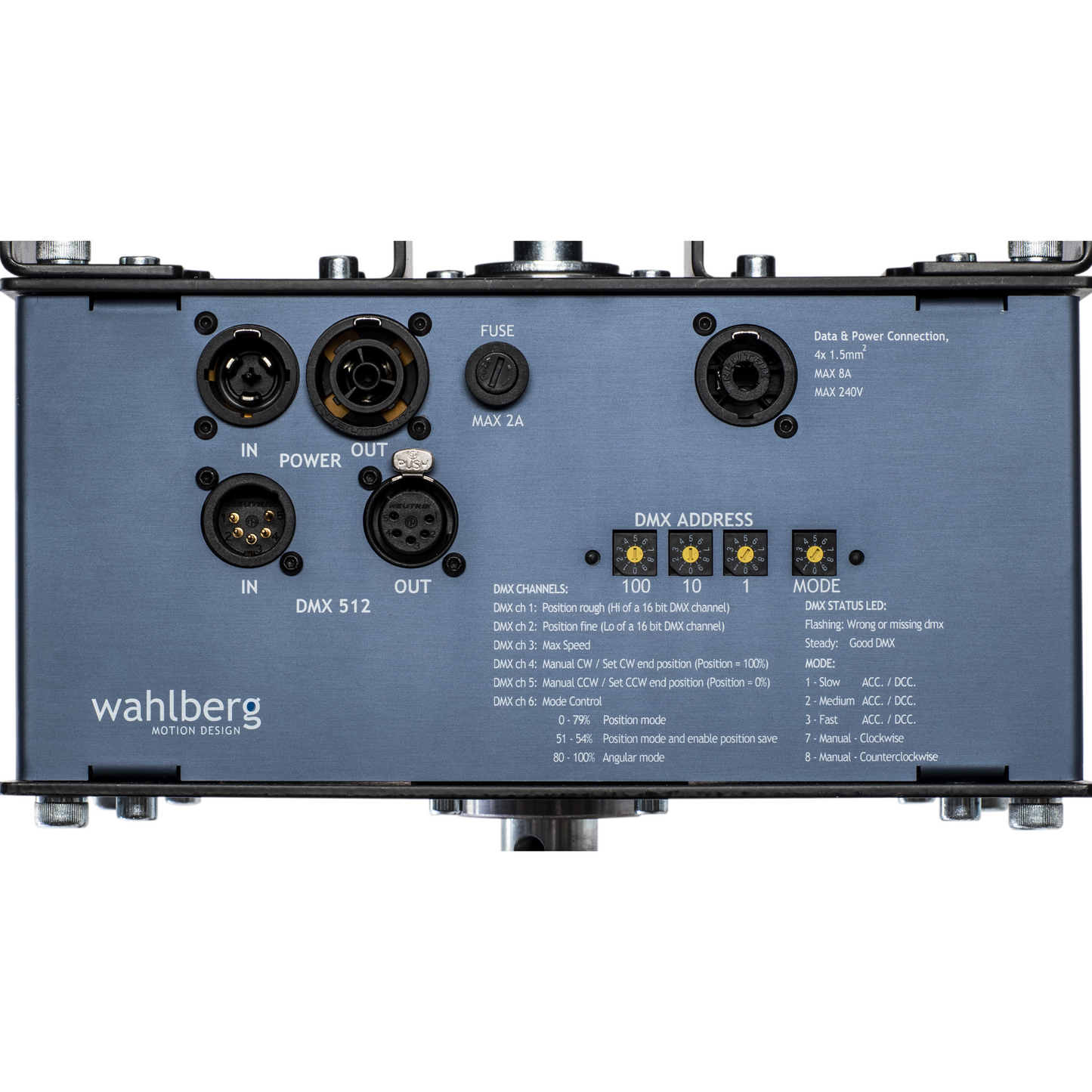

The DMX Rotator with power outlet contains 4 conductors emerging from the shaft. This way it is possible to power electrical equipment during rotation as well as controlling the equipment being rotated.

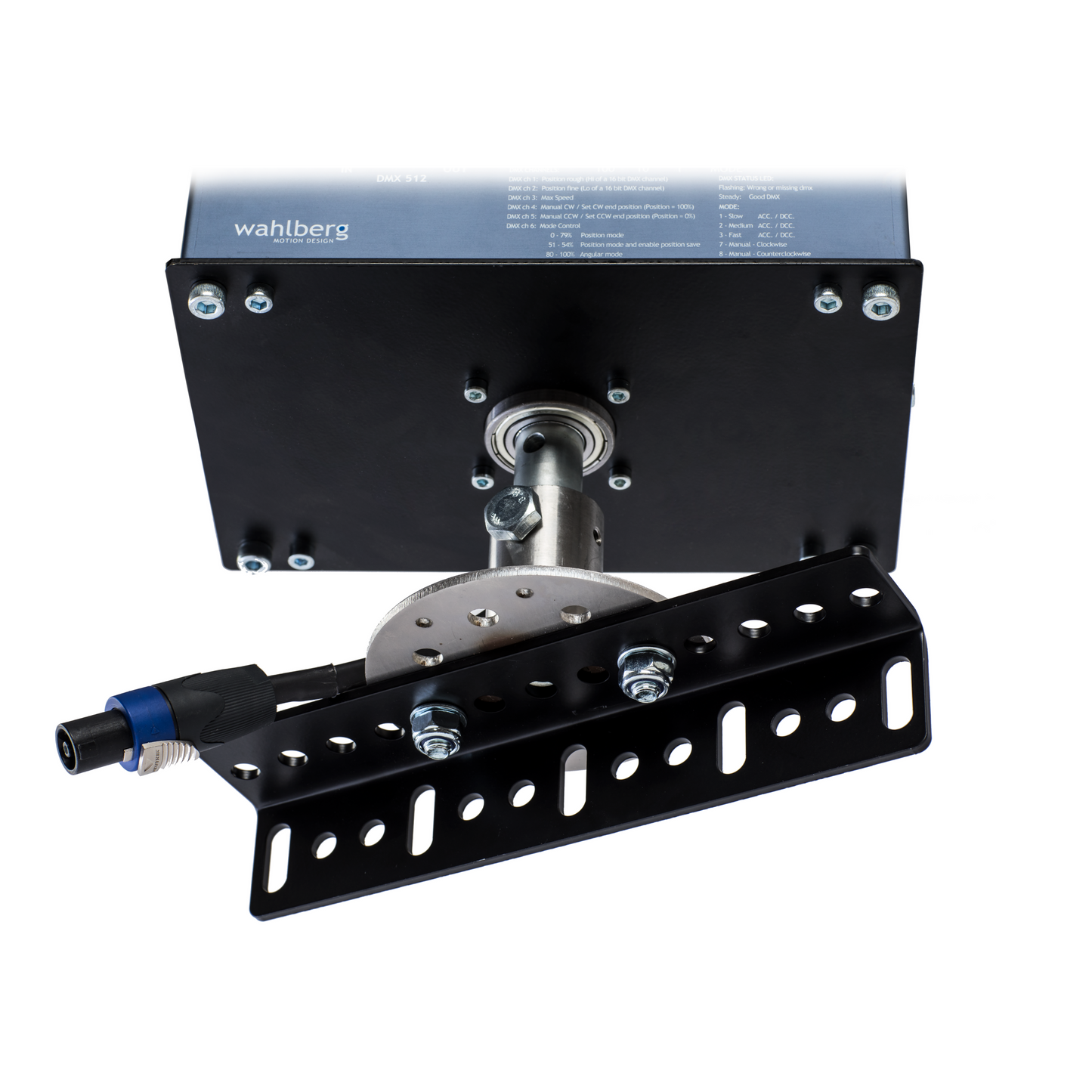

The output shaft is made of 20 mm iron shaft. The shaft has a 10 mm thread in the end, and also a 10 mm hole sideways in the shaft (see detailed dimensions under Technical Details). Both holes are used for mounting the rotating object such as a disco ball.

With a simple DMX interface, it is easy to integrate advanced and dynamic movements to the show. You can make precise and smooth operations, to take your stage design to new heights.

Create Several Motion Effects for Your Stage Equipment

By combining the DMX Rotator with power outlet with other equipment you can reach several motion effects on stage. You can for instance attach our Mini Roll Down to turn your roll up screen into a spinning unit.

Various Angles, Various Limits

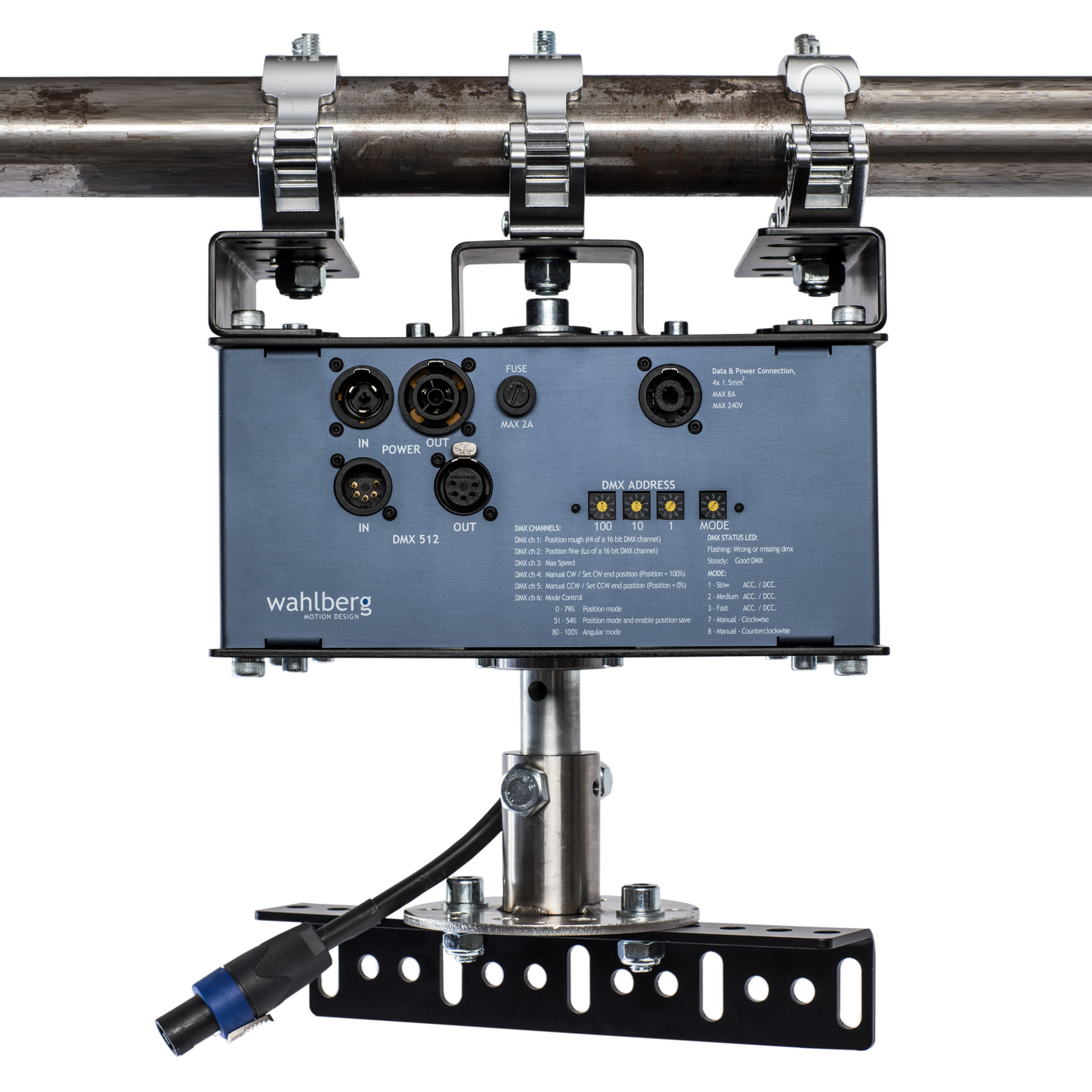

The DMX Rotator with power outlet is made for applications hanging from the ceiling, with rotation around a vertical shaft. You can only make horizontal rotation with limited weight objects. Or if you support the load with extra bearing so the rotator is not carrying the full horizontal load.

Use the Rotator virtually anywhere you need simple but precise motorized control of a rotating set piece.

Consider it for e.g. moving clock hands, rotating signs, motorized window or door pivots, advanced mirror ball effects, periaktoi, rotating mirror panels, or anything else that you can imagine rotating on your stage.

The content of the DMX Rotator with Power Outlet package

1 x DMX Rotator with Power Outlet

3 x Manfrotto Slim coupler

3 x Mounting bolts, nuts, and washers (M12) for slim coupler mounting

1 x PowerCON TRUE1 NAC3FX-W Female plug for power cable

1 x SpeakON SPX NL4FX Female plug for power/signal-throughput

1 x SpeakON SPX NL4FX Male plug for power/signal-throughput

1 x Shaft Mounting Clamp

1 x User manual

1 x Cheat Sheet

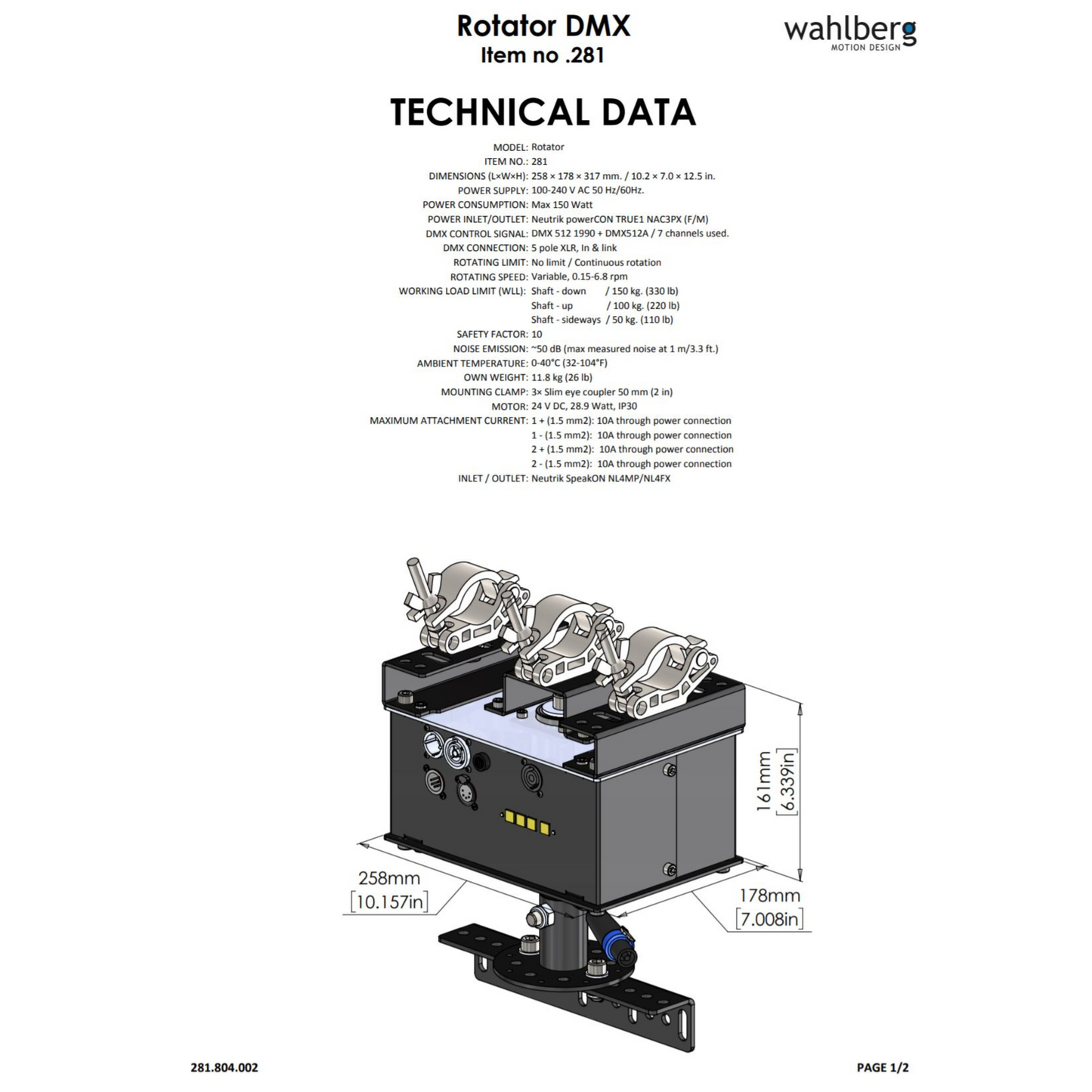

Technical Details

Item number 281
Working load limit - Shaft down 150 kg (330.7 lb)
Working load limit - Shaft up 100 kg (220.5 lb)
Working load limit - Shaft sideways 50 kg (110.2 lb)
Rotation speed 0,15-6,8 rpm
Rotation limit No limit / Continuous rotation
Through Connection - Input SpeakON NL4MP
Through Connection - Output SpeakON NL4FX
Through Connection - Power 10A through each conducting wire (1,5 mm2)
Safety factor >10
Voltage 100-240 VAC
Frequency 50-60 Hz
Power consumption 150 W (1,3-0,65A)
Power inlet Neutrik powerCON TRUE1 NACPX (F/M)
DMX control signal DMX 512 1990+DMX512A
DMX channels 7
DMX control connection 5 Pole XLR (F/M)
Noise emission ≈50 dB at 1m (3.3 ft)
Ambient temperature 5-40 °C (41-104 °F)
Mounting clamp 3 x Slim eye coupler 42-52mm (2 in)
Motor 24 VDC, 28.9W
Shipping weight 12 kg (26.4 lb)
Weight 11,8 kg (26 lb)
Dimensions 258 x 178 x 317 mm (10.2 x 7 x 12.5 in)

Downloads

Type Name
pdf 281.805.006_Manual-Rotator.doc Download
pdf 281.806.004_Rotator-cheat-sheet_A5 Download
pdf 281.804.002_Data-sheet-rotator-DMX-out Download
xml Wahlberg@Rotator@1,2,3 Download

DMX Compatible



All Wahlberg products are DMX compatible. Read more about DMX control.
