DMX Rotator

Rotate and spin your stage objects to display different angles of the object.

Working load - Shaft down: 50 kg (110.2 lb)
Rotation speed: 0,85-13,6 rpm
Rotation limit: No limit / Continuous rotation

The heavy-duty construction allows for mounting and rotating large stage props up to 50 kilos.

900,00 €
Rent this product

Description

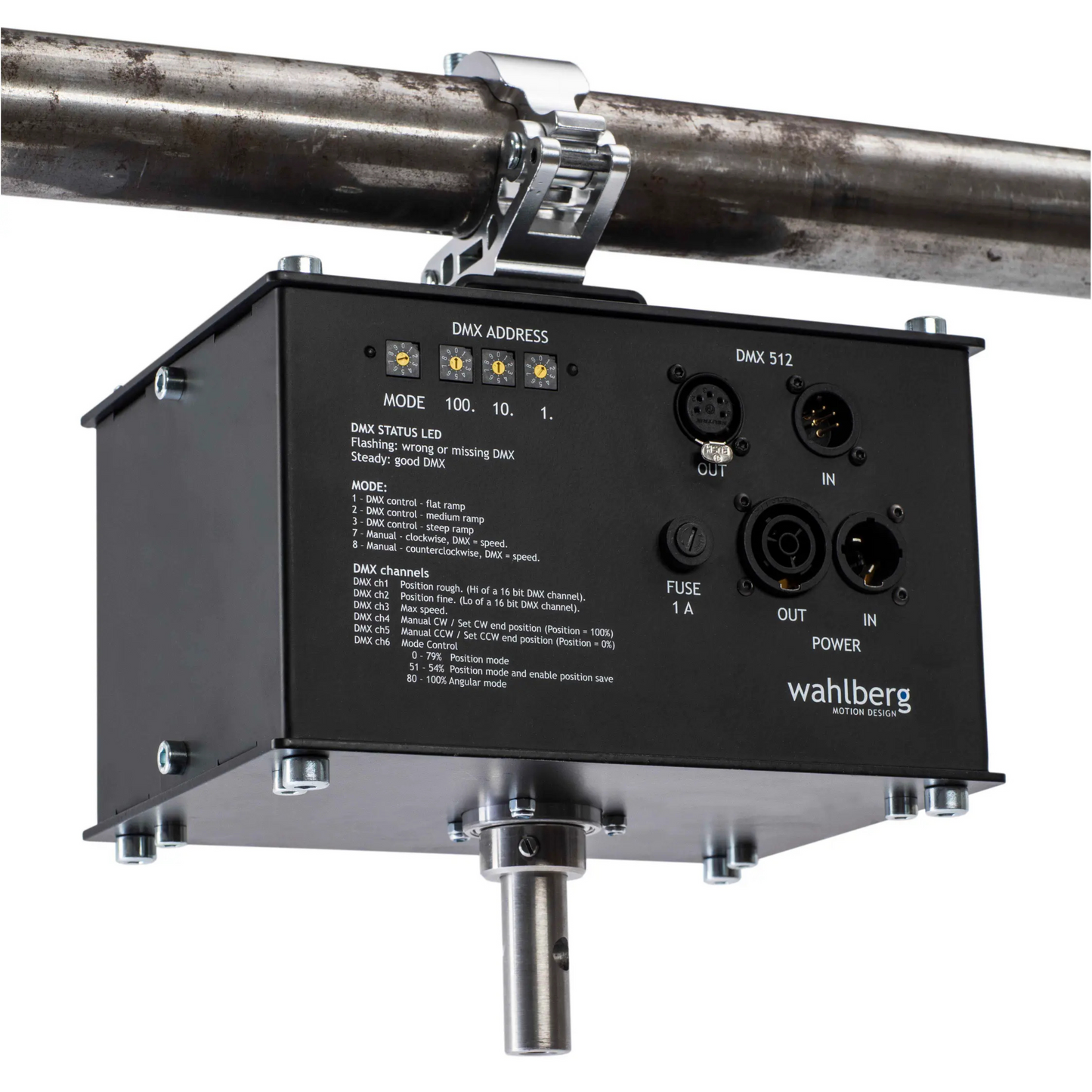

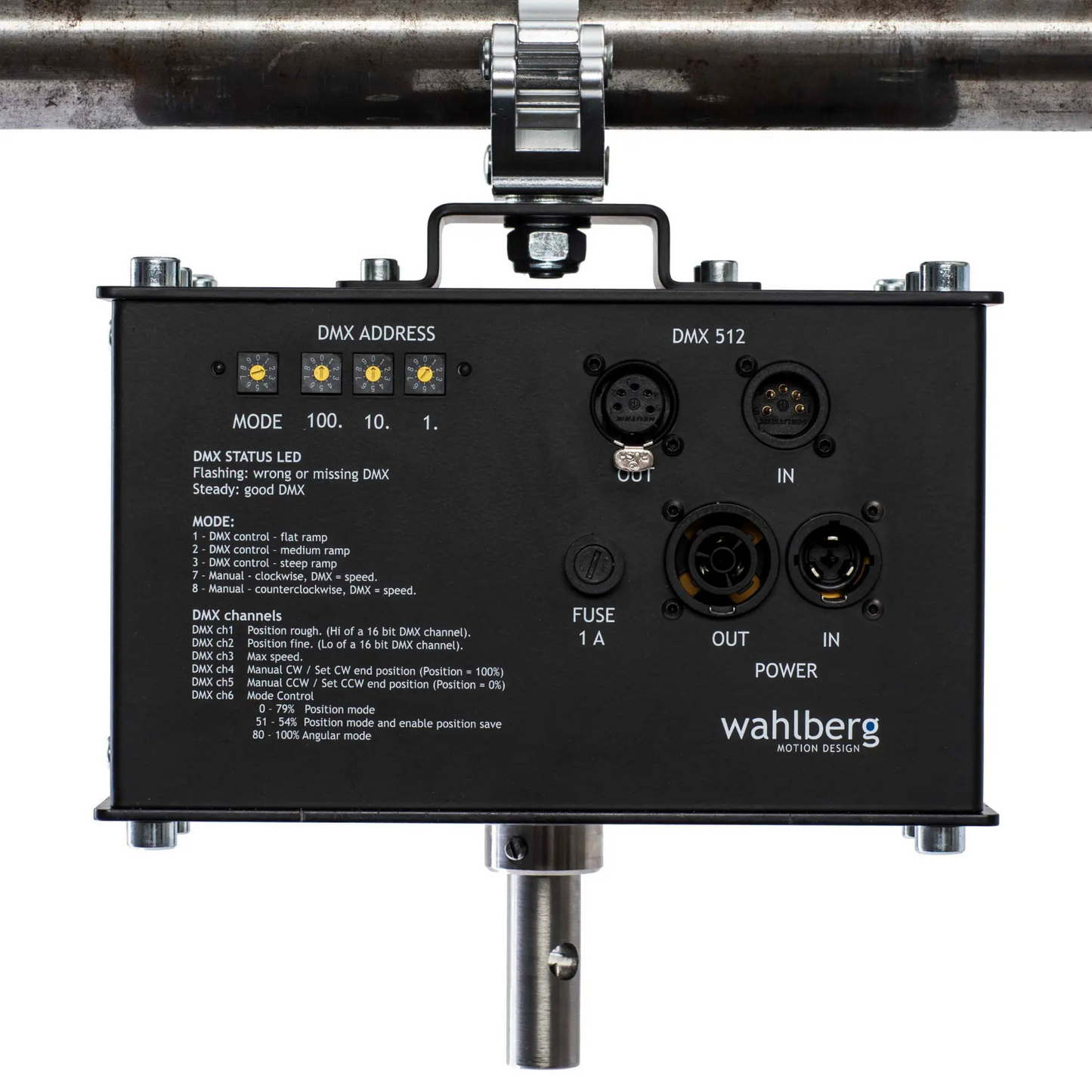

For rotating effects of your equipment on stage our DMX Rotator is the perfect solution. You have full control over all movements and speed of the rotating stage prop thanks to the built-in DMX control.

With a simple DMX interface, it is easy to integrate advanced and dynamic movements to the existing show design. You can make precise and smooth operations, just as you like. Connect the DMX Rotator to your lighting desk or separate DMX controller and create your desired effect.

DMX Rotator – Great as Disco Ball Motor

The motor in the DMX Rotator has a servo positioning system, with different operation modes. You can create DMX cues that makes precise and repeatable rotation and positioning effects. A great solution for controlling and rotating a mirror ball by DMX.

You can use the DMX Rotator anywhere in your stage setup and the motor secures a high precision. You can rely on any position you want to program for your show. You can spin both clockwise and counter-clockwise and there is no rotating limit – spin as it fits your stage or club.

Our DMX Rotator is made for stage props up to 50 kilos. You can apply it in any situation making it a very versatile product that can be used for several shows and projects. It has been used for rotating e.g. banners, windows, screens, mirror balls and much more. See our portfolio for inspiration.

Combine with other Wahlberg products

To achieve extraordinary effects for your stage design it is also possible to combine the DMX Rotator with other products from the Wahlberg range. This way you can make rotating effects with e.g. our Track Systems or you can rotate our DMX Winches.

It is (almost) only your imagination that sets the limit. Drop us a line here and let’s investigate the possibilities regarding your specific project.

The content of the DMX Rotator package

1 x DMX Rotator

1 x Manfrotto slim coupler

1 x Mounting bolts, nuts, and washers (M12) for slim coupler mounting

1 x PowerCON TRUE1 NAC3FX-W Female plug for power cable

1 x User manual

1 x Cheat sheet

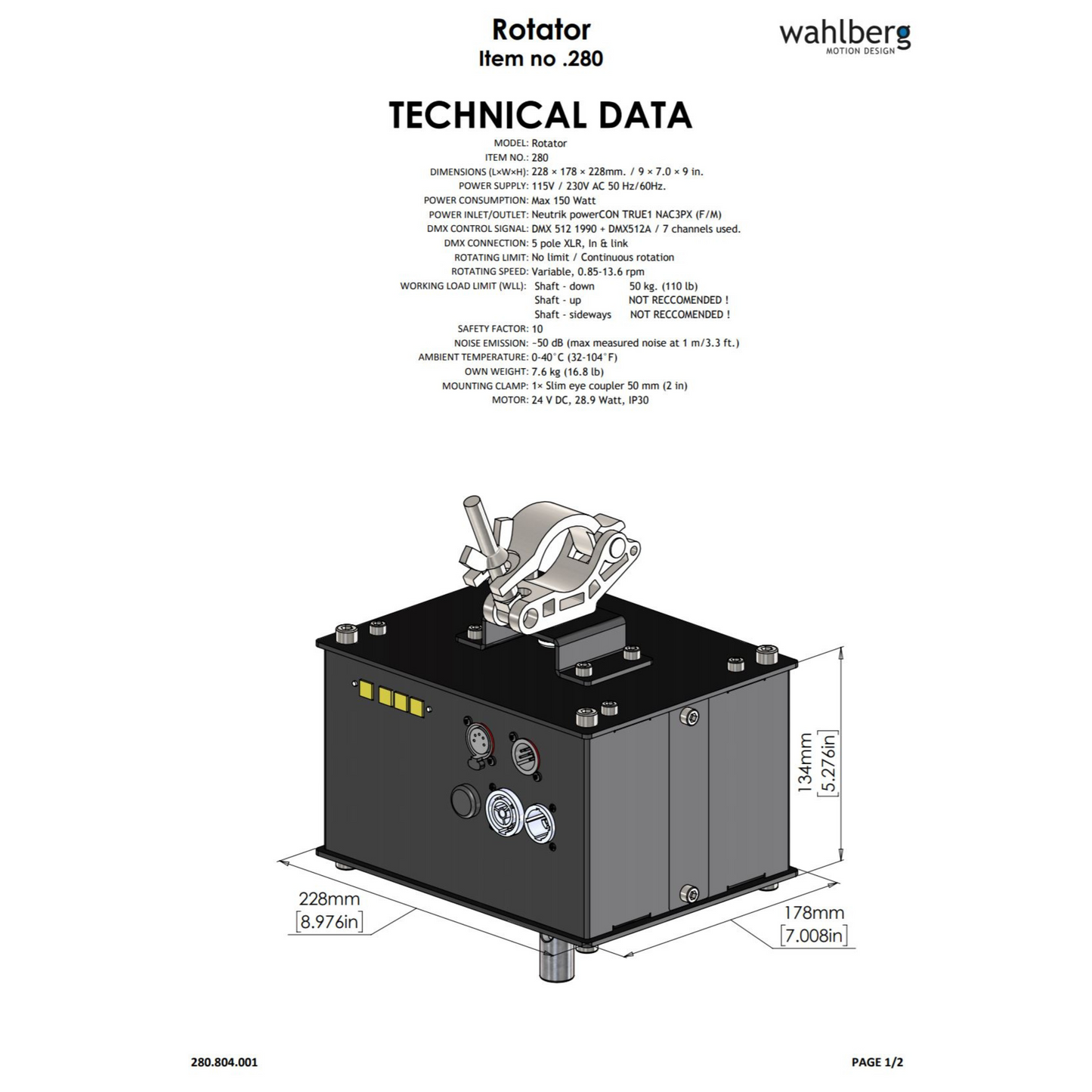

Technical Details

Item number 280
Working load - Shaft down 50 kg (110.2 lb)
Working load - Shaft up Not recommended
Working load - Shaft sideways Not recommended
Rotation speed 0,85-13,6 rpm
Rotation limit No limit / Continuous rotation
Safety factor >10
Voltage 115/230 VAC
Frequency 50-60 Hz
Power consumption 150 W (1,3/0,65A)
Power inlet Neutrik powerCON TRUE1 NACPX (F/M)
DMX control signal DMX 512 1990+DMX512A
DMX channels 7
DMX control connection 5 Pole XLR (F/M)
Noise emission ≈50 dB at 1 m (3.3 ft)
Ambient temperature 5-40 °C (41-104 °F)
Mounting clamp 1 x Slim eye coupler 42-52mm (2 in)
Motor 24 VDC, 28.9W
Shipping weight 8 kg (17.7 lb)
Weight 7,6 kg (16.8 lb)

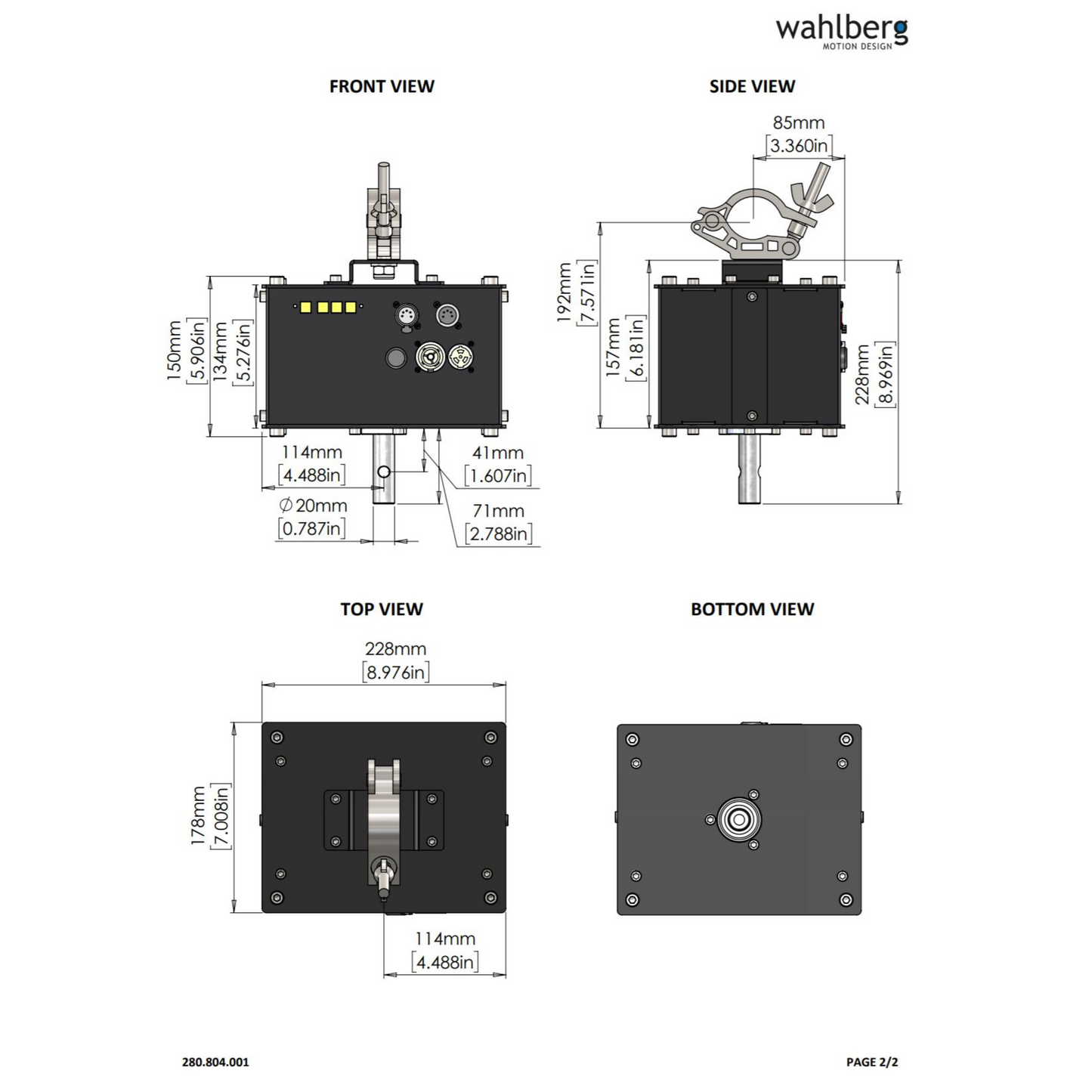

Dimensions 228 x 178 x 228 mm (9 x 7 x 9 in)

Downloads

Type Name
pdf 281.805.006_Manual-Rotator.doc Download
pdf 281.806.004_Rotator-cheat-sheet_A5 Download
pdf 280.804.001_Data-sheet-rotator-280 Download
xml Wahlberg@Rotator@1,2,3 Download

Rotators for Eurovision Song Contest 2016, Stockholm



Read the case »

DMX Compatible



All Wahlberg products are DMX compatible. Read more about DMX control.
