DMX controlled continuous rotation with power and CAT5
| Item No: | .282 |
| Rotation Limit: | No limit / Continuous rotation |
| Working load Down : | 1000 KG ( 2204,6 Ib) |
| Rotation Speed: | 0,02 - 10 rpm |
The Giga Rotator with Power and Cat5 is ideal for rotating big and heavy objects mounted downwards. It rotates large props, lamps, curtains, projector screens and similar on the stage sphere at maximum load of 1000 kg.
Description
The Giga Rotator with power and Cat5 is ideal for rotating big and heavy objects mounted downwards. It rotates large props, lamps, curtains, projector screens and similar on the stage sphere at maximum load of 1000 kg.
The spinning bearing can rotate 360° continuously. The positioning system is highly accurate and enables precise movements allowing the unit to stop at any desired position with 0.1° precision. This way it is possible to power heavy electrical equipment during rotation as well as controlling the equipment.
All parameters are controlled with a simple DMX interface, it is easy to integrate advanced and dynamic movements through 7 DMX channels,where the position and speed can be changed live or pre-programmed as wished.
The content of the DMX Giga Rotator with Power and CAT5 package
1 x Giga Rotator
8 x Manfrotto Slim coupler
8 x Mounting bolt, nut, and washers (M12) for slim coupler mounting
1 x powerCon TRUE1 female plug NAC3FX-W for power cable
1 x User Manual
1 x Cheat sheet
Spare parts
At Wahlberg, we prioritize customer satisfaction. We understand the frustration of having a product that isn't working as it should and don't believe in discarding a perfectly good product just because one part isn't functioning properly. That’s why we offer spare parts for all our products. So, whether you choose to send in your Wahlberg product for professional servicing or prefer DIY repairs, we're here to help. Just download our Exploded View drawings for guidance, and you'll have your product fixed in no time!
Contact us at sales@wahlberg.dk if you can’t find the needed spare part on our website.
Specifications
| Item No | .282 |
|---|---|

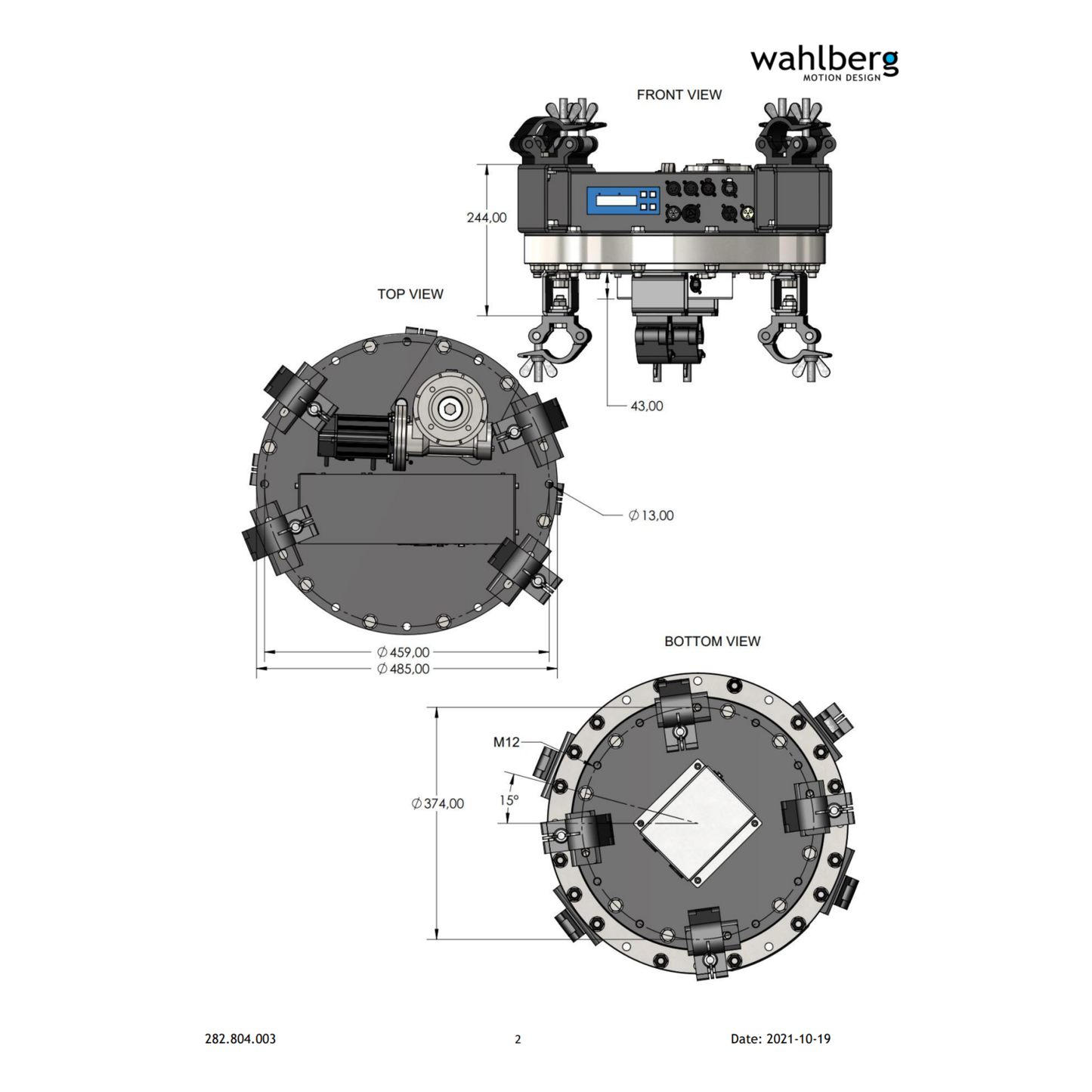

| Dimentions ( L X W X H ) | 485 x 485 x 192 mm ( 19,1 x 19,1 x 7,6 in ) |
| Power supply | 100-240 VAC / 50-60 Hz |
| Power consumption | 305 W ( 3,5 - 1,5 A ) |
| Power inlet | Neutric powerCON TRUE1 NAC3PX (F/M) |
| DMX control signal | DMX 512 1990+DMX512A / 7 channels used |
| DMX control connection | 5 Pole XLR ( F/M) |
| Through Connections input | Neutrik powerCON TRUE1 ( M ) & EtherCON |
| Through Connections output | Neutrik powerCON TRUE1 ( M ) & EtherCON |
| Through Connections power | 10A through each conducting wire (2,5 mm2) |
| Through Connections signal | Ethernet 100Mbit or DMX ( RJ45 converter ) |
| Rotation Limit | No limit / Continuous rotation |
| Working load Down | 1000 KG ( 2204,6 Ib) |
| Working load Up | 1000 KG ( 2204,6 Ib) |
| Working load Sideways | 500 KG (1102,3 Ib) |
| Rotation Speed | 0,02 - 10 rpm |
| Noise Emission | 50 db at 1m ( 3,3 ft ) |
| Ambient temperature | 5-40 C ( 41-104 F ) |
| Weight | 64,5 kg ( 142 Ib ) |
| Mounting clamp | 8 x Slim eye couplers 42-52 mm ( 2 in ) |
| Motor | 48V, 400W |
| Duty cycle | 100 % |
| Safety factor | XX |
