Winch 50

The Winch 50 is a compact yet very powerful DMX controlled stage winch.

Lifting capacity: 50 kg (110.2 lb)
Lifting height: 12,5 m (41 ft)
Lifting speed: 9-45 cm/s (3.5-17.7 in/s)

It offers dynamic movements of heavy stage objects and maximum versatility for rigging solutions of your stage equipment up to 50 kilos.

Create beautiful moving effects for your stage equipment.

The Winch 50 has a lifting capacity of up to 50 kg, so you can enjoy all the great features for your heavy stage items.

3.900,00 €
Rent this product

Description

If you have heavy load stage equipment that you want to create flying effects on stage, the Winch 50 is a great solution. It is a DMX Winch perfect for lifting heavier loads up to 50 kg. The winch is the strongest of all Wahlberg DMX winches. It is thus great for lifting stage equipment such as flats, ceiling pieces, picture frames and window units. Only your imagination is the limit.

Heavy weight rigging with the Winch 50

Working alone or configured together, you can use the Winch 50 for flying dimensional set pieces or rigging heavier weight drapery fabrics. With the DMX control you can set positions and limits quick and easy. Complex motion cues can be written and recalled with ease, so the effects are automated as much as possible, directly from your lighting desk. Easily integrated in your stage design.

The Winch 50 is a great winch for lifting and moving stage props, screens, drapes, lights, etc. in and out of the stage sphere. Several winches can easily be connected as a chain, allowing for advanced and creative ways of making dynamic movements of several objects at the same time.

You can control the winch directly from the lighting desk. This way it can be controlled to fit and interact in line with the show and lighting design. The winch 50 has an advanced positioning system controlled from a 16-bit DMX channel. It is highly accurate; the winch stops within just 1 mm.

Furthermore, you can control the speed of the winch via DMX. It is also possible to set the upper and lower limits of the movement of the winch, thus adjusting its range of motion and your specific stage requirements.

The content of the Winch 50 package

1 x Winch 50

4 x Manfrotto Slim coupler

1 x PowerCON NAC3FX-W female plug for power cable

1 x User manual

1 x Cheat sheet

Technical Details

Item number 245
Lifting capacity 50 kg (110.2 lb)
Lifting height 12,5 m (41 ft)
Lifting speed 9-45 cm/s (3.5-17.7 in/s)
Voltage 200-240 VAC
Frequency 50-60 Hz
Power consumption 500 W (2,4-2,1 A)
Power inlet Neutrik powerCON TRUE1 NACPX (F/M)
DMX control signal DMX 512 1990+DMX512A
DMX channels 6
DMX control connection 5 Pole XLR (F/M)
Snap hook 8 mm (5/16 in) galvanized steel
Fleet angle None
Fleet travel 83 mm (3.3 in)
Minimum load 5 kg (11.02 lb)
Noise emission ≈50 dB at 1m (3.3 ft)
Ambient temperature 5-40 °C (41-104 °F)
Mounting clamp 4 x Slim eye coupler 42-52mm (2 in)
Motor 230 VAC, 0.55 kW
Duty cycle 30 % when running more than 10 min.
Lifting wire 3 mm (1/8 in) 19x7 galv. steel wire (EN 12385-4)
Minimum wire breaking load 588 kg (5766 N / 1296 lb)
Wire safety factor >10
Expected wire lifetime - 10 kg (22 lb) load Pending
Expected wire lifetime - 20 kg (44.1 lb) load Pending
Expected wire lifetime - 40 kg (88.2 lb) load Pending
Shipping weight 31 kg (68.34 lb)
Weight 29.1 kg (64.2 lb)

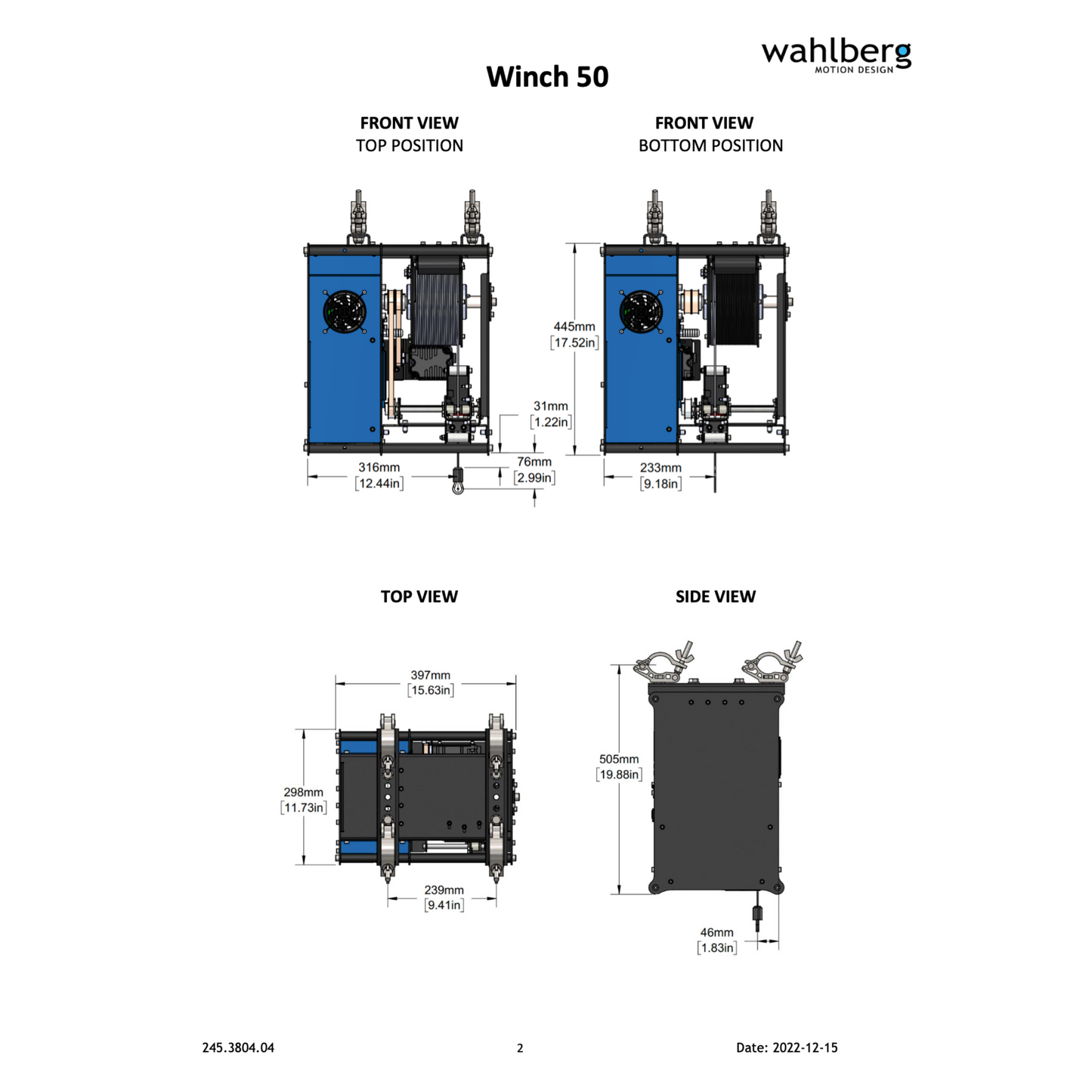

Dimensions 345 x 298 x 445 mm (13,6 x 11,7 x 17,5 in)

Downloads

Type Name
pdf 245.805.009_Manual_Winch50 Download
pdf 245.806.003_Winch50_cheat-sheet_A5 Download

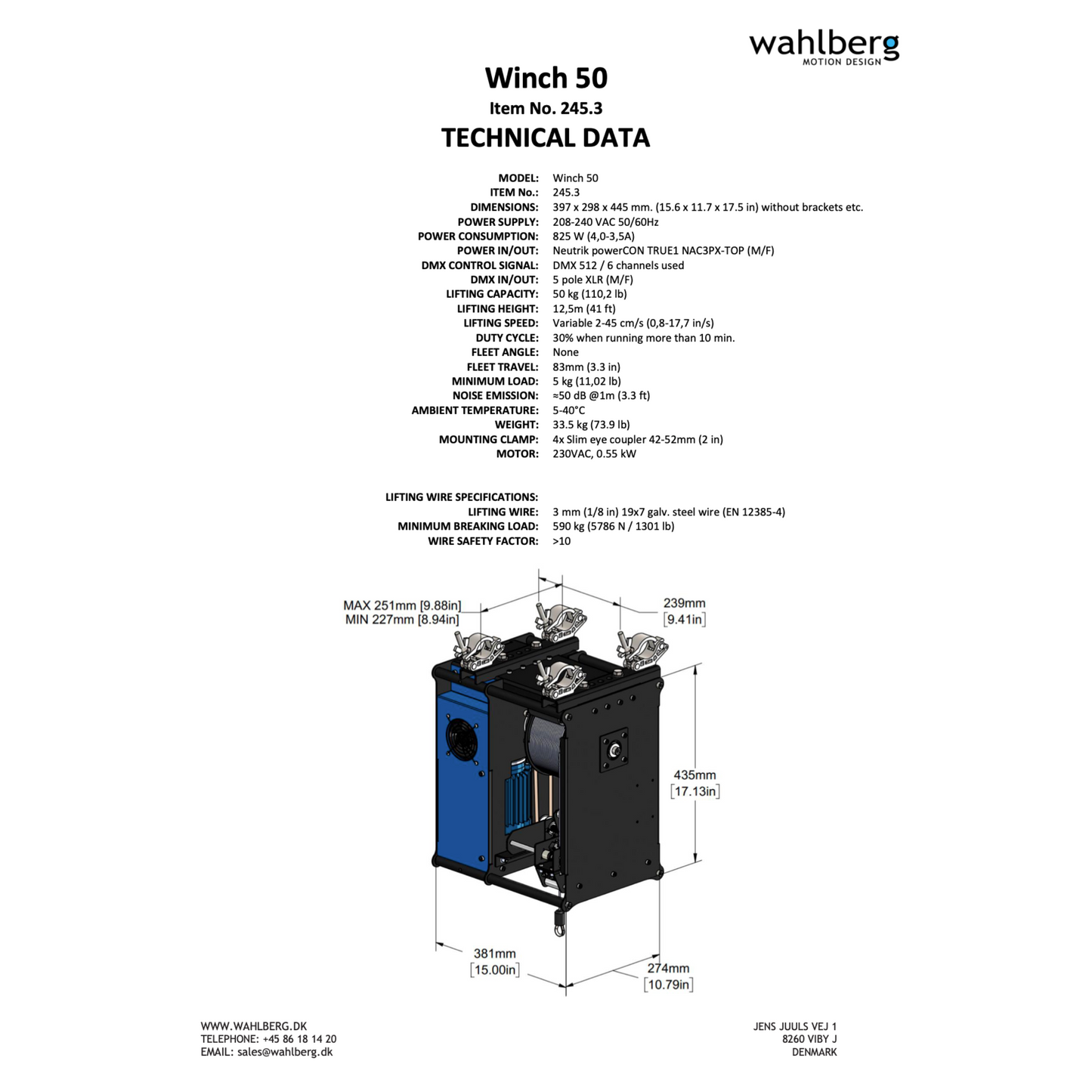

pdf 245.804.002_Data-sheet-winch-50 Download
STEP 245.001.001_W50 Download
